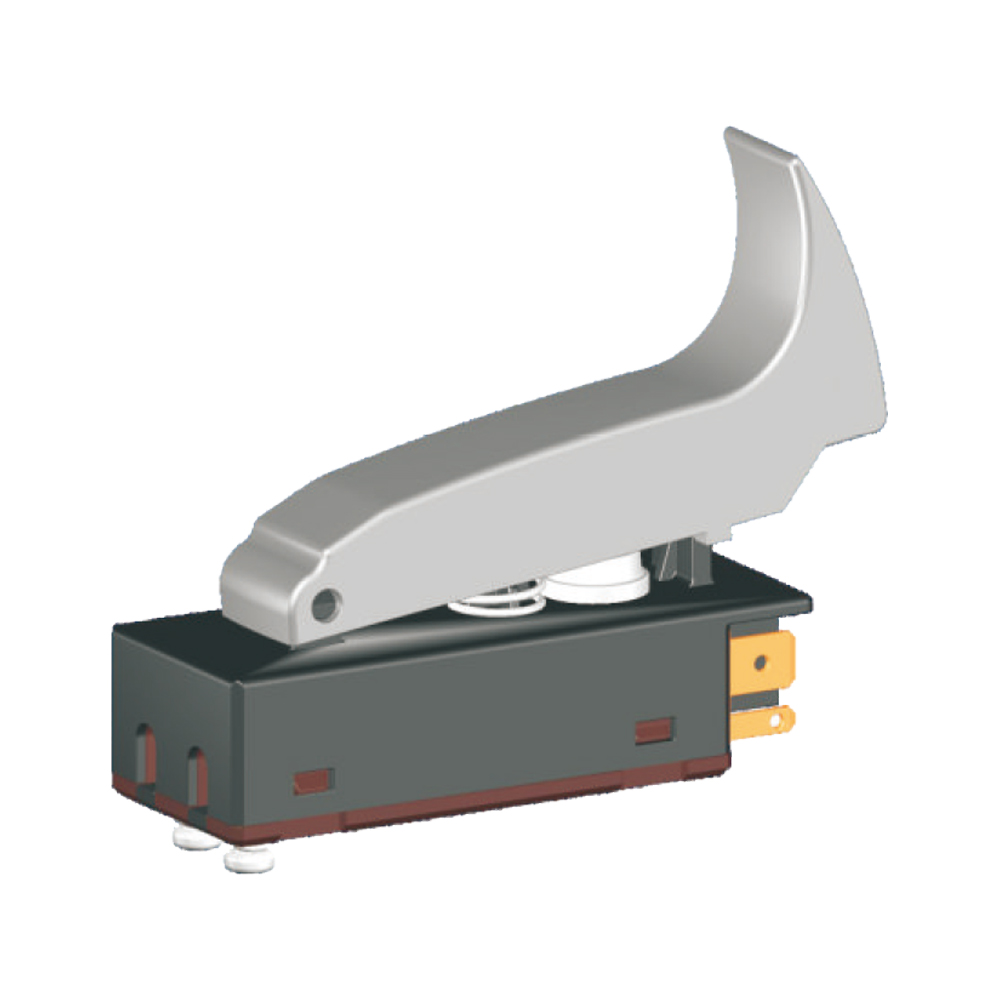

◆ TS13 系列是一款专用性的大电流扳机开关，集成防尘功能，内部为快速动作结构，广泛应用于各类的电动工具，如：型材切割机，斜切锯（介铝机），125和150角向磨光机，电锤，电镐等。有超过10种主体和扳机可供选择，也可按召客户要求定制。
◆ TS13 series are special type high rated trigger switch, integrated dustproof, withsnap-action structure, for used in high rated power-tools such as: Cut-off Machines, Miter Saws, 180mm and 230mm Angle Grinders, Rotary Hammers, Demolition Hammers, etc. These switch has more than 10 body and trigger types for customer's choice, also accept customize according to customer's request.

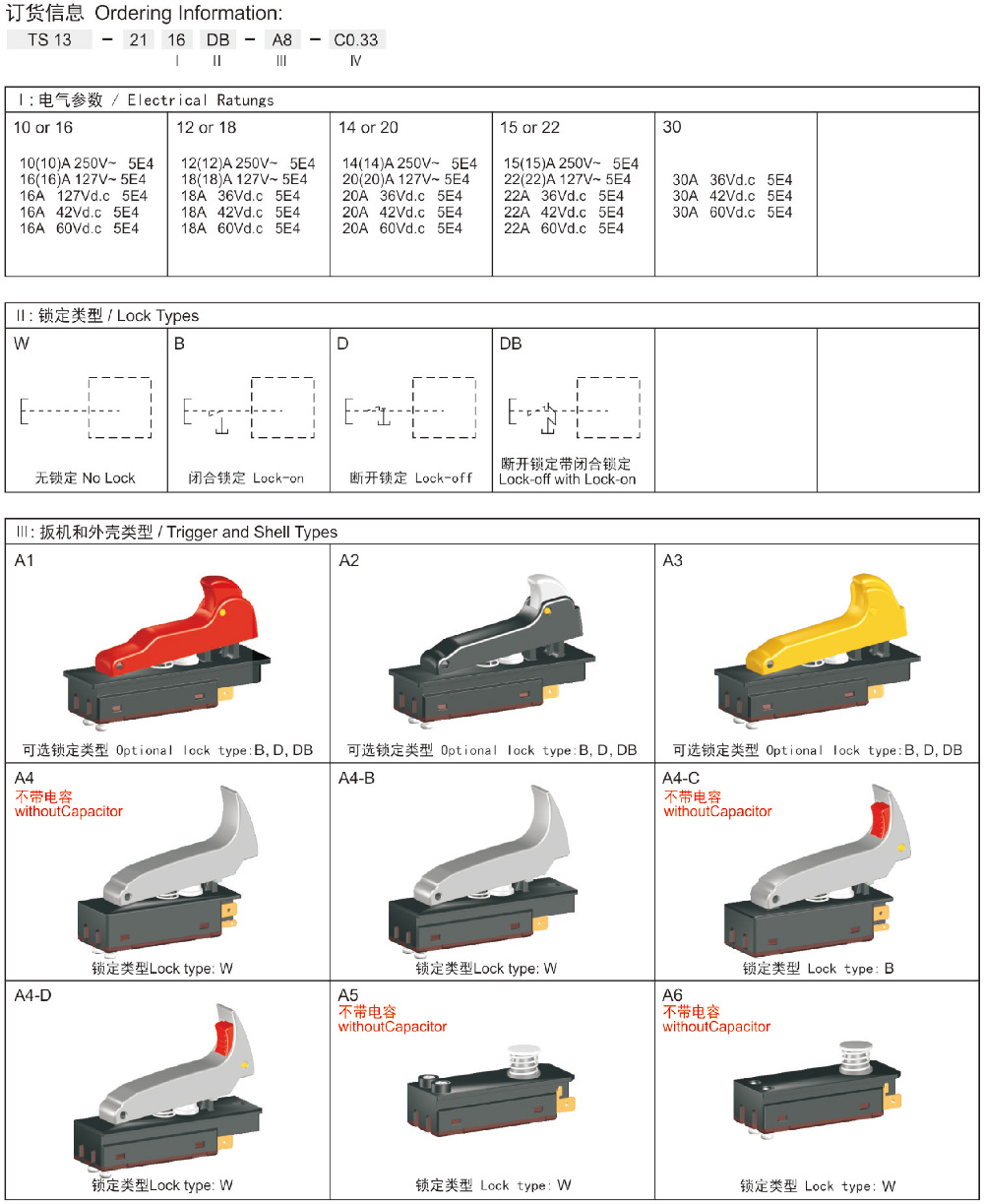

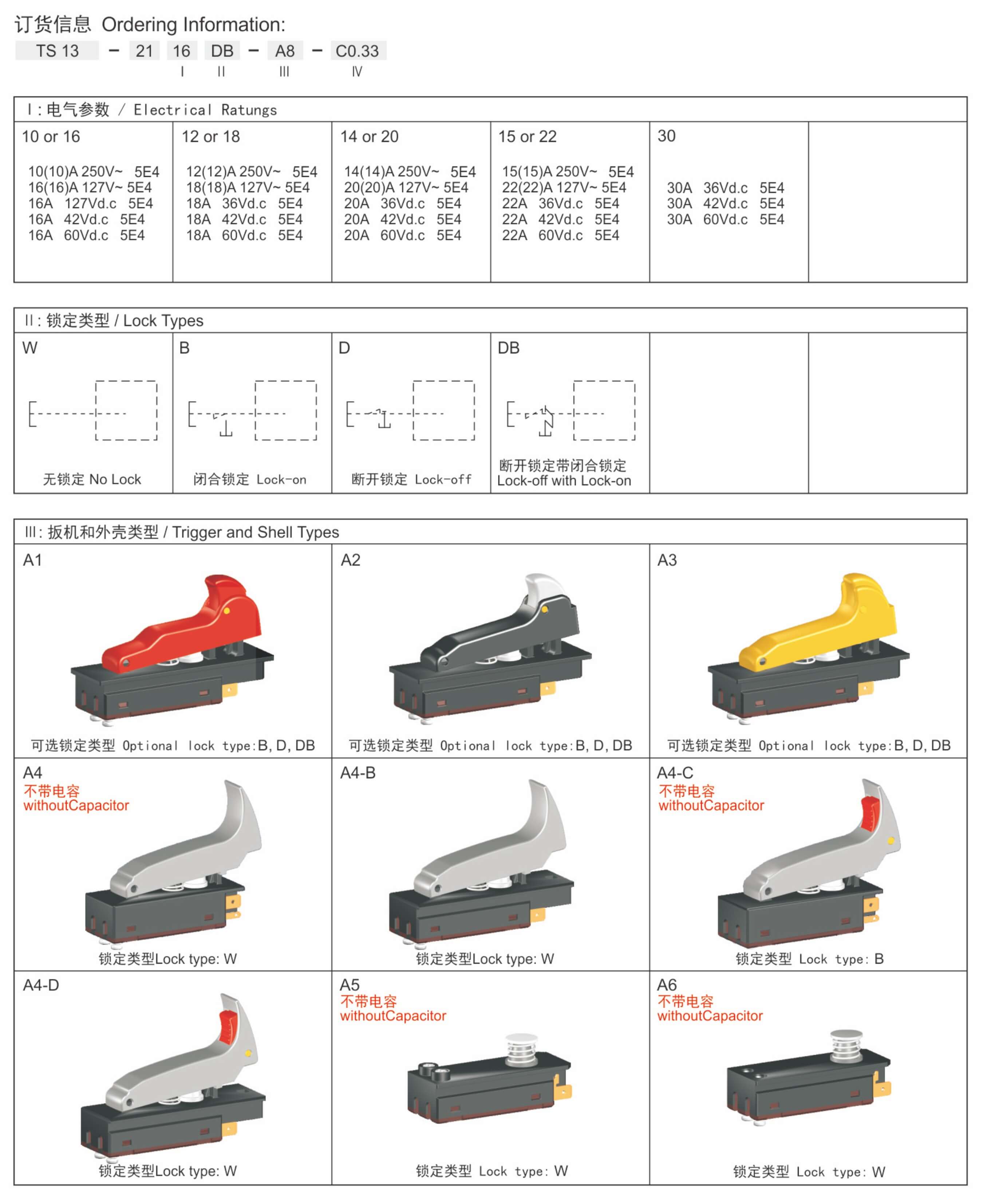

◆ 可选带以下锁定类型： Optional with Following lock types:
→ 无锁 No Lock
→ 闭合锁定 Lock-on
→ 断开锁定 Lock-off
→ 断开锁定带闭合锁定 Lock-off with Lock-on
◆ 可选带以下附件： Optional with the accessor as follows:
→ 滤波电容（电容值由客户选定，一般为0.22uF或0.33uF） Suppression capacitor (commonly 0.22 or 0.33μF)
| → 机械耐久寿命 Mechanical life endurance | ≥1E5 |
| → 电气耐久寿命 Electrical life endurance | ≥5E4 |
| → 最大冲击电流 Max. Inrush current at 250V | 90A |
| → 最大冲击电流 Max. Inrush current at 127V | 132A |
| → 接触电阻 Contact resistance | ≤30m Ohm |
| → 绝缘电阻 Insulation resistance | ≥7M Ohm |
| → 基本介电强度 Dielectric strength of function | 1500V |
| → 加强介电强度 Dielectric strength of reinforced | 3000V |
| → 环境温度 Ambient temperature | 0℃~55℃ |
| → 阻燃等级 Flammability | UL 94V-0 |
| → 防护等级 Protection type | IP40 |
| → 适用于II类防护器具 Suitable for appliances of protection class II | |
◆ 输入端 Input side:
→ 2×接线柱端子 / 螺钉M4 4×Pillar teminal Φ=3mm / Screw M4
◆ 输出端 Output side:
→ 2×插片端子 Plug-in terminals 6.3×0.8mm
◆ 电容端子 Terminals for Suppression capacitor:
→ 2×插片端子 Plug-in terminals 2.8×0.8mm
