◆ TS10 系列是一款专用性的扳机开关，集成防尘功能，内部为快速动作结构，适合一般功率的台式和手持式电动工具及园林工具，如：型材切割机，斜切锯（介铝机），125，150和180角向磨光机，抛光机，电锤，电镐，电链锯等
◆ TS10 series are specific type trigger switch, integrated dustproof, withsnap-action structure, for used in portable or bench top power-tools such as: Cut-off Machines, Miter Saws, 125mm, 150mm and 180mm Angle Grinders, Rotary Hammers, Demolition Hammers, Electric Chain Saws, etc.

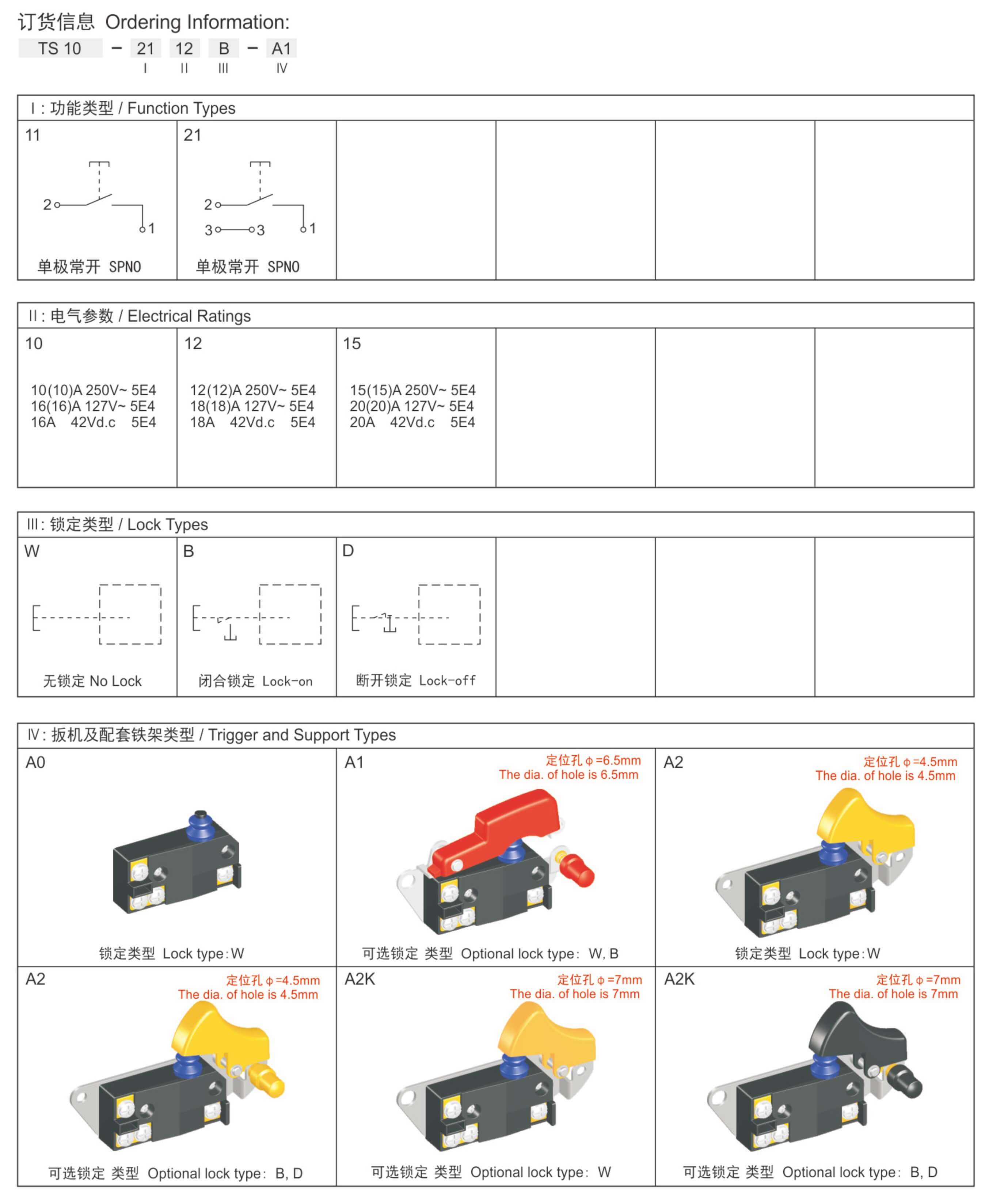

◆ 可选带以下锁定类型： Optional with Following lock types:
→ 无锁 No Lock
→ 闭合锁定 Lock-on
| → 机械耐久寿命 Mechanical life endurance | ≥1E5 |
| → 电气耐久寿命 Electrical life endurance | ≥5E4 |
| → 最大冲击电流 Max. Inrush current at 250V | 90A |
| → 最大冲击电流 Max. Inrush current at 125V | 120A |
| → 接触电阻 Contact resistance | ≤30m Ohm |
| → 绝缘电阻 Insulation resistance | ≥7M Ohm |
| → 基本介电强度 Dielectric strength of function | 1500V |
| → 加强介电强度 Dielectric strength of reinforced | 3000V |
| → 环境温度 Ambient temperature | 0℃~55℃ |
| → 阻燃等级 Flammability | UL 94V-0 |
| → 防护等级 Protection type | IP40 |
| → 适用于II类防护器具 Suitable for appliances of protection class II | |
◆ 输入端/输出端 Input side/Output side:
→ 螺钉端子 Screw teminal M4
