◆ TS11 系列是一款通用性的大电流扳机开关，集成防尘功能，内部为快速动作结构，适合大功率的电动工具，如：型材切割机，斜切锯（介铝机），180和230角向磨光机，重型电锤，重型电镐等。主体和扳机可按照客户要求进行定制。
◆ TS11 series are one general type high rated trigger switch, integrated dustproof, withsnap-action structure, for used in high rated power-tools such as: Cut-off Machines, Miter Saws, 180mm and 230mm Angle Grinders, Heavy Rotary Hammers, Heavy Demolition Hammers, etc. The body and trigger accept customize according to customer's request.

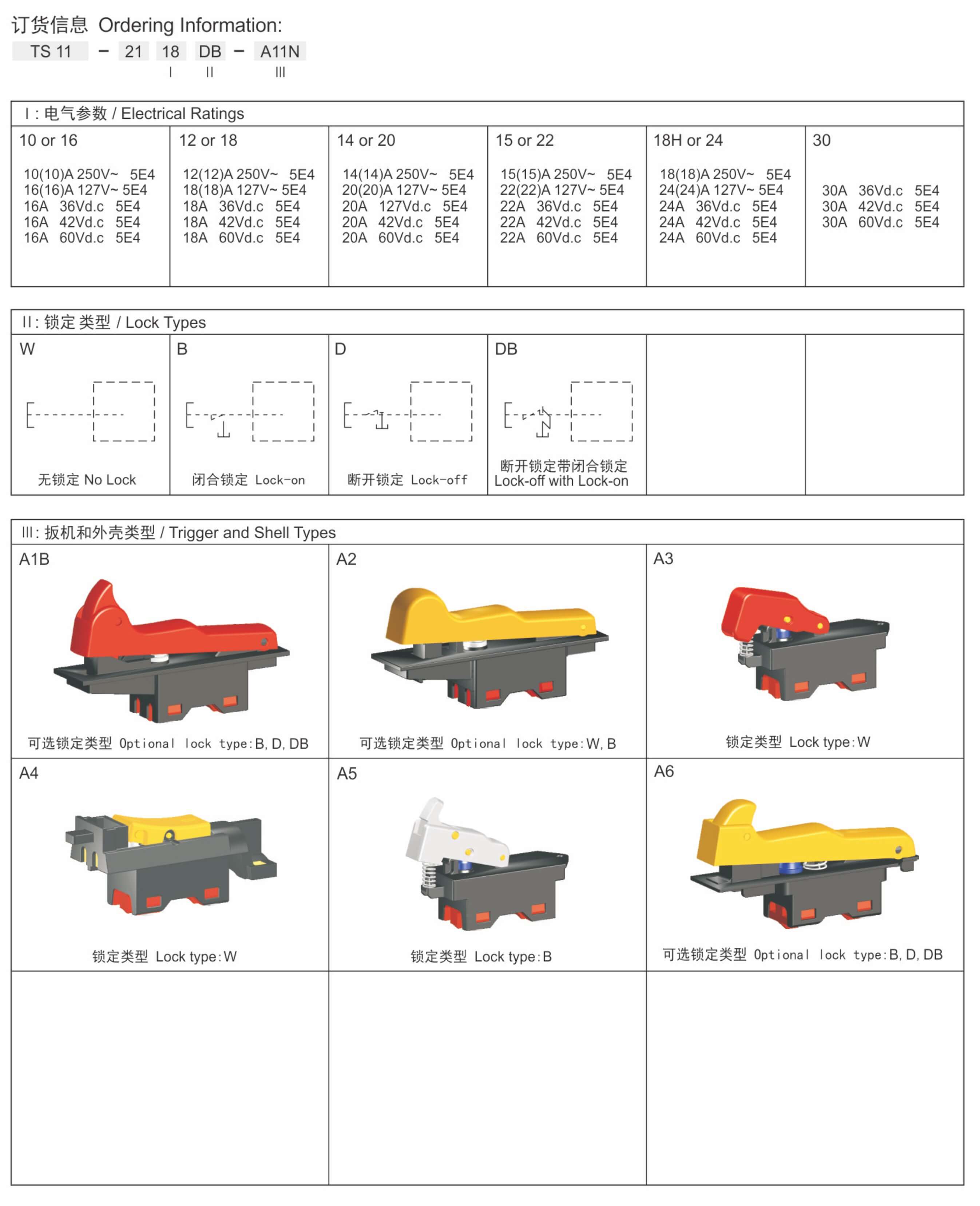

◆ 可选带以下锁定类型： Optional with Following lock types:
→ 无锁 No Lock
→ 闭合锁定 Lock-on
→ 断开锁定 Lock-off
→ 断开锁定带闭合锁定 Lock-off with Lock-on
| → 机械耐久寿命 Mechanical life endurance | ≥1E5 |
| → 电气耐久寿命 Electrical life endurance | ≥5E4 |
| → 最大冲击电流 Max. Inrush current at 250V | 120A |
| → 最大冲击电流 Max. Inrush current at 127V | 144A |
| → 接触电阻 Contact resistance | ≤30m Ohm |
| → 绝缘电阻 Insulation resistance | ≥7M Ohm |
| → 基本介电强度 Dielectric strength of function | 1500V |
| → 加强介电强度 Dielectric strength of reinforced | 3000V |
| → 环境温度 Ambient temperature | 0℃~55℃ |
| → 阻燃等级 Flammability | UL 94V-0 |
| → 防护等级 Protection type | IP40 |
| → 适用于II类防护器具 Suitable for appliances of protection class II | |
◆ 输入端/输出端 Input side/Output side:
→ 4×接线柱端子 4×Pillar teminal Φ=3mm
