◆ TS08 系列是一款通用性的大电流扳机开关，集成防尘功能，内部为快速动作结构，适合大功率的台式和手持式电动工具以及园林工具，如：型材切割机，斜切锯（介铝机），150，180和230大角磨，抛光机，电圆锯，电锤，电镐等，电链锯等
◆ TS08 series are general typehigh rated trigger switches, integrated dustproof, with snap-action structure, for used in high rated bench-top, portable power-tools and gardening tools such as: Cut-off Machines, Miter Saws, 150mm,180mm and 230mm Large Angle Grinders, Polishers, Circular Saws, Rotary Hammers, Demolition Hammers, Electric Chain Saws, etc.

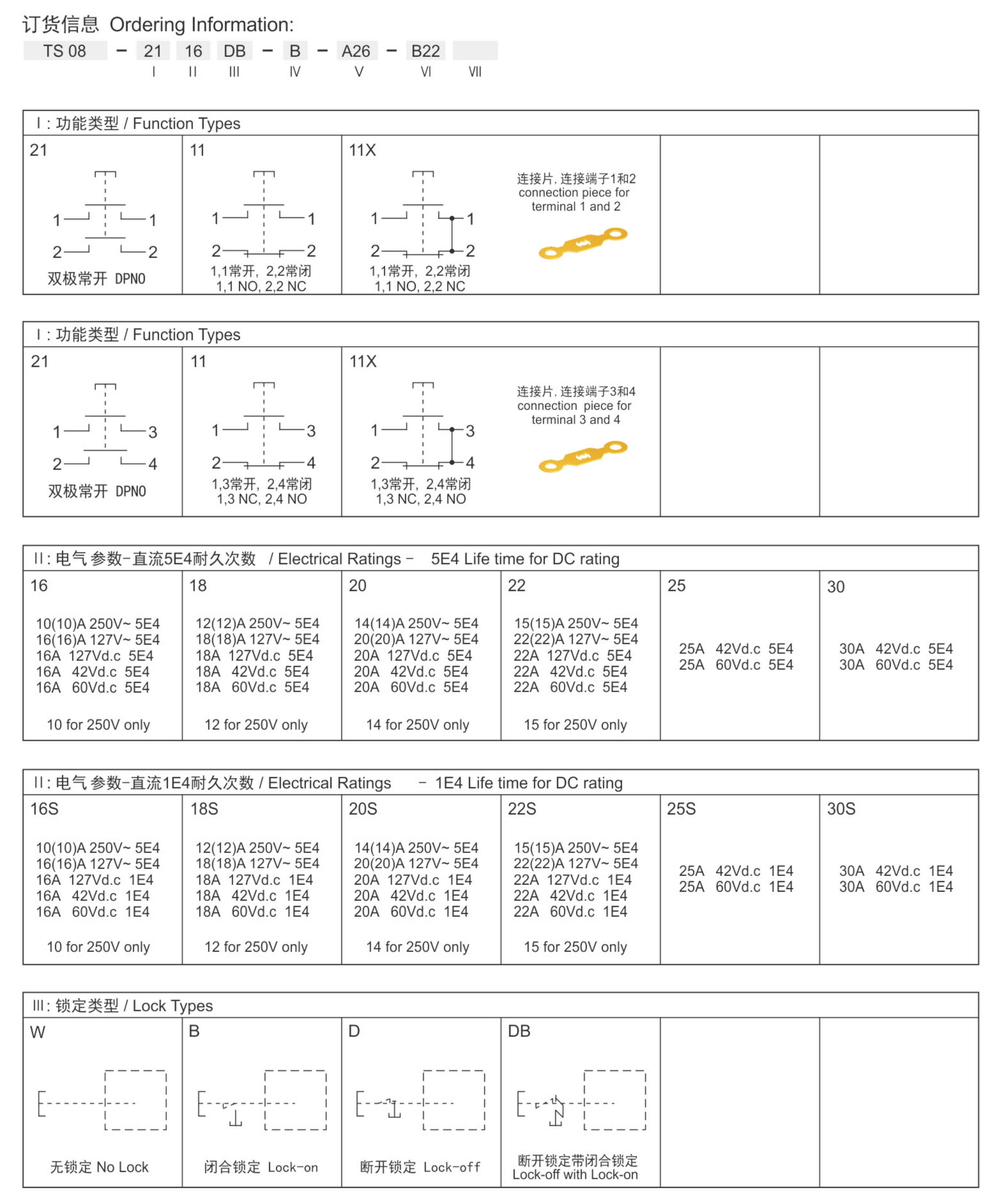

◆ 可选带以下功能： Optional with the function as follows:
→ 双极常开 DPNO (Double Pole Normally Open)
→ 一极常开，另一极常闭 One Pole NO, the other NC
→ 单极双掷（常闭常开）（用极间连接片实现） SPDT (with pole joint)
◆ 可选带以下附件： Optional with the accessories as follows:

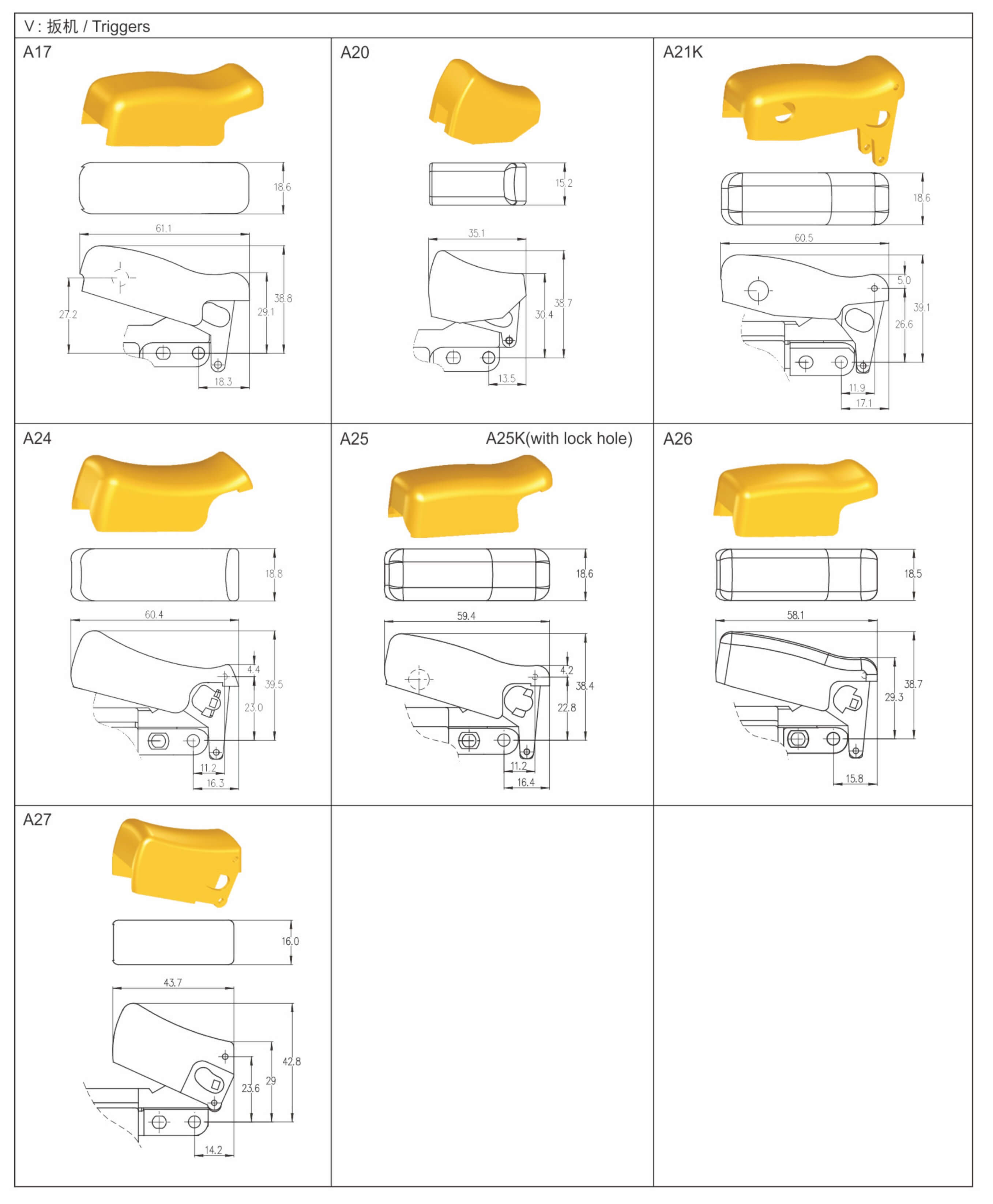

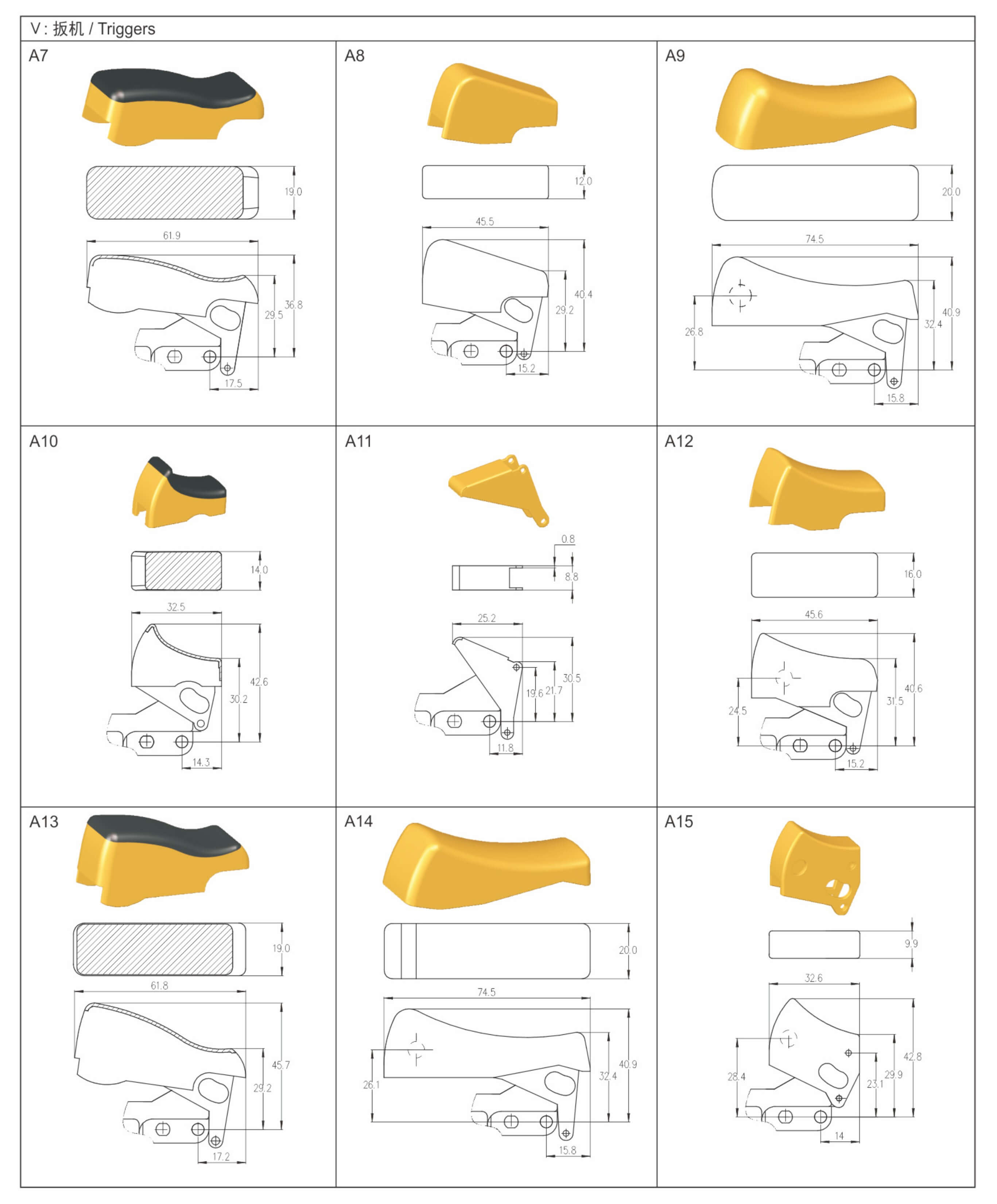

→ 带软胶扳机 Trigger coverde with rubber (overmolding)
→ 刹车连接片 Connection Piece for brake

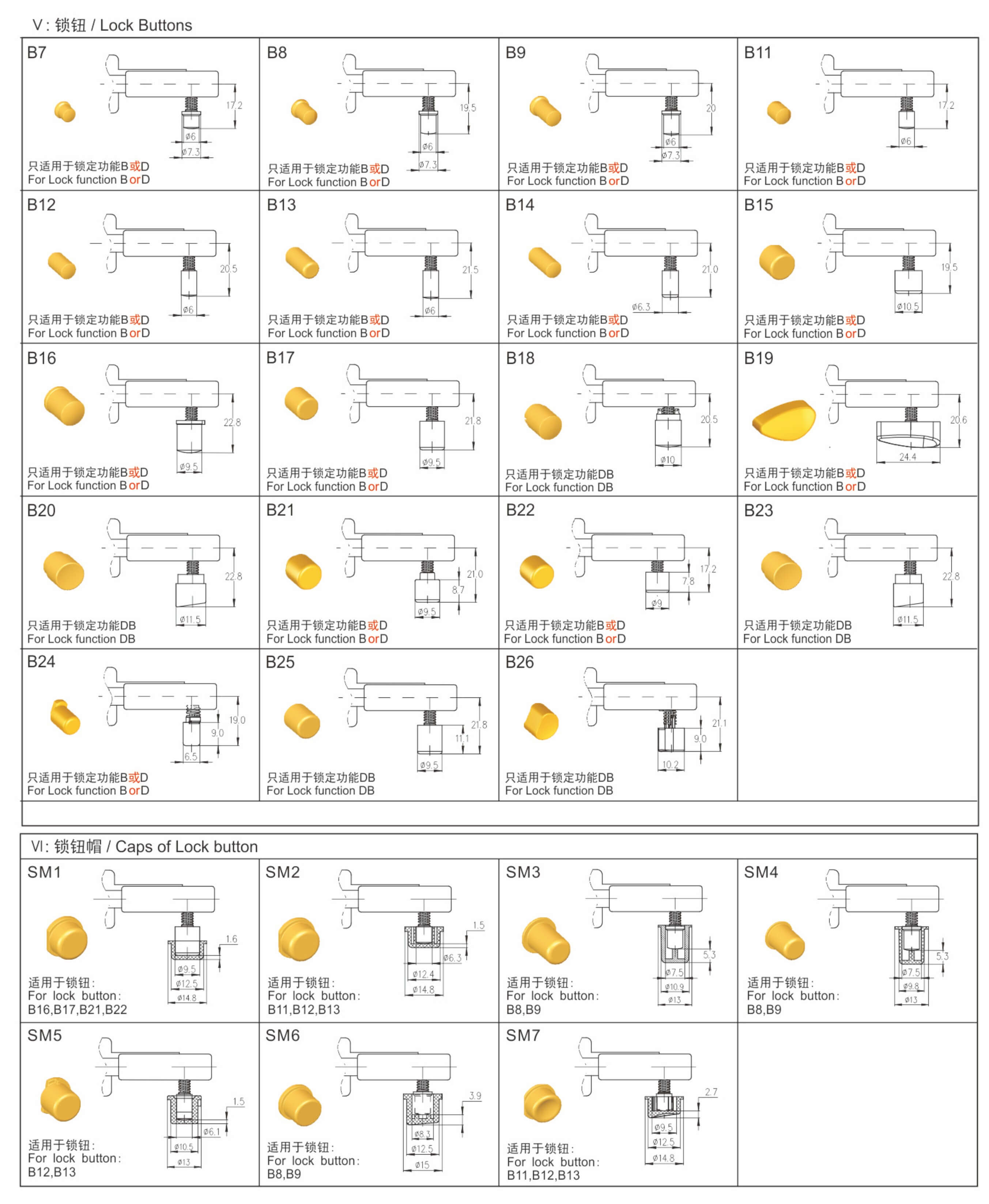

◆ 可选带以下锁定类型： Optional with Following lock types:
→ 无锁 No Lock
→ 闭合锁定 Lock-on
→ 断开锁定 Lock-off
→ 断开锁定带闭合锁定 Lock-off with lock-on
→ 有部分外壳结构断开锁定抗压力≥300N Some shell for lock-off, the resistibility of lock-off ≥300N
| → 机械耐久寿命 Mechanical life endurance | ≥1E5 |
| → 电气耐久寿命 Electrical life endurance | ≥5E4 |
| → 最大冲击电流 Max. Inrush current at 250V | 90A |
| → 最大冲击电流 Max. Inrush current at 127V | 132A |
| → 接触电阻 Contact resistance | ≤30m Ohm |
| → 绝缘电阻 Insulation resistance | ≥7M Ohm |
| → 基本介电强度 Dielectric strength of function | 1500V |
| → 加强介电强度 Dielectric strength of reinforced | 3000V |
| → 环境温度 Ambient temperature | 0℃~55℃ |
| → 阻燃等级 Flammability | UL 94V-0 |
| → 防护等级 Protection type | IP40 |
| → 适用于II类防护器具 Suitable for appliances of protection class II | |
◆ 输入端/输出端 Input side/Output side:
→ 4×螺钉端子 4×Screw teminal M4
★ 本产品荣获实用新型专利
★ Utility Model patented
