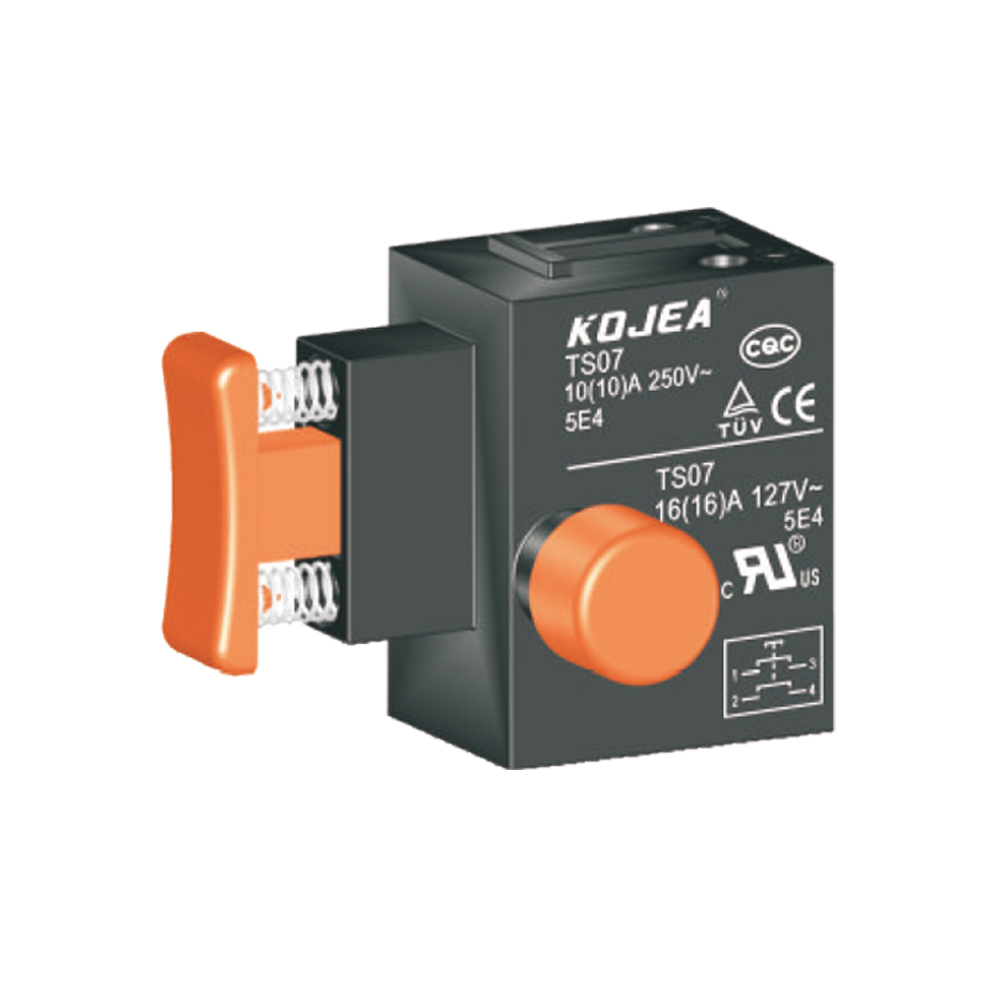

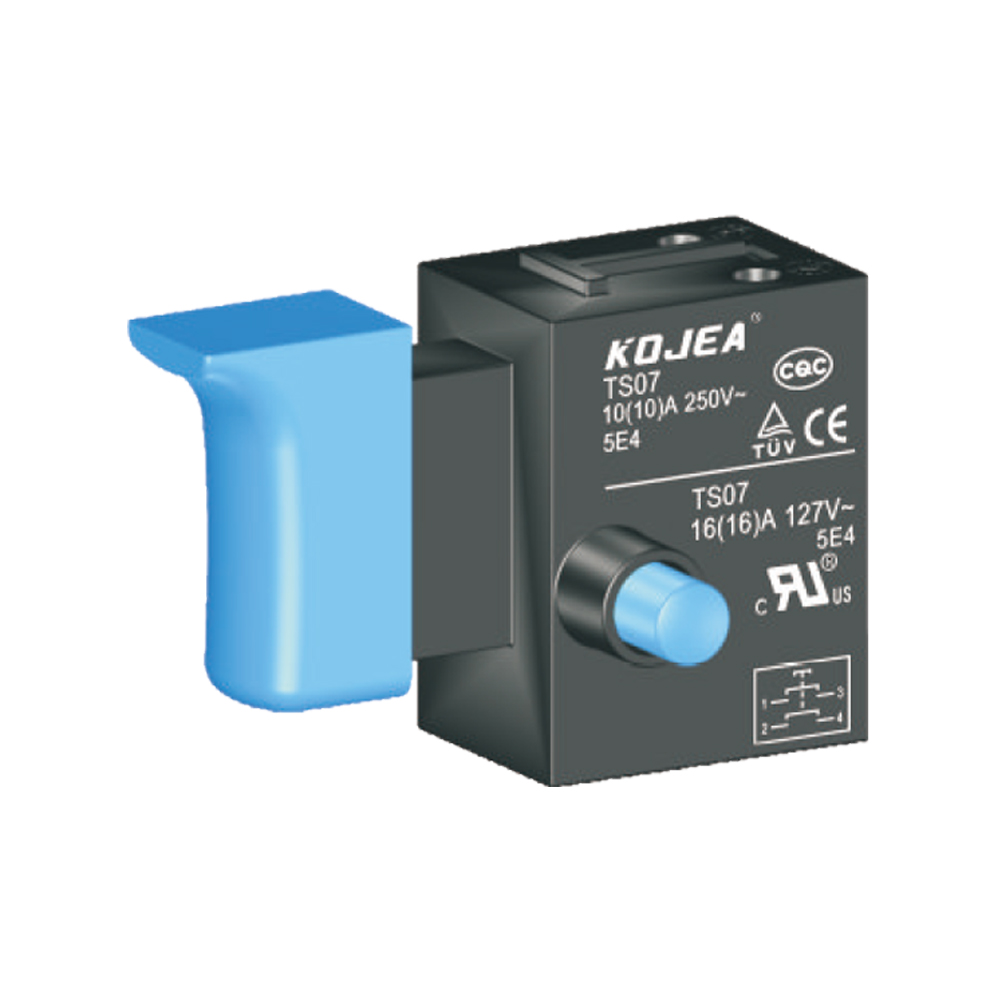

◆ TS07 系列是一款通用型的扳机开关，内部为快速动作结构，可选内部集成防尘功能，应用于对防尘要求较低的电动工具和园林工具，如：搅拌器，电圆锯，曲线锯，抛光机，电刨，电锤，电镐，型材切割机，斜切锯，电链锯，电动割草机等
◆ TS07 series are one general type trigger switch, with snap-action structure, optional integrated dustproof, for used in power-tools and gardening tools such as: Electric Mixers, Circular Saws, Jig Saws, Polishers Grinders, Electric Planers, Rotary Hammers, Demolition Hammers, Miter Saws, Cut-off Machines, Electric ChainSaws, Electric Lawnmowers, etc.

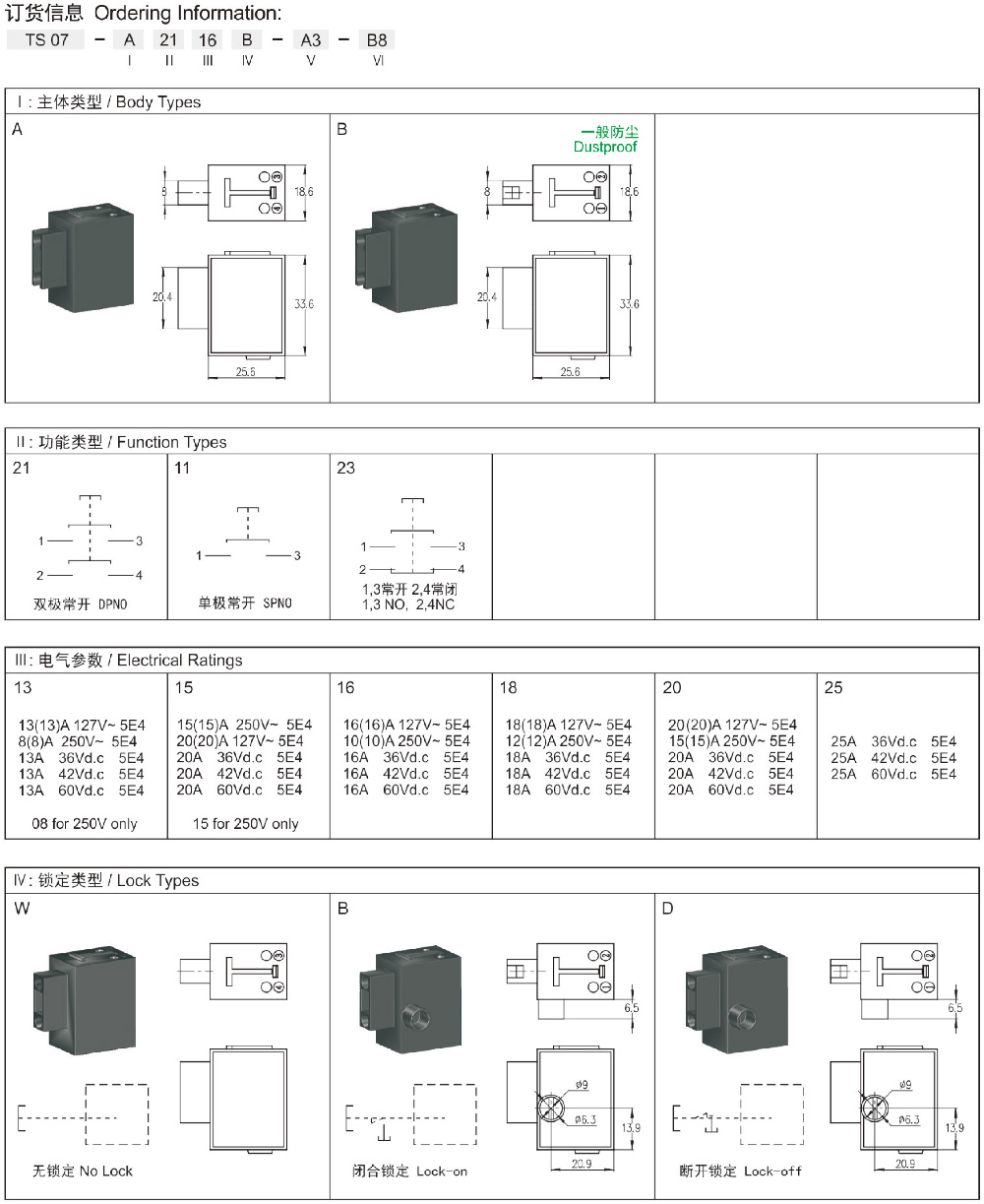

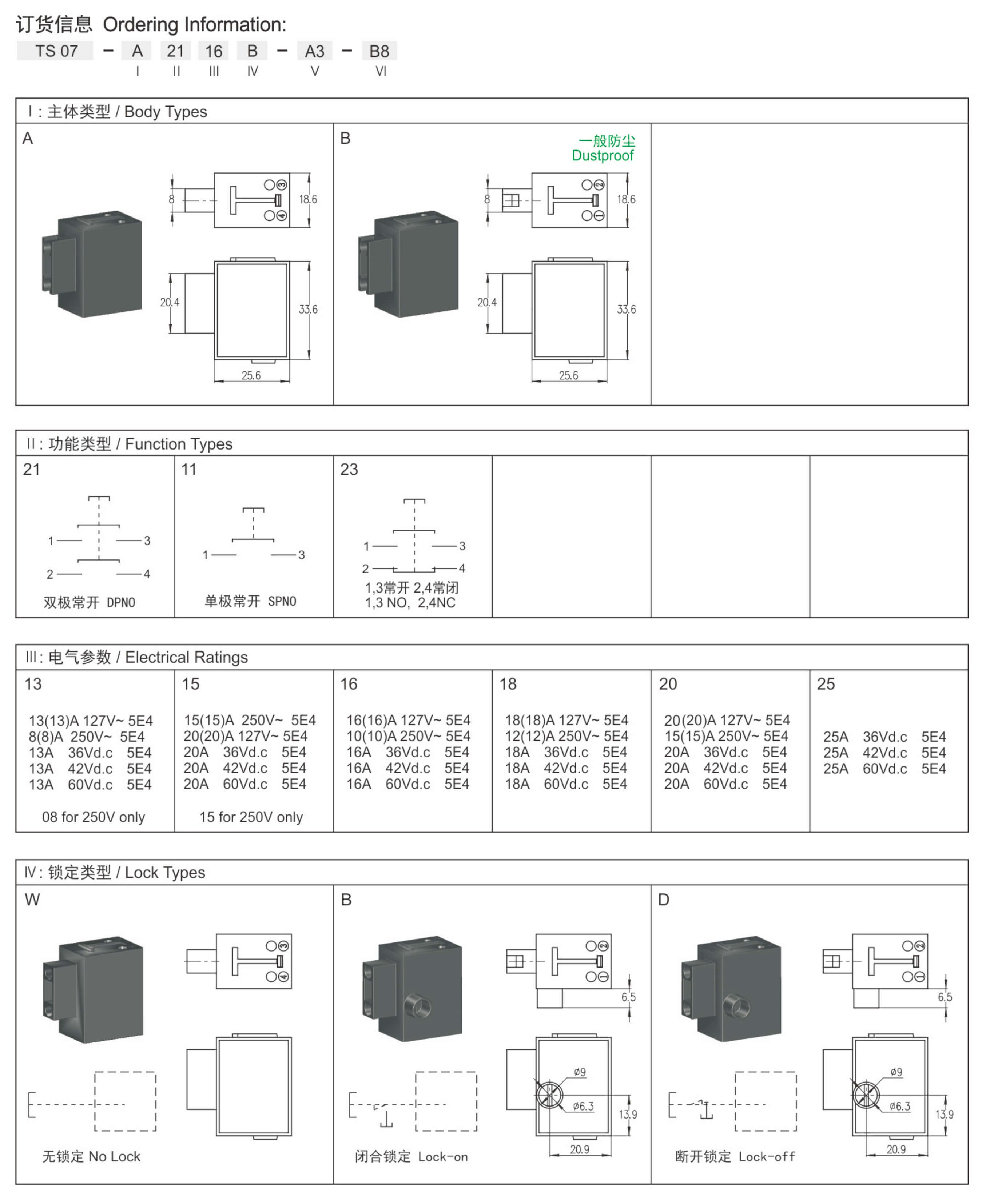

◆ 可选带以下锁定类型： Optional with Following lock types:
→ 无锁 No Lock
→ 闭合锁定 Lock-on
→ 断开锁定 Lock-off
◆ 可选带以下功能或附件： Optional with the function or accessories as follows:
→ 双极常开 DPNO (Double Pole Normally Open)
→ 单极常开 SPNO (Single Pole Normally Open)
→ 一极常开，另一极常闭 One Pole NO, the other NC

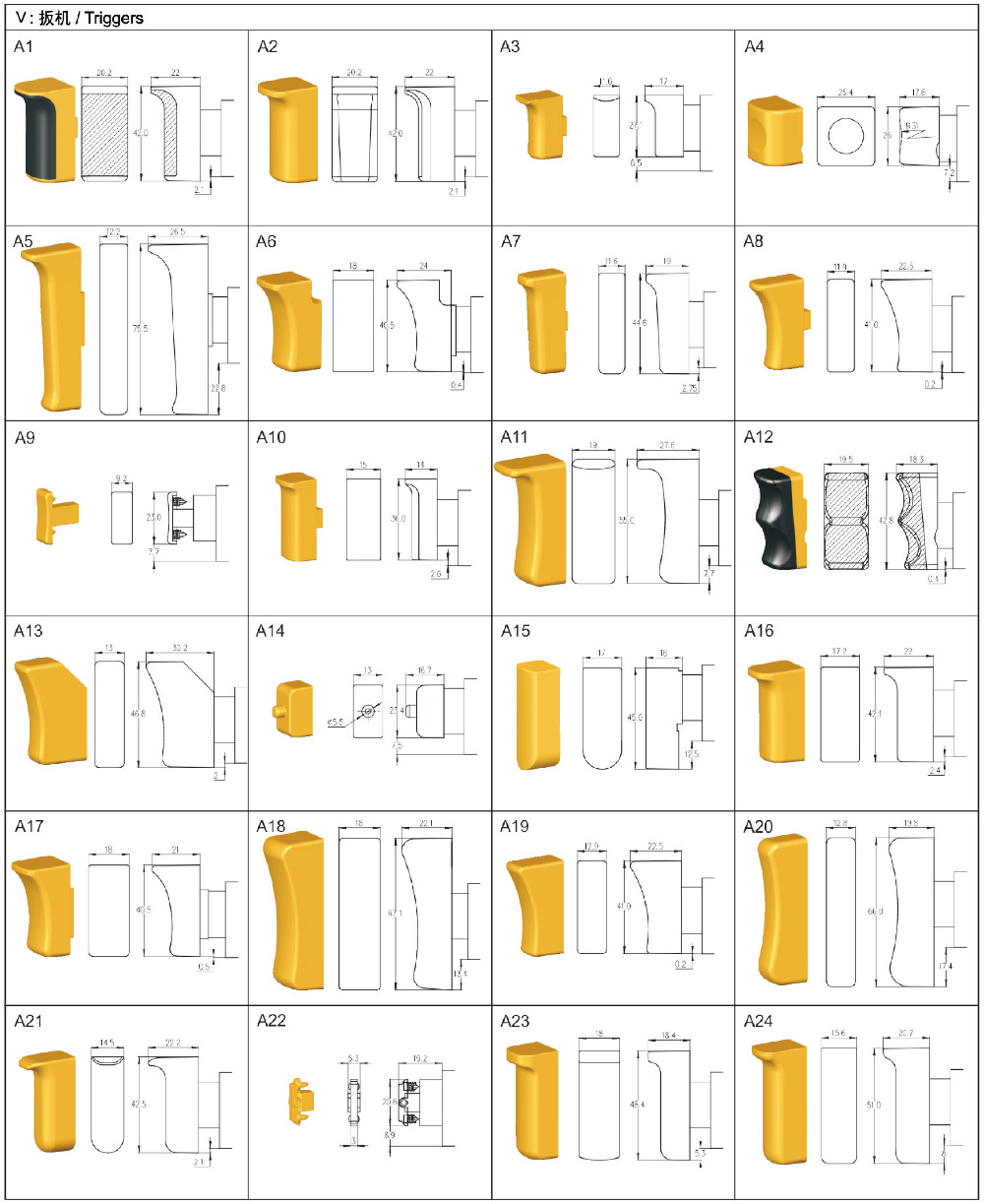

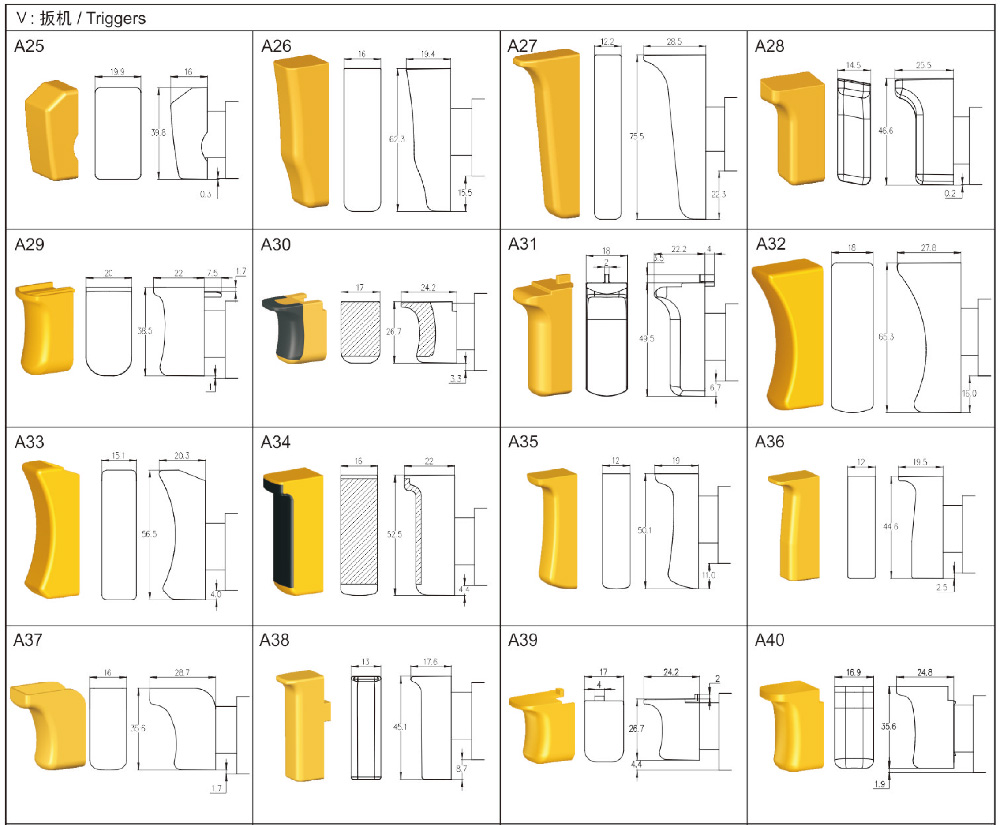

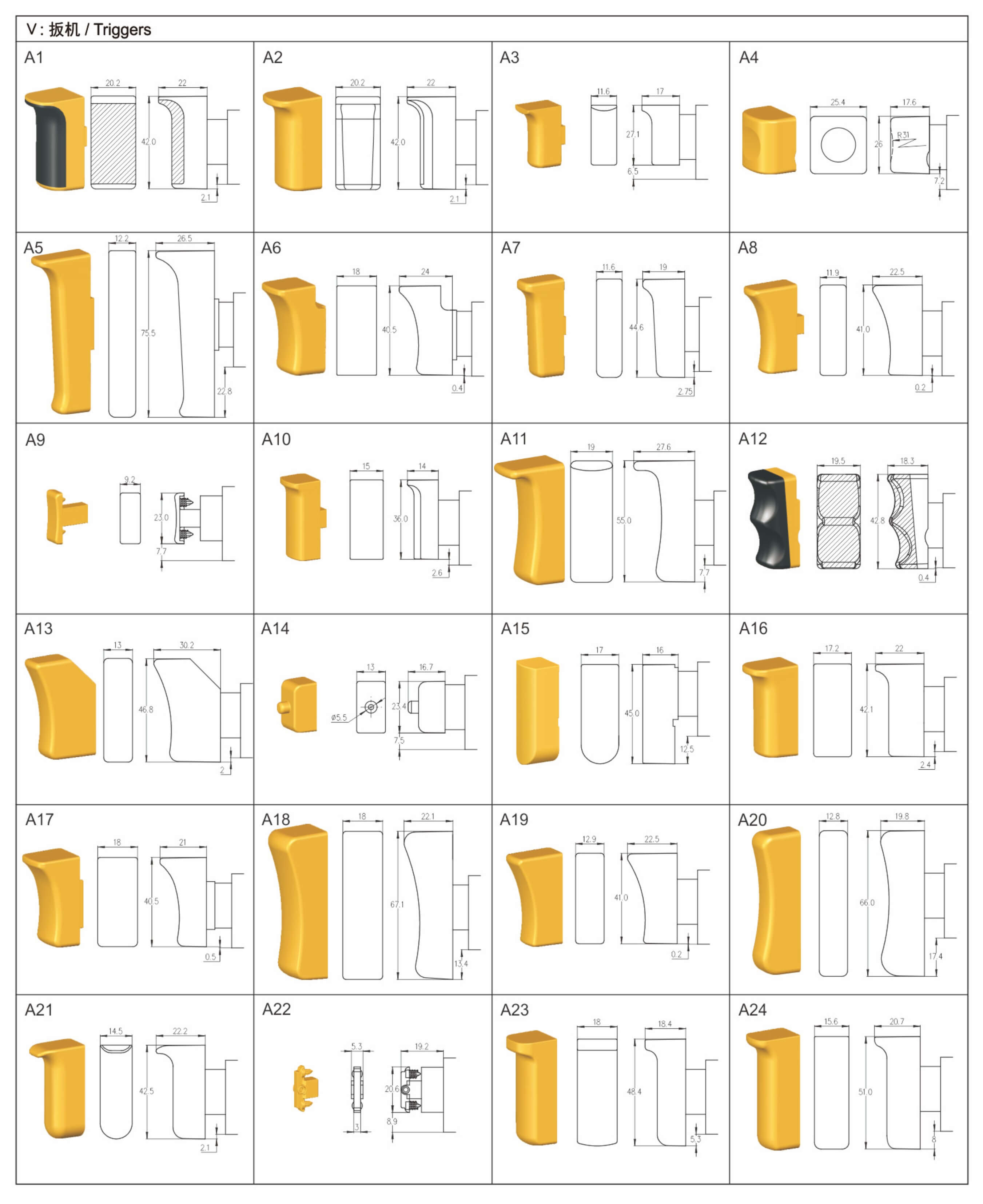

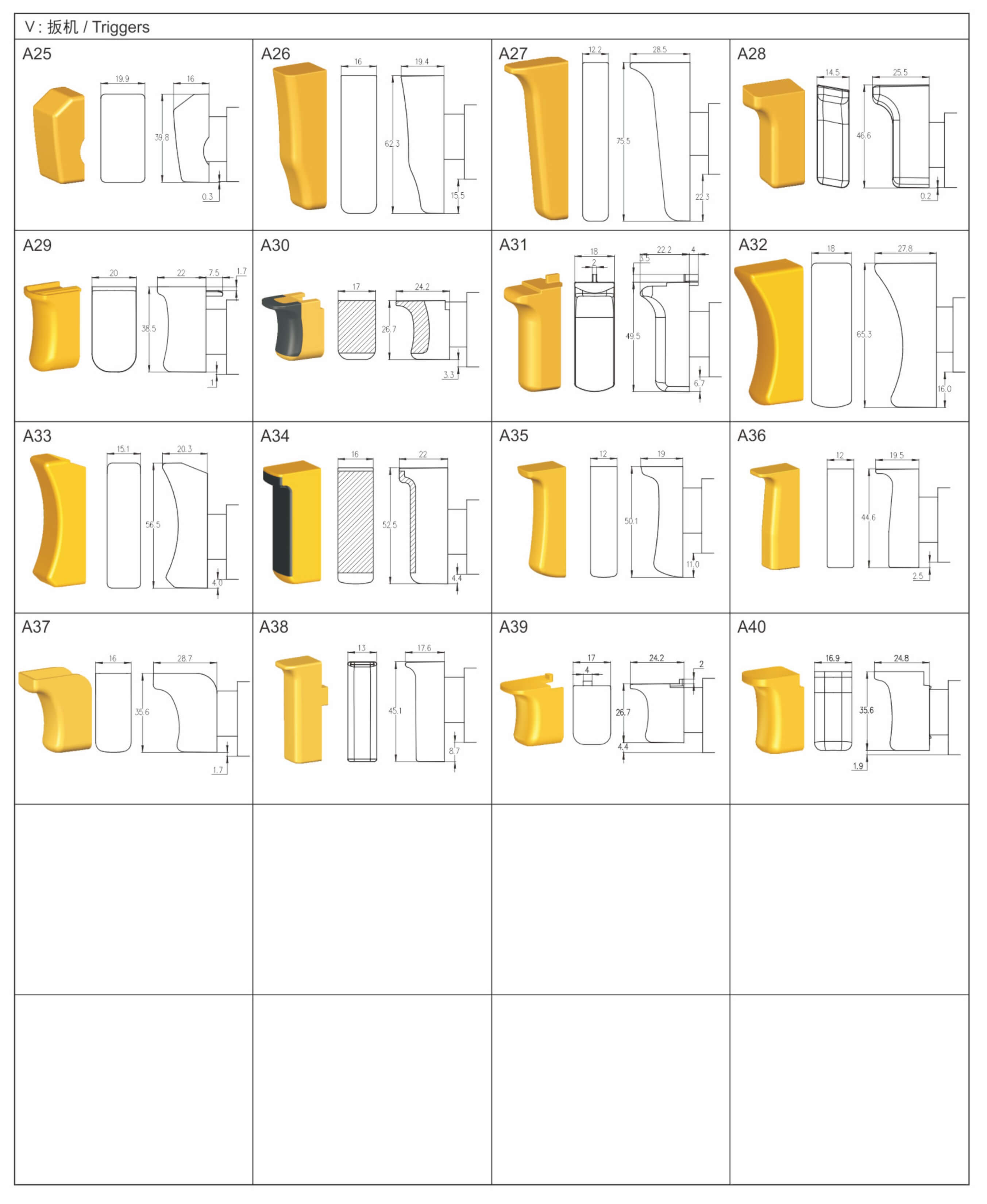

→ 包软胶扳机 Rubberized Trigger (overmolding)
| → 机械耐久寿命 Mechanical life endurance | ≥1E5 |
| → 电气耐久寿命 Electrical life endurance | ≥5E4 |
| → 最大冲击电流 Max. Inrush current at 250V | 90A |
| → 最大冲击电流 Max. Inrush current at 127V | 120A |
| → 接触电阻 Contact resistance | ≤30m Ohm |
| → 绝缘电阻 Insulation resistance | ≥7M Ohm |
| → 基本介电强度 Dielectric strength of function | 1500V |
| → 加强介电强度 Dielectric strength of reinforced | 3000V |
| → 环境温度 Ambient temperature | 0℃~55℃ |
| → 阻燃等级 Flammability | UL 94V-0 |
| → 防护等级 Protection type | IP40 |
| → 适用于II类防护器具 Suitable for appliances of protection class II | |
◆ 输入端/输出端 Input side/Output side:
→ 接线柱端子 Pillar teminal Φ=3.5mm
