◆ TS06 系列是一款通用型的扳机开关，可选集成防尘功能，广泛应用于各类电动工具，如：云石机，电圆锯，电锤，电木铣，砂带机，带锯机，砂光机，电刨，搅拌器，电动喷枪等
◆ TS06 series are one general type trigger switch, optional integrated dustproof version, commonly for used in power tools such as: Marble Cutters, Circular Saws, Electric Hammers, Electric Routers, Belt Sanders, Belt Saws, Electric Planers, Electric Mixers, Electric Sprayers, etc.

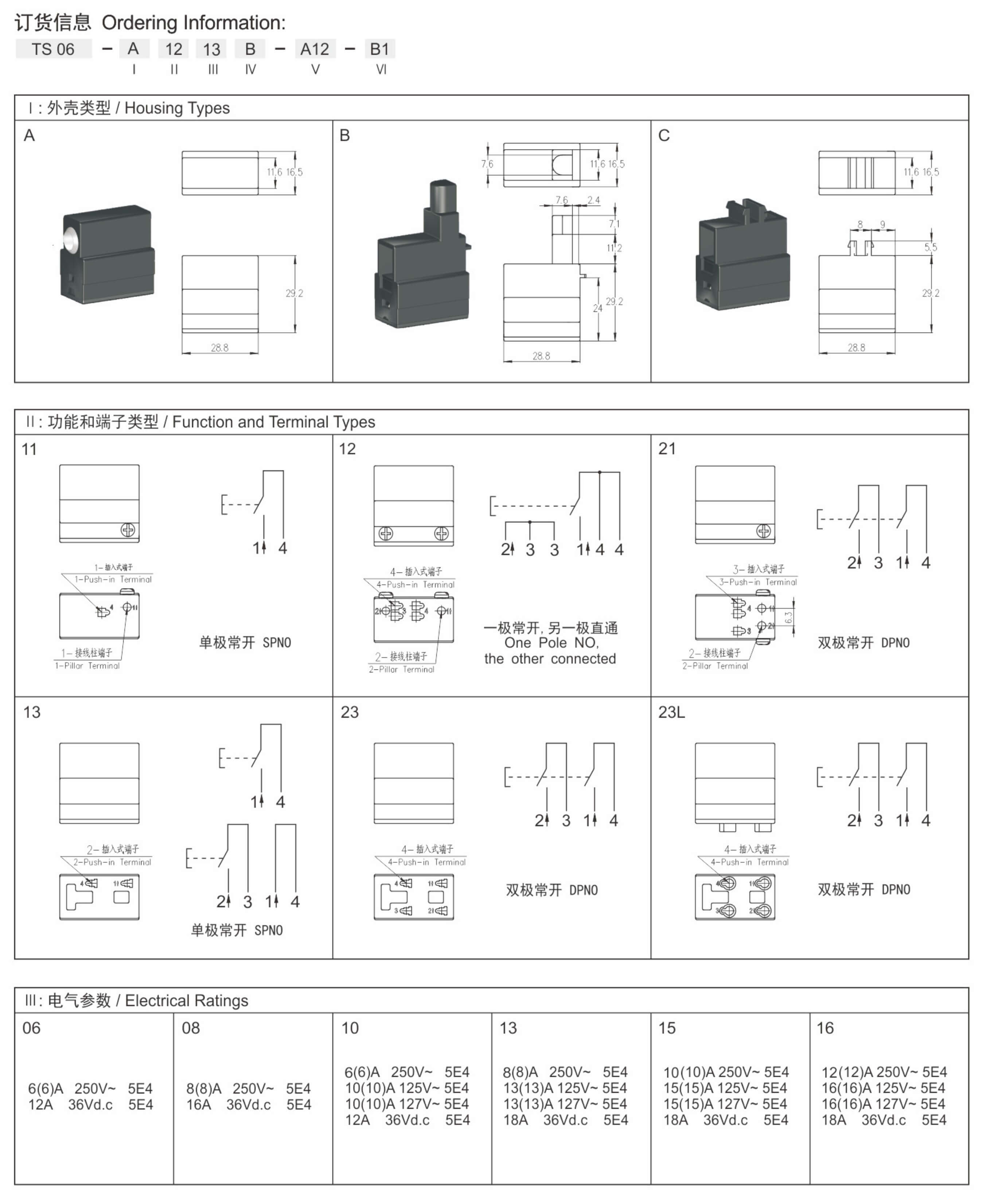

◆ 可选带以下功能： Optional with the function as follows:
→ 双极常开 DPNO (Double Pole Normally Open)
→ 单极常开 SPNO (Single Pole Normally Open)

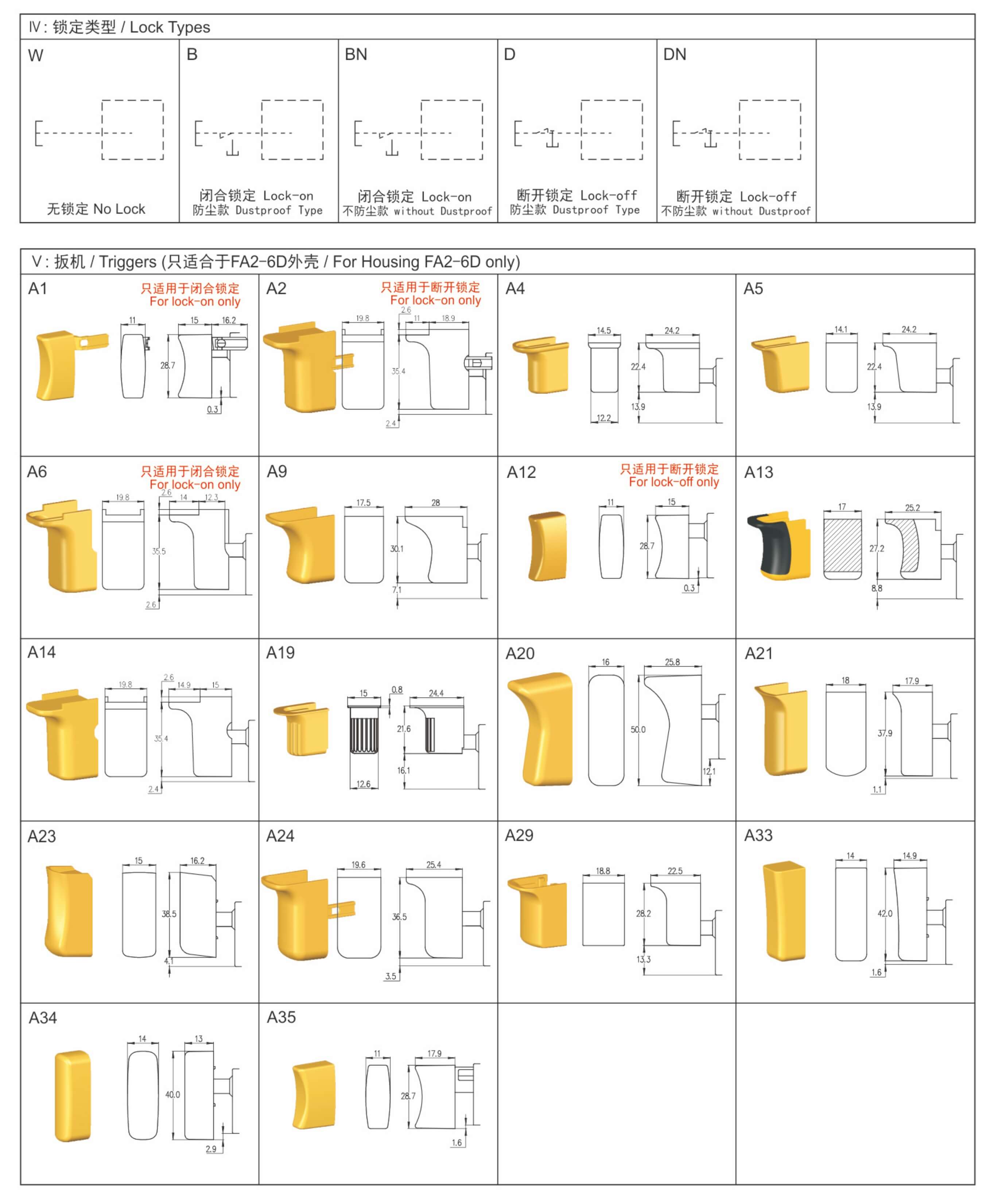

◆ 可选带以下锁定类型： Optional with Following lock types:
→ 无锁 No Lock
→ 闭合锁定 Lock-on
→ 断开锁定 Lock-off
| → 机械耐久寿命 Mechanical life endurance | ≥1E5 |
| → 电气耐久寿命 Electrical life endurance | ≥5E4 |
| → 最大冲击电流 Max. Inrush current at 250V | 48A |
| → 最大冲击电流 Max. Inrush current at 125V | 96A |
| → 接触电阻 Contact resistance | ≤30m Ohm |
| → 绝缘电阻 Insulation resistance | ≥7M Ohm |
| → 基本介电强度 Dielectric strength of function | 1500V |
| → 加强介电强度 Dielectric strength of reinforced | 3000V |
| → 环境温度 Ambient temperature | 0℃~55℃ |
| → 阻燃等级 Flammability | UL 94V-0 |
| → 防护等级 Protection type | IP40 |
| → 适用于II类防护器具 Suitable for appliances of protection class II | |
◆ 输入端 Input side:
→ 接线柱端子 Pillar teminal Φ=3mm
→ 插入式端子 可插入沾锡导线，带插片端子导线或铜包头导线 Push-in terminals for soldered strands, strands with end sleeves or strands with end claws
◆ 输出端 Output side:
→ 插入式端子 可插入沾锡导线，带插片端子导线或铜包头导线 Push-in terminals for soldered strands, strands with end sleeves or strands with end claws
