◆ TS04 系列是一款通用型的扳机开关，集成防尘功能，广泛应用于各类手持式电动工具，如：型材切割机，斜切锯，电圆锯，电锤等
◆ TS04 series are onegeneral type trigger switch, integrated dustproof, commonly for used in powertools such as: Cut-off Machines, Miter Saws, Circular Saws, Electric Hammers, etc.

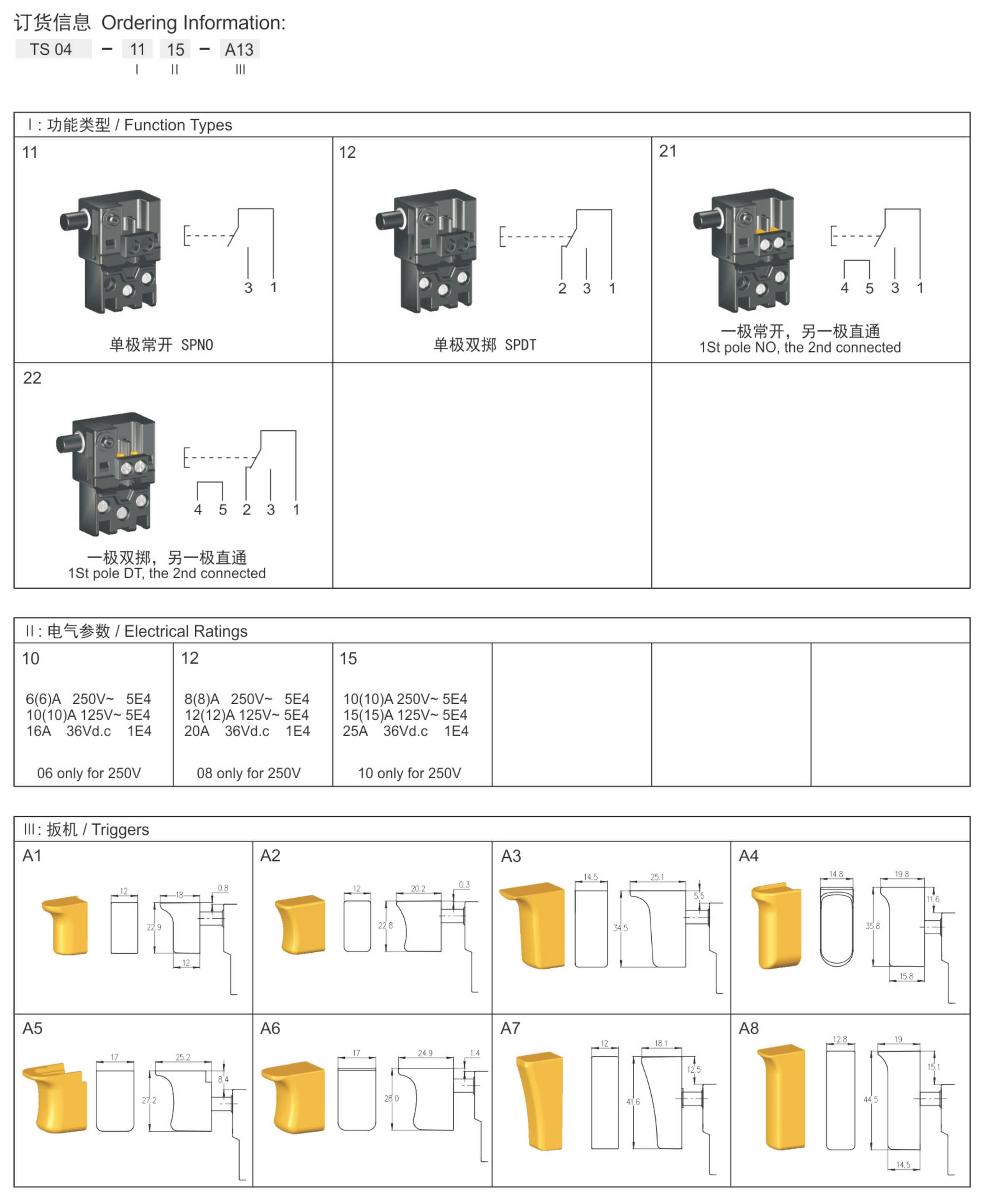

◆ 可选带以下功能： Optional with the function as follows:
→ 单极常开 SPNO (Single Pole Normally Open)
→ 单极双掷 SPDT (Single Pole Double Throw)
→ 一极常开，另一极直通 One Pole NO, the other Directly
→ 一极双掷，另一极直通 One Pole DT, the other Directly
◆ 可选带以下附件： Optional with the accessor as follows:

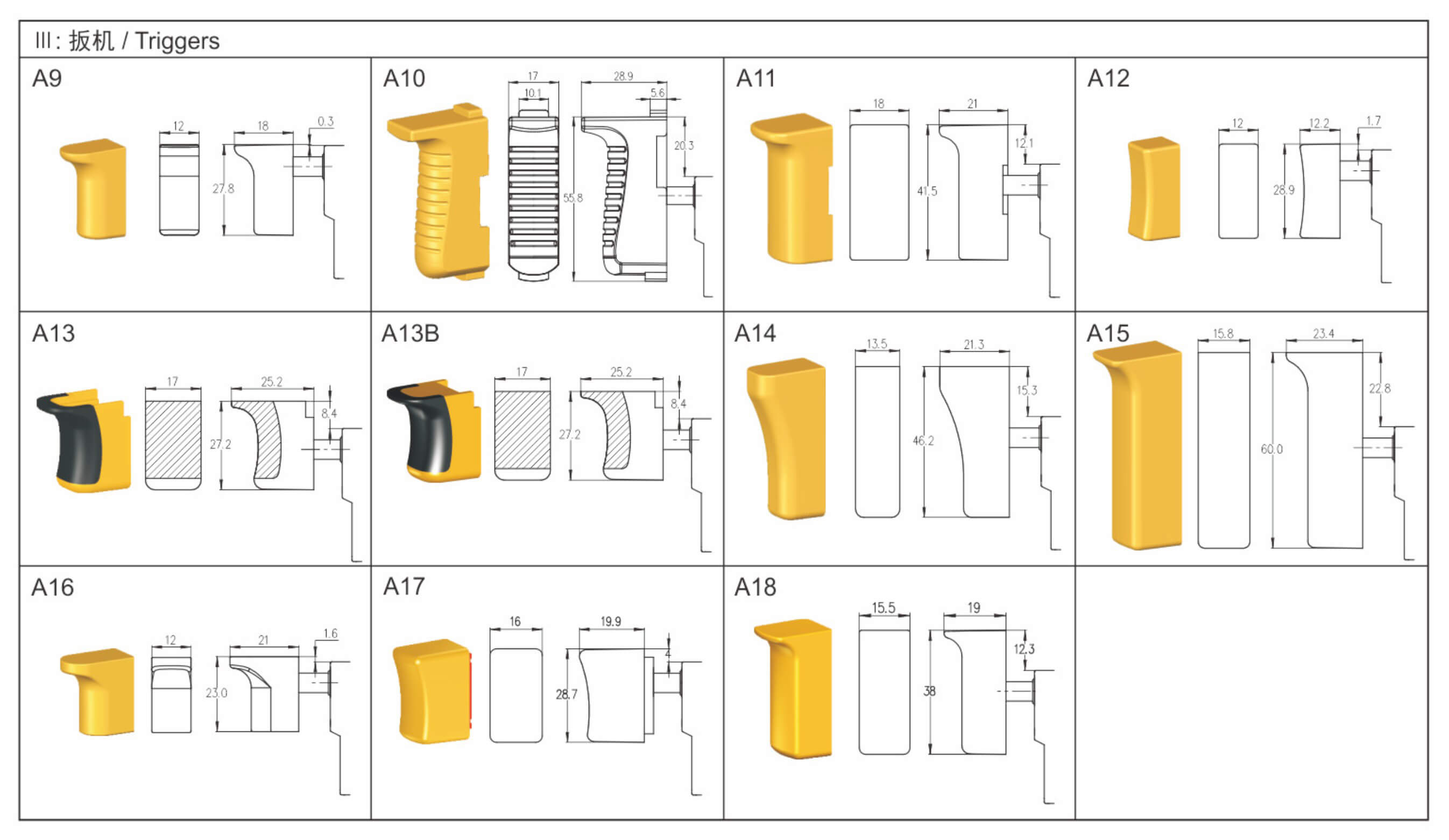

→ 包软胶扳机 Rubberized Trigger (overmolding)
| → 机械耐久寿命 Mechanical life endurance | ≥1E5 |
| → 电气耐久寿命 Electrical life endurance | ≥5E4 |
| → 最大冲击电流 Max. Inrush current at 250V | 60A |
| → 最大冲击电流 Max. Inrush current at 125V | 90A |
| → 接触电阻 Contact resistance | ≤30m Ohm |
| → 绝缘电阻 Insulation resistance | ≥7M Ohm |
| → 基本介电强度 Dielectric strength of function | 1500V |
| → 加强介电强度 Dielectric strength of reinforced | 3000V |
| → 环境温度 Ambient temperature | 0℃~55℃ |
| → 阻燃等级 Flammability | UL 94V-0 |
| → 防护等级 Protection type | IP40 |
| → 适用于II类防护器具 Suitable for appliances of protection class II | |

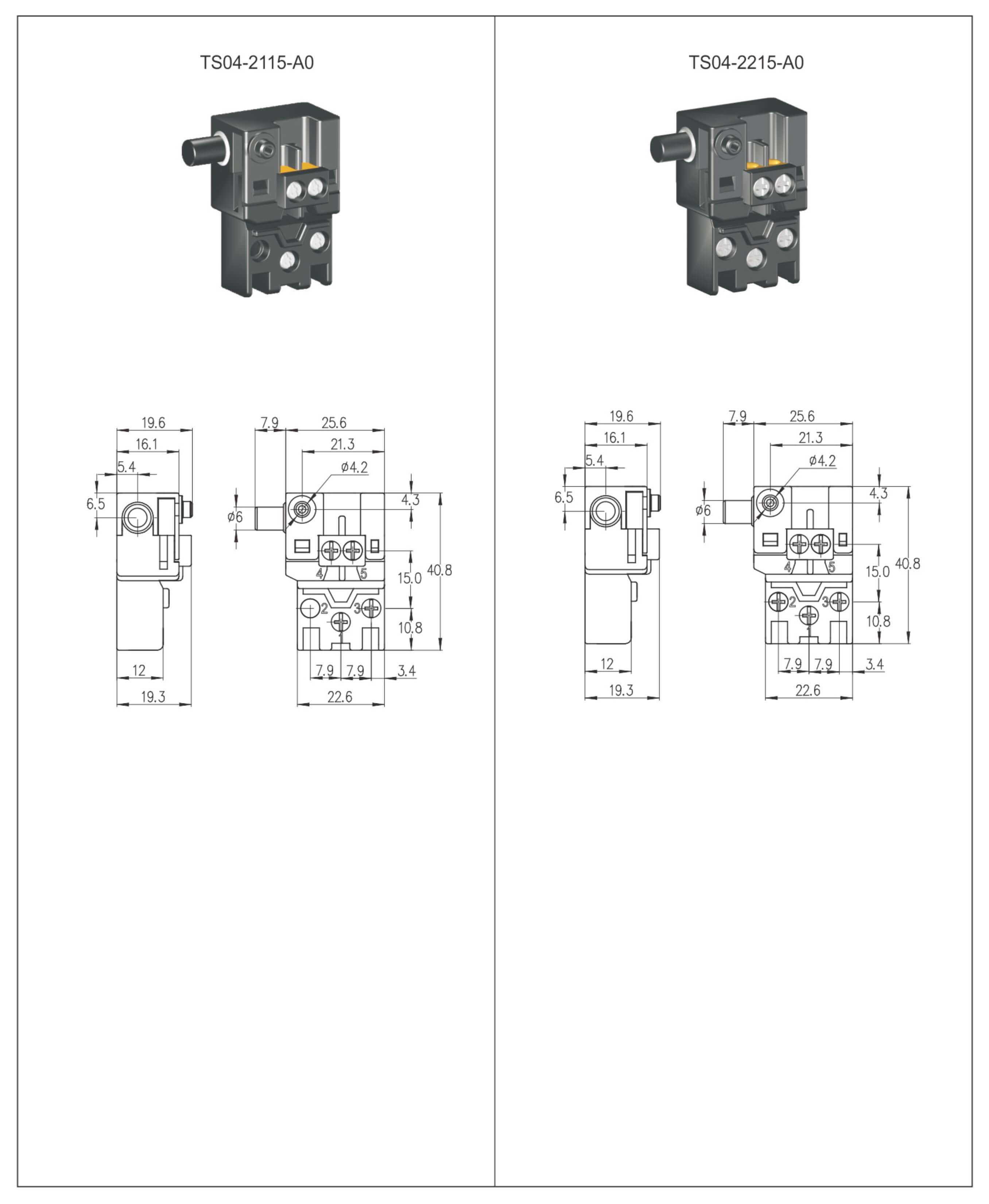

◆ 输入端/输出端 Input side/Output side:
→ 接线柱端子 Pillar teminal Φ=3.0mm
