◆ TS02 系列是一款通用型的扳机开关，集成防尘功能，内部为快速动作结构，广泛应用于各类手持式电动工具，如：电钻，电锤，往复锯，曲线锯，角向磨光机，搅拌器，型材切割机，云石机，电圆锯，电木铣，砂带机，砂光机，抛光机，电刨，电动喷枪，电动钉枪，也可应用于电动和园林工具，如：打草机，电链锯，电动割草机，电动扫雪机等
◆ TS02 series are general type trigger switch, integrated dustproof, with snap-action structure, commonly for used in portable power tools such as: Electric Drills, Rotary Hammers, Reciprocating Saws, Jig Saws, Angle Grinders, Electric Mixers, Cut-Off Machines, Marble Cutters, Electric Routers, Circular Saws, BeltSanders, Orbit Sanders, Polishers, Electric Planrs, Electric Sprayers, Electric Nailers, etc. Besides, they are also suitable for gardening tools, such as: GrassTrimmers, Electric Chain Saws, Electric Lawnmowers, Electric Snowthrowers, etc.
◆ 可选带以下锁定类型： Optional with Following lock types:
→ 无锁 No Lock
→ 闭合锁定 Lock-on
→ 断开锁定 Lock-off
◆ 可选带以下附件： Optional with the accessor as follows:

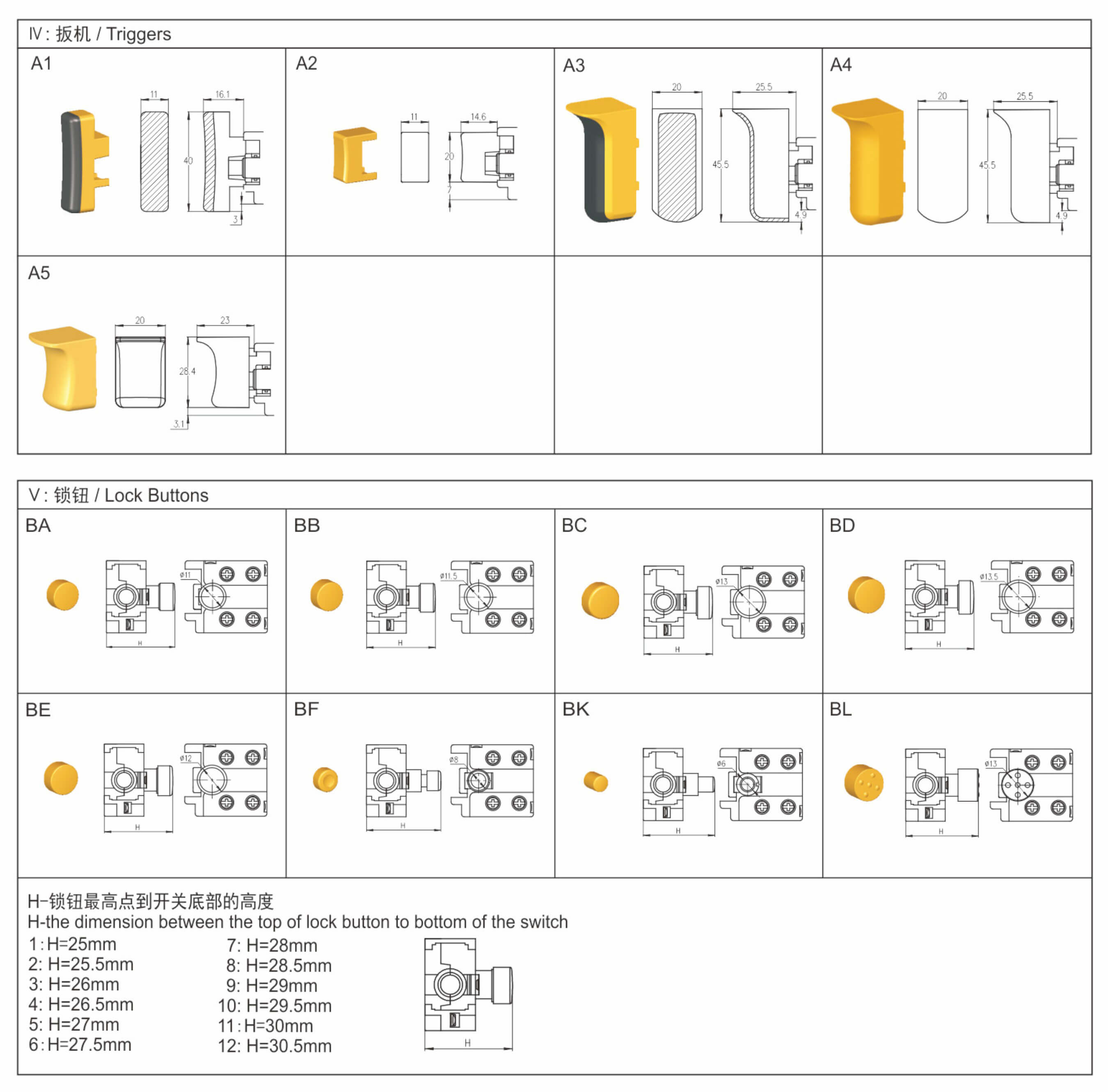

→ 包软胶扳机 Rubberized Trigger (overmolding)
| → 机械耐久寿命 Mechanical life endurance | ≥1E5 |
| → 电气耐久寿命 Electrical life endurance | ≥5E4 |
| → 最大冲击电流 Max. Inrush current at 250V | 60A |
| → 最大冲击电流 Max. Inrush current at 125V | 96A |
| → 接触电阻 Contact resistance | ≤30m Ohm |
| → 绝缘电阻 Insulation resistance | ≥7M Ohm |
| → 基本介电强度 Dielectric strength of function | 1500V |
| → 加强介电强度 Dielectric strength of reinforced | 3000V |
| → 环境温度 Ambient temperature | 0℃~55℃ |
| → 阻燃等级 Flammability | UL 94V-0 |
| → 防护等级 Protection type | IP40 |
| → 适用于II类防护器具 Suitable for appliances of protection class II | |
◆ 输入端 Input side:
→ 2×接线柱端子 2×Pillar teminal Φ=2.9mm
◆ 输出端 Output side:
→ 2×接线柱端子 2×Pillar teminal Φ=2.9mm
→ 4×插入式端子 可插入沾锡导线，带插片端子导线或铜包头导线 4×Push-in terminals for soldered strands, strands with end sleeves or strands with end claws
