◆ RS04 系列是一款标准型的跷板开关，也通称船型开关，波形开关等。有多重款式可以选择，可选带防护罩实现防尘防水，也有内部防尘结构来实现防尘防水，用途极广，广泛应用于各类电动工具，园林工具和清洁器具，如：台锯，台式砂轮机，电动割草机，树枝粉碎机，高压清洗机，干湿两用吸尘器等。也同样适用于各类家用电器，仪器及办公设备等.
◆ RS04 series are standard type rocker switches, optional many kinds of types, optional with Protection Cap for dustproof and waterproof, optional with Inner Protection Structure for dustproof and waterproof, commonly for used in power-tools, gardening tools and cleaning appliances such as: Table Saws, Bench Grinders, Electric Lawnmowers, Cutting Shredders, Electric High Pressure Washers, Dryand Wet Vacuum Cleaners, etc. Also for used in all kinds of Home Appliances, Testing Equipments, Office Equipments.

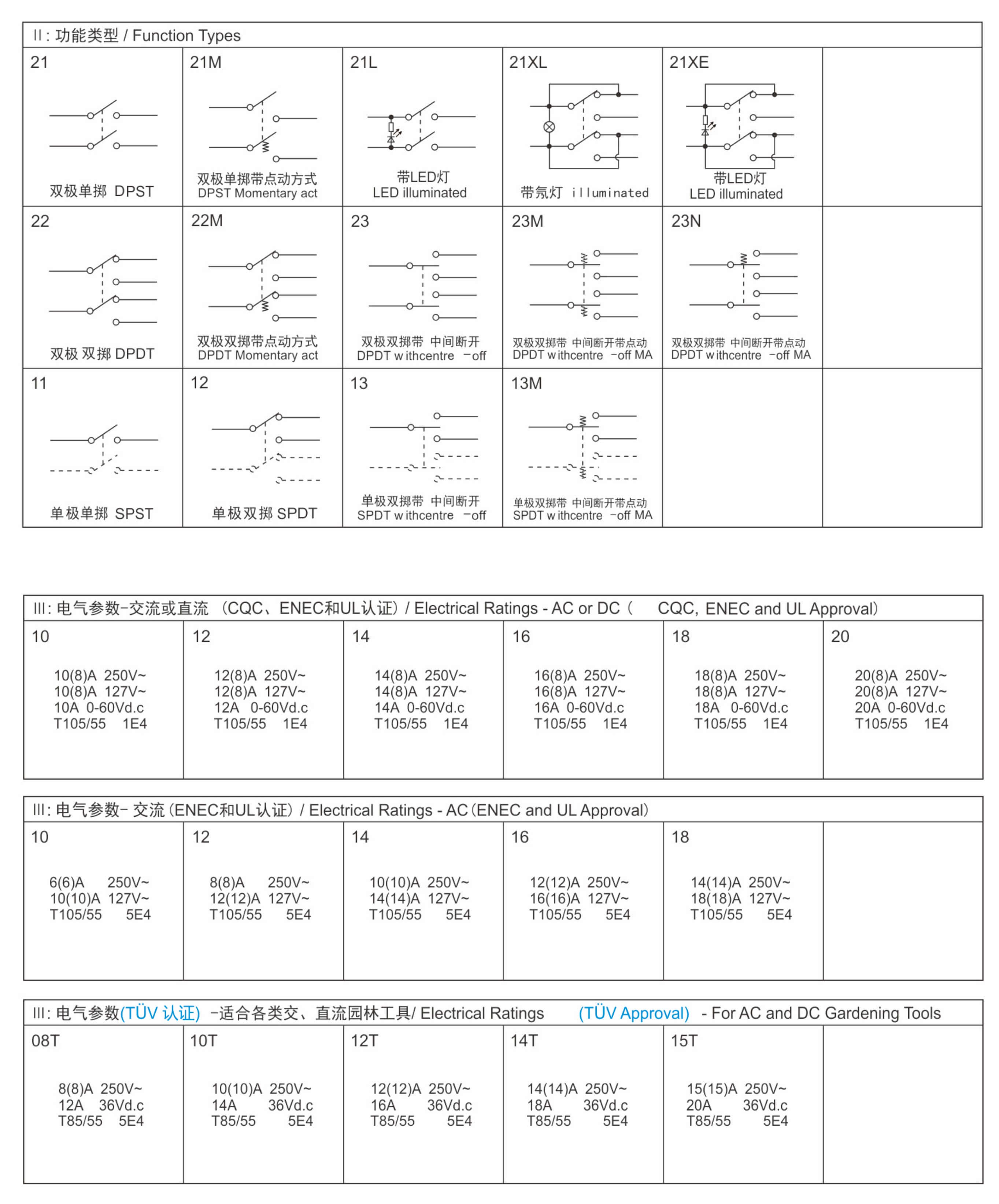

◆ 可选带以下功能： Optional with the function as follows:
→ 双极单掷 DPST (Double Pole Single Throw)
→ 双极双掷 DPDT (Double Pole Double Throw)
→ 双极双掷带中间断开 DPDT with center off
→ 点动功能 Momentary act

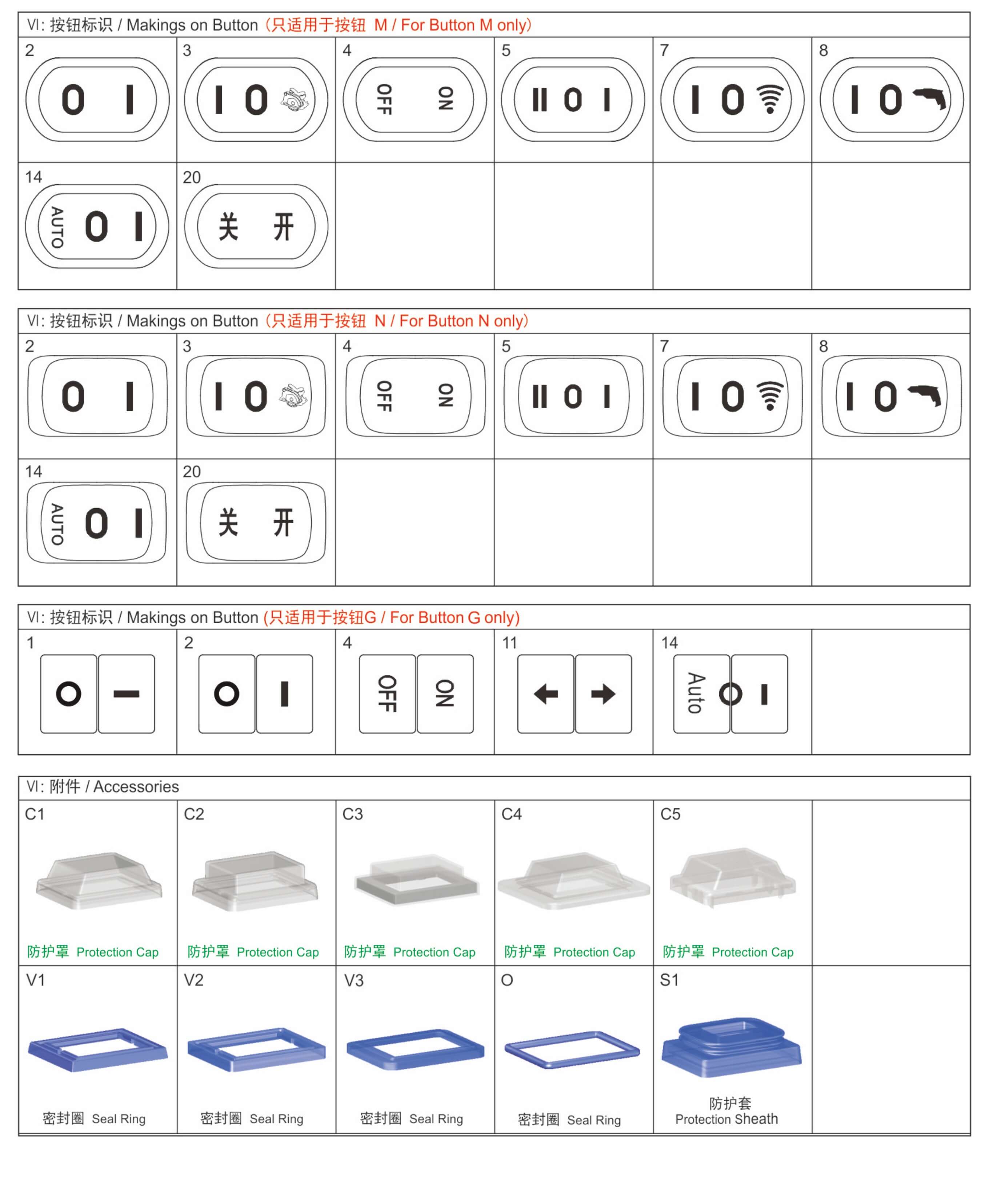

◆ 可选带以下附件： Optional with the accessor as follows:
→ 防尘罩 Protection Cap
→ 内部防尘结构 Inner Dustproof Structure
→ 焊接带端子导线 Soldering with leads and terminals
| → 机械耐久寿命 Mechanical life endurance | ≥5E4/1E5 |
| → 电气耐久寿命 Electrical life endurance | ≥1E4/5E4 |
| → 最大冲击电流 Max. Inrush current at 250V | 48A/90A |
| → 最大冲击电流 Max. Inrush current at 127V | 48A/108A |
| → 接触电阻 Contact resistance | ≤30m Ohm |
| → 绝缘电阻 Insulation resistance | ≥7M Ohm |
| → 基本介电强度 Dielectric strength of function | 1500V |
| → 加强介电强度 Dielectric strength of reinforced | 3000V |
| → 环境温度 Ambient temperature | 0℃~105℃ |
| → 操动件温度 Actuator temperature | 0℃~55℃ |
| → 阻燃等级 Flammability | UL 94V-0 |
| → 防护等级 Protection type | IP65 Max. |
| → 适用于II类防护器具 Suitable for appliances of protection class II | |

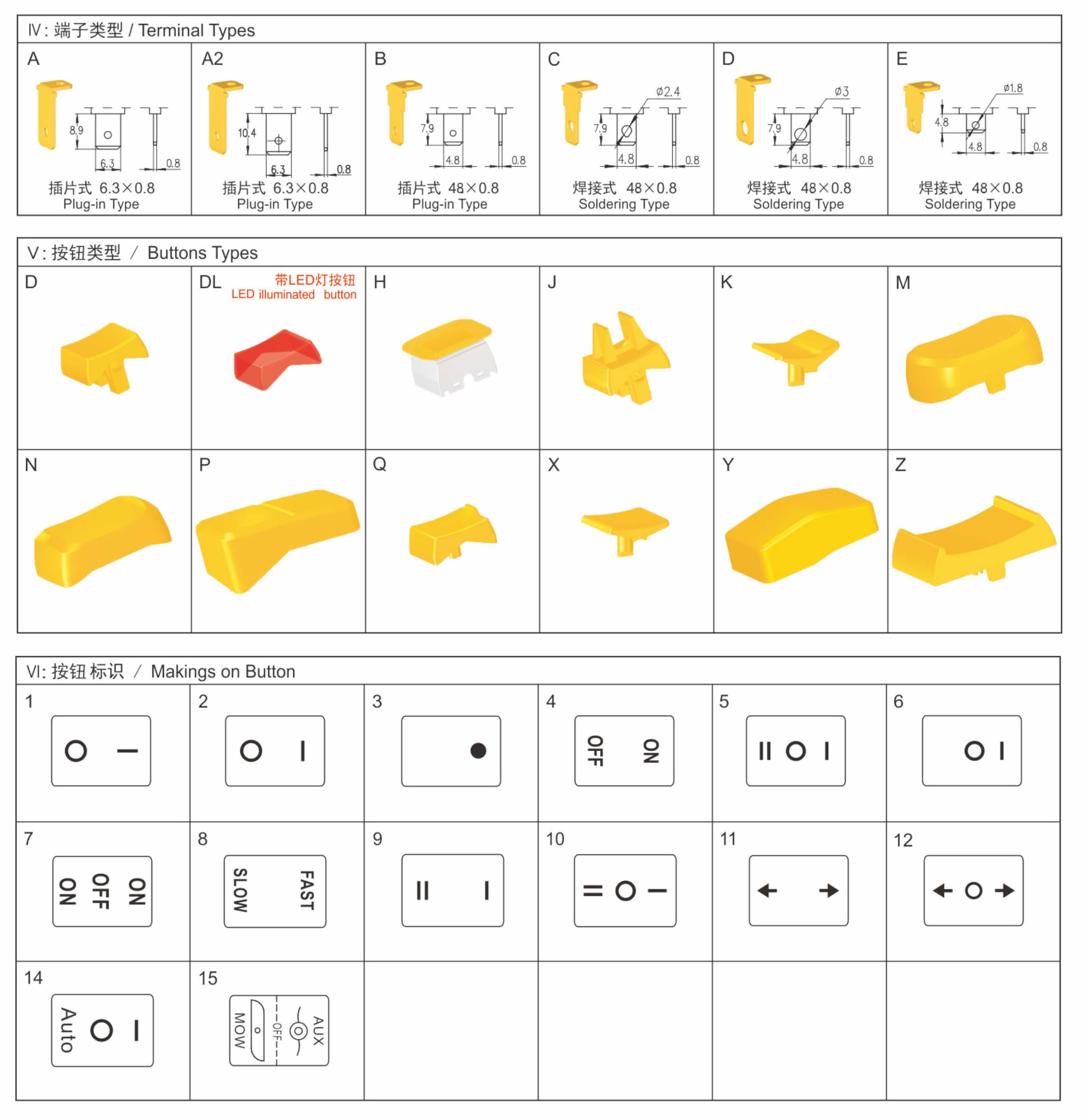

◆ 输入端/输出端 Input side/Output side:
→ 插片端子 Plug-in terminals 6.3×0.8mm
→ 插片端子 Plug-in terminals 4.8×0.8mm
→ 焊接端子 Soldering terminals
→ 线路板焊接端子 PCB Soldering terminals
