◆ RS02 系列是一款标准型的跷板开关，也通称船型开关，波形开关等，有普通结构、带防护罩防尘防水和内部防尘结构两款可以选择。用途极广，装上防护罩后可实现防尘防水功能，广泛应用于各类家用电器及办公设备，如：热风枪，电吹风，电扇，打印机，家用吸尘器，干湿桶式吸尘器，高压清洗机等等
◆ RS02 series are one standard type rocker switch, optional with Protection Cap for dustproof and waterproof or inner dustproof structure, commonly for used in small Home appliances and office equipments, such as: Heat Guns, Hair Driers, Electric Fans， Printers, Vacuum Cleaners, Dry and Wet Vacuum Cleaners, High Pressure Washers, etc.

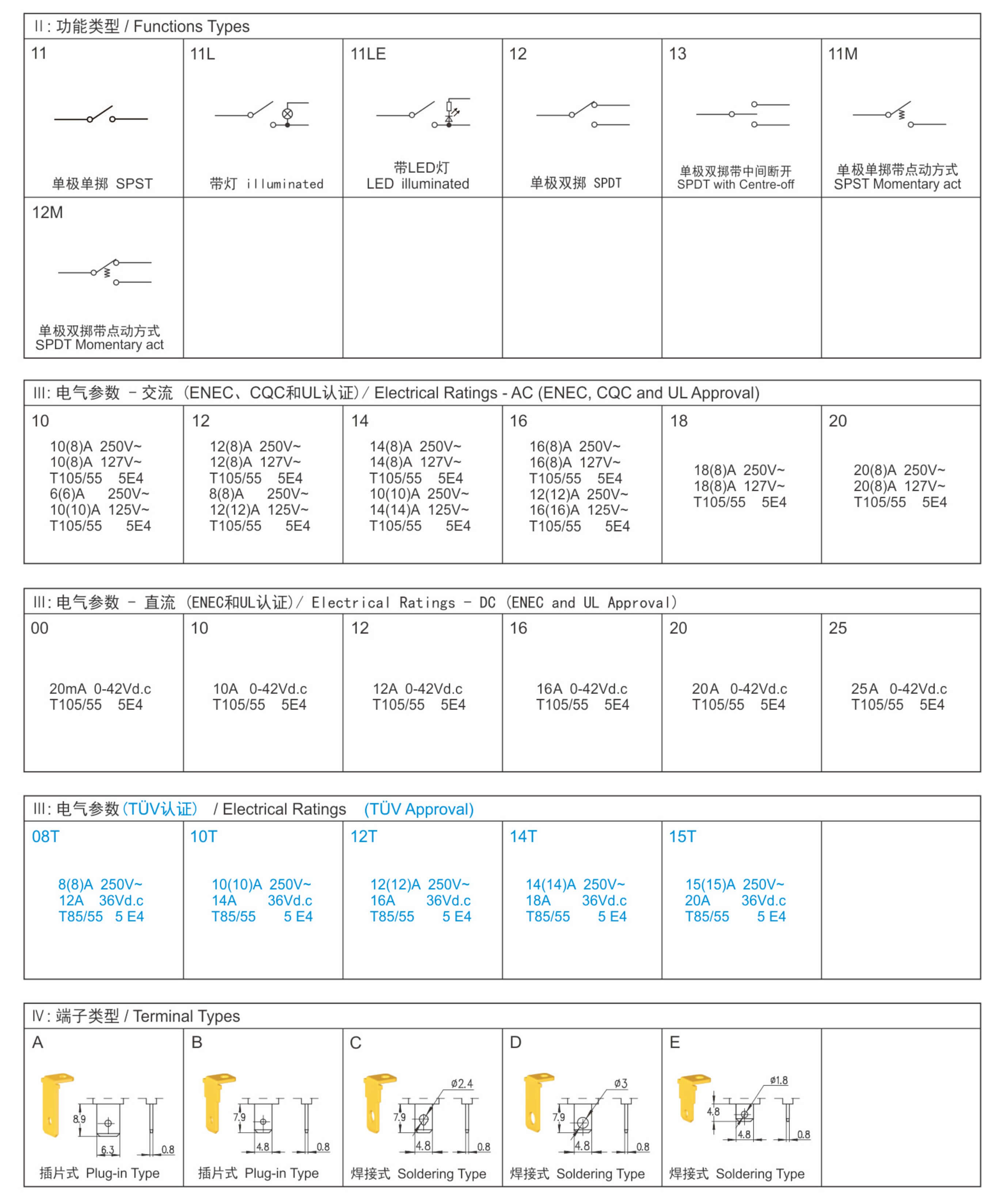

◆ 可选带以下功能： Optional with the function as follows:
→ 单极单掷 SPST (Single Pole Single Throw)
→ 单极双掷 SPDT (Single Pole Double Throw)
→ 单极双掷带中间断开 SPDT with center off
→ 点动功能 Momentary act

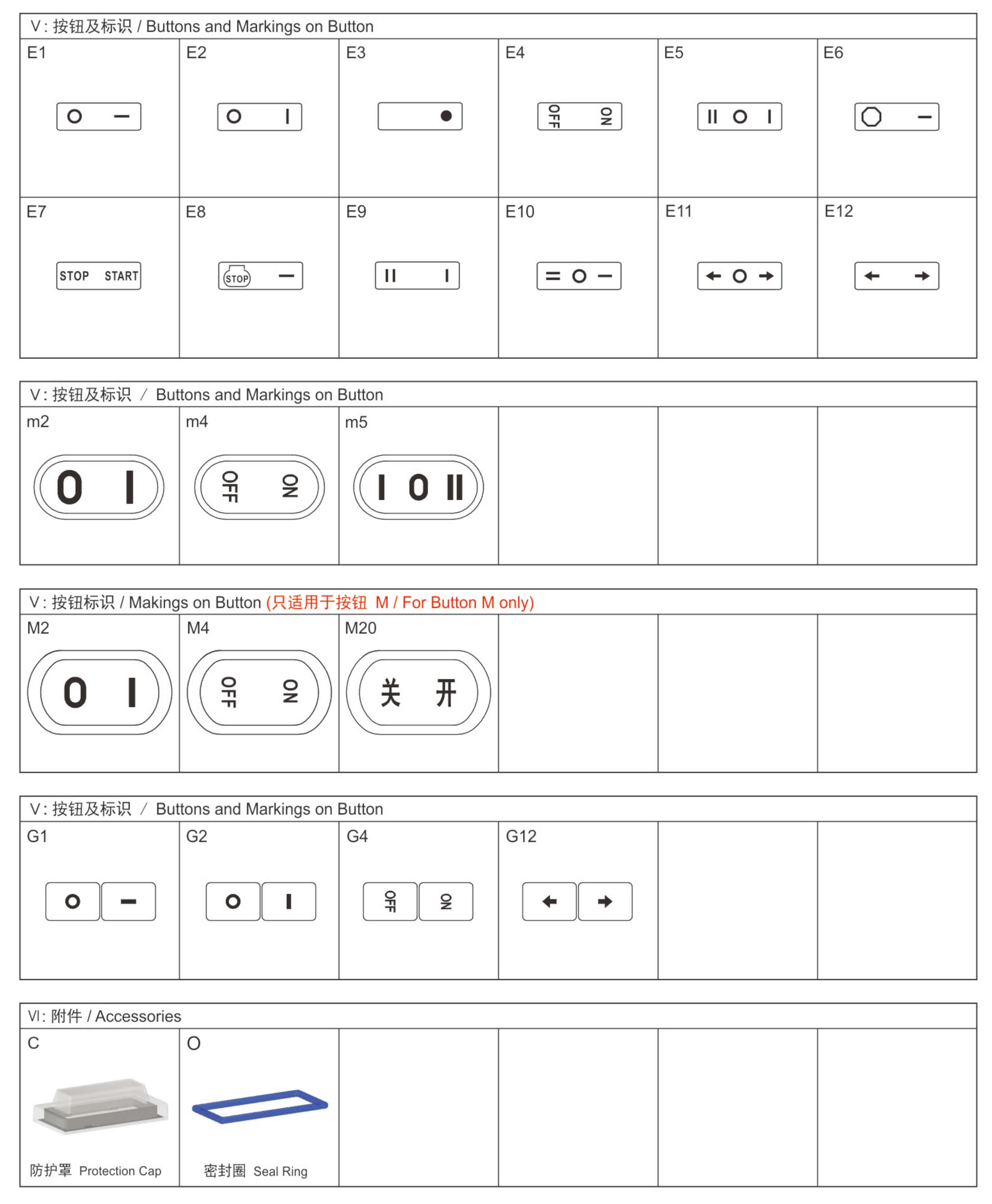

◆ 可选带以下附件： Optional with the accessor as follows:

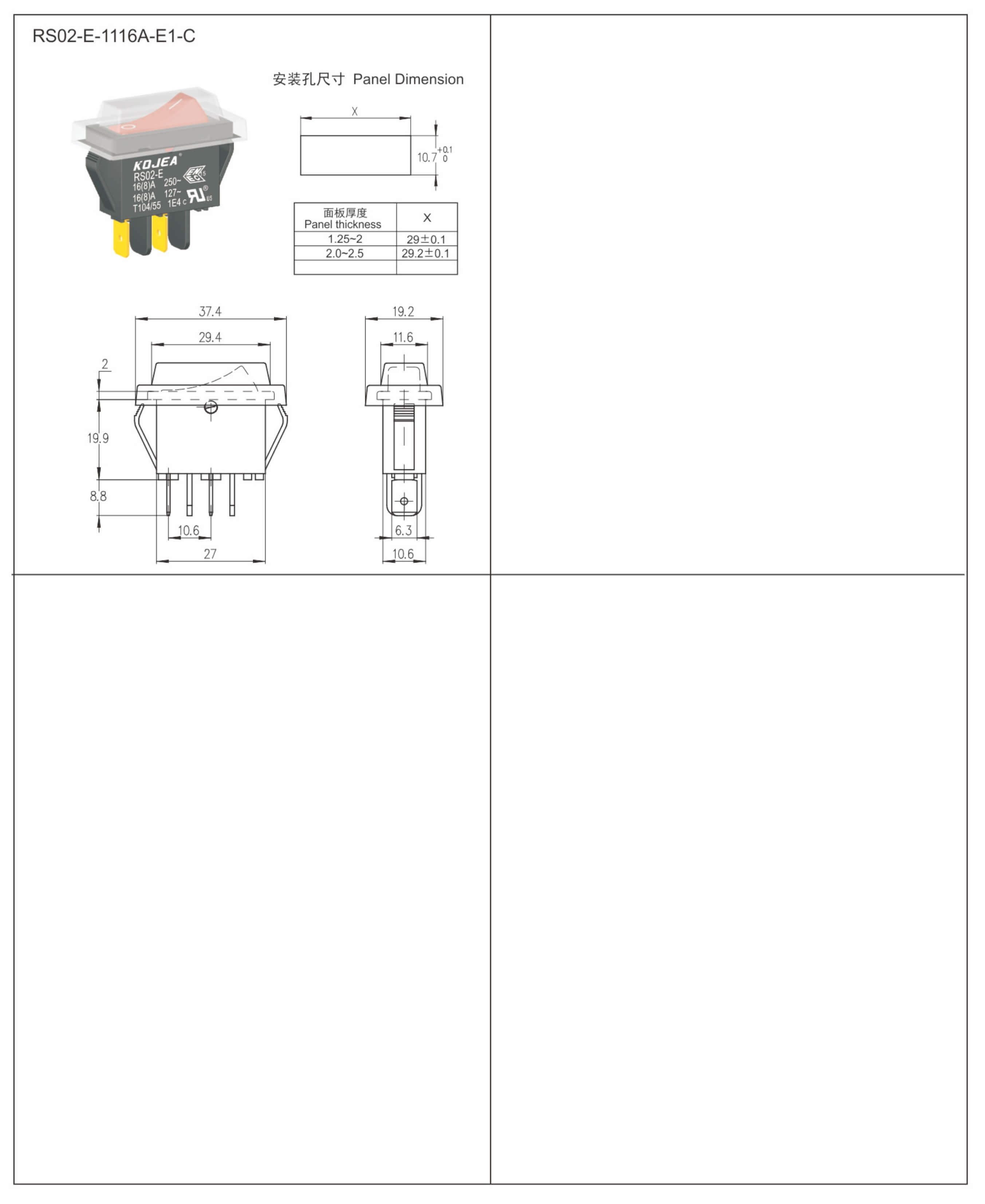

→ 防尘罩 Protection Cap
→ 内部防尘结构 Inner Dustproof Structure
→ 焊接带端子导线 Soldering with leads and terminals
| → 机械耐久寿命 Mechanical life endurance | ≥5E4/1E5 |
| → 电气耐久寿命 Electrical life endurance | ≥5E4/1E5 |
| → 最大冲击电流 Max. Inrush current at 250V | 48A/72A |
| → 最大冲击电流 Max. Inrush current at 127V | 48A/96A |
| → 接触电阻 Contact resistance | ≤30m Ohm |
| → 绝缘电阻 Insulation resistance | ≥7M Ohm |
| → 基本介电强度 Dielectric strength of function | 1500V |
| → 加强介电强度 Dielectric strength of reinforced | 3000V |
| → 环境温度 Ambient temperature | 0℃~105℃ |
| → 操动件温度 Actuator temperature | 0℃~55℃ |
| → 阻燃等级 Flammability | UL 94V-0 |
| → 防护等级 Protection type | IP40 |
| → 适用于II类防护器具 Suitable for appliances of protection class II | |
◆ 输入端/输出端 Input side/Output side:
→ 插片端子 Plug-in terminals 6.3×0.8mm
→ 插片端子 Plug-in terminals 4.8×0.8mm
→ 焊接端子 Soldering terminals
→ 线路板焊接端子 PCB Soldering terminals
