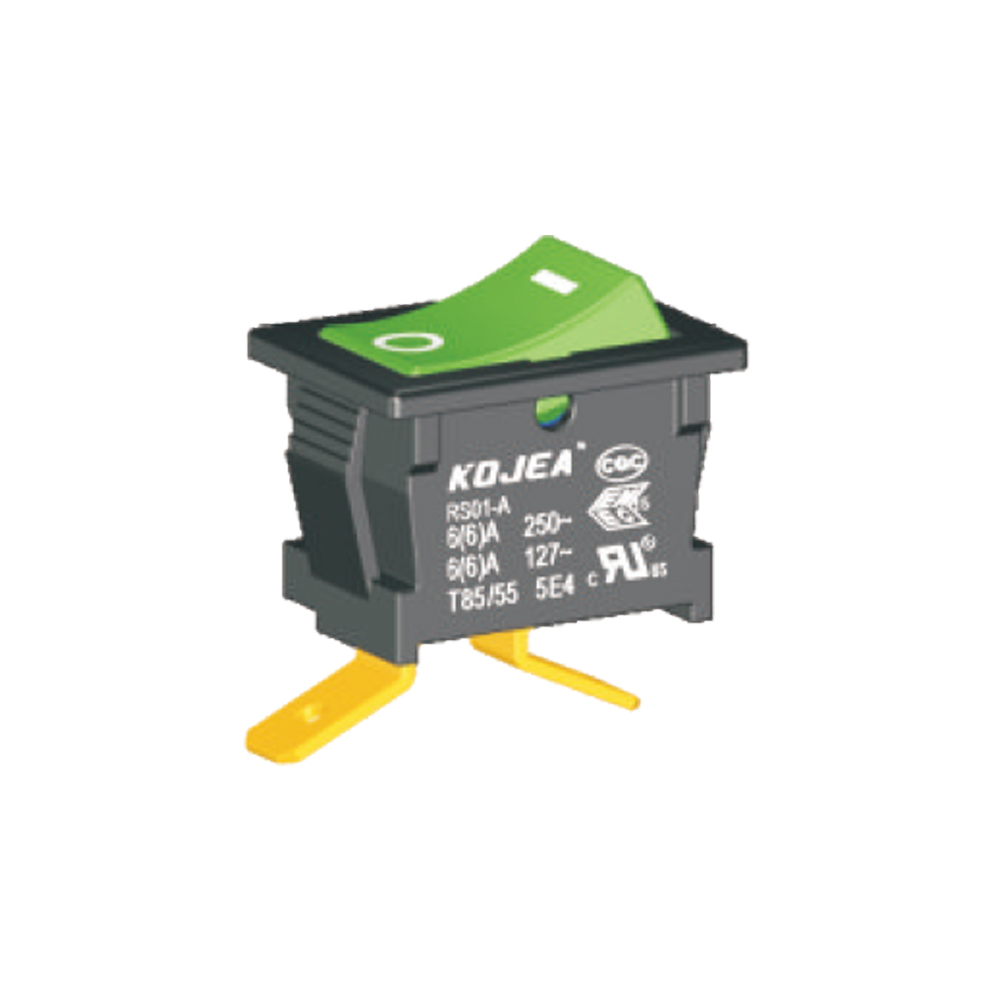

◆ RS01 系列是一款标准型的小型跷板开关，也通称船型开关，波形开关等，有普通结构、带防护罩防尘防水和内部防尘结构两款可以选择。用途极广，可用于小型电动工具，如：模具电磨，电动钉枪，手砂机，激光器等，也可用于各类家用电器及办公设备，如：台灯，电扇，打印机，游戏机，电脑电源，有源音箱等等
◆ RS01 series are one standard type rocker switch, optional with Protection Cap for dustproof and waterproof, or with inner dustproof structure, commonly for used in portable power-tools such as: Hand Sanders, Die Grinders, Electric Nailers, Laser Actuators, etc. Also for used in small Home appliances and office equipments, such as: Reading Lamps, Electric Fans, Printers, Game Players, Computer Power-supplys, Power Sound Box, etc.

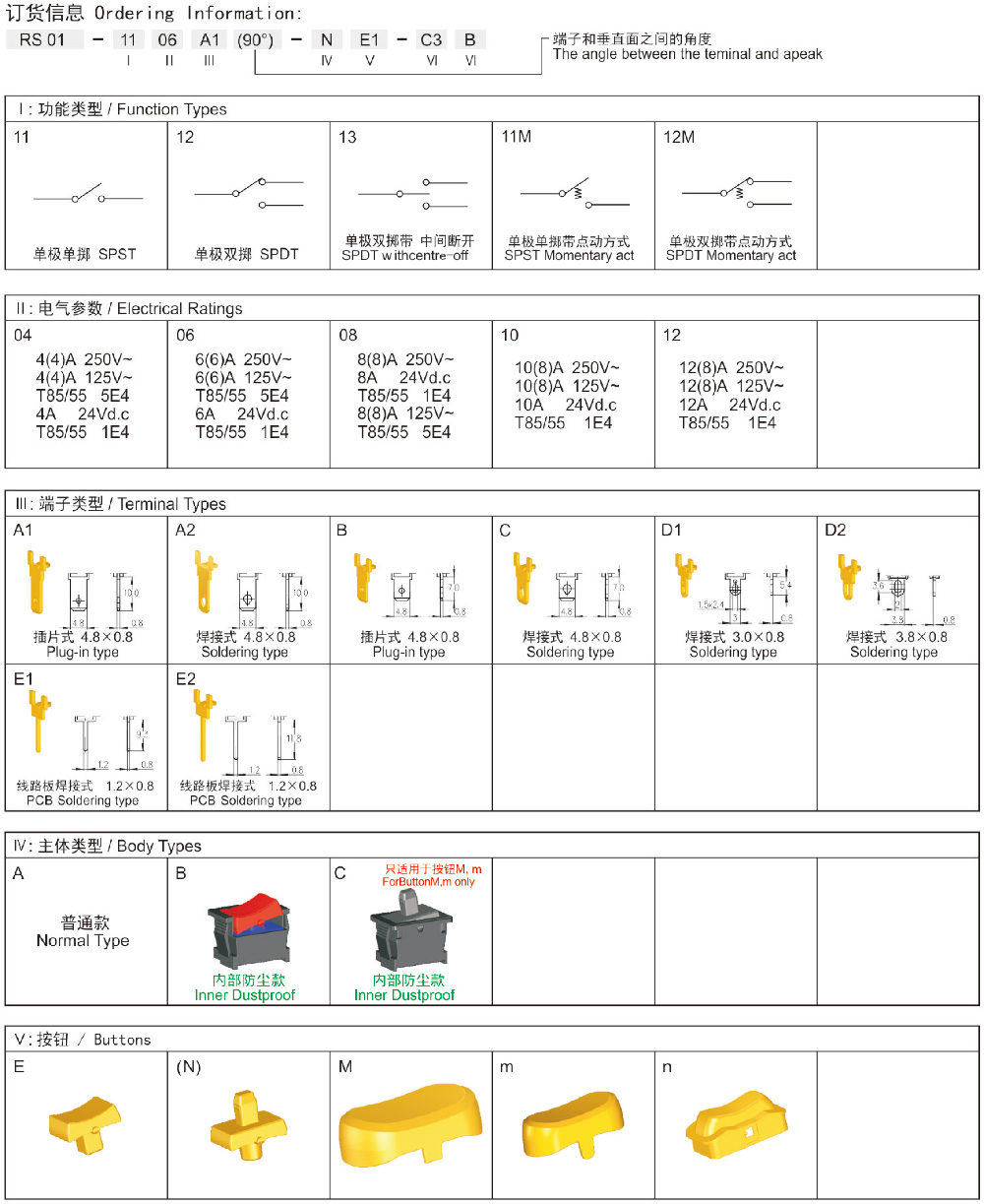

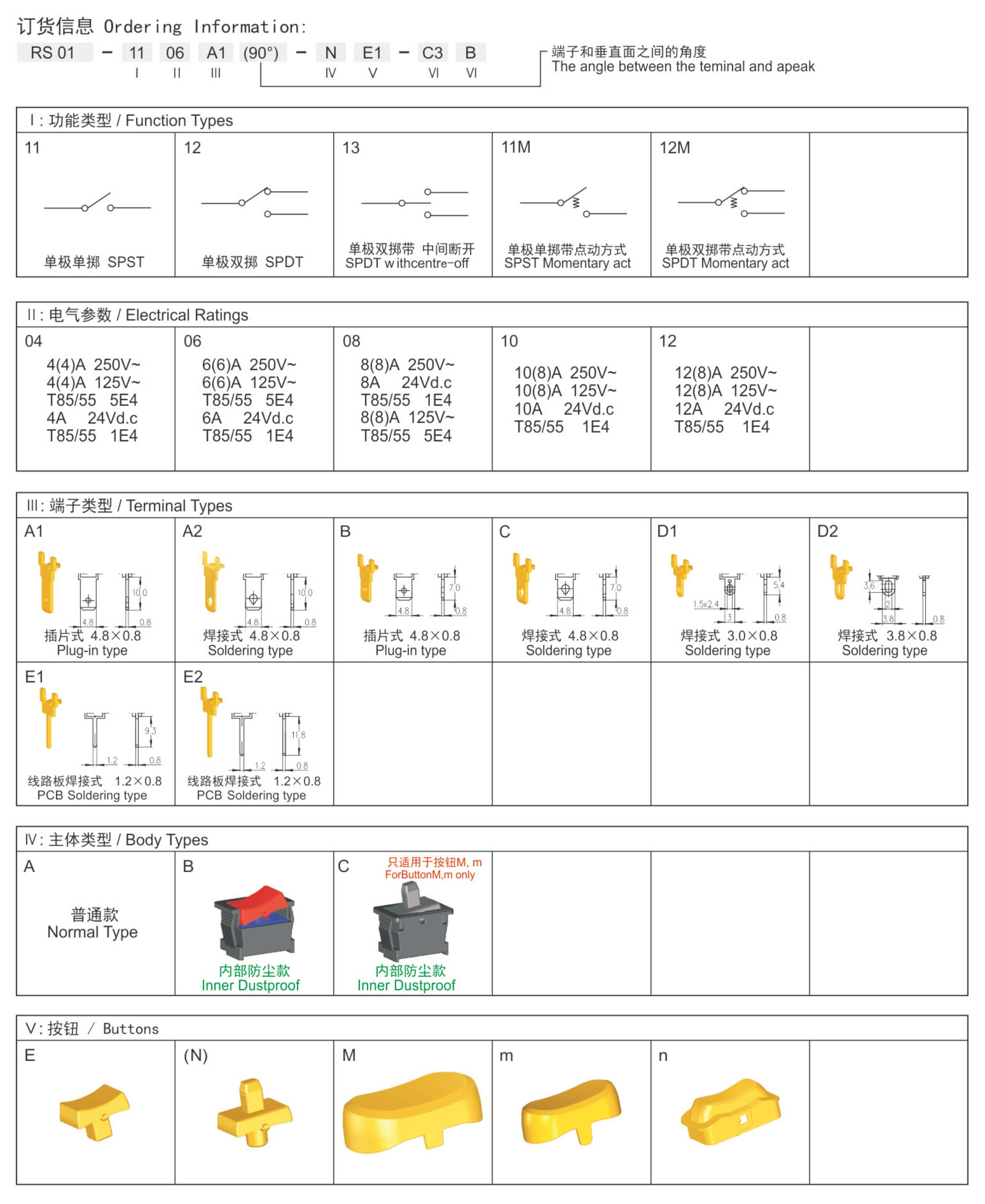

◆ 可选带以下功能： Optional with the function as follows:
→ 单极单掷 SPST (Single Pole Single Throw)
→ 单极双掷 SPDT (Single Pole Double Throw)
→ 单极双掷带中间断开 SPDT with center off
→ 点动功能 Momentary act

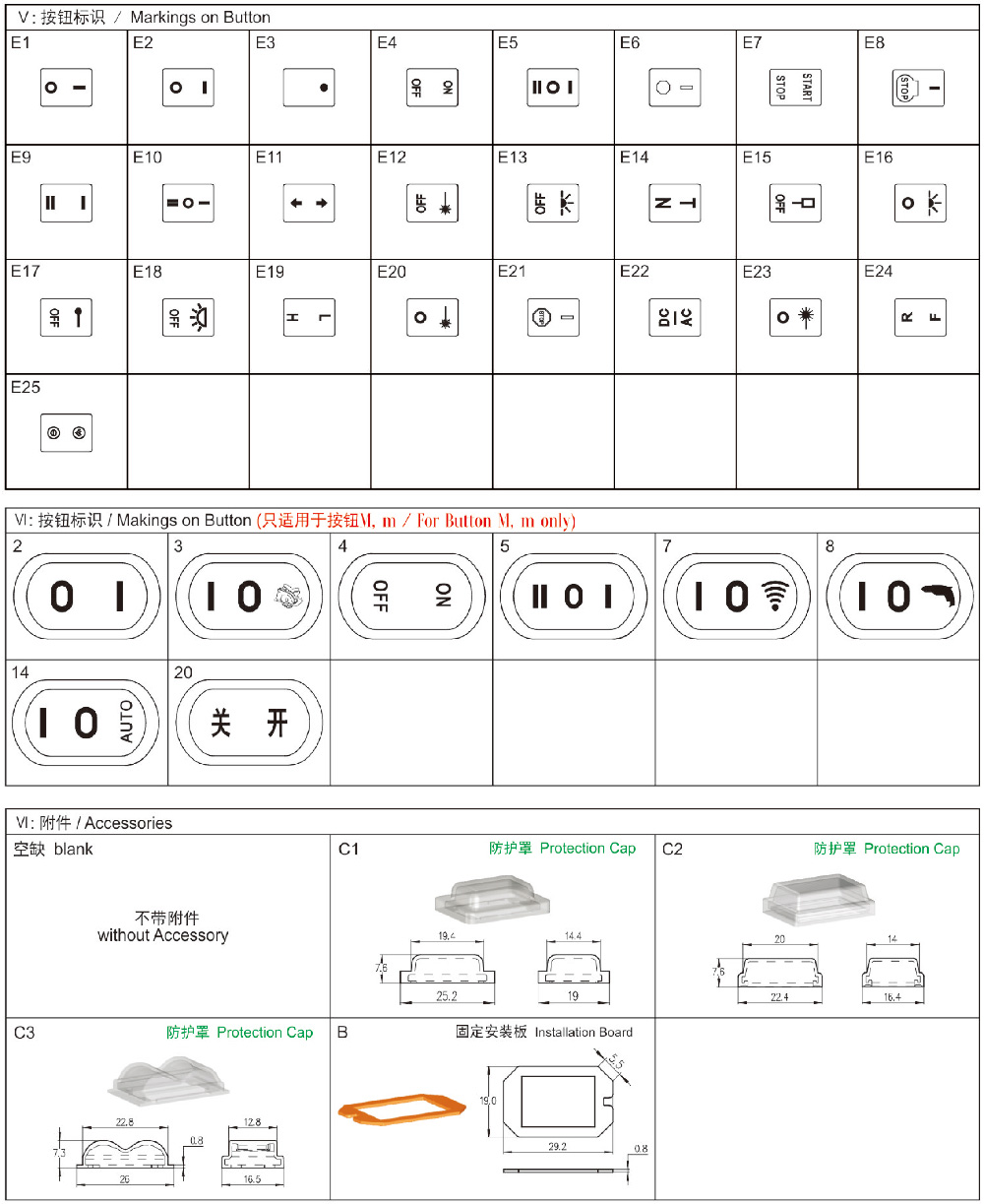

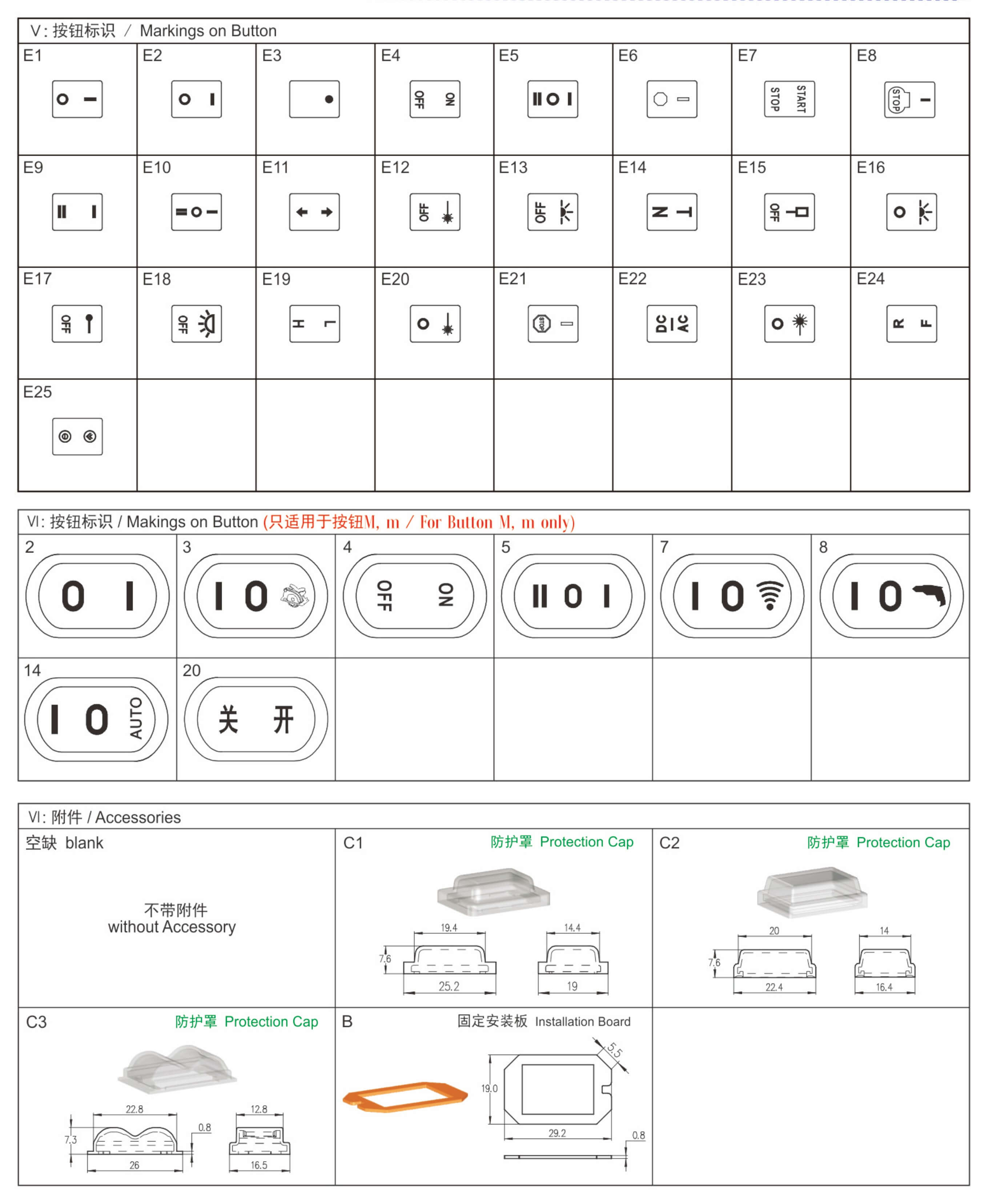

◆ 可选带以下附件： Optional with the accessor as follows:

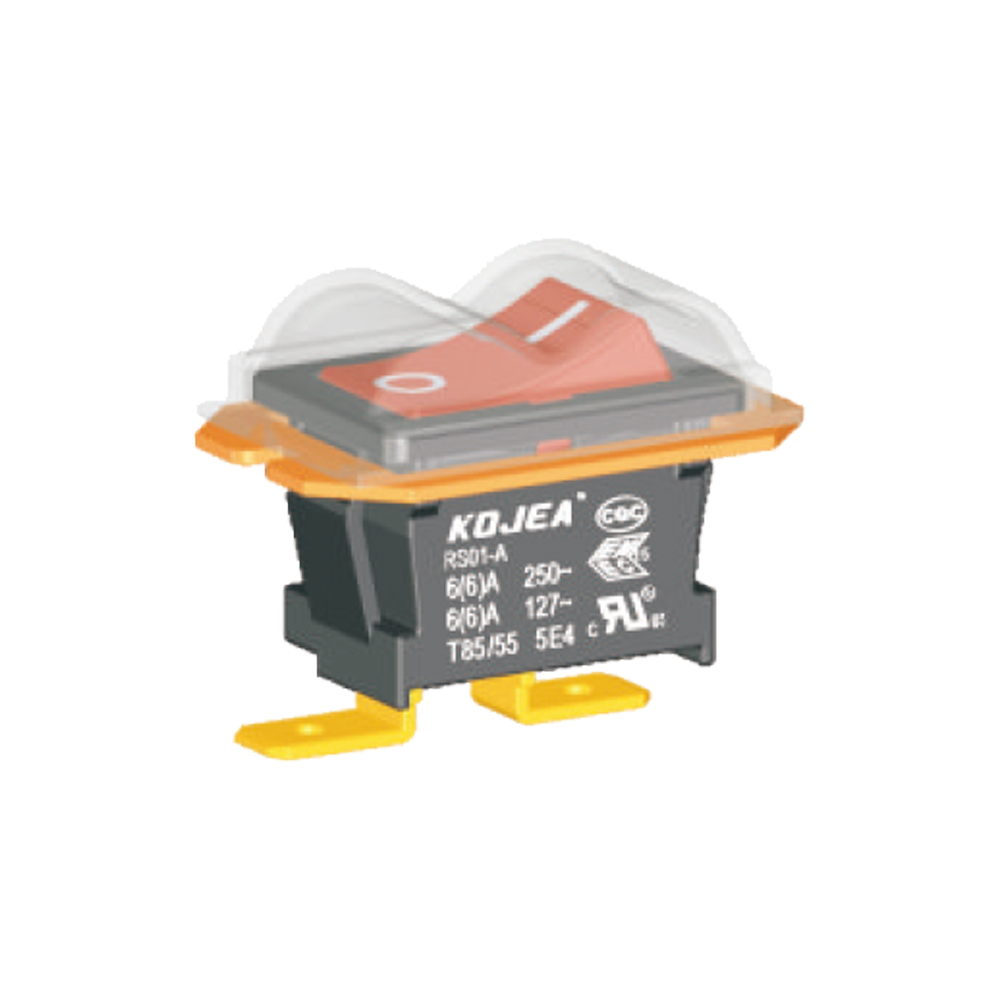

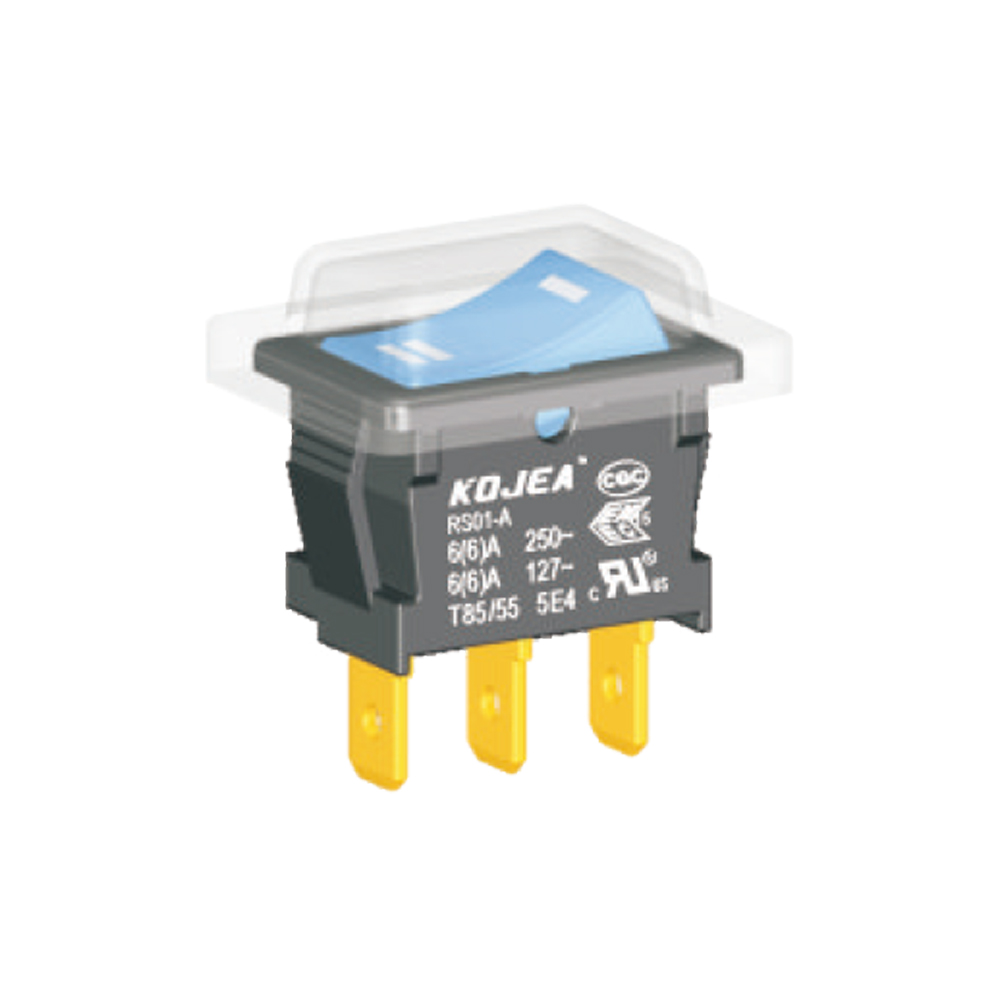

→ 防尘罩 Protection Cap
→ 内部防尘结构 Inner Dustproof Structure
→ 焊接带端子导线 Soldering with leads and terminals
| → 机械耐久寿命 Mechanical life endurance | ≥5E4/1E5 |
| → 电气耐久寿命 Electrical life endurance | ≥1E4/5E4 |
| → 最大冲击电流 Max. Inrush current at 250V | 48A |
| → 最大冲击电流 Max. Inrush current at 125V | 48A |
| → 接触电阻 Contact resistance | ≤30m Ohm |
| → 绝缘电阻 Insulation resistance | ≥7M Ohm |
| → 基本介电强度 Dielectric strength of function | 1500V |
| → 加强介电强度 Dielectric strength of reinforced | 3000V |
| → 环境温度 Ambient temperature | 0℃~85℃ |
| → 操动件温度 Actuator temperature | 0℃~55℃ |
| → 阻燃等级 Flammability | UL 94V-0 |
| → 防护等级 Protection type | IP40 |
| → 适用于II类防护器具 Suitable for appliances of protection class II | |
◆ 输入端/输出端 Input side/Output side:
→ 插片端子 Plug-in terminals 4.8×0.8mm
→ 焊接端子 Soldering terminals
→ 线路板焊接端子 PCB Soldering terminals
