◆ LS02 系列是一款专用型的倒扳开关，也叫摇杆开关，集成防尘和防水功能，广泛应用于各类台式电动工具，如：台式推拉锯，台式圆锯，台式刨床，台式铣床，台式线锯，台式钻床，台式车床，台式砂轮机，台式瓷砖切割机，地板锯等
◆ LS02 series are special type Lever switches, integrated dustproof and waterproof, commonly for used in bench top power- tools such as: Bench Push-pull Saws, Bench Circular Saws, Bench Planers, Bench Routers, Bench Scroll Saws, Drill Presses, Bench lathes, Bench Grinders, Bench Marble Cutters, Floor Cutters, etc.

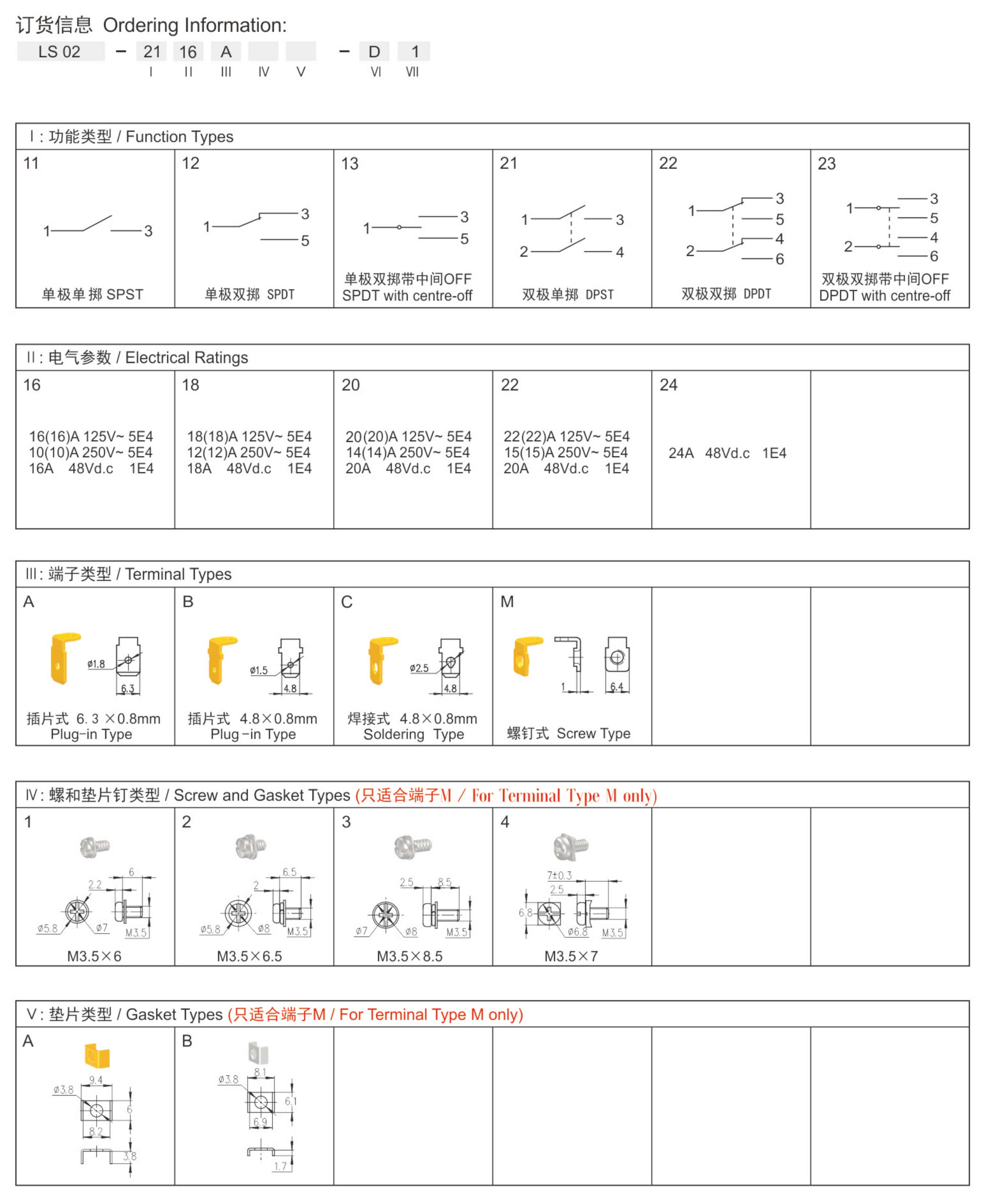

◆ 可选带以下功能： Optional with the function as follows:
→ 单极单掷 SPST (Single Pole Single Throw)
→ 单极双掷 SPDT (Single Pole Double Throw)
→ 单极双掷带中间断开 SPDT with center off
→ 双极单掷 DPST (Double Pole Single Throw)
→ 双极双掷 DPDT (Double Pole Double Throw)
→ 双极双掷带中间断开 DPDT with center off
◆ 可选带以下附件： Optional with the accessor as follows:
→ 儿童安全锁 Key for children's safety
| → 机械耐久寿命 Mechanical life endurance | ≥1E5/5E4 |
| → 电气耐久寿命 Electrical life endurance | ≥5E4/1E4 |
| → 最大冲击电流 Max. Inrush current at 250V | 90A |
| → 最大冲击电流 Max. Inrush current at 125V | 132A |
| → 接触电阻 Contact resistance | ≤30m Ohm |
| → 绝缘电阻 Insulation resistance | ≥7M Ohm |
| → 基本介电强度 Dielectric strength of function | 1500V |
| → 加强介电强度 Dielectric strength of reinforced | 3000V |
| → 环境温度 Ambient temperature | 0℃~55℃ |
| → 阻燃等级 Flammability | UL 94V-0 |
| → 防护等级 Protection type | IP40 |
| → 适用于II类防护器具 Suitable for appliances of protection class II | |
◆ 输入端/输出端 Input side/Output side:
→ 插片端子 Plug-in terminals 6.3×0.8mm
→ 插片端子 Plug-in terminals 4.8×0.8mm
→ 焊接端子 Soldering terminals 4.8×0.8mm
→ 螺钉端子 Screw terminals M3.5
