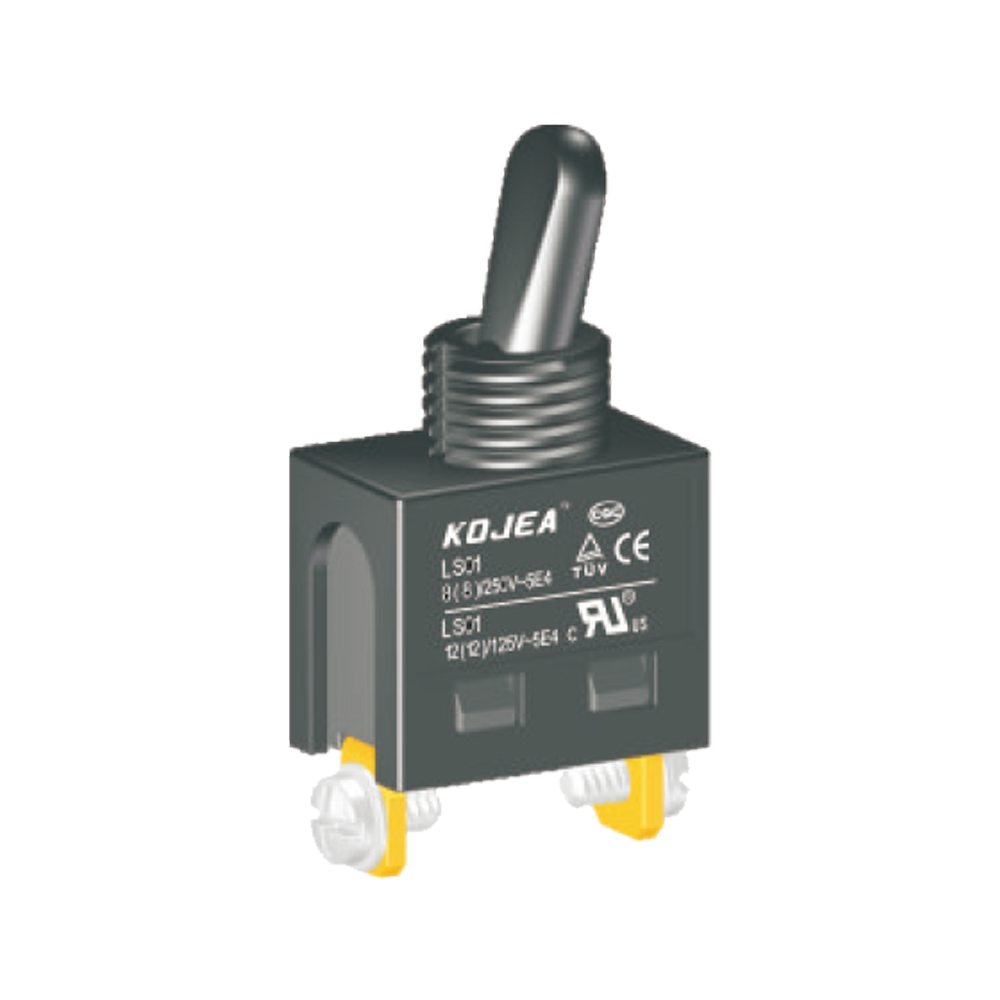

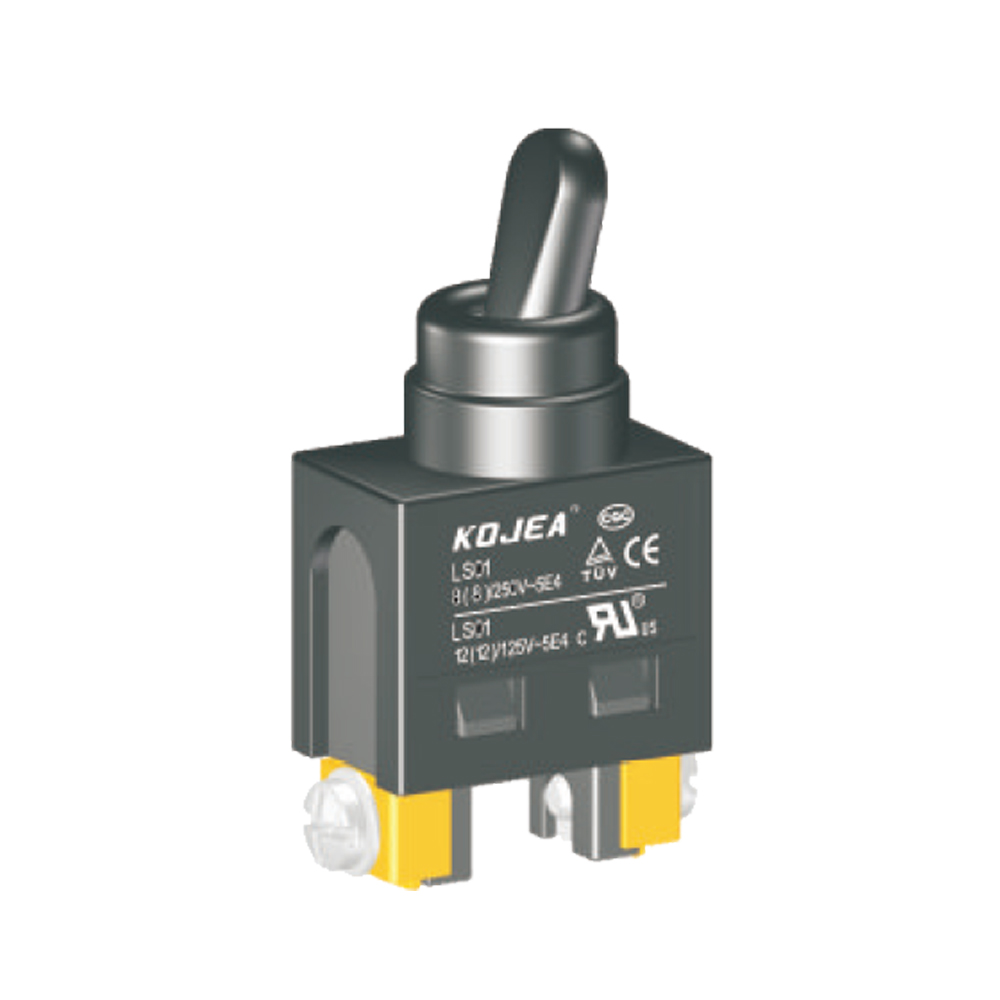

◆ LS01 系列是一款专用型的倒扳开关，也叫摇杆开关或拨动开关，集成防尘功能，应用于各类电动工具，如：100和125角向磨光机，电木铣，模具电磨等
◆ LS01 series are one special type Lever switch, integrated dustproof, commonly for used in portable power-tools such as: 100mm and 125mm Angle Grinders, Routers, Die Grinders, etc.

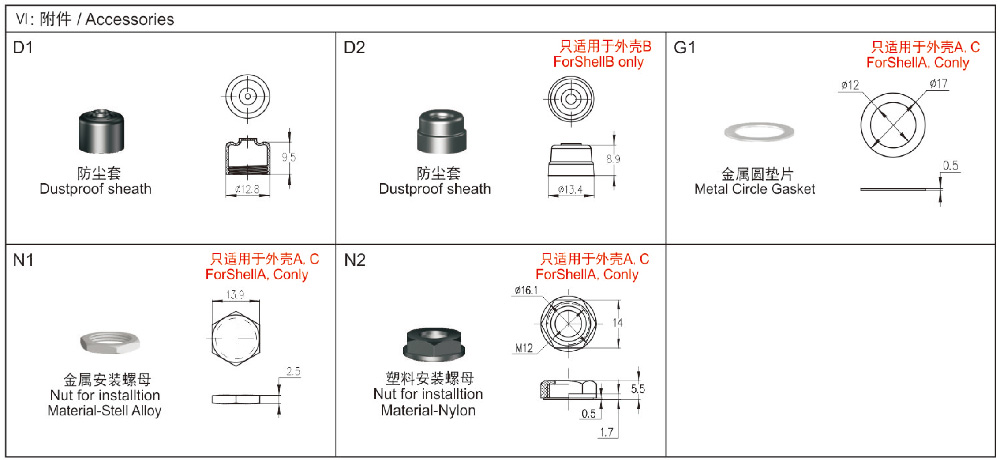

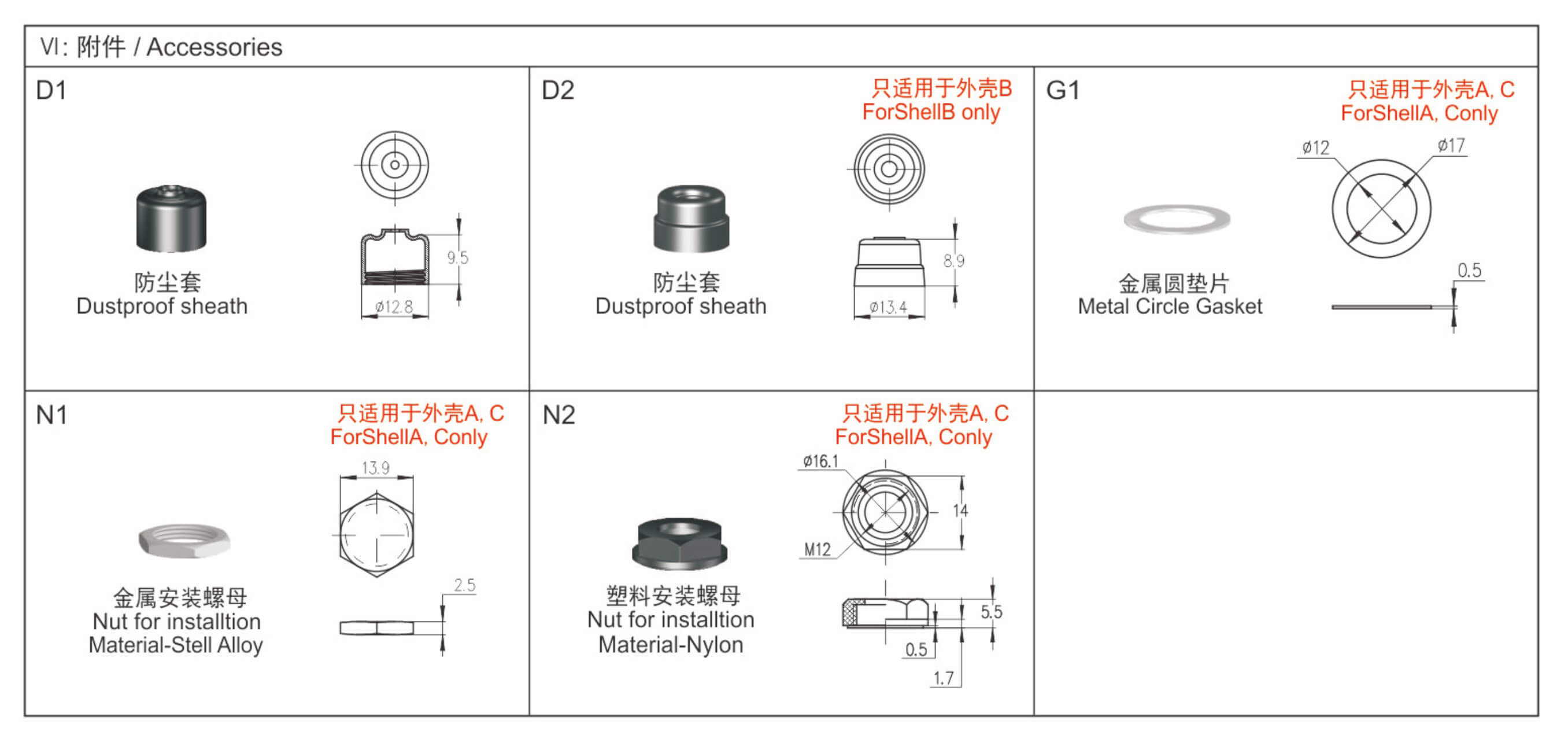

◆ 可选带以下附件： Optional with the accessor as follows:
→ 防尘套 Dustproof sheath
→ 安装螺母 Nut for installation
| → 机械耐久寿命 Mechanical life endurance | ≥1E5 |
| → 电气耐久寿命 Electrical life endurance | ≥5E4 |
| → 最大冲击电流 Max. Inrush current at 250V | 48A |
| → 最大冲击电流 Max. Inrush current at 125V | 72A |
| → 接触电阻 Contact resistance | ≤30m Ohm |
| → 绝缘电阻 Insulation resistance | ≥7M Ohm |
| → 基本介电强度 Dielectric strength of function | 1500V |
| → 加强介电强度 Dielectric strength of reinforced | 3000V |
| → 环境温度 Ambient temperature | 0℃~55℃ |
| → 阻燃等级 Flammability | UL 94V-0 |
| → 防护等级 Protection type | IP40 |
| → 适用于II类防护器具 Suitable for appliances of protection class II | |
◆ 输入端/输出端 Input side/Output side:
→ 插片端子 Plug-in terminals 4.8×0.5mm
→ 插片端子 Plug-in terminals 4.8×0.8mm
→ 焊接端子 Soldering terminals 4.8×0.8mm
→ 螺钉端子 Screw terminals M3.5
