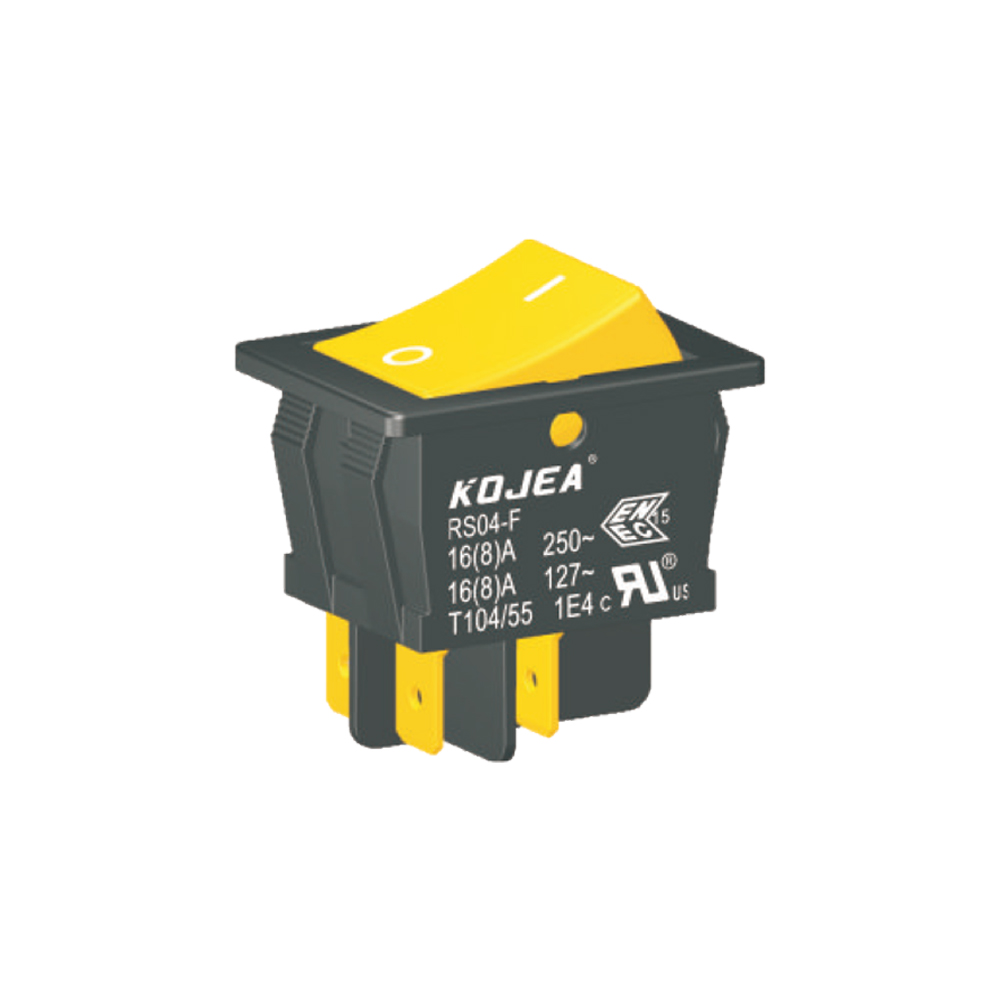

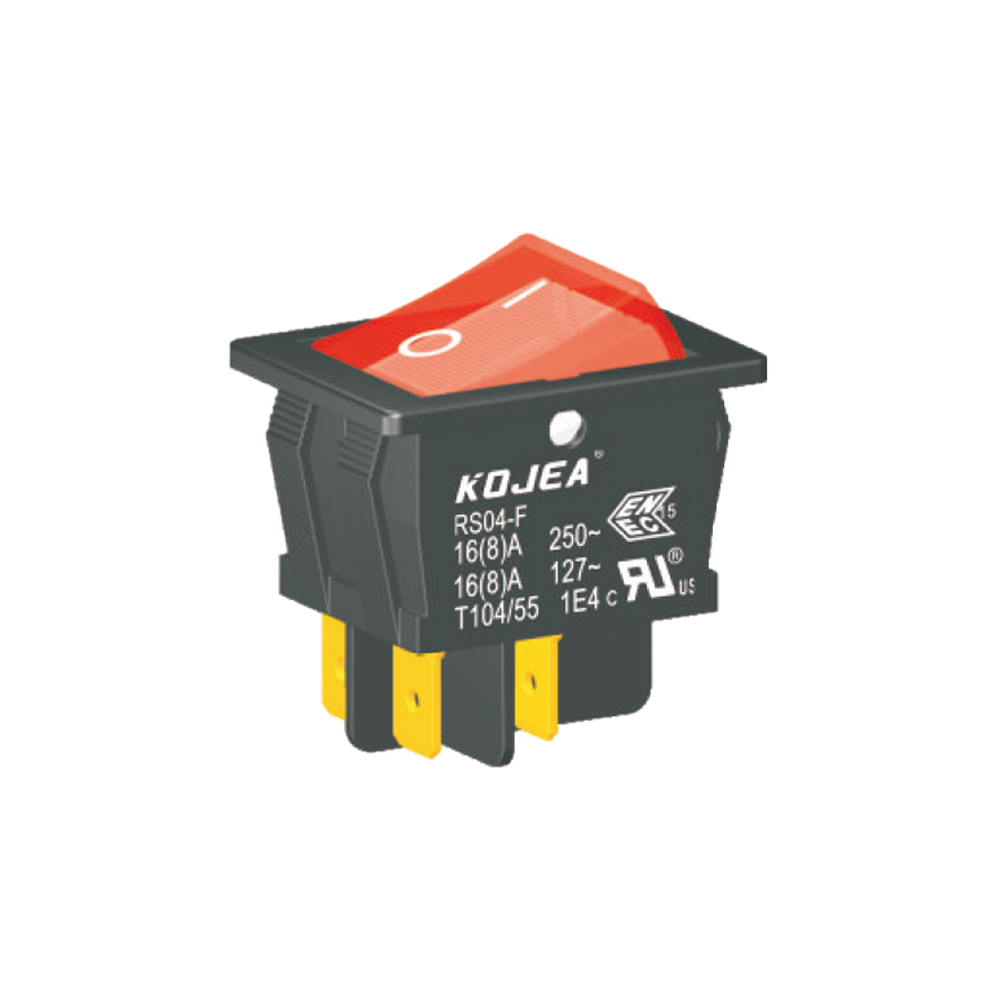

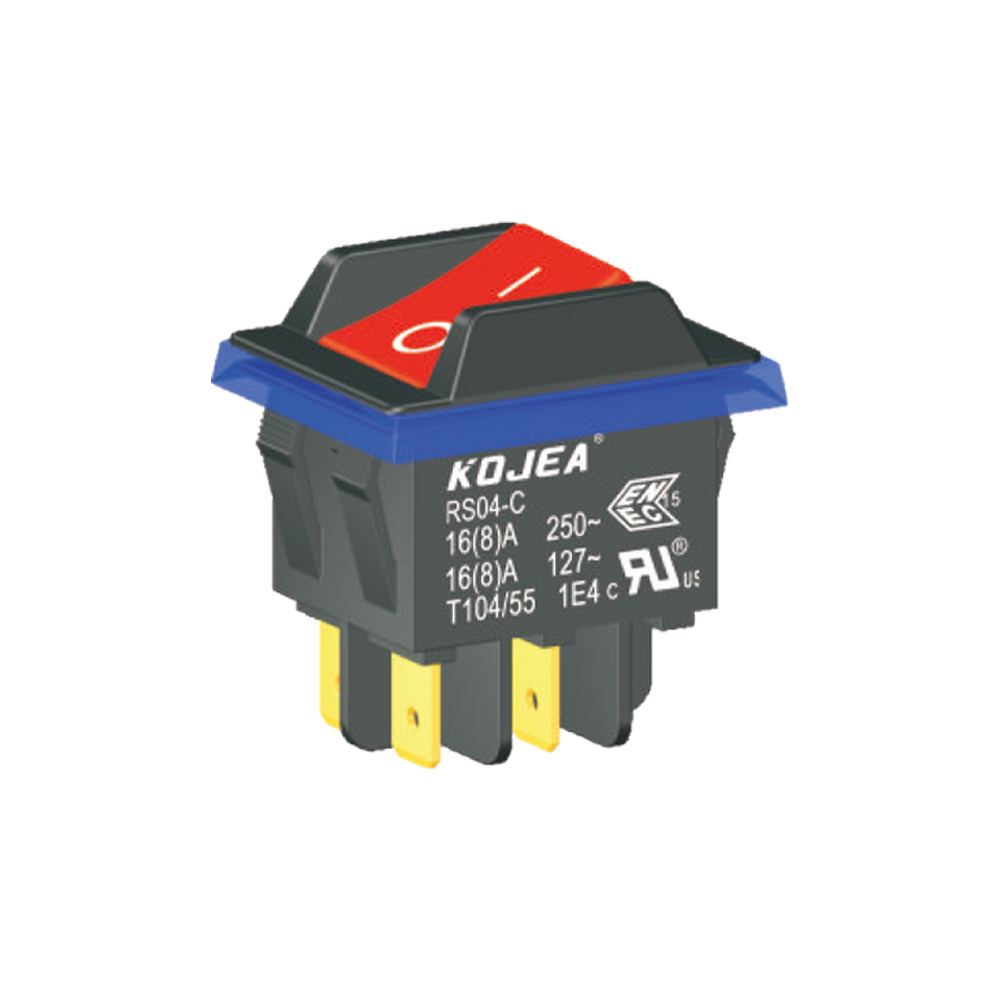

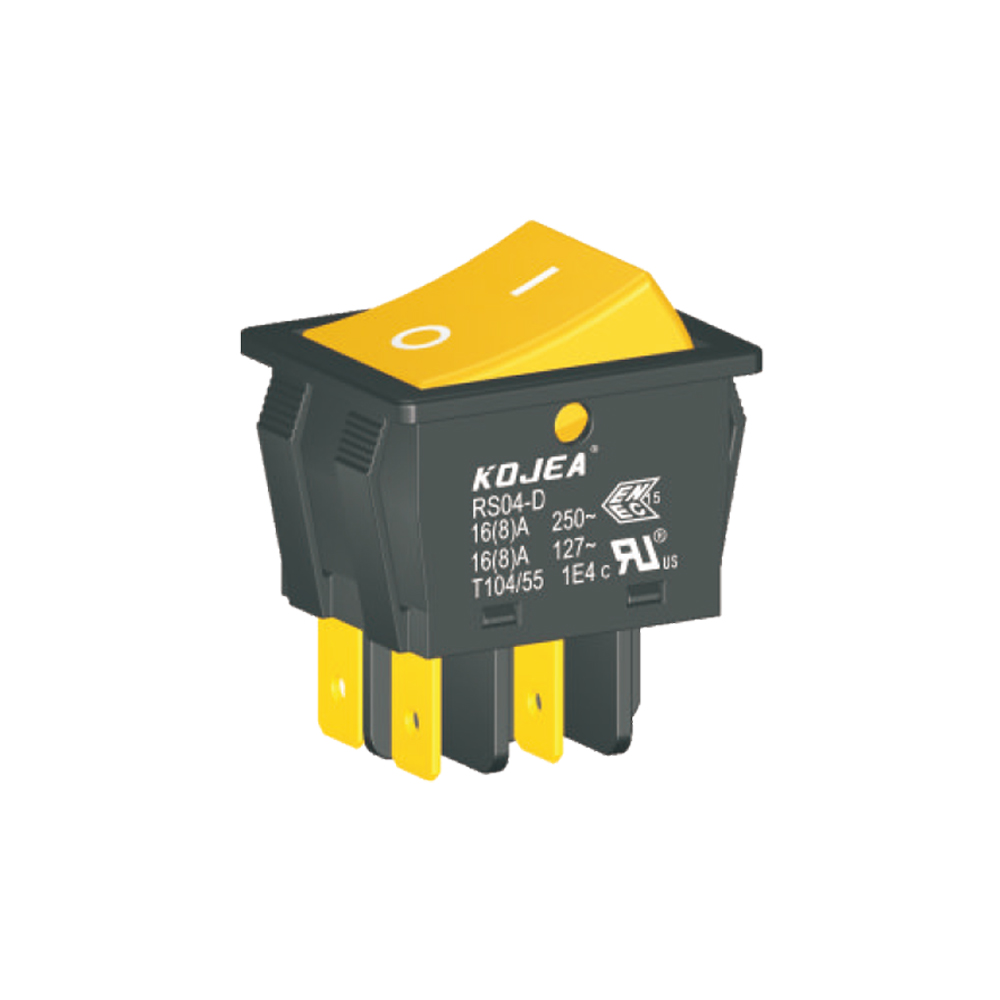

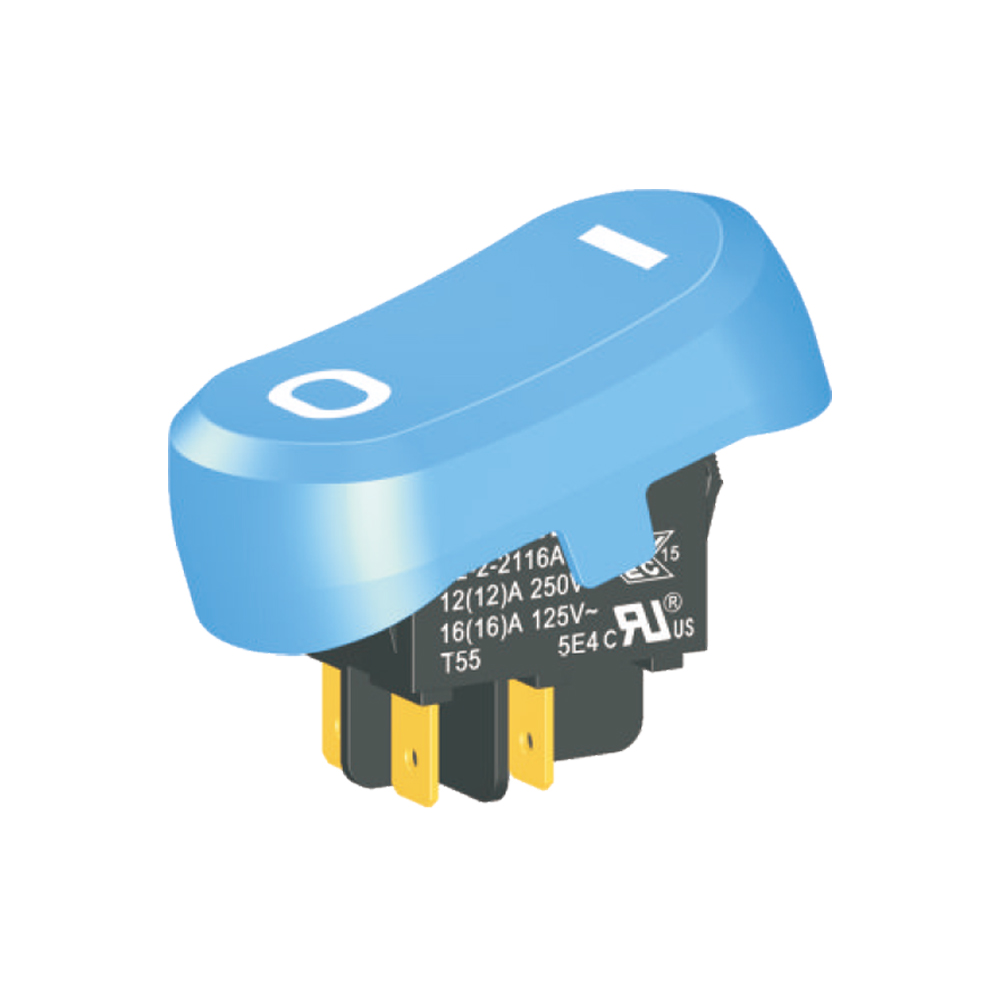

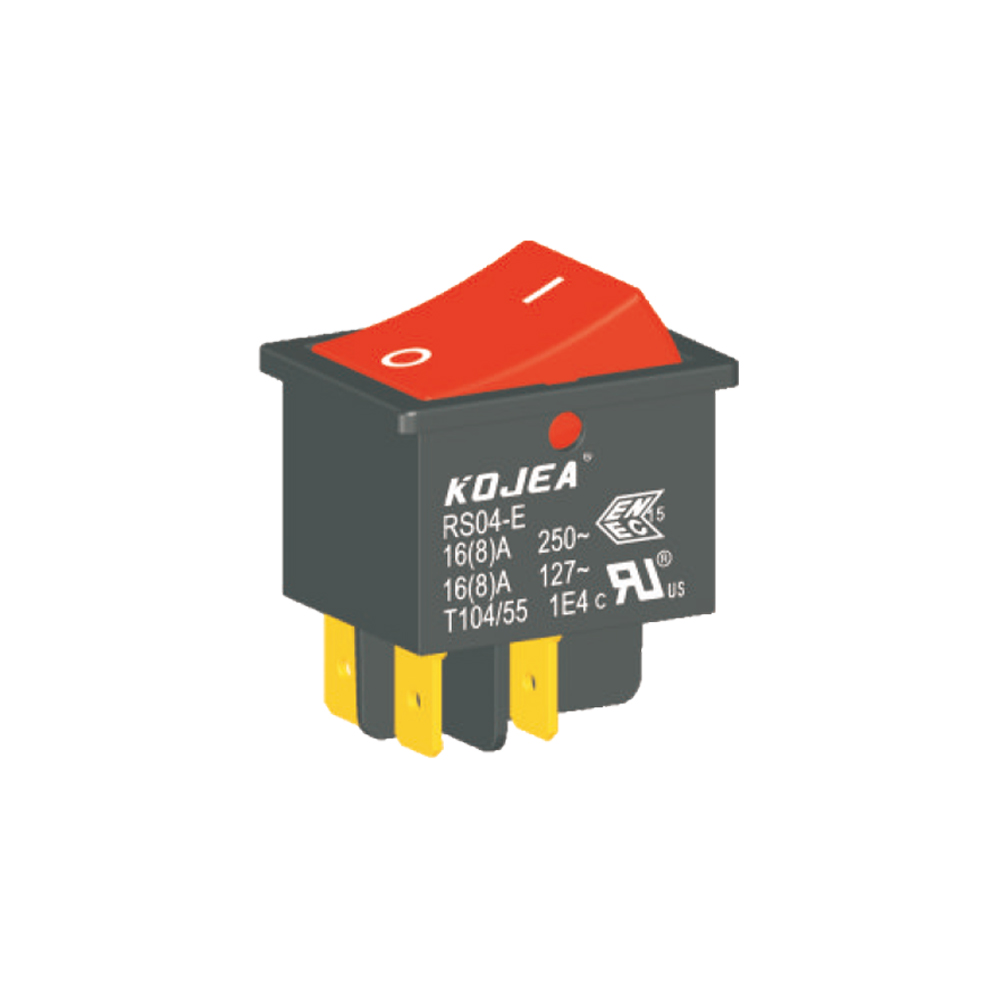

◆ RS04 series are standard type rocker switches, optional many kinds of types, optional with Protection Cap for dustproof and waterproof, optional with Inner Protection Structure for dustproof and waterproof, commonly for used in power-tools, gardening tools and cleaning appliances such as: Table Saws, Bench Grinders, Electric Lawnmowers, Cutting Shredders, Electric High Pressure Washers, Dryand Wet Vacuum Cleaners, etc. Also for used in all kinds of Home Appliances, Testing Equipments, Office Equipments.

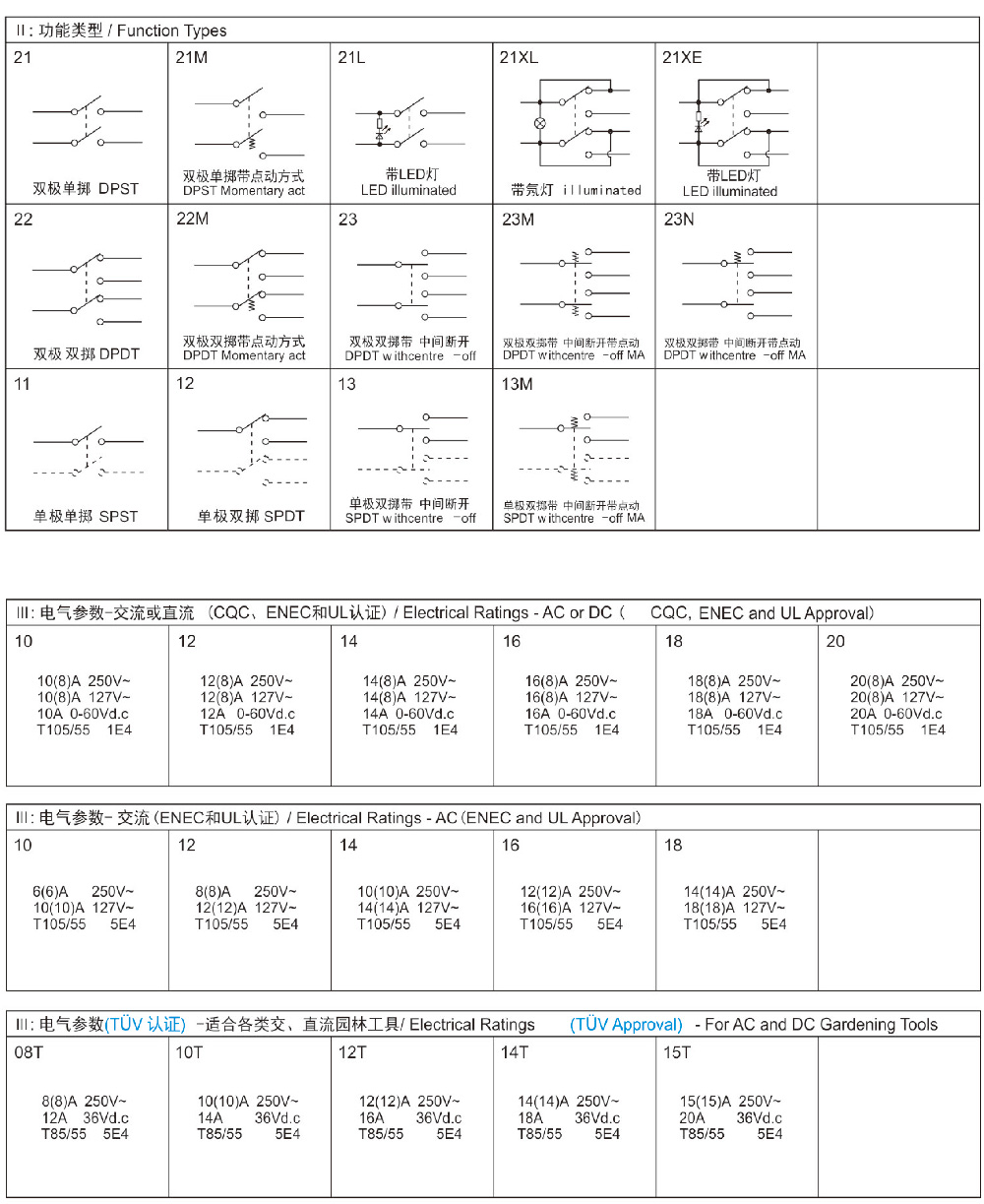

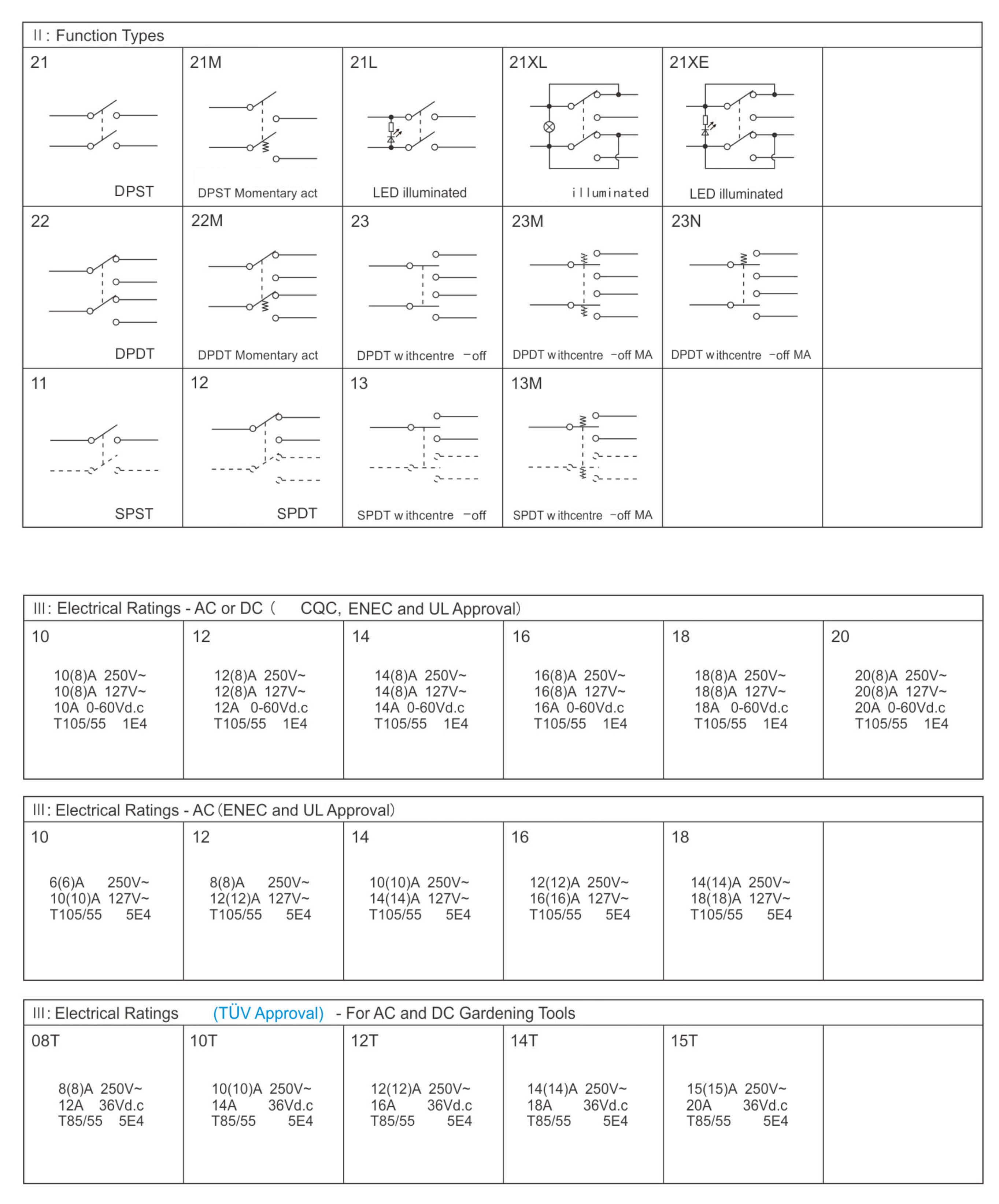

◆ Optional with the function as follows:
→ DPST (Double Pole Single Throw)
→ DPDT (Double Pole Double Throw)
→ DPDT with center off
→ Momentary act

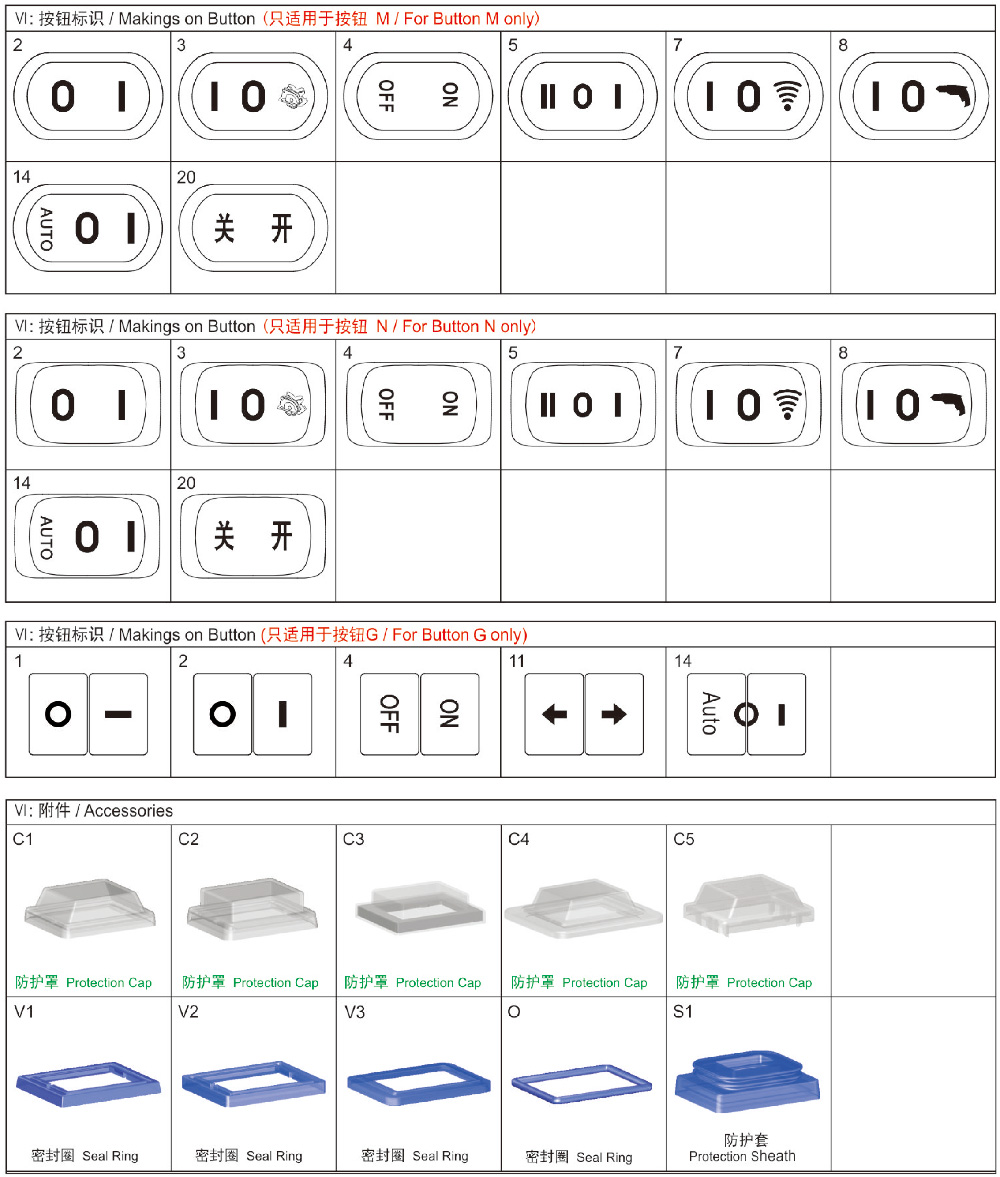

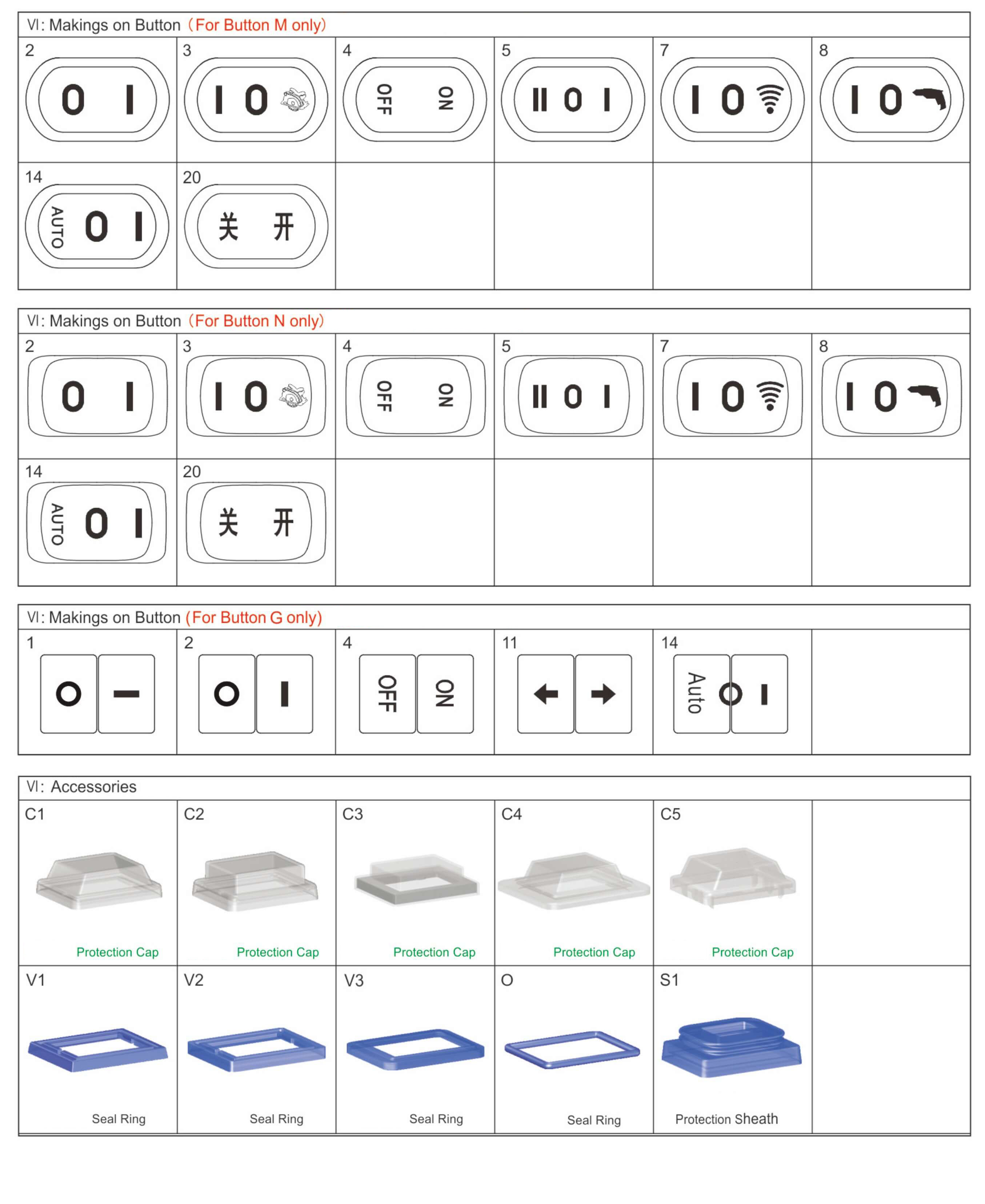

◆ Optional with the accessor as follows:

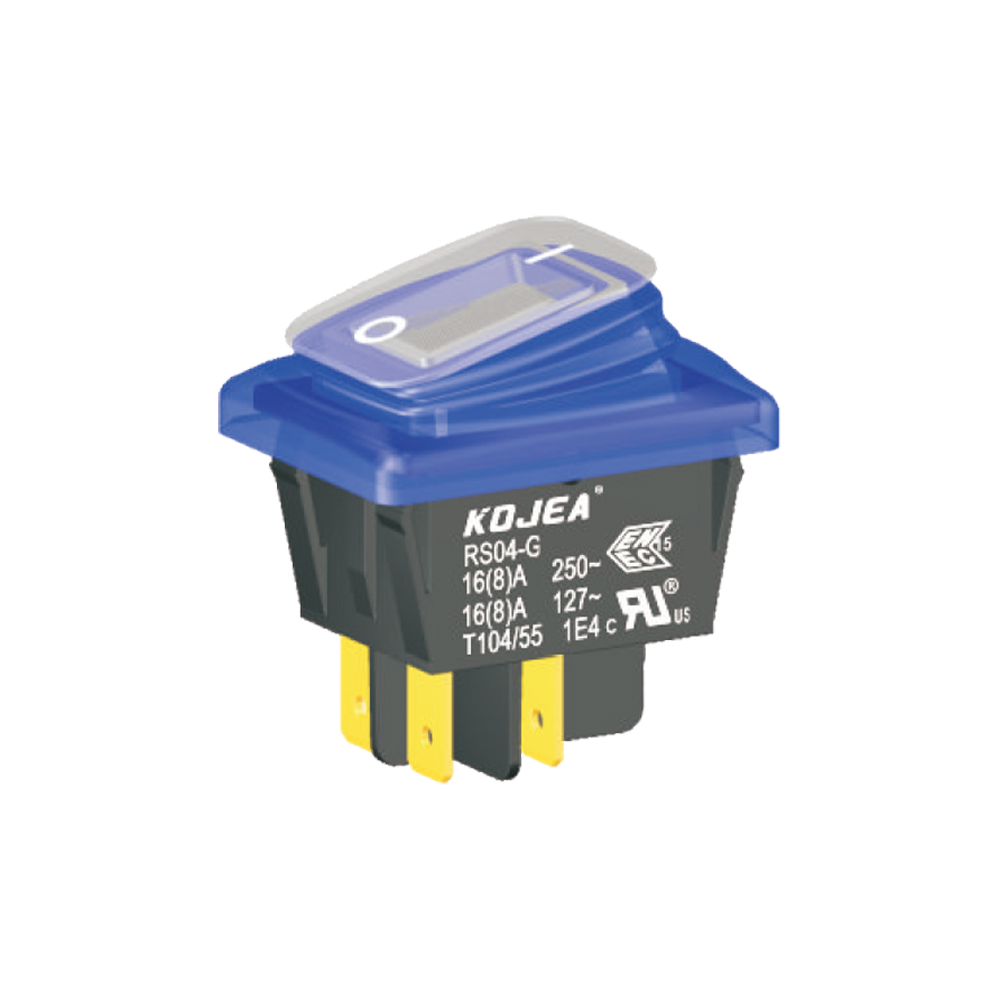

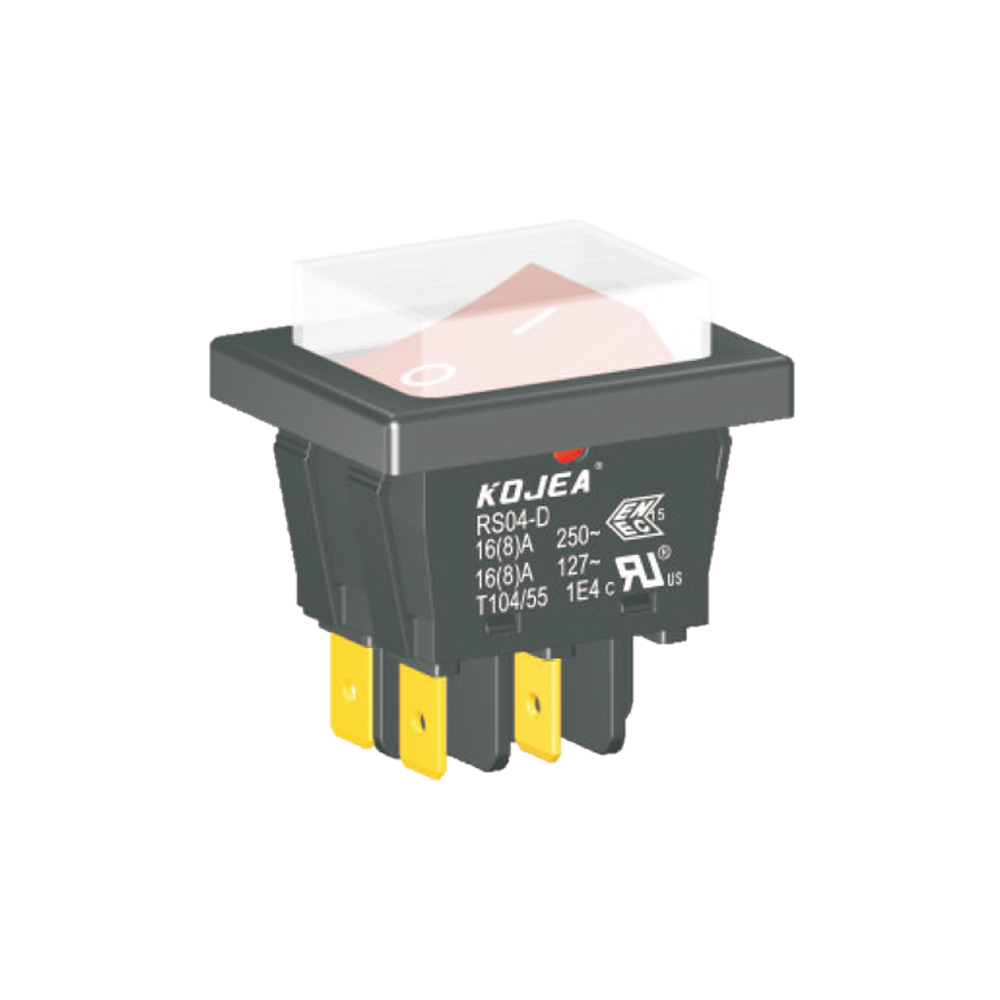

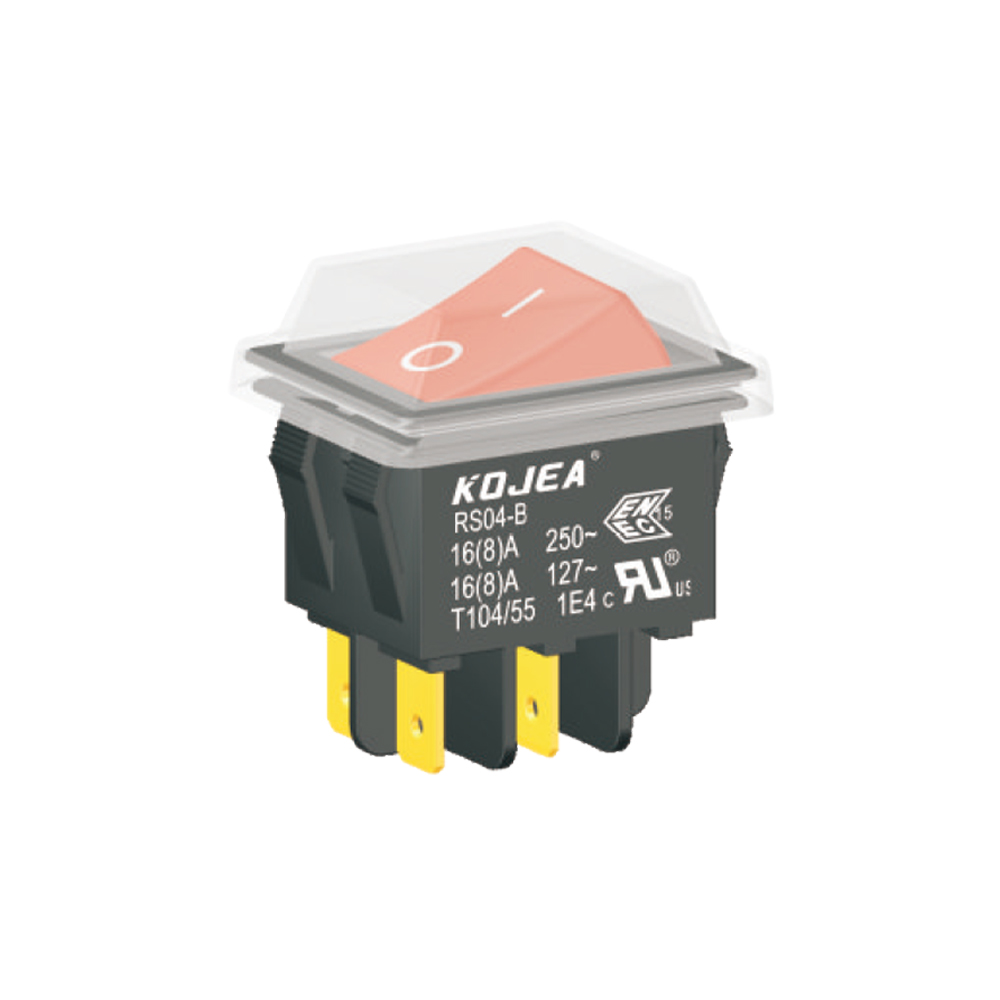

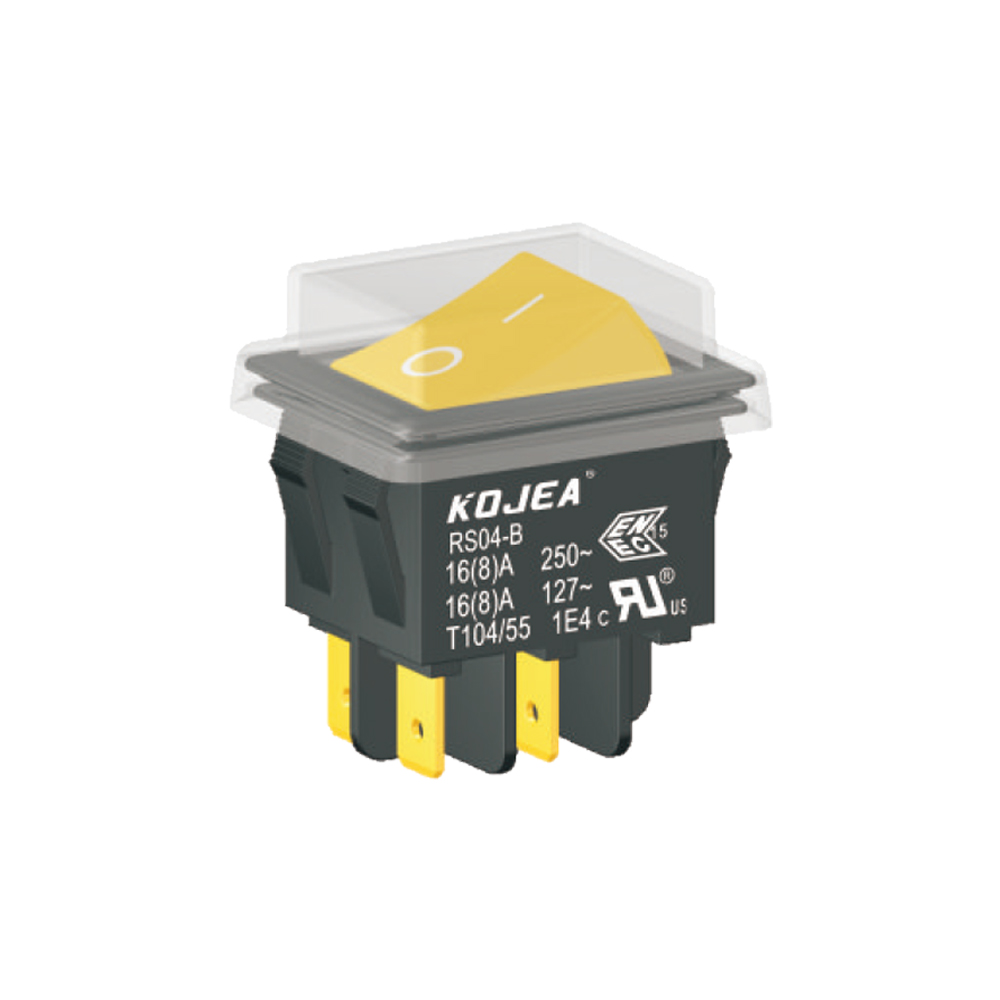

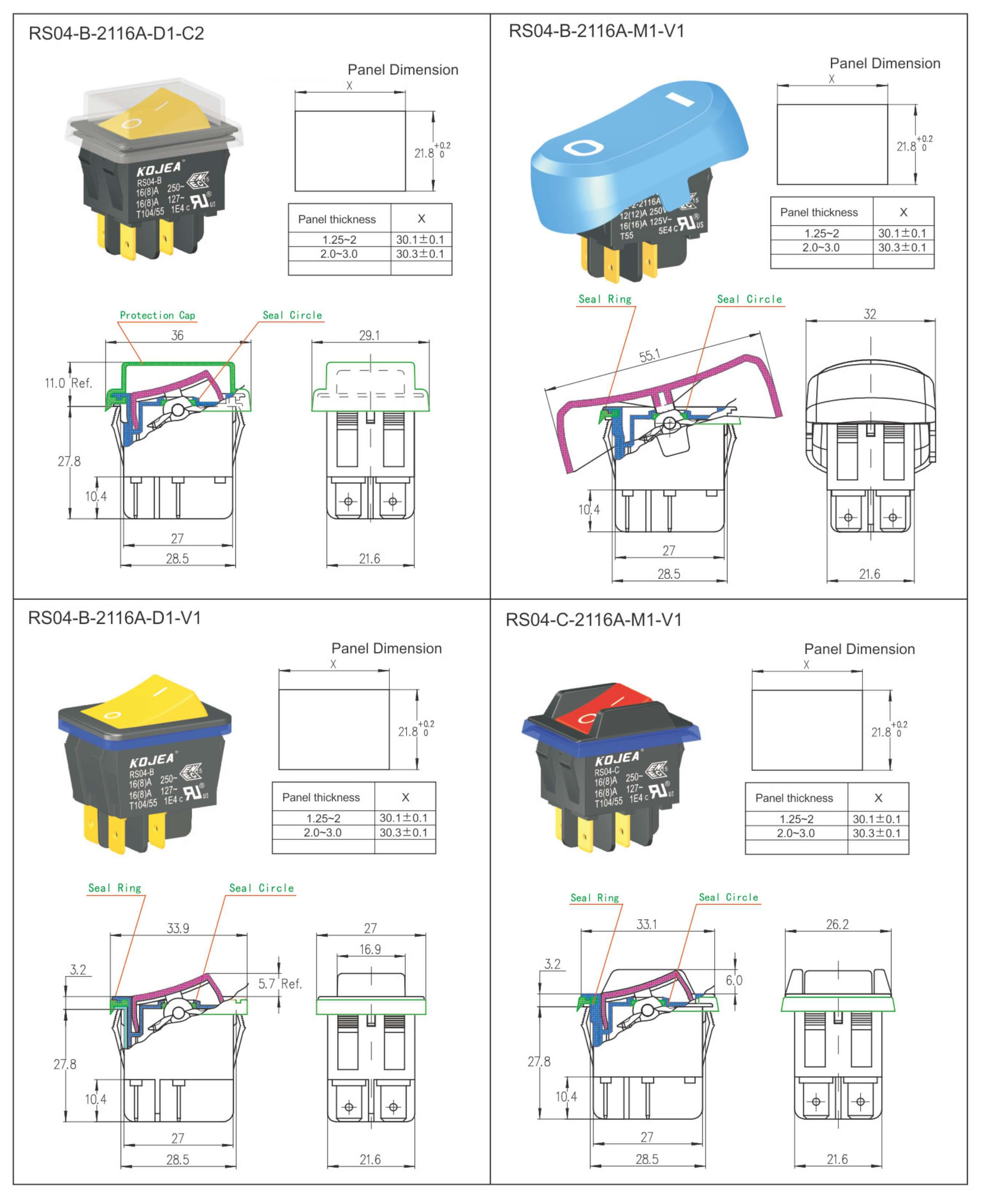

→ Protection Cap

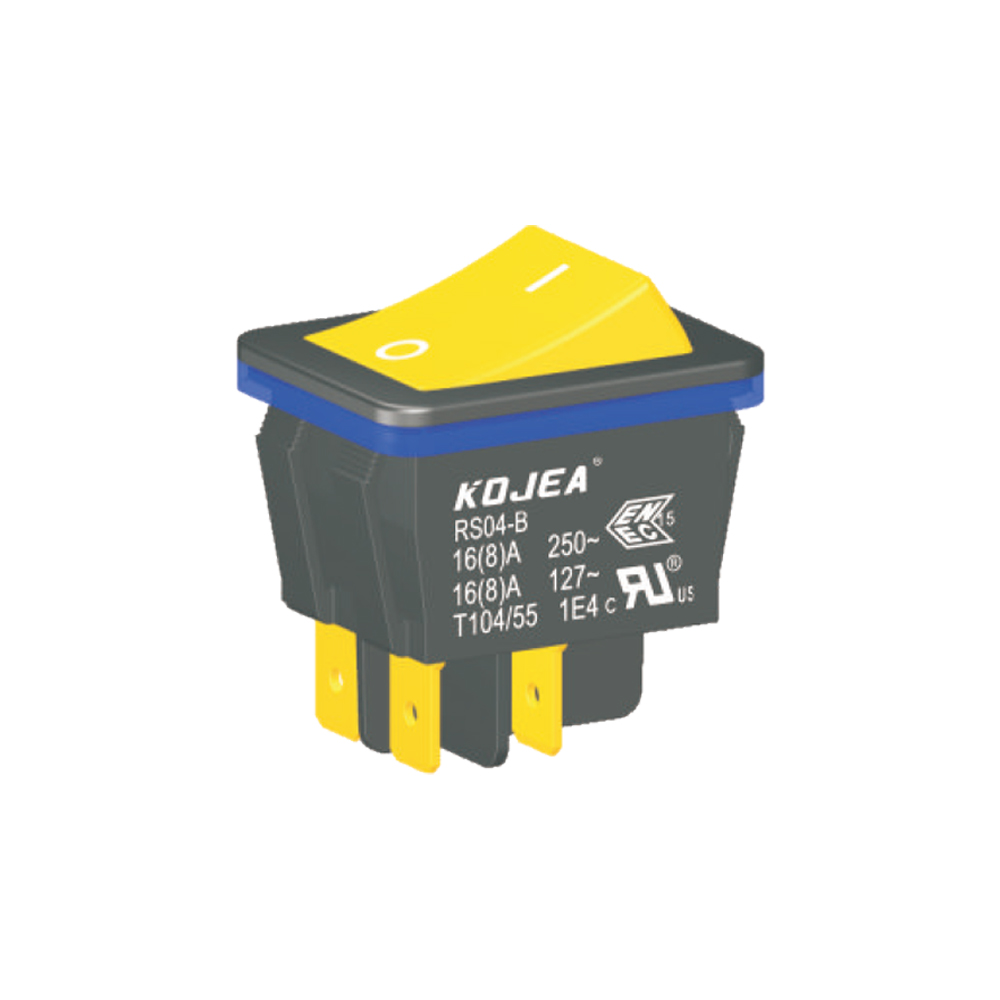

→ Inner Dustproof Structure
→ Soldering with leads and terminals
| → Mechanical life endurance | ≥5E4/1E5 |
| → Electrical life endurance | ≥1E4/5E4 |
| → Max. Inrush current at 250V | 48A/90A |
| → Max. Inrush current at 127V | 48A/108A |
| → Contact resistance | ≤30m Ohm |
| → Insulation resistance | ≥7M Ohm |
| → Dielectric strength of function | 1500V |
| → Dielectric strength of reinforced | 3000V |
| → Ambient temperature | 0℃~105℃ |
| → Actuator temperature | 0℃~55℃ |
| → Flammability | UL 94V-0 |
| → Protection type | IP65 Max. |
| → Suitable for appliances of protection class II | |

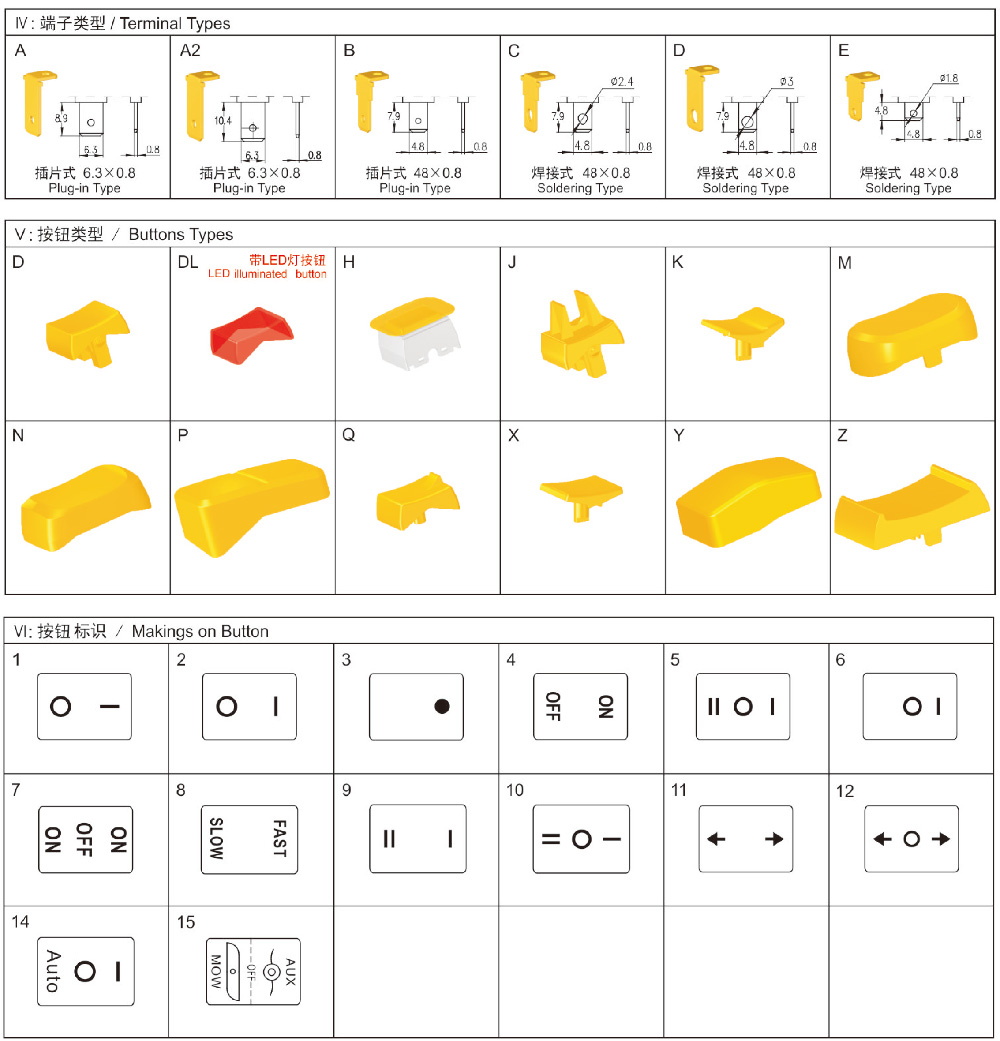

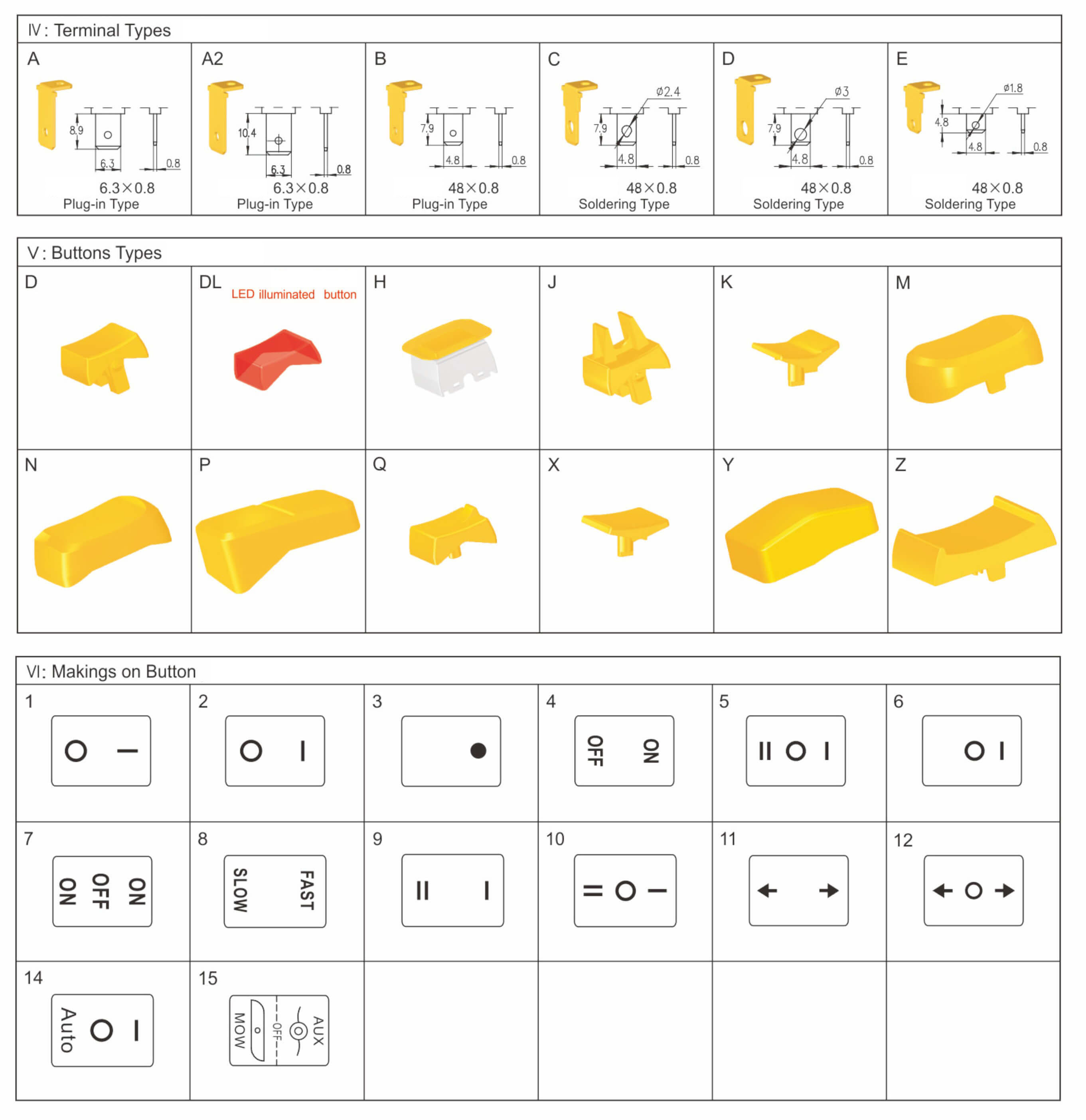

◆ Input side/Output side:
→ Plug-in terminals 6.3×0.8mm
→ Plug-in terminals 4.8×0.8mm
→ Soldering terminals
→ PCB Soldering terminals
