返回列表RS03 跷板开关

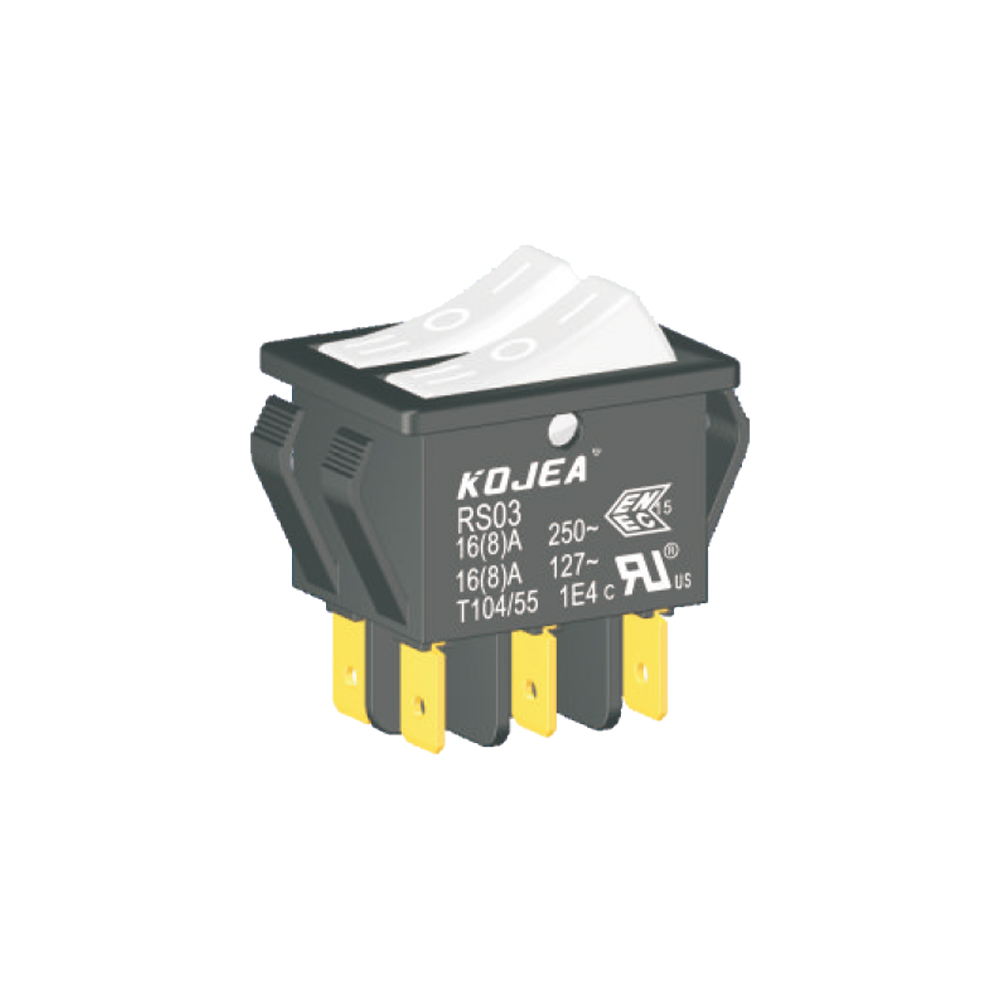

RS03

产品描述

RS03 series are standard type rocker switches, commonly for use in small Home appliances and office equipments, such as: Electric Fans, Drinking Machines, Electric Heaters, etc.

产品特征

 Optional with the function as follows:

→  2PST (2 Pole Single Throw)

→  2PDT (2 Pole Double Throw)

→  2PDT with center off

→  Momentary act

技术数据

→  Mechanical life endurance≥5E4/1E5
→  Electrical life endurance≥1E4/5E4
→  Max. Inrush current at 250V48A/72A
→  Max. Inrush current at 127V48A/96A
→  Contact resistance≤30m Ohm
→  Insulation resistance≥7M Ohm
→  Dielectric strength of function1500V
→  Dielectric strength of reinforced3000V
→  Ambient temperature0℃~105℃
→  Actuator temperature0℃~55℃
→  FlammabilityUL 94V-0
→  Protection typeIP40
→  Suitable for appliances of protection class II

端子类型

 Input side/Output side:

→  Plug-in terminals 6.3×0.8mm

→  Plug-in terminals 4.8×0.8mm

→  Soldering terminals

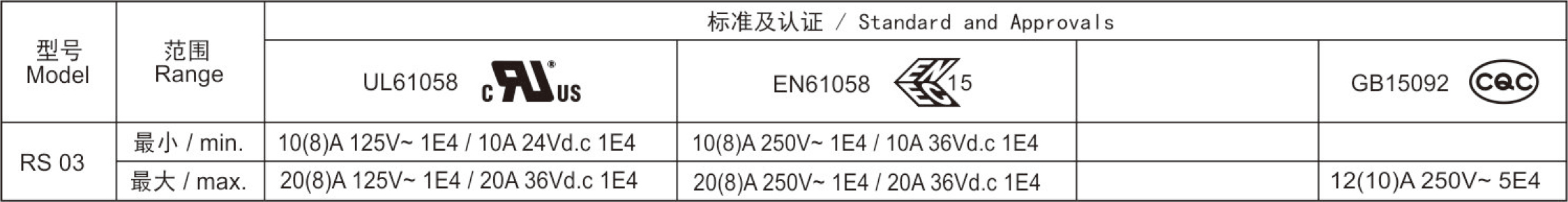

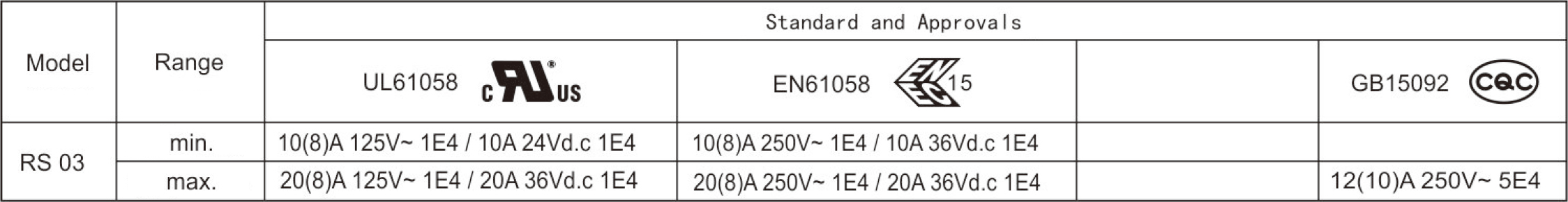

电气参数和认证

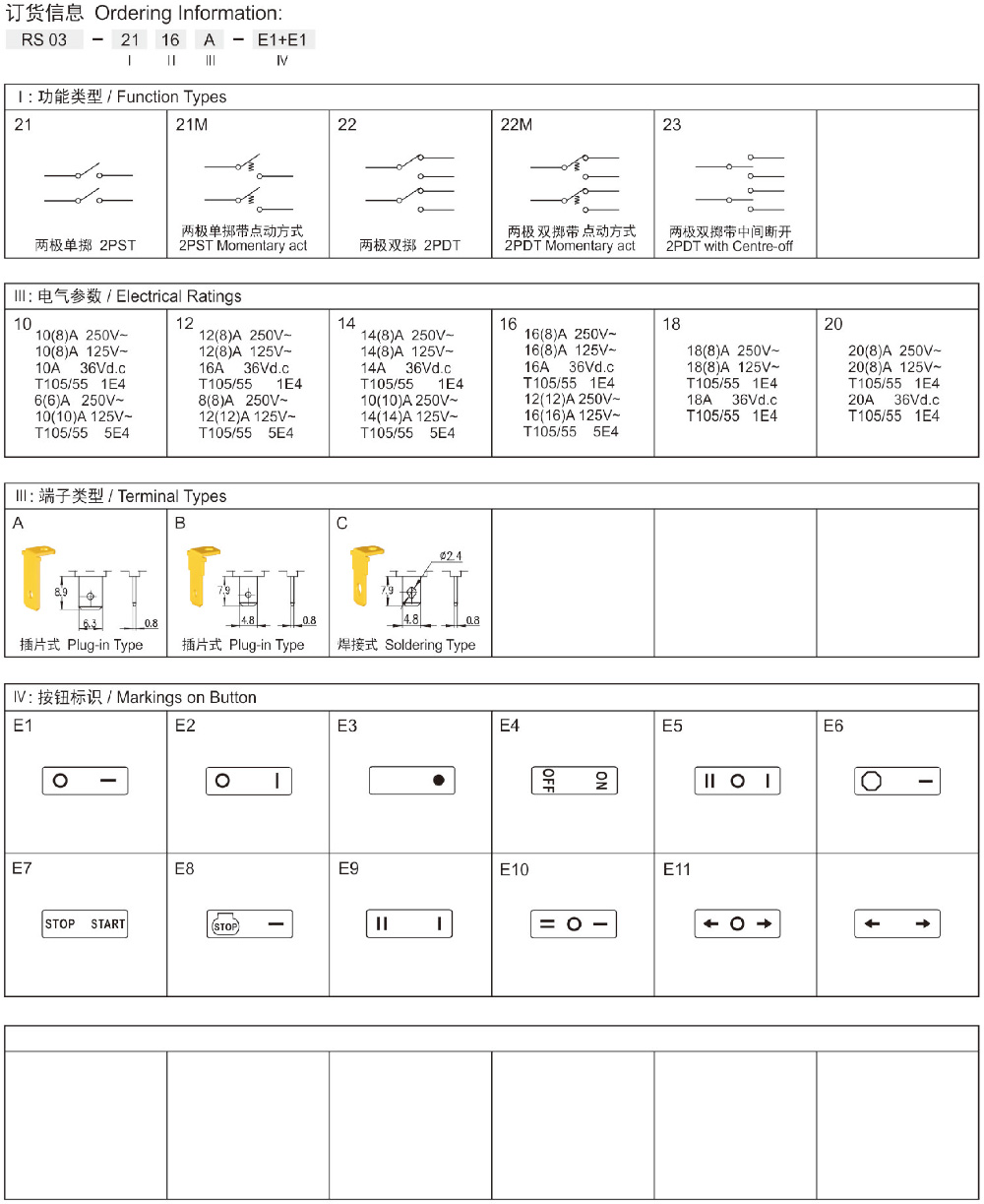

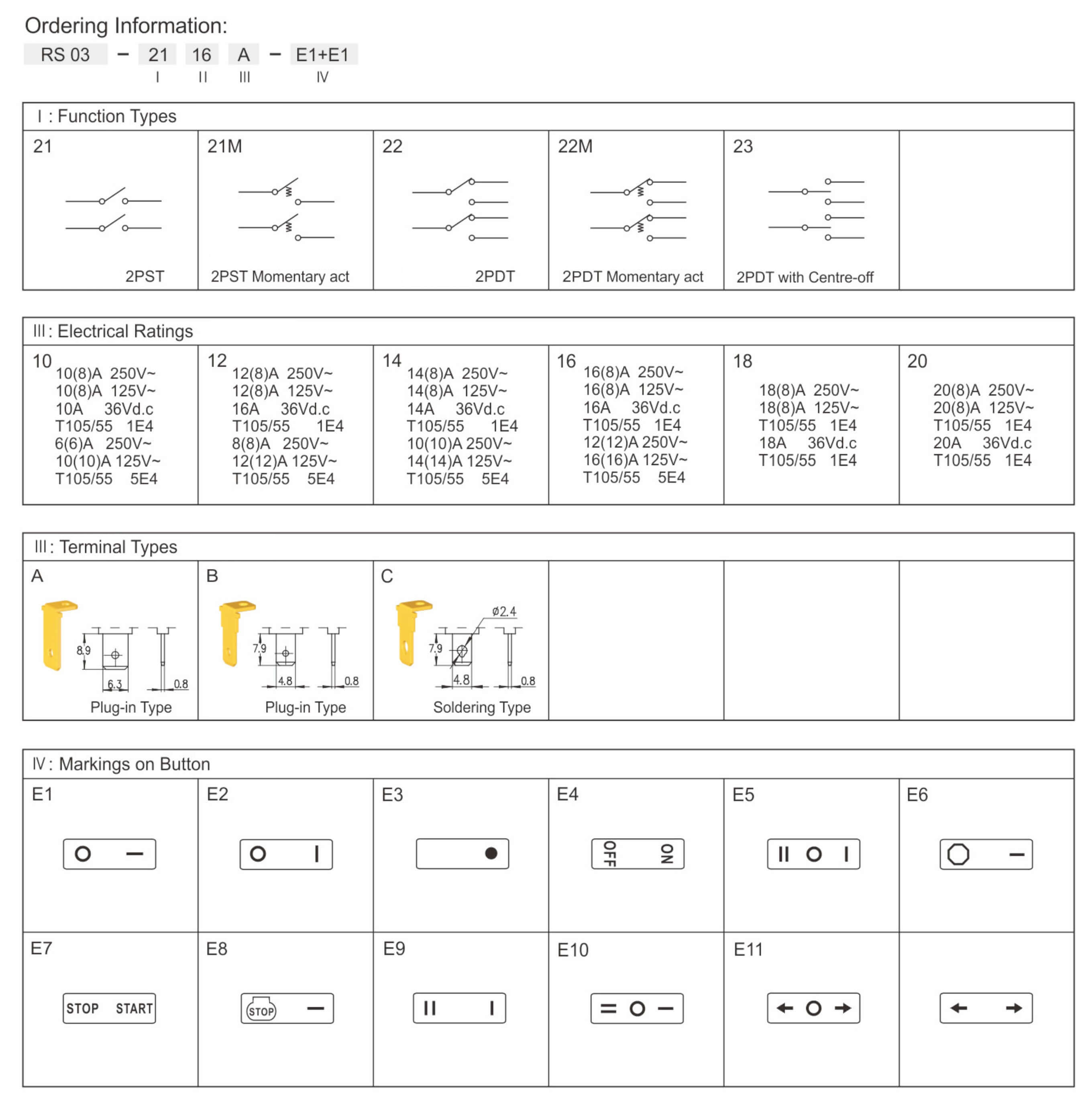

订货信息
