TVAF28-018H2BZ-R MINI Series

TVAF28-018H2BZ-R

Product Features

列表.png Microminiature, light operating;

列表.png Goodfeeling and long life;

列表.png Snap-in type, can be mounted directly on P.C. Board and good for electrostatic discharge;

列表.png lt has a lot of choices for button shape and height and it is easily to install all kind of product.


Product Applications

列表.png They can operate all types of electronic equipment such as the telephone, PDA, DVD, digital camera, audio equipment, instrument and meter equipment, autoimmunization equipments control etc.

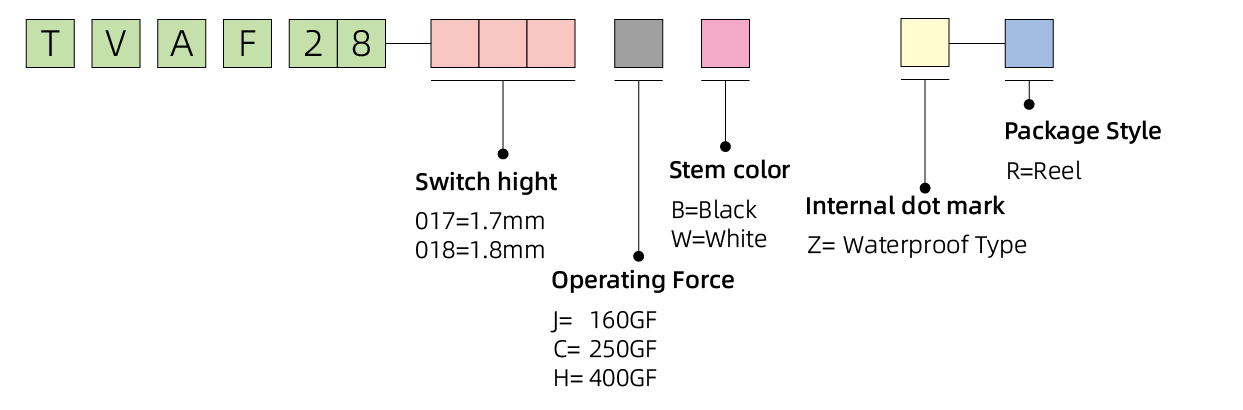

Ordering Information


Technical parameter

ItemsStandard
Operating temperature range-40℃ to +85℃
Electrical performanceRating50mA. 32V DC
Insulation resistance100MΩ min. 100V DC
Dielectric strength250V AC for 1 min.
Contact resistance100mΩ max.
DurabilityLifetime100,000 Cycles
Mechanical performanceActuating Force400 ± 100 gf
Travel0.2 ± 0.1mm

Specifications Diagram
