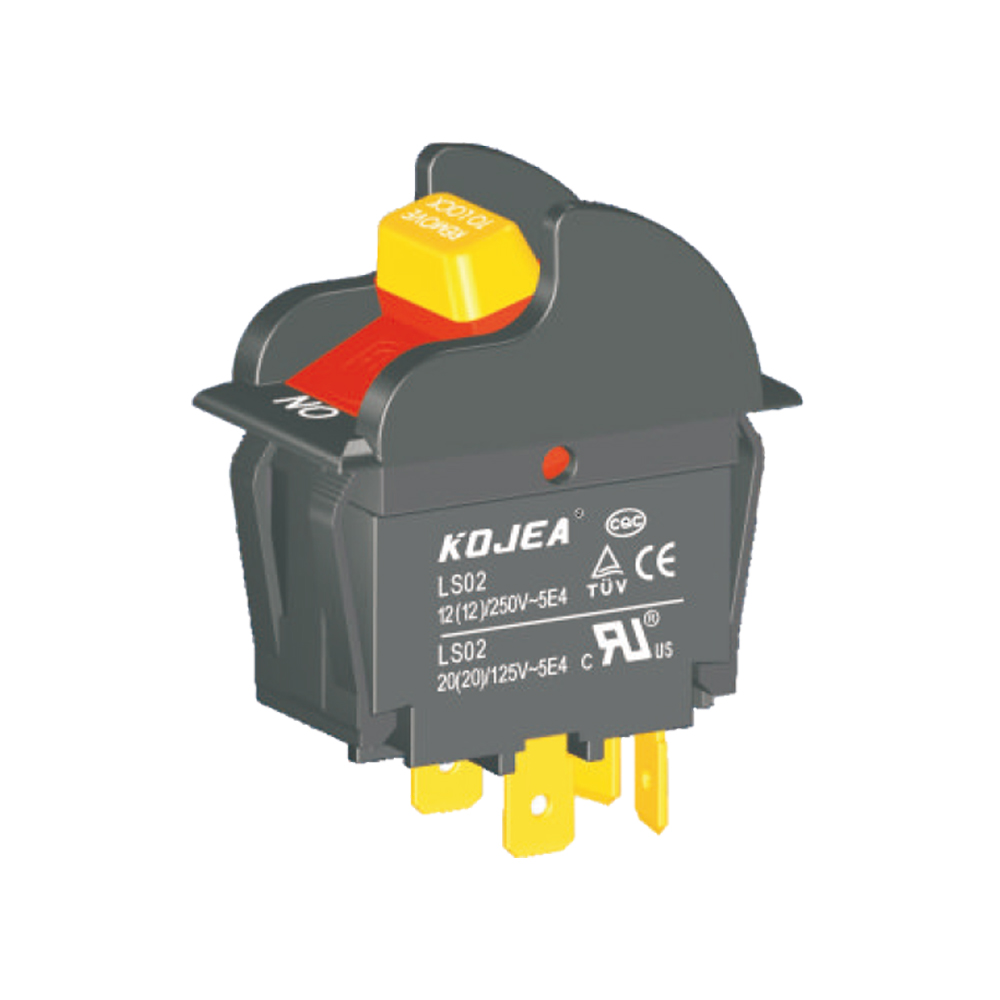

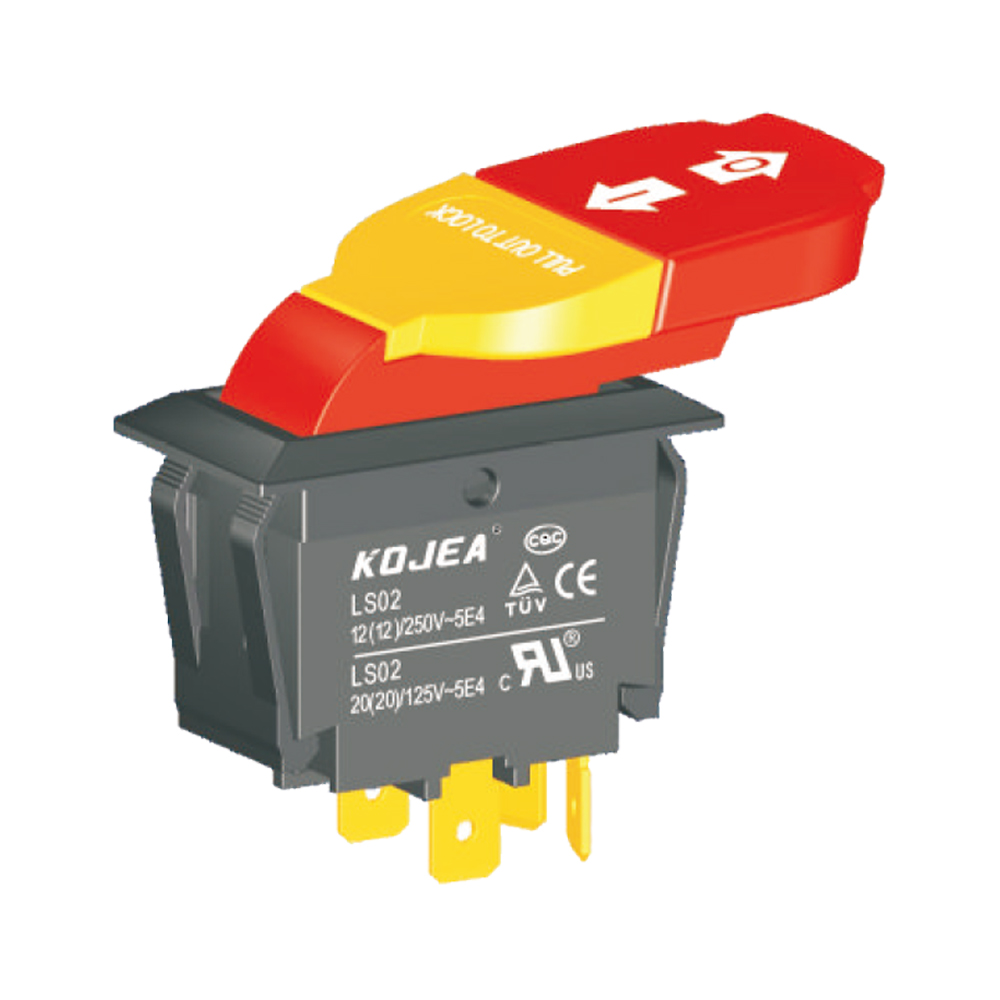

◆ LS02 series are special type Lever switches, integrated dustproof and waterproof, commonly for used in bench top power- tools such as: Bench Push-pull Saws, Bench Circular Saws, Bench Planers, Bench Routers, Bench Scroll Saws, Drill Presses, Bench lathes, Bench Grinders, Bench Marble Cutters, Floor Cutters, etc.

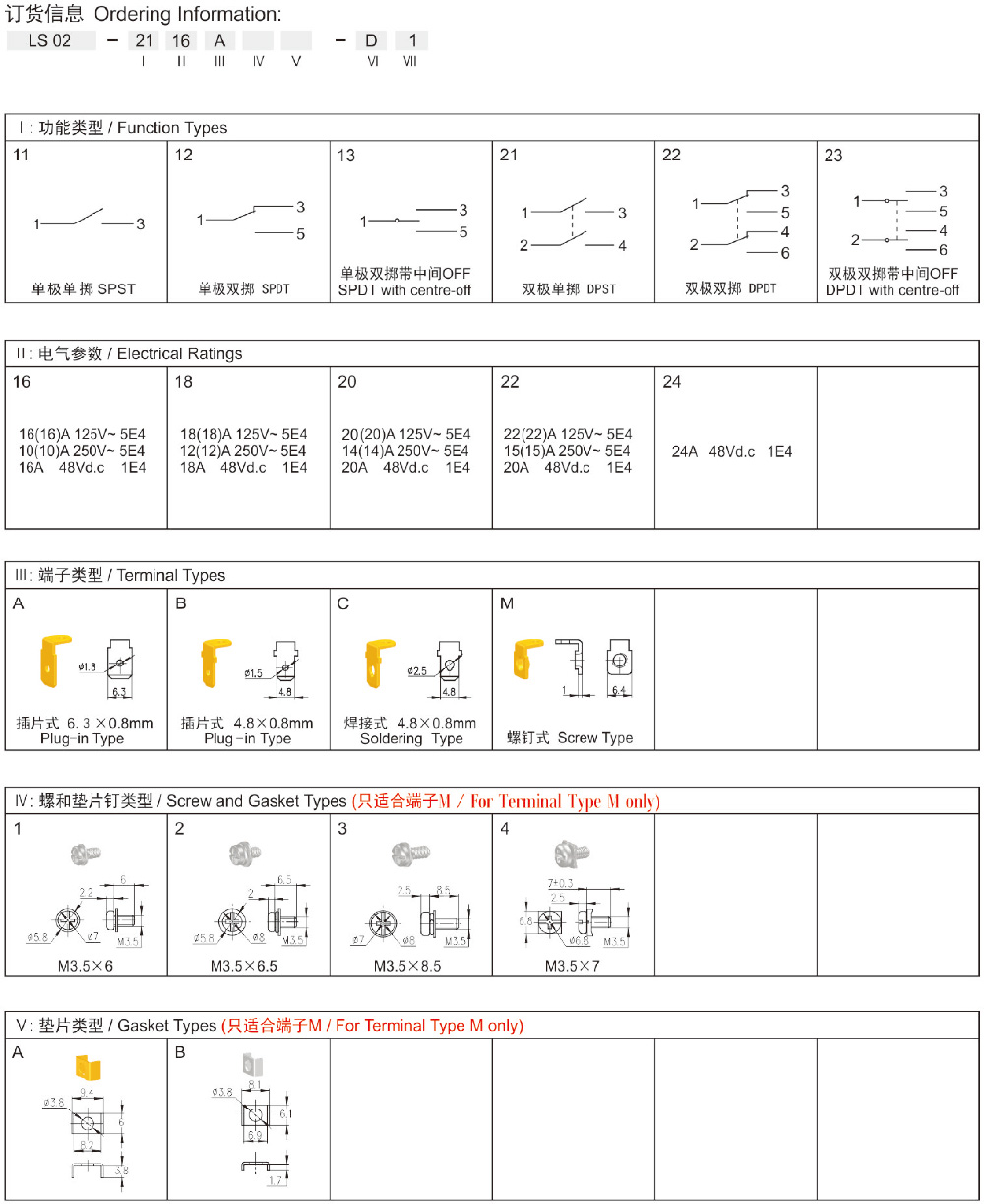

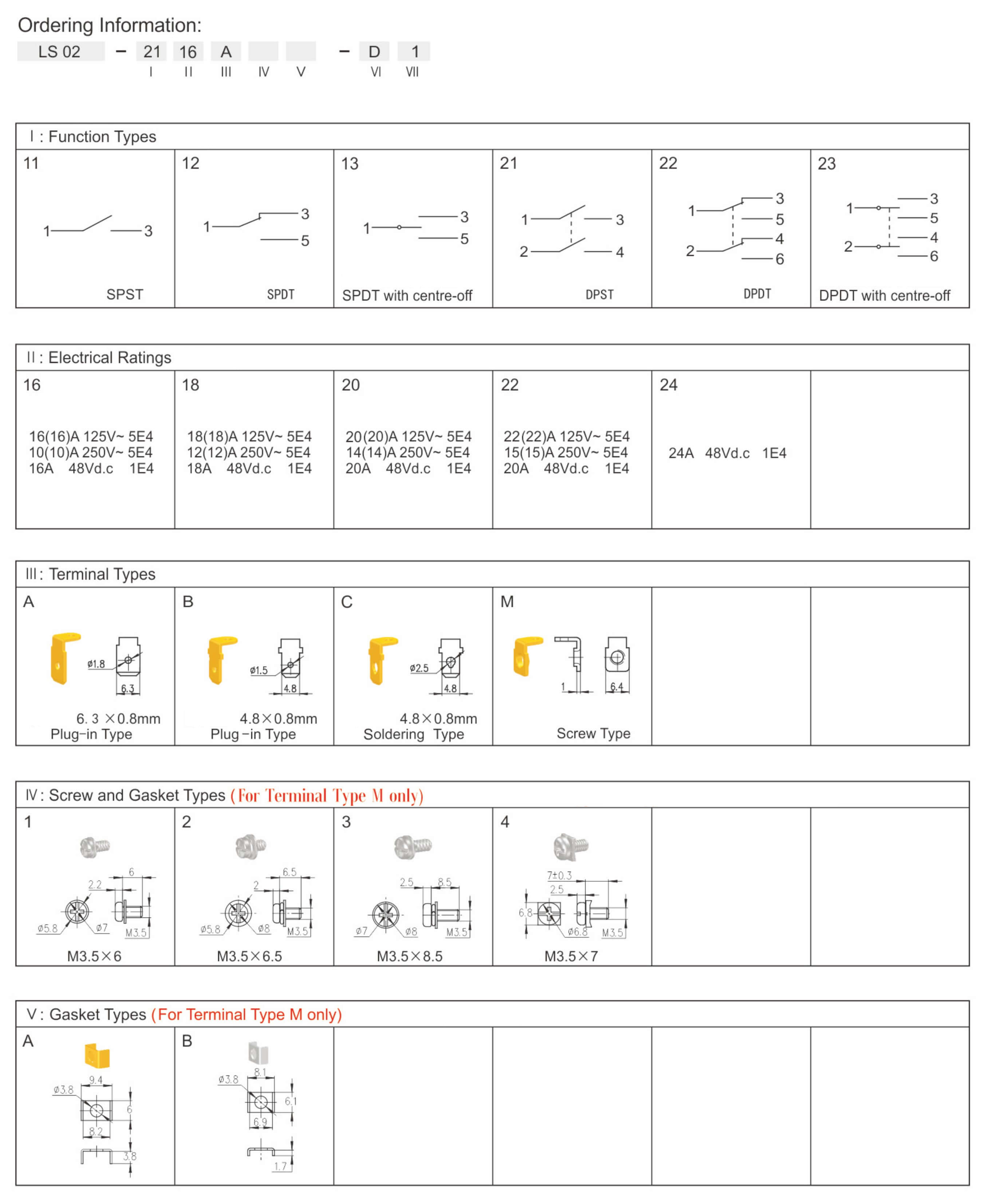

◆ Optional with the function as follows:
→ SPST (Single Pole Single Throw)
→ SPDT (Single Pole Double Throw)
→ SPDT with center off
→ DPST (Double Pole Single Throw)
→ DPDT (Double Pole Double Throw)
→ DPDT with center off
◆ Optional with the accessor as follows:
→ Key for children's safety
| → Mechanical life endurance | ≥1E5/5E4 |
| → Electrical life endurance | ≥5E4/1E4 |
| → Max. Inrush current at 250V | 90A |
| → Max. Inrush current at 125V | 132A |
| → Contact resistance | ≤30m Ohm |
| → Insulation resistance | ≥7M Ohm |
| → Dielectric strength of function | 1500V |
| → Dielectric strength of reinforced | 3000V |
| → Ambient temperature | 0℃~55℃ |
| → Flammability | UL 94V-0 |
| → Protection type | IP40 |
| → Suitable for appliances of protection class II | |
◆ Input side/Output side:
→ Plug-in terminals 6.3×0.8mm
→ Plug-in terminals 4.8×0.8mm
→ Soldering terminals 4.8×0.8mm
→ Screw terminals M3.5
