Product Description
◆ LS01 series are one special type Lever switch, integrated dustproof, commonly for used in portable power-tools such as: 100mm and 125mm Angle Grinders, Routers, Die Grinders, etc.
Product Features

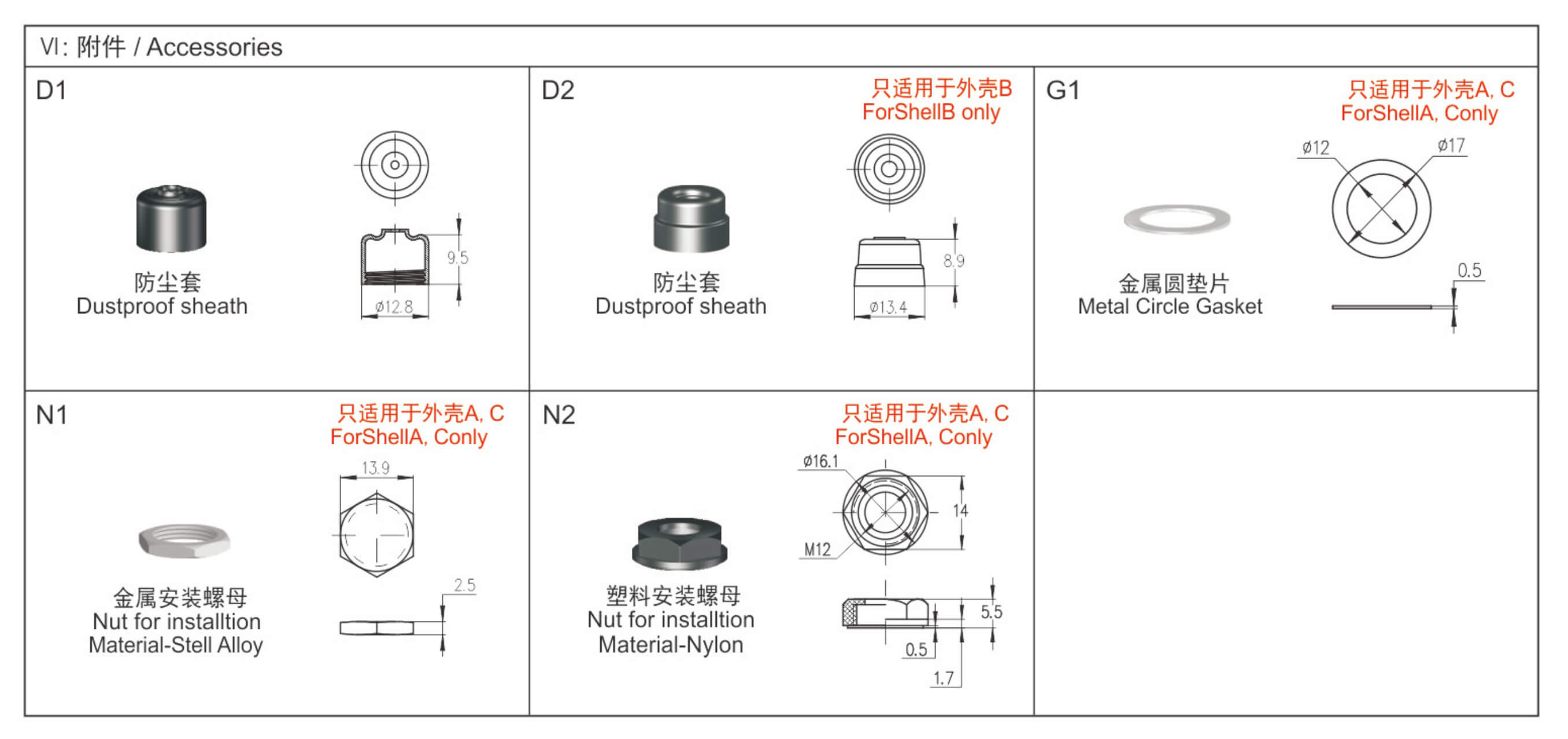

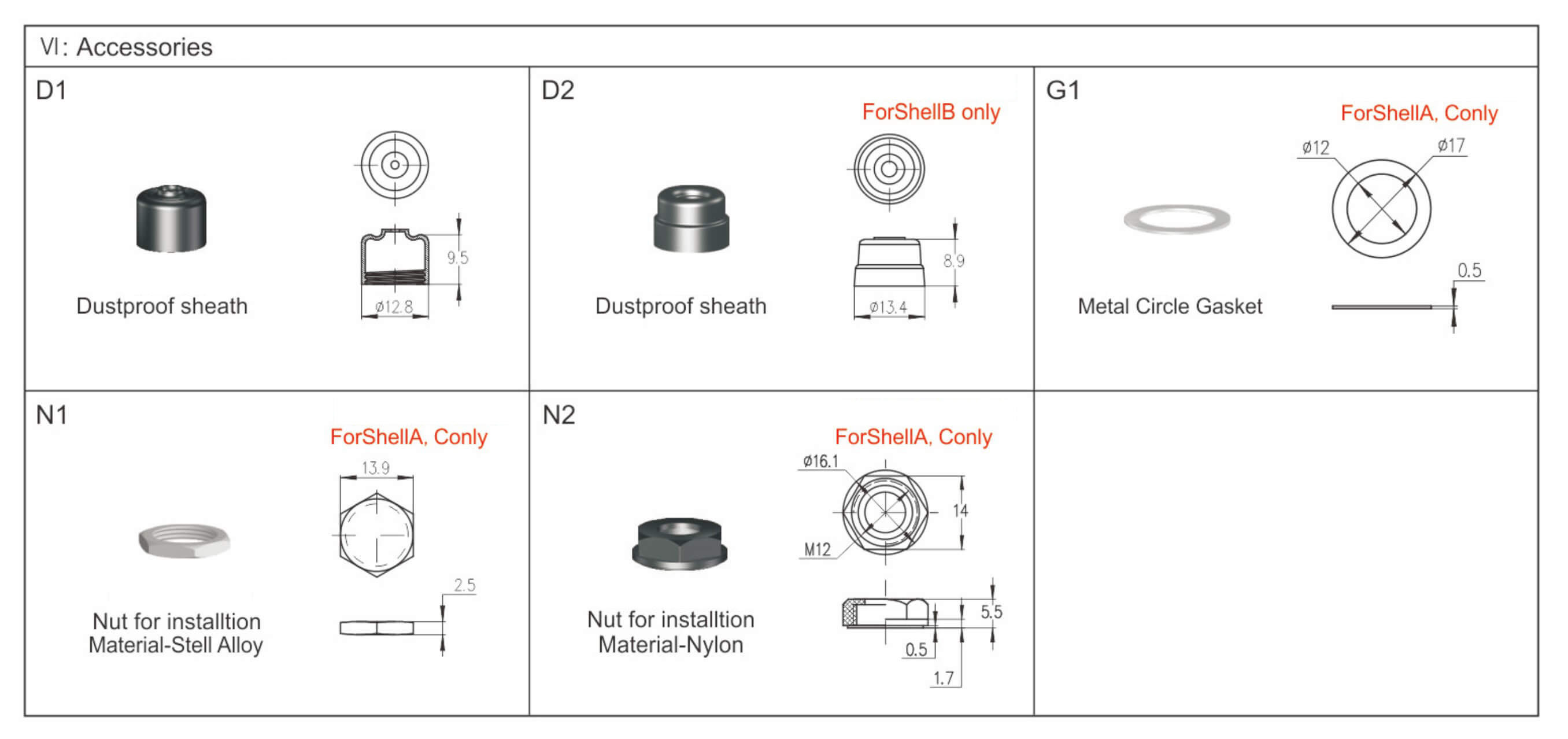

◆ Optional with the accessor as follows:
→ Dustproof sheath
→ Nut for installation
Technical Data
| → Mechanical life endurance | ≥1E5 |
| → Electrical life endurance | ≥5E4 |
| → Max. Inrush current at 250V | 48A |
| → Max. Inrush current at 125V | 72A |
| → Contact resistance | ≤30m Ohm |
| → Insulation resistance | ≥7M Ohm |
| → Dielectric strength of function | 1500V |
| → Dielectric strength of reinforced | 3000V |
| → Ambient temperature | 0℃~55℃ |
| → Flammability | UL 94V-0 |
| → Protection type | IP40 |
| → Suitable for appliances of protection class II |
Terminal Type
◆ Input side/Output side:
→ Plug-in terminals 4.8×0.5mm
→ Plug-in terminals 4.8×0.8mm
→ Soldering terminals 4.8×0.8mm
→ Screw terminals M3.5

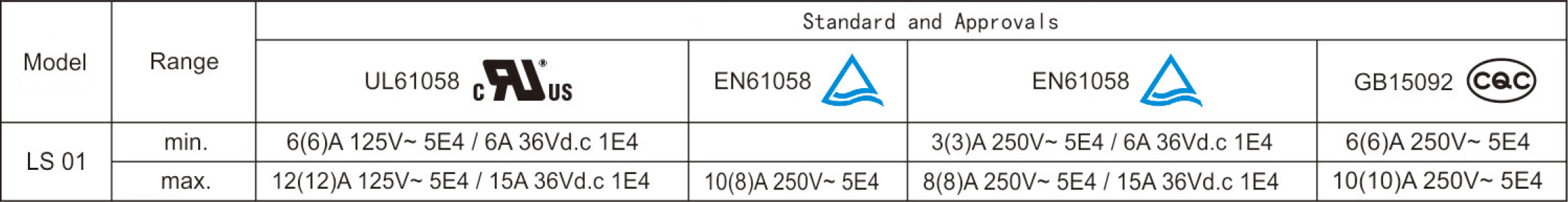

Electrical Parameters and Certifications

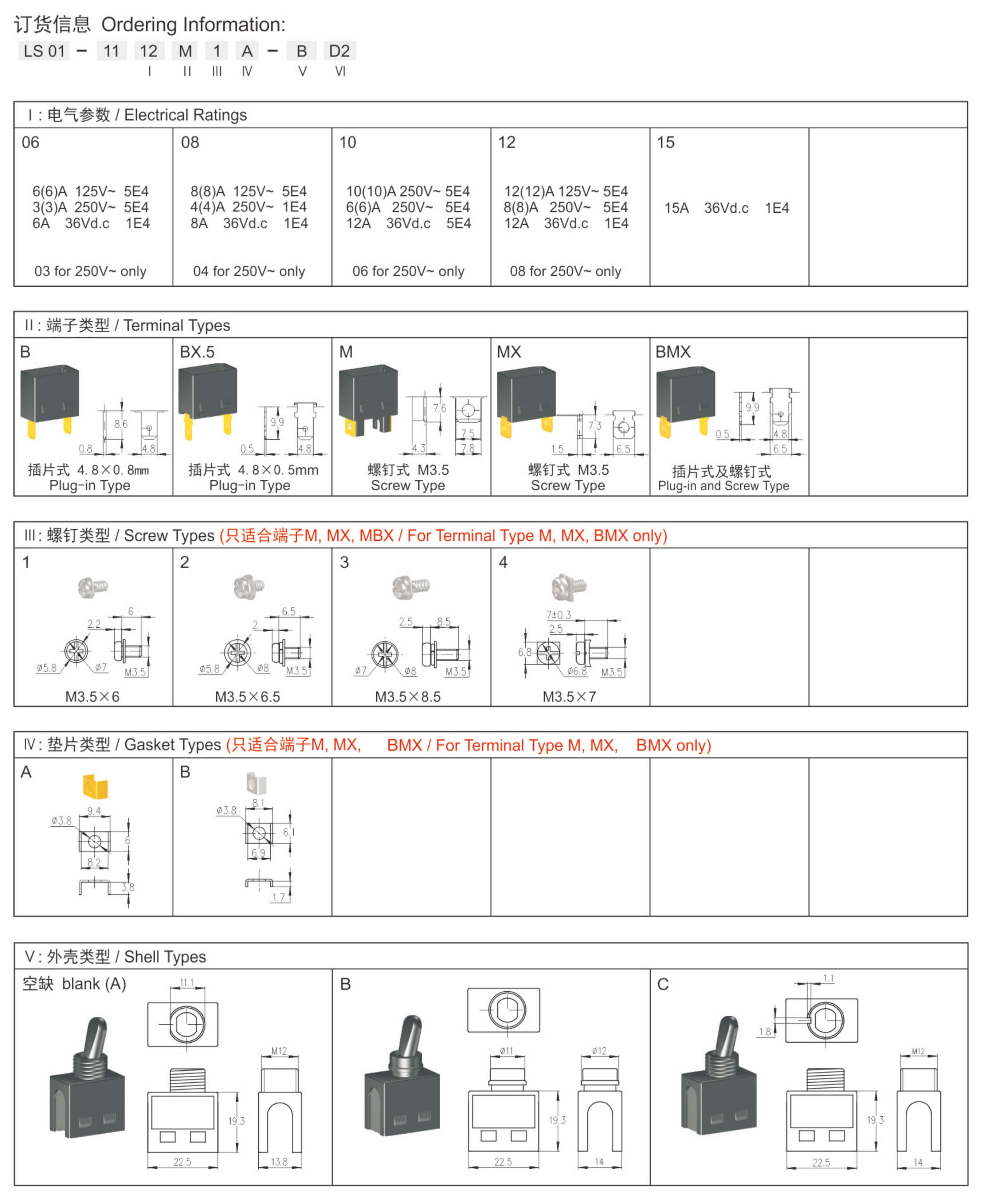

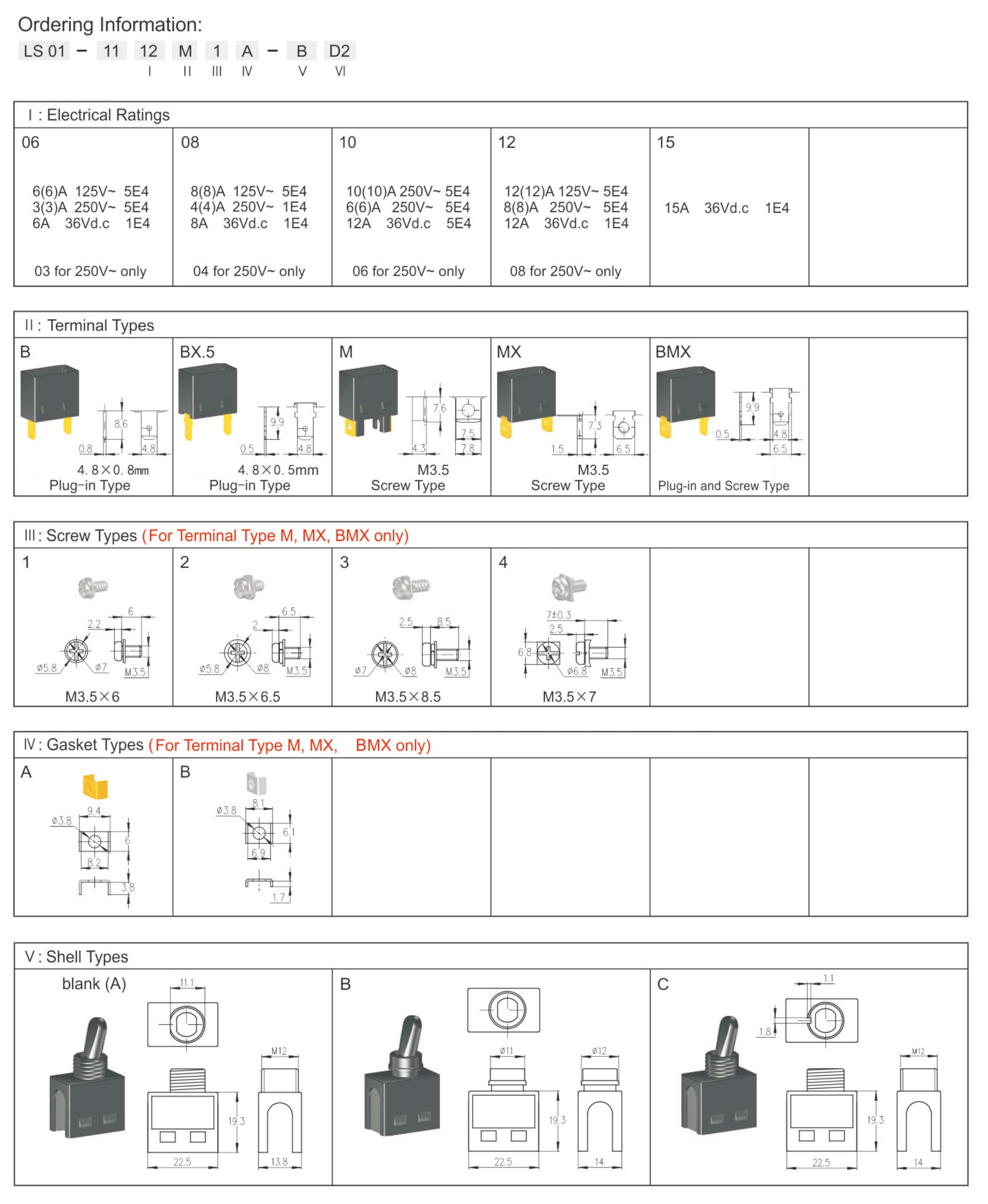

Ordering Information
