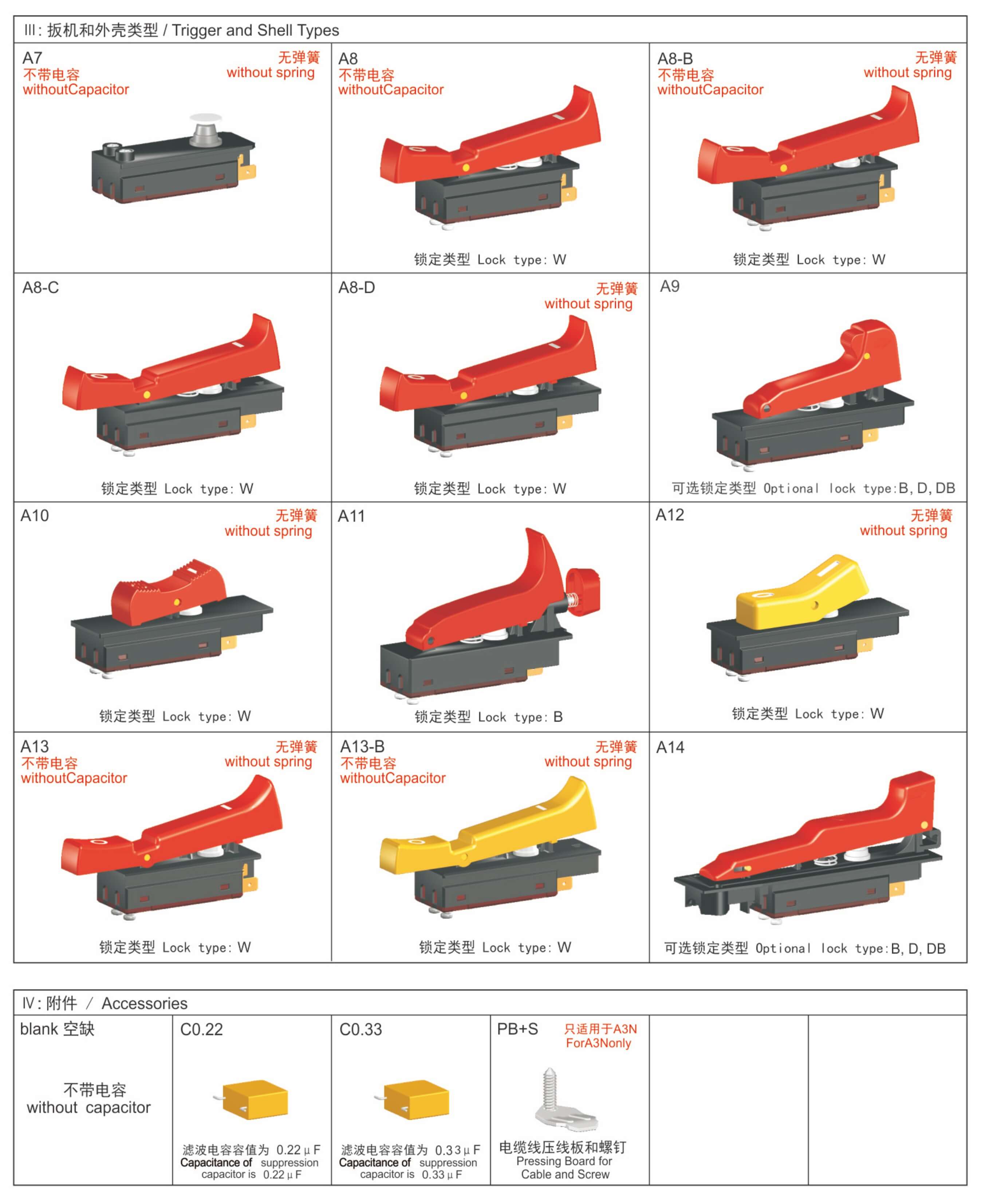

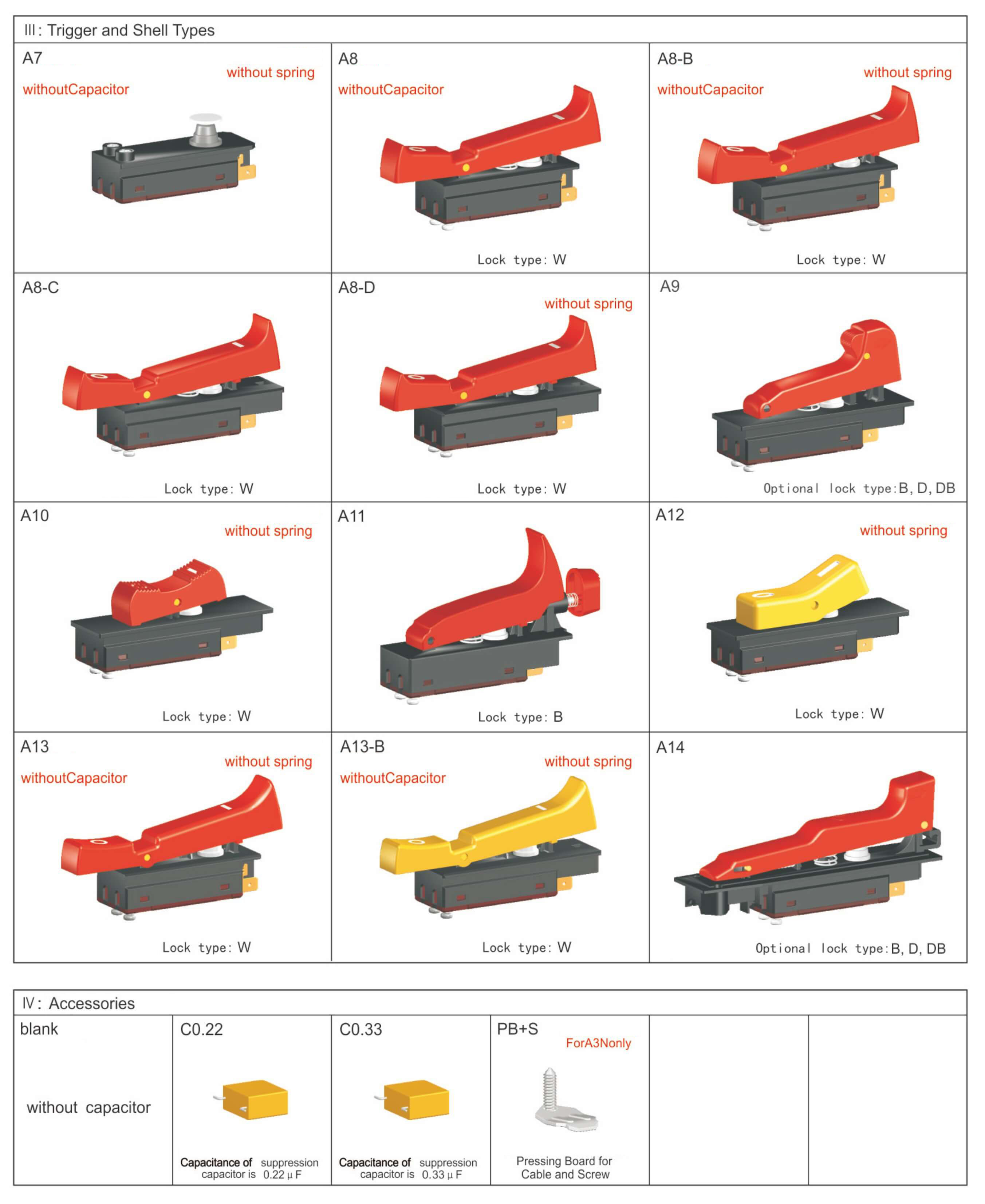

◆ TS13 series are special type high rated trigger switch, integrated dustproof, withsnap-action structure, for used in high rated power-tools such as: Cut-off Machines, Miter Saws, 180mm and 230mm Angle Grinders, Rotary Hammers, Demolition Hammers, etc. These switch has more than 10 body and trigger types for customer's choice, also accept customize according to customer's request.

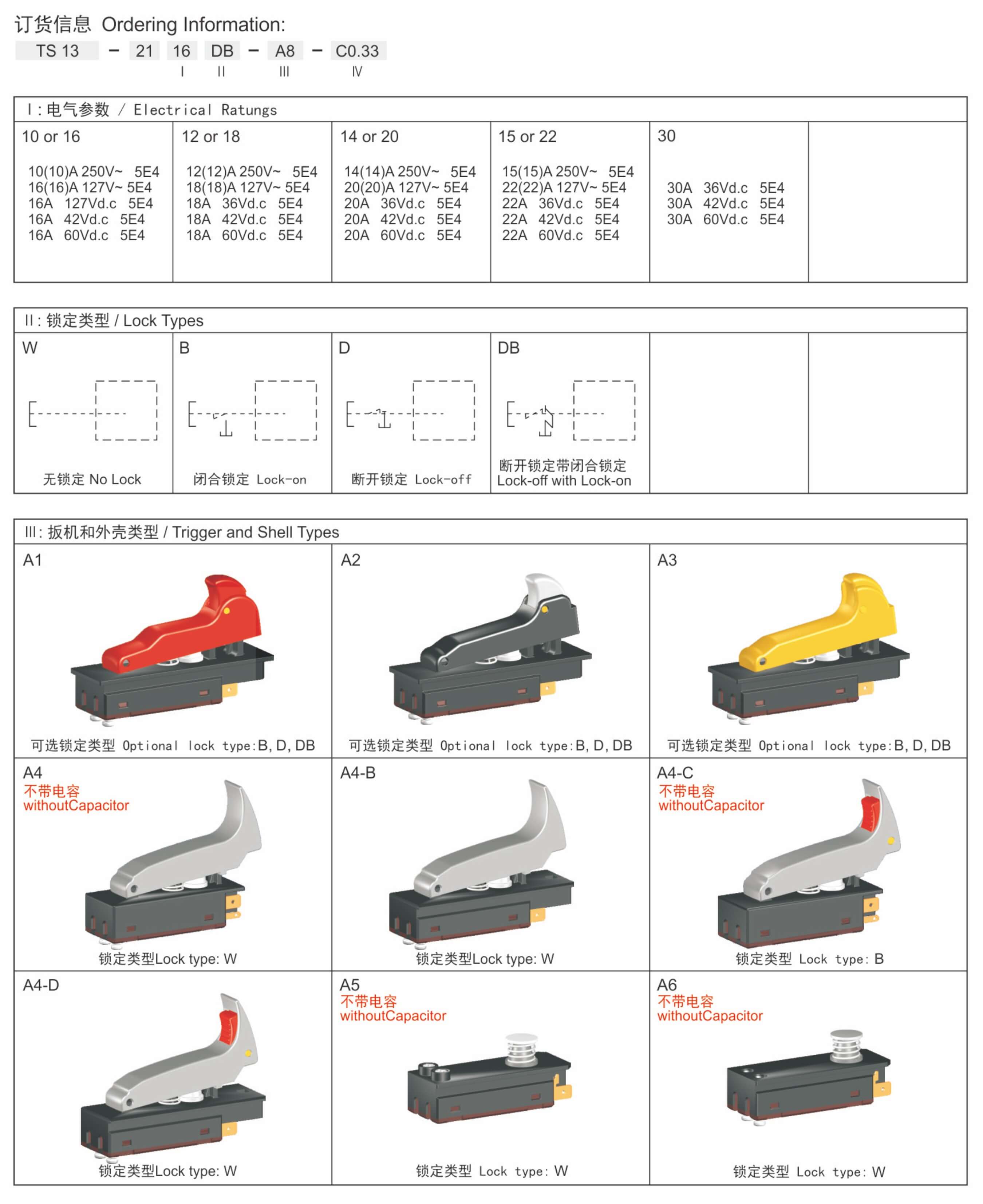

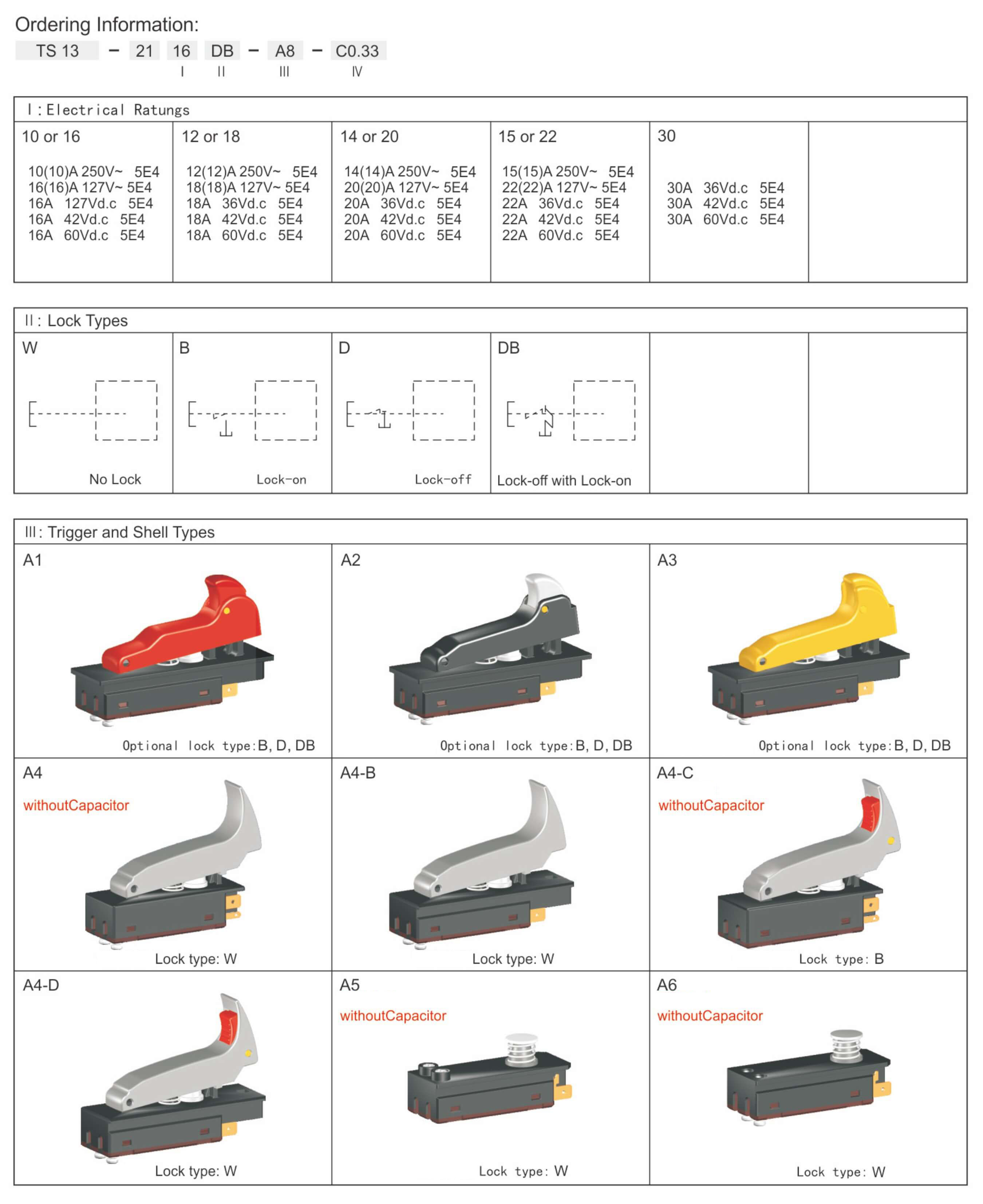

◆ Optional with Following lock types:
→ No Lock
→ Lock-on
→ Lock-off
→ Lock-off with Lock-on
◆ Optional with the accessor as follows:
→ Suppression capacitor (commonly 0.22 or 0.33μF)
| → Mechanical life endurance | ≥1E5 |
| → Electrical life endurance | ≥5E4 |
| → Max. Inrush current at 250V | 90A |
| → Max. Inrush current at 127V | 132A |
| → Contact resistance | ≤30m Ohm |
| → Insulation resistance | ≥7M Ohm |
| → Dielectric strength of function | 1500V |
| → Dielectric strength of reinforced | 3000V |
| → Ambient temperature | 0℃~55℃ |
| → Flammability | UL 94V-0 |
| → Protection type | IP40 |
| → Suitable for appliances of protection class II | |
◆ Input side:
→ 4×Pillar teminal Φ=3mm / Screw M4
◆ Output side:
→ Plug-in terminals 6.3×0.8mm
◆ Terminals for Suppression capacitor:
→ Plug-in terminals 2.8×0.8mm
