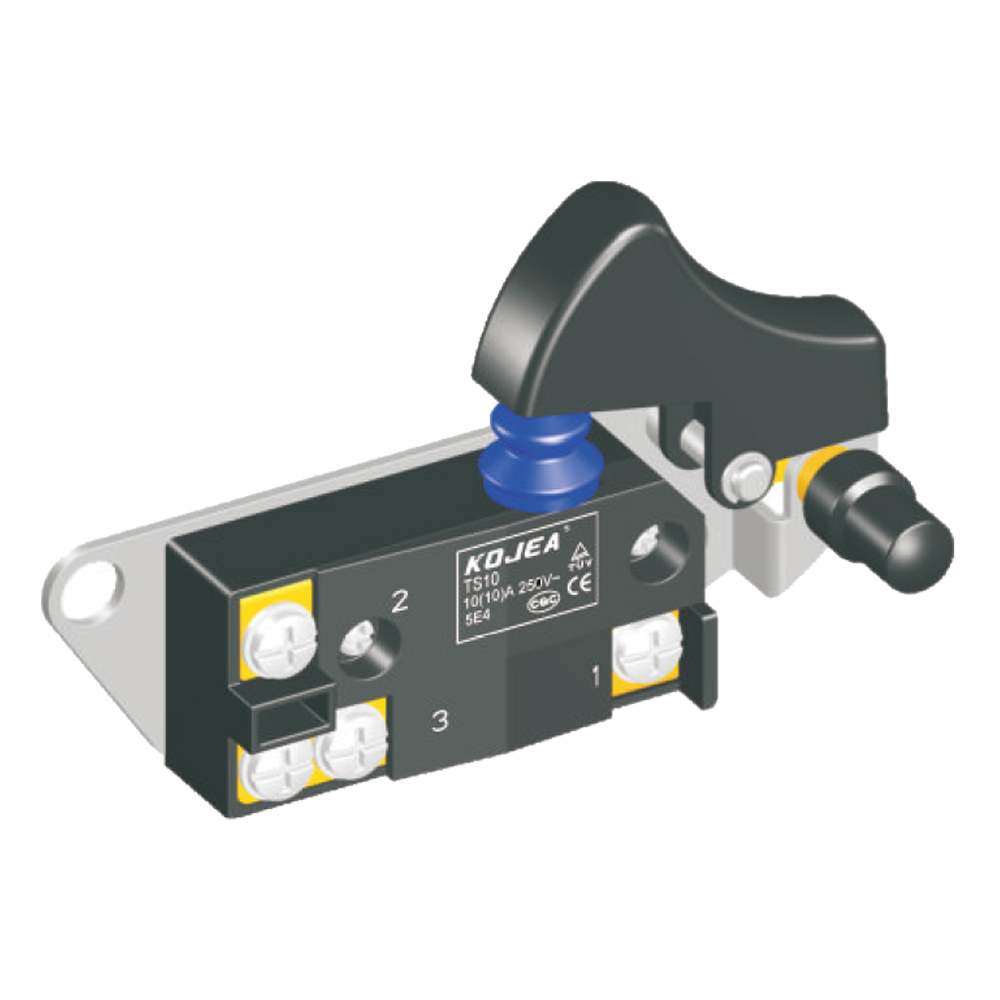

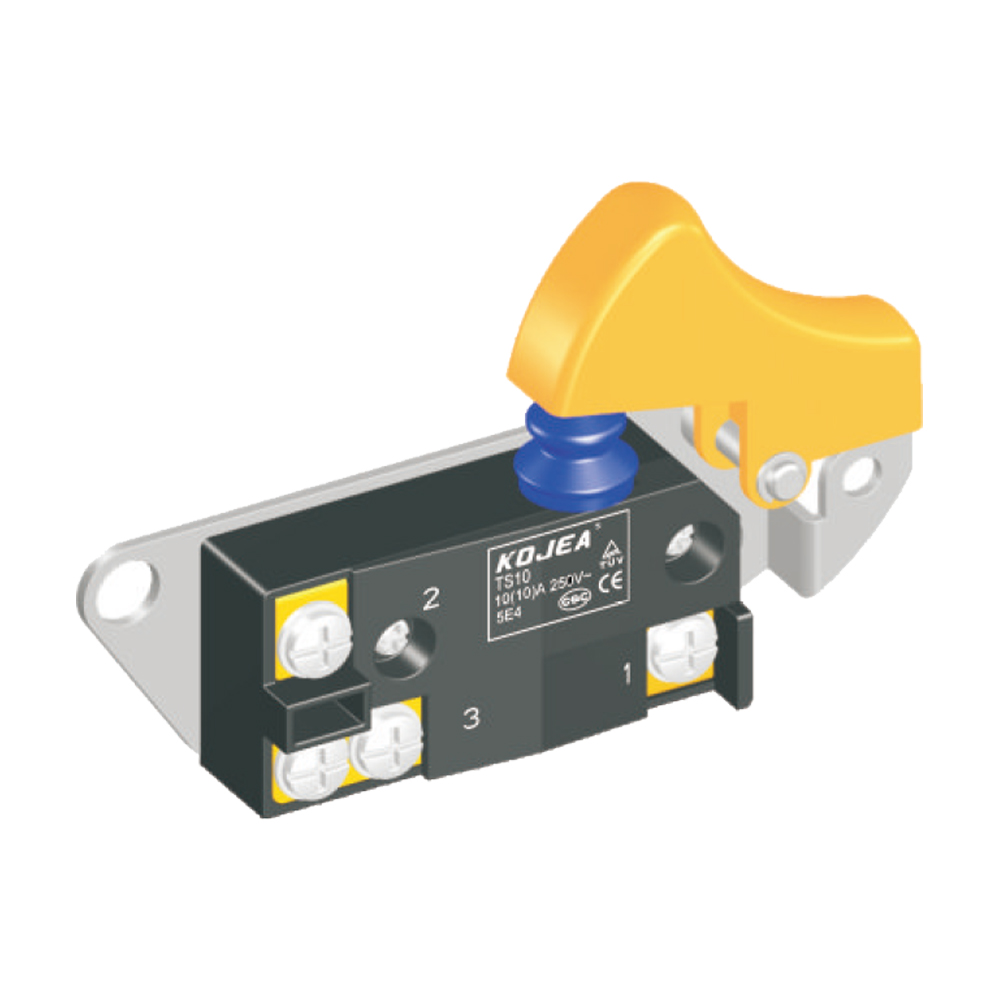

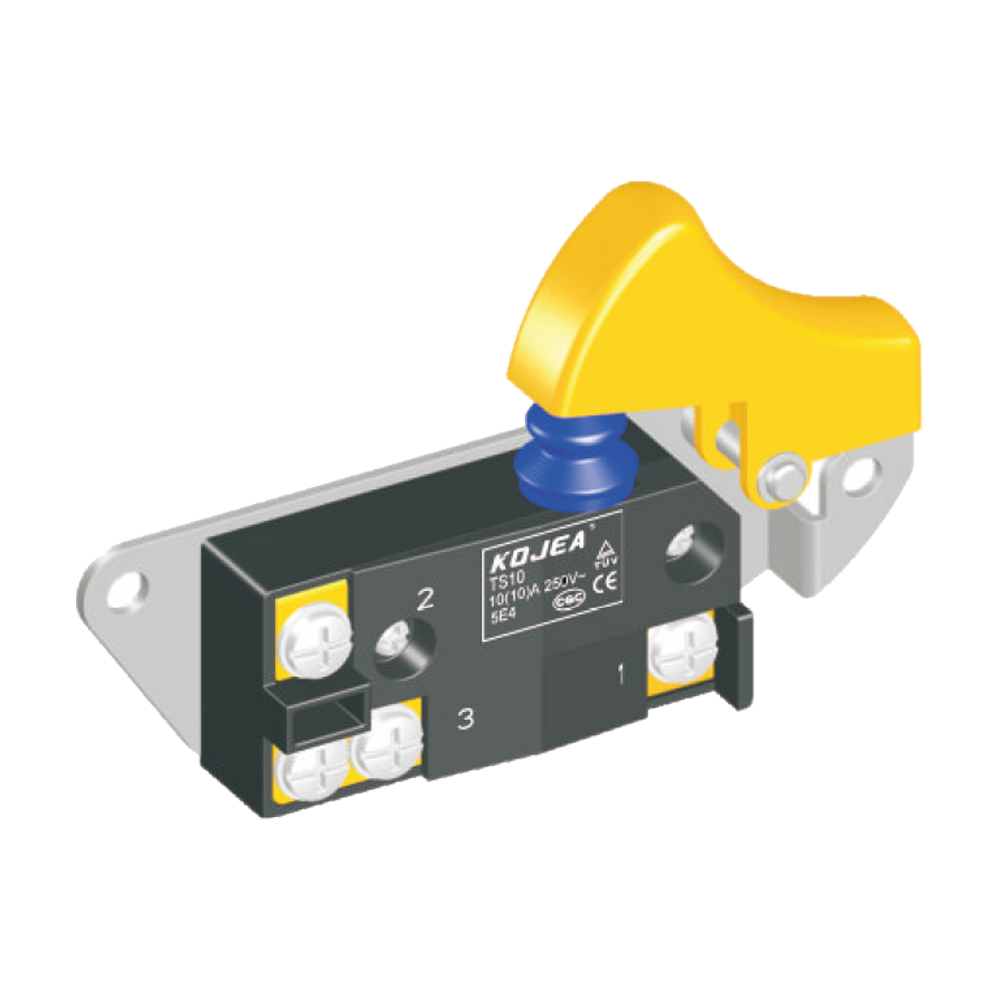

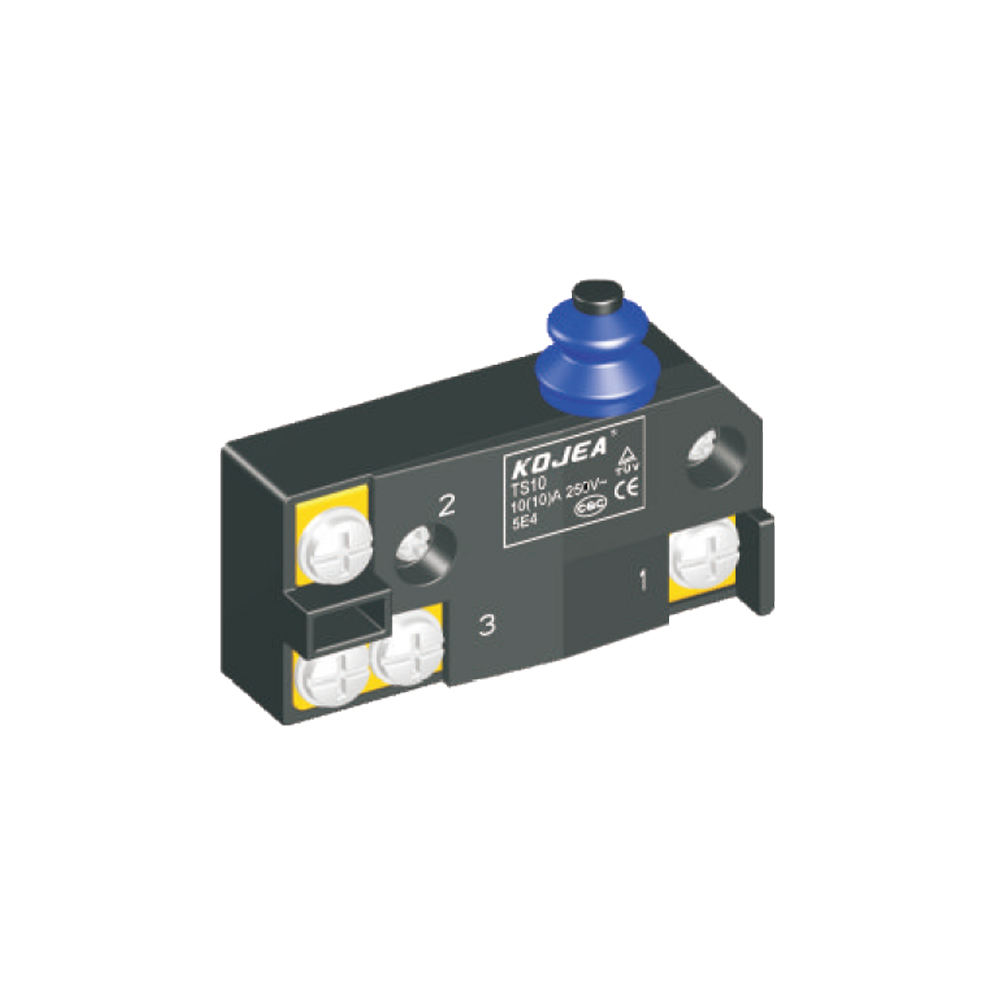

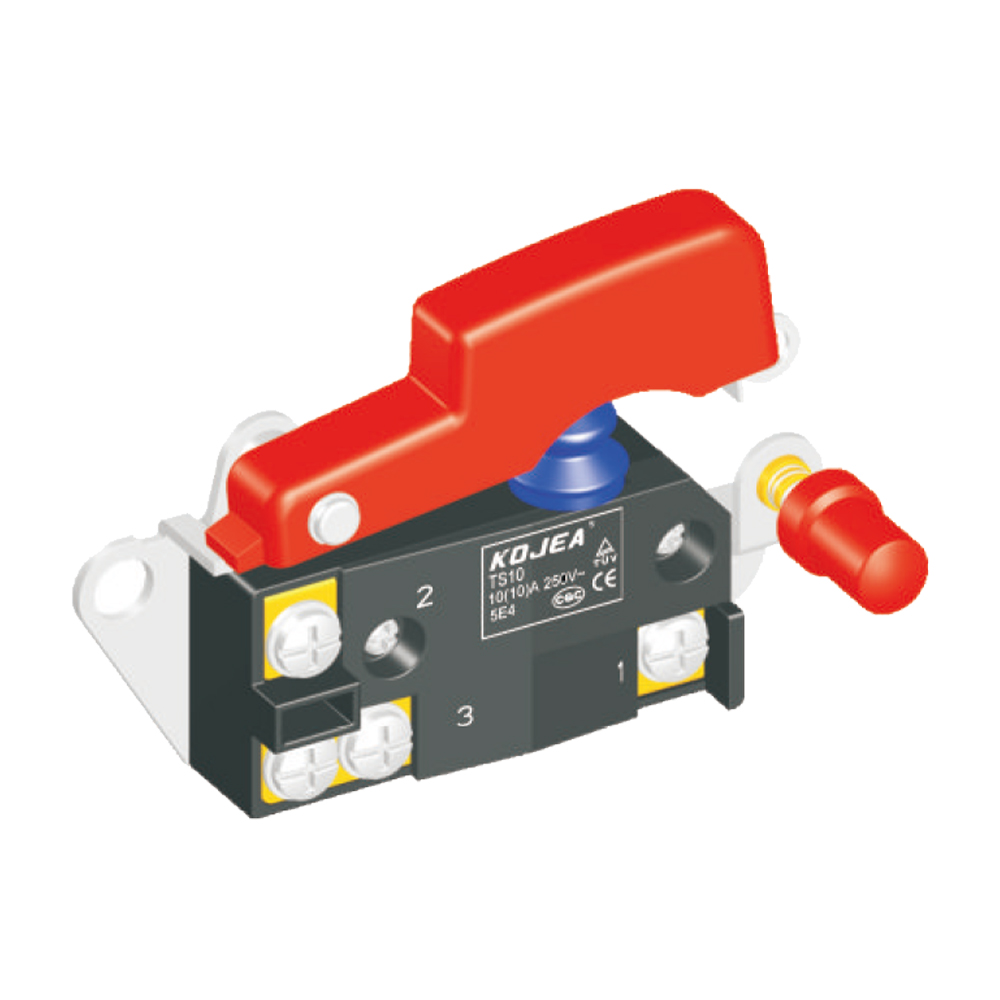

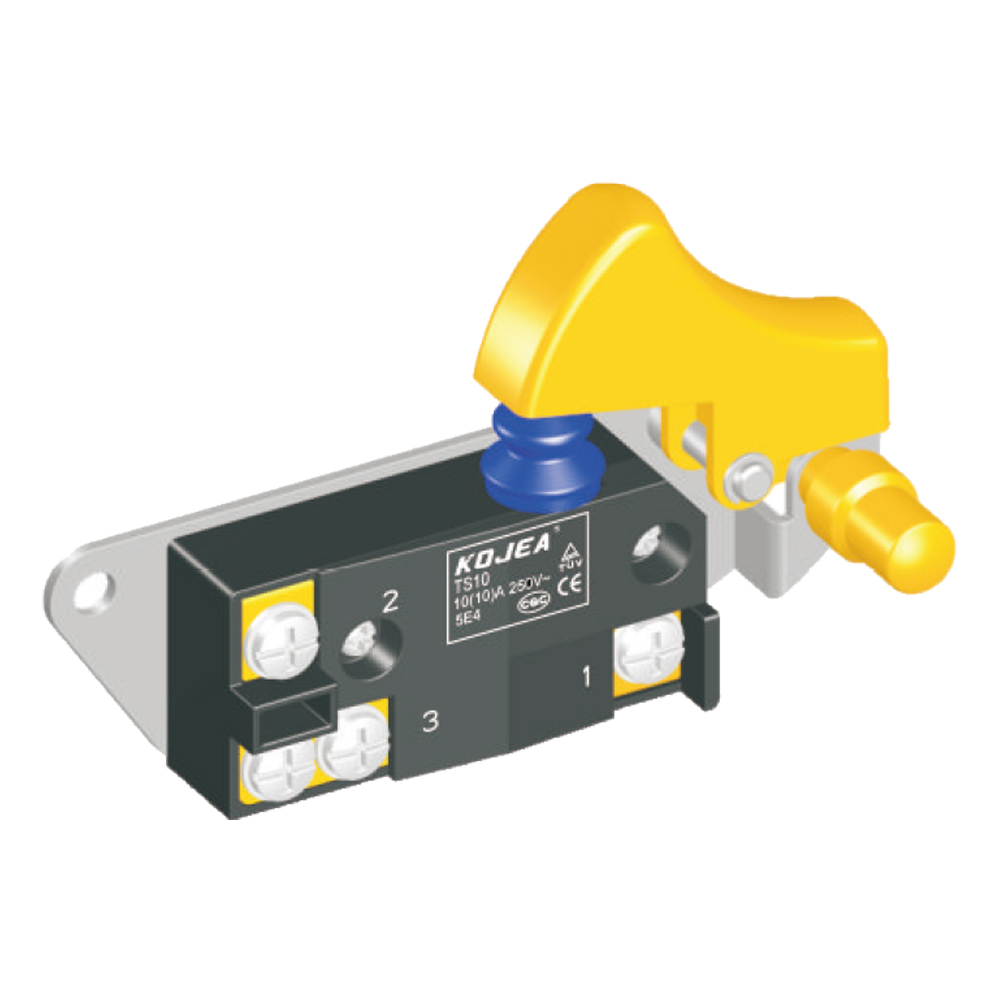

返回列表TS10 (防尘)快速动作扳机开关

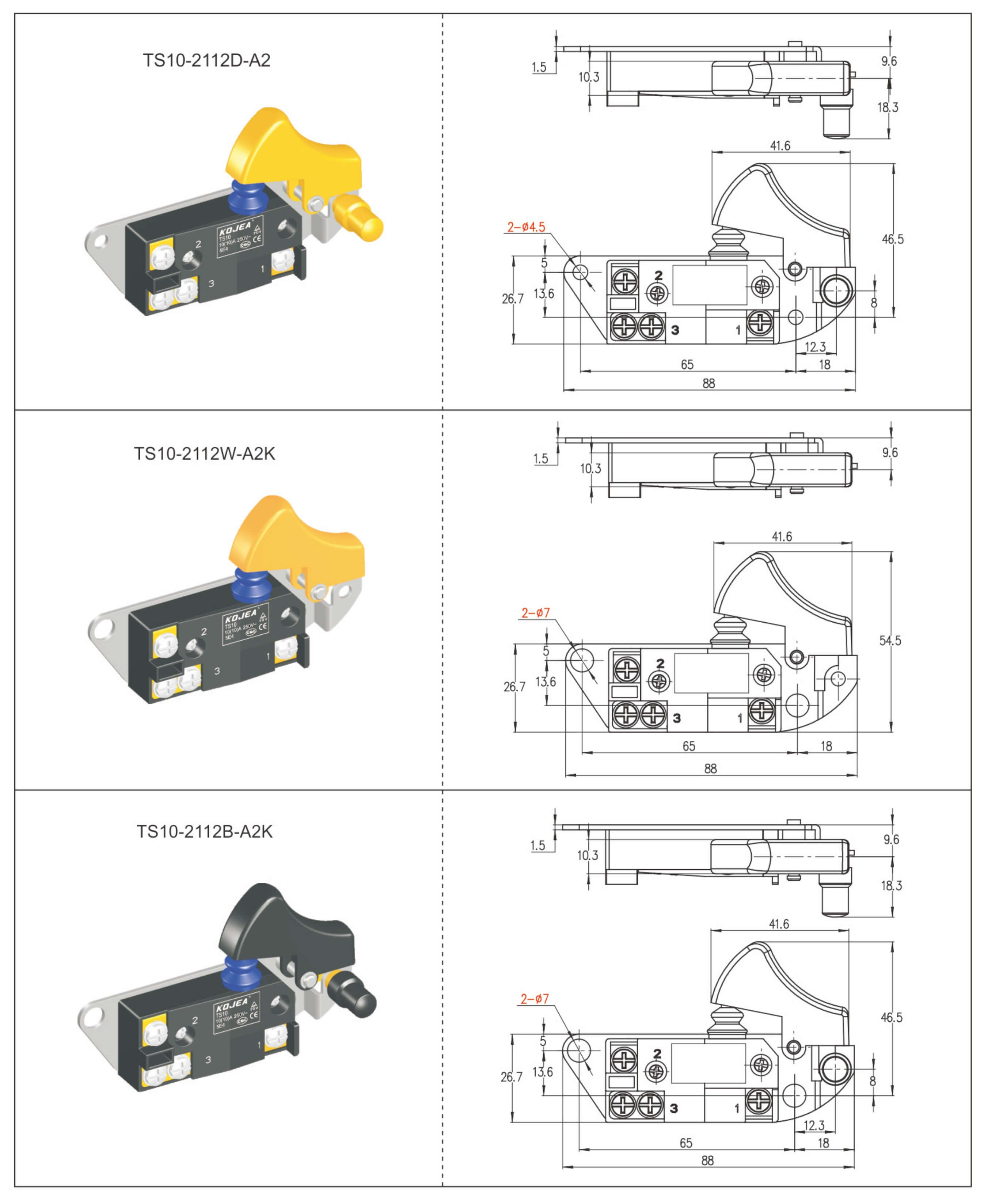

TS10
1
2
3
4
5
6

产品描述

TS10 series are specific type trigger switch, integrated dustproof, withsnap-action structure, for used in portable or bench top power-tools such as: Cut-off Machines, Miter Saws, 125mm, 150mm and 180mm Angle Grinders, Rotary Hammers, Demolition Hammers, Electric Chain Saws, etc.

产品特征

 Optional with Following lock types:

→  No Lock

→  Lock-on

技术数据

→  Mechanical life endurance≥1E5
→  Electrical life endurance≥5E4
→  Max. Inrush current at 250V90A
→  Max. Inrush current at 125V120A
→  Contact resistance≤30m Ohm
→  Insulation resistance≥7M Ohm
→  Dielectric strength of function1500V
→  Dielectric strength of reinforced3000V
→  Ambient temperature0℃~55℃
→  FlammabilityUL 94V-0
→  Protection typeIP40
→  Suitable for appliances of protection class II

端子类型

 Input side/Output side:

→  Screw teminal M4

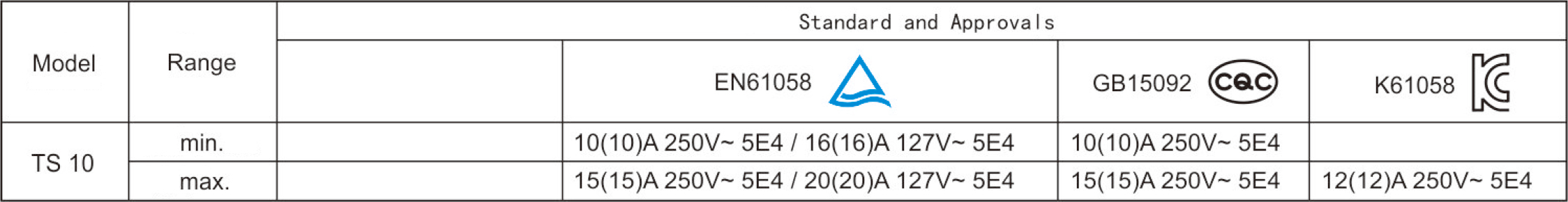

电气参数和认证

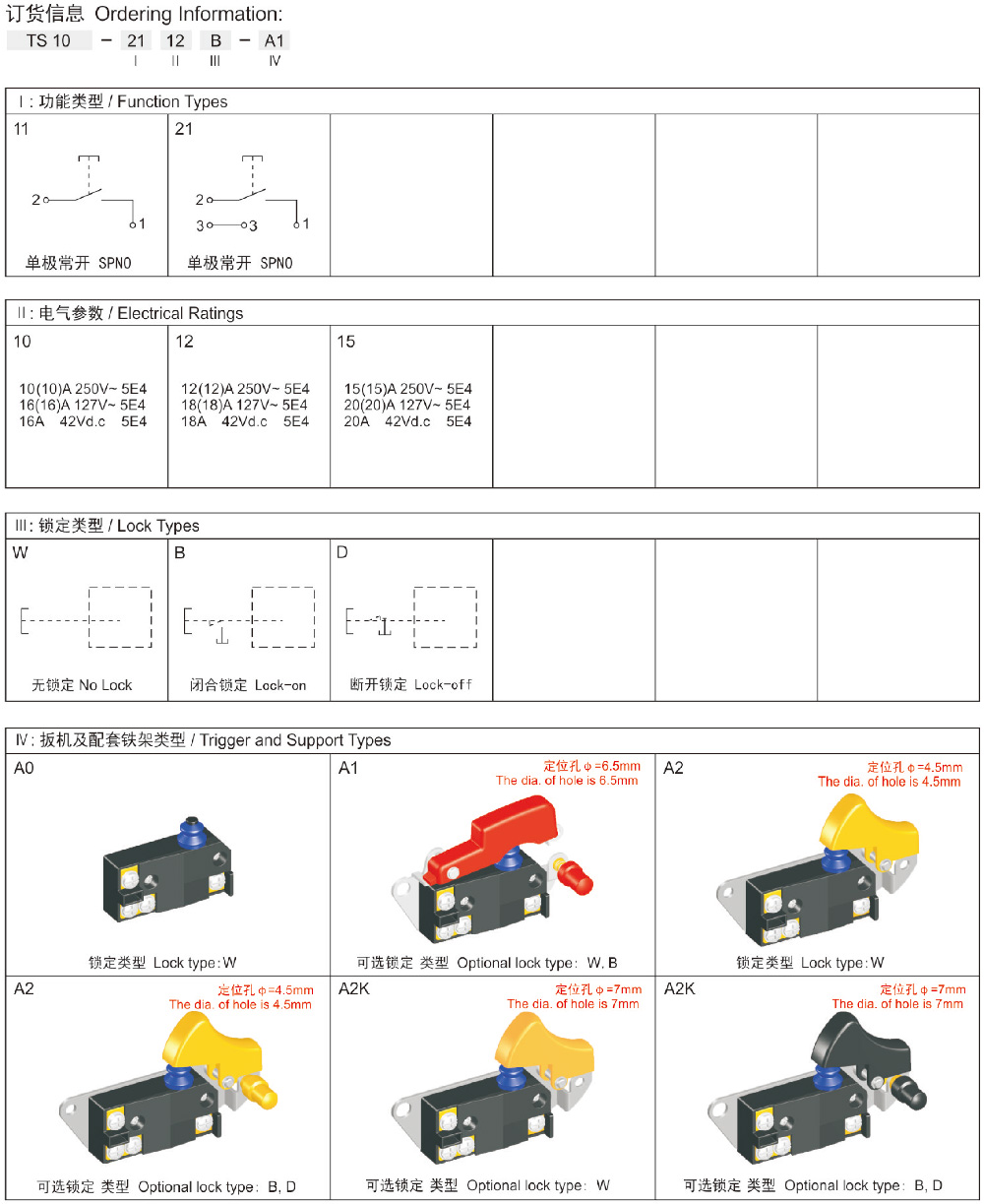

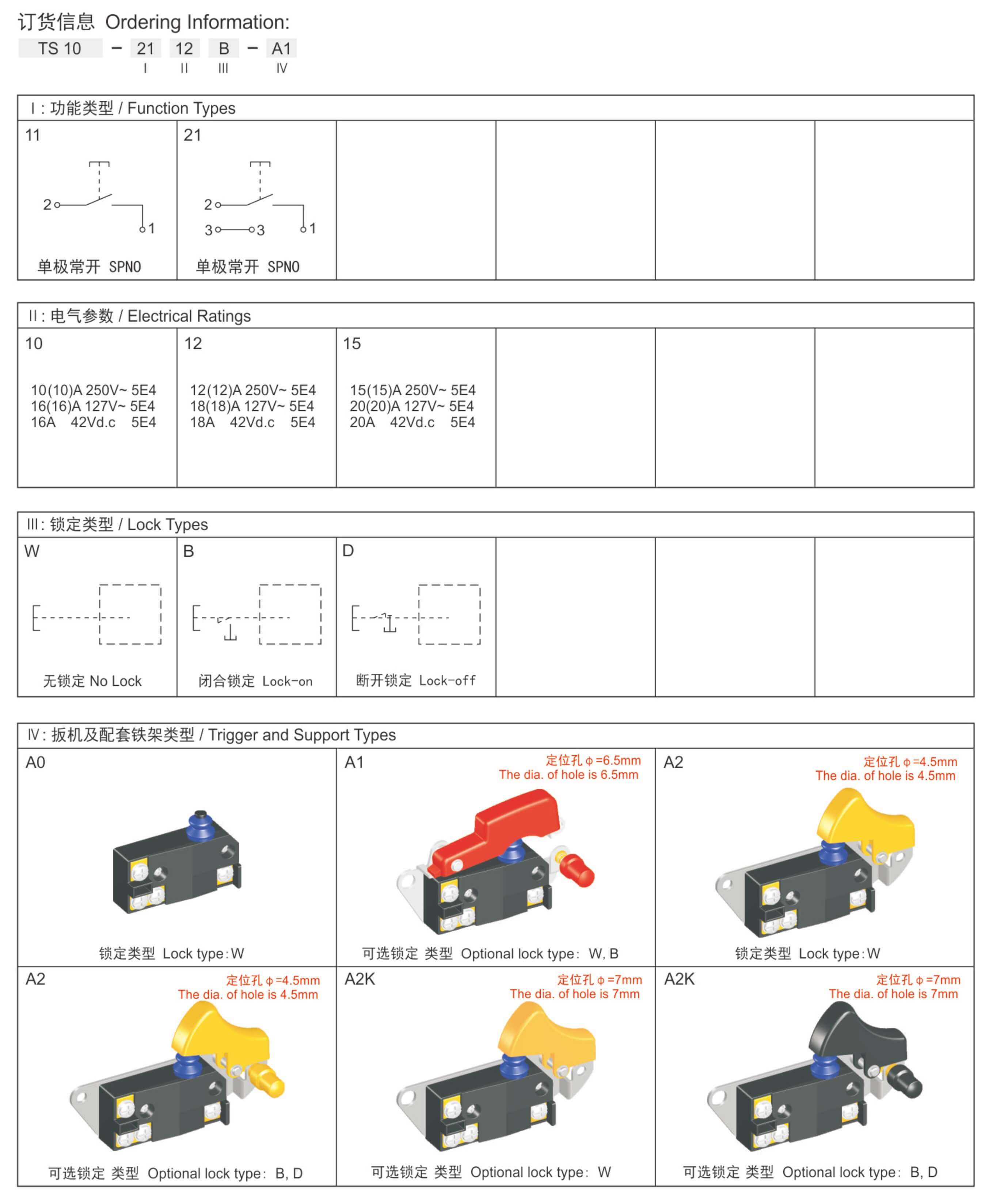

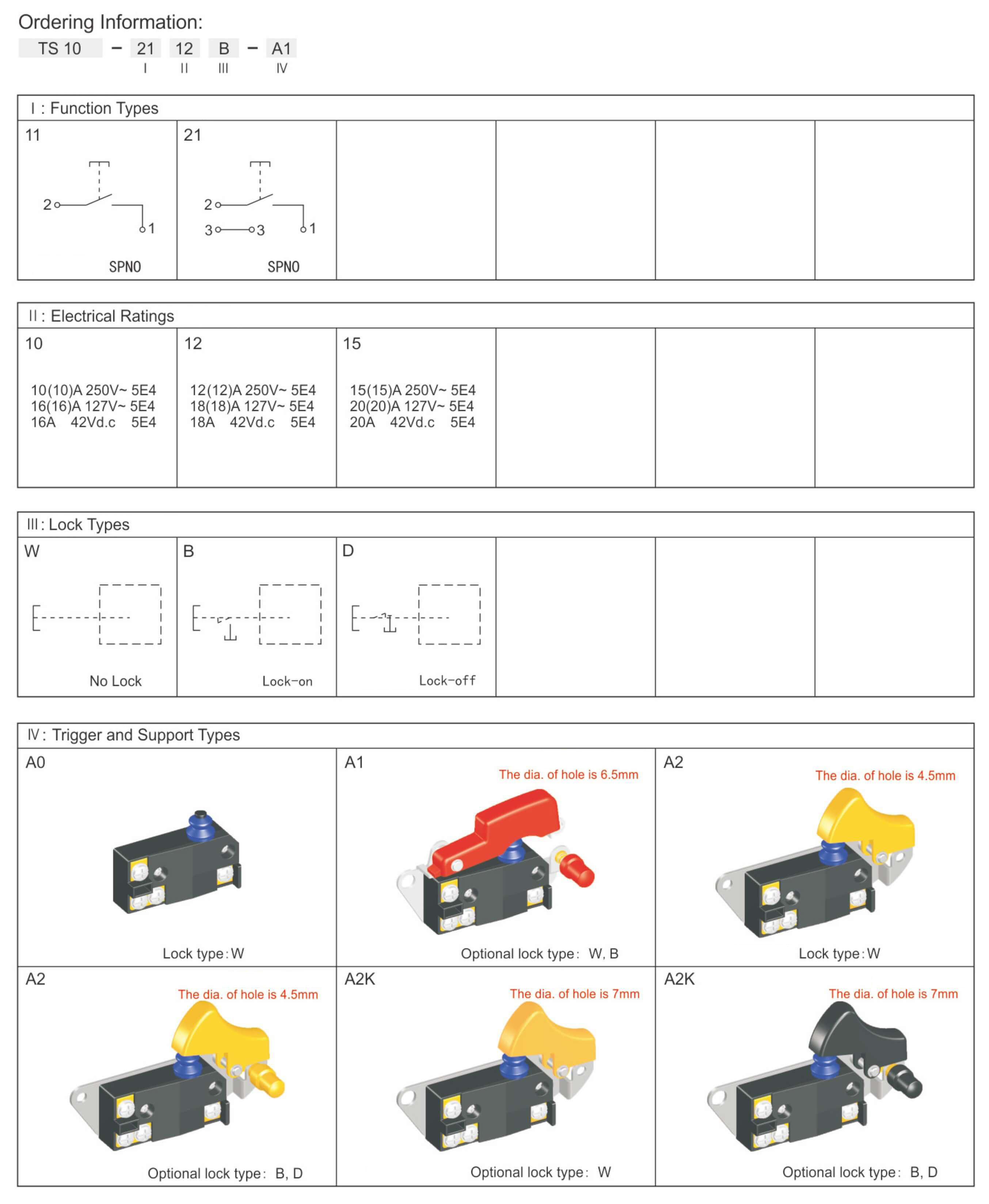

订货信息
