TS09
1
2
3
4
5
6
7
8

Product Description

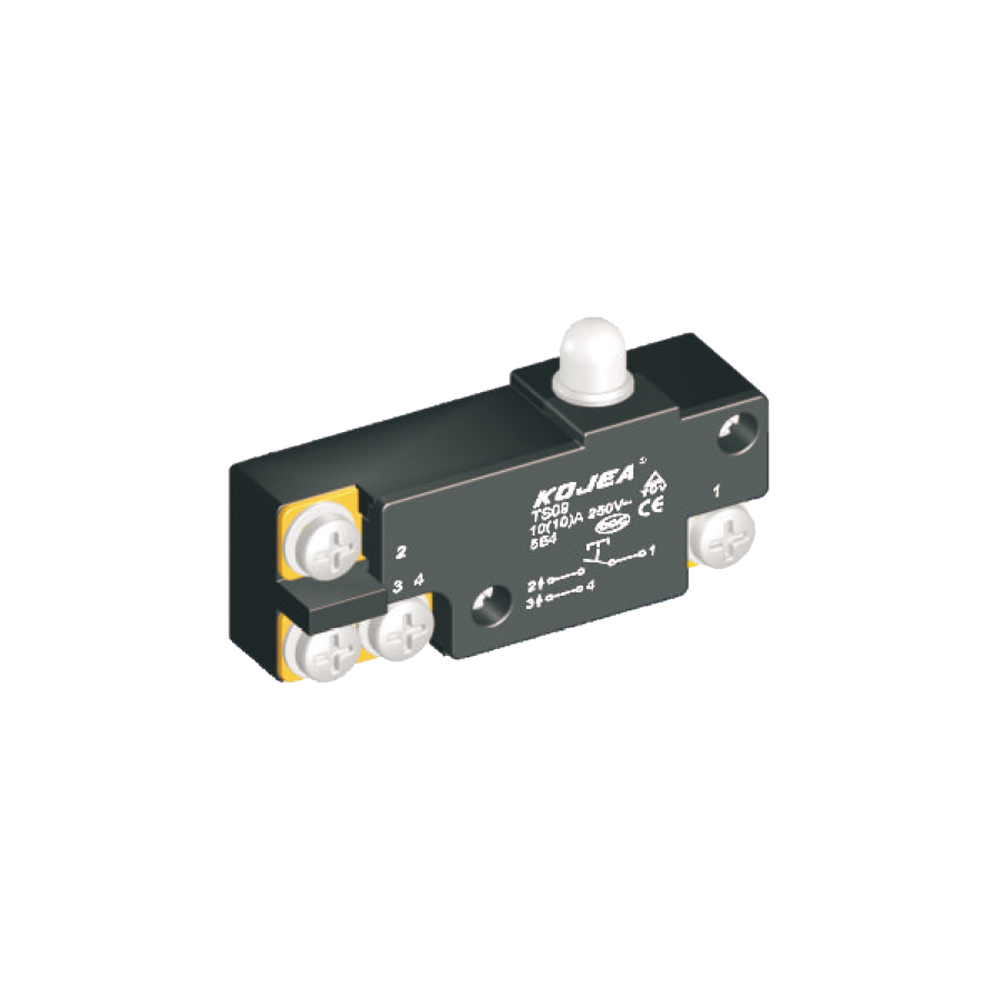

TS09 series are one general type trigger switch, integrated dustproof, withsnap-action structure, for used in portable or bench top power-tools such as: Cut-off Machines, Miter Saws, 125mm and 150mm Angle Grinders, Rotary Hammers, Demolition Hammers, etc.

Product Features

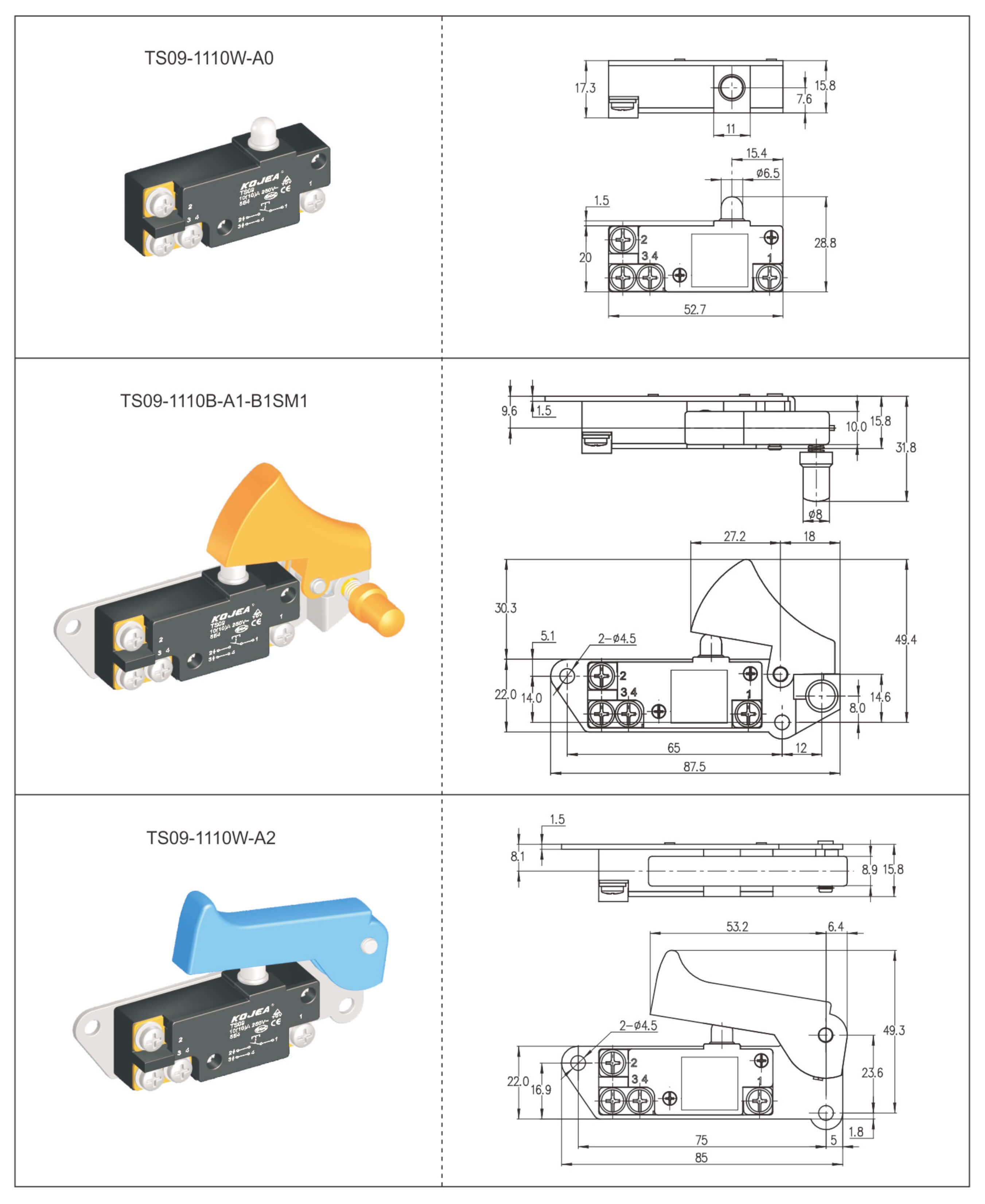

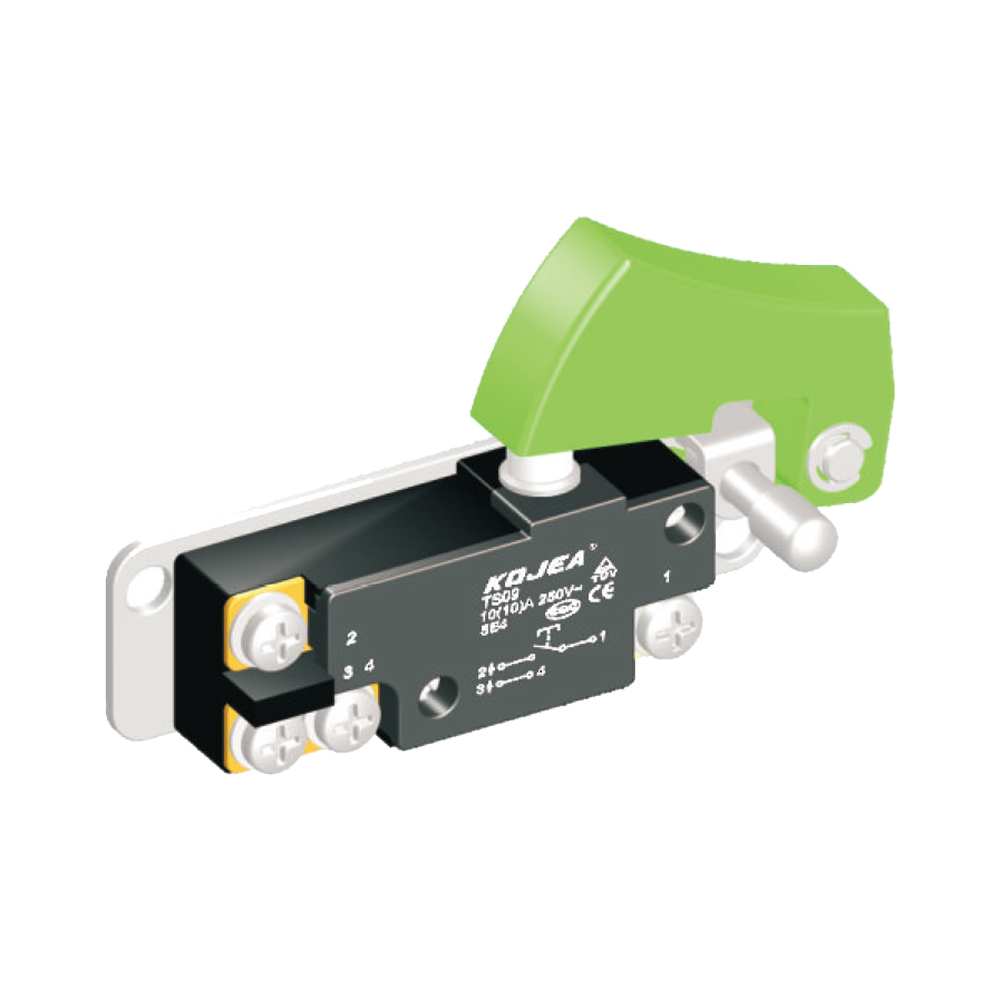

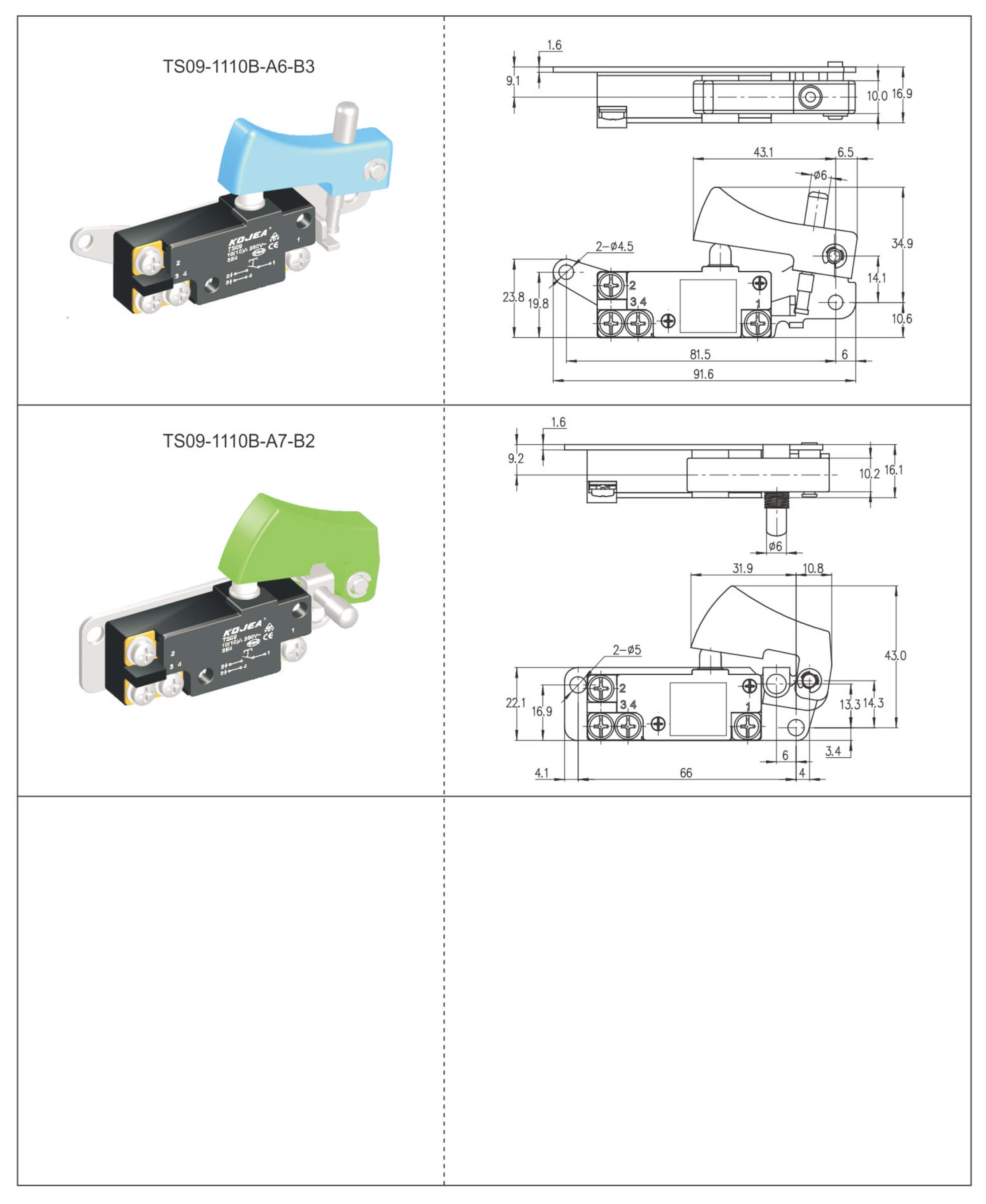

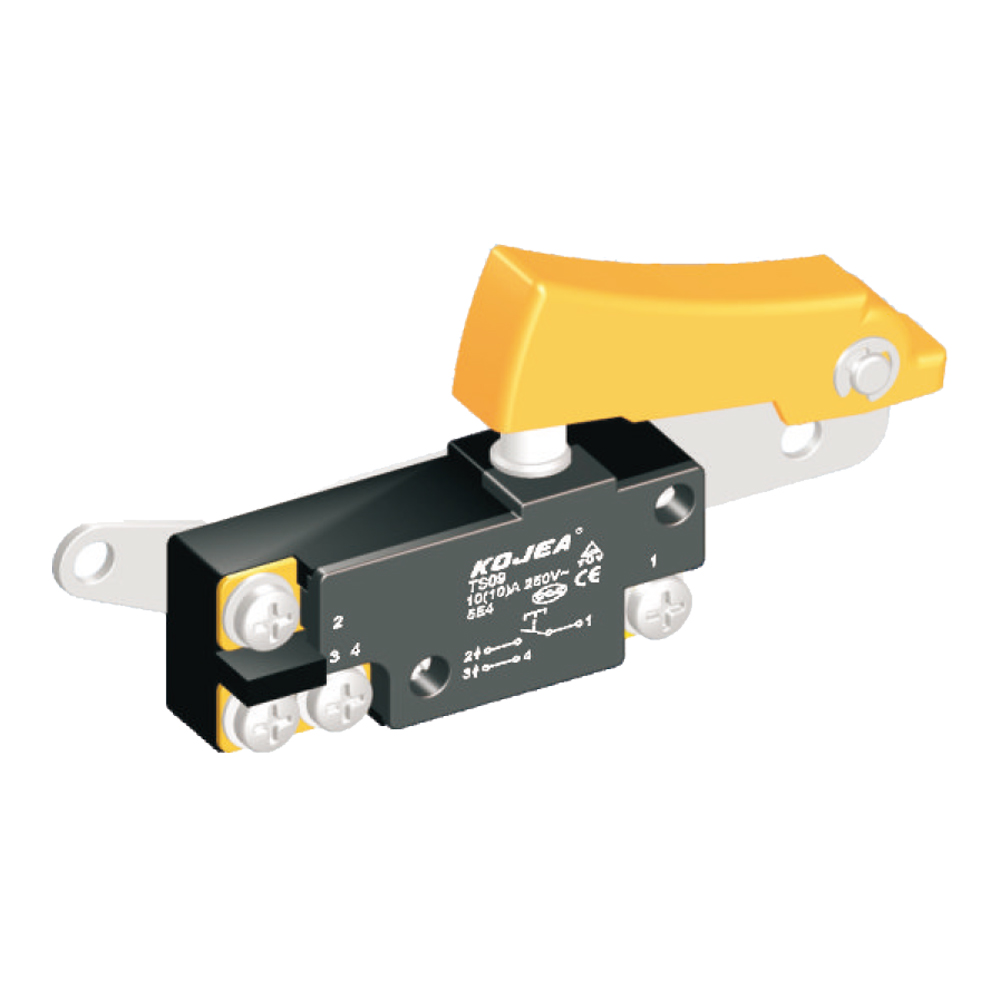

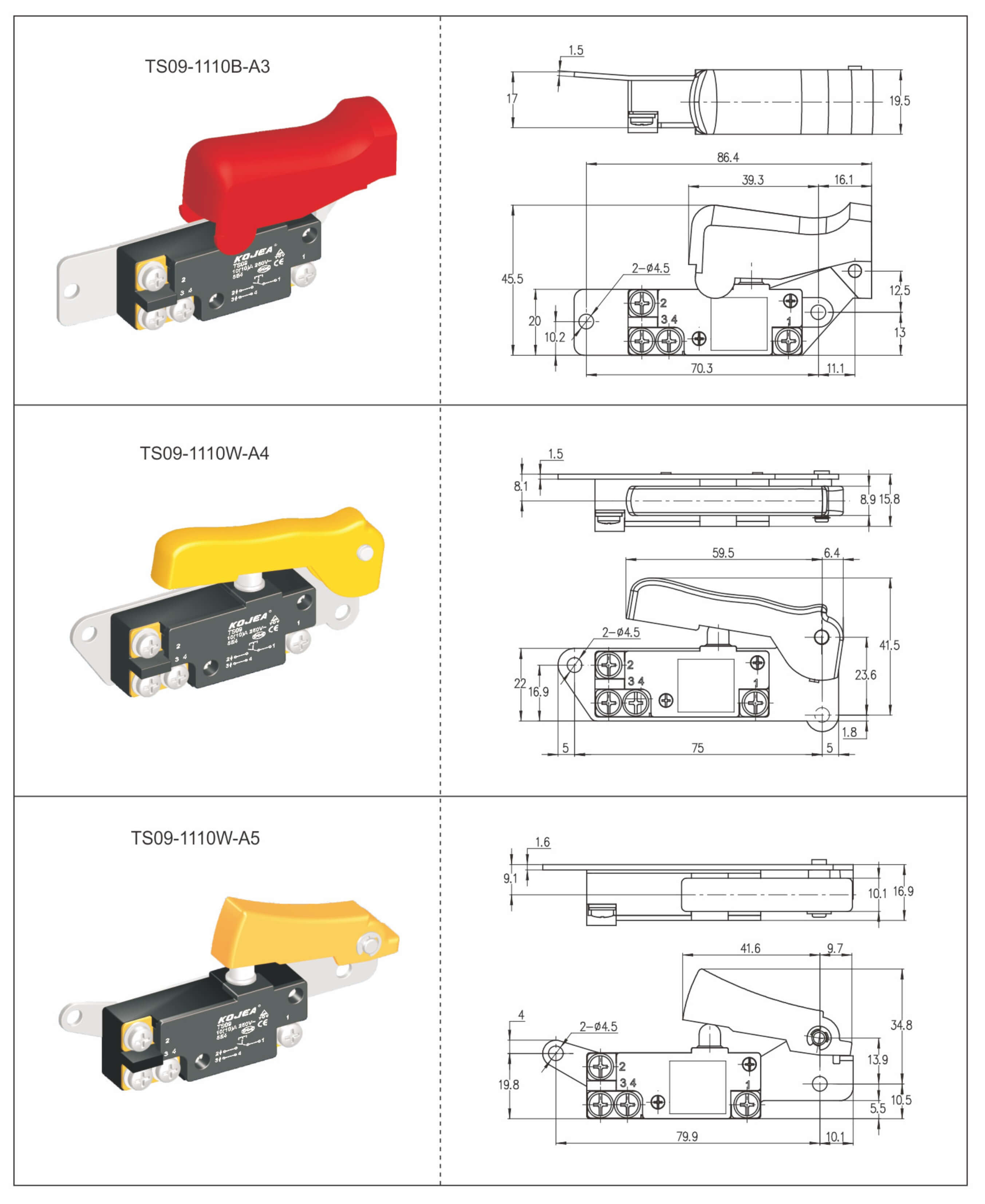

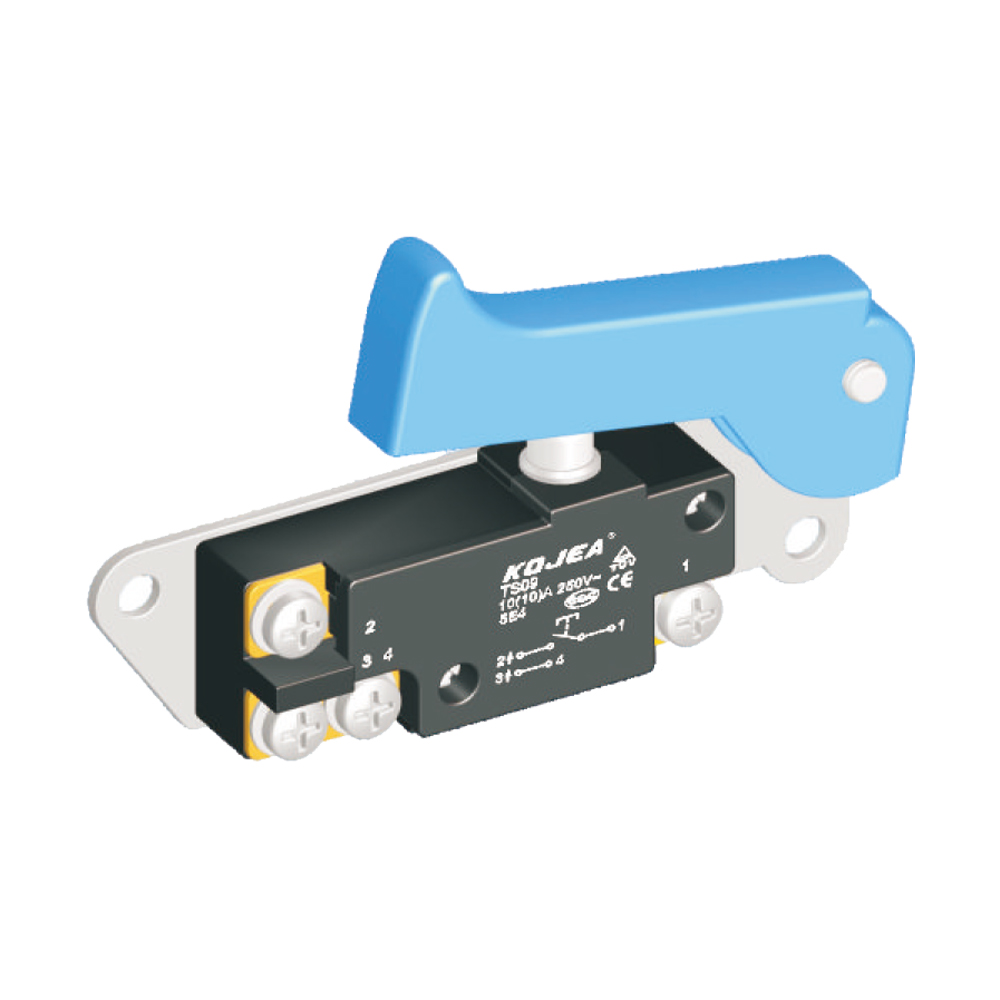

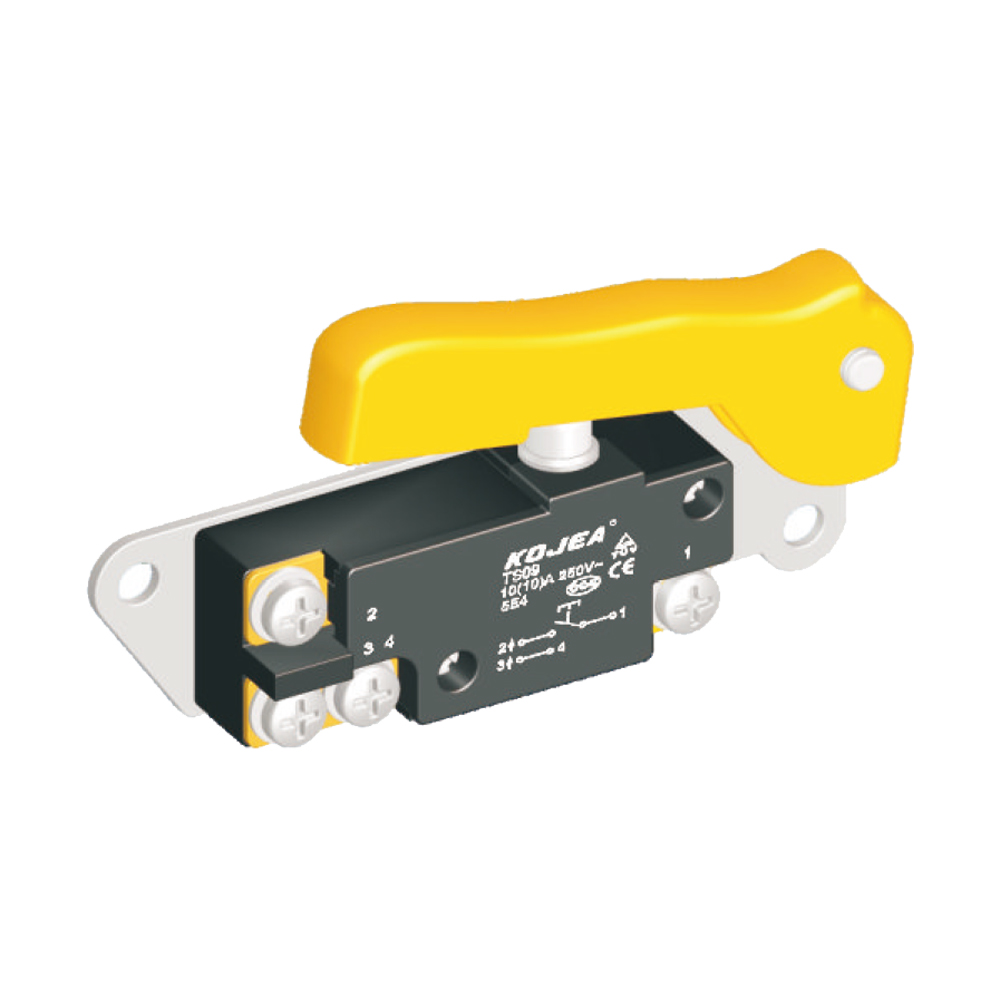

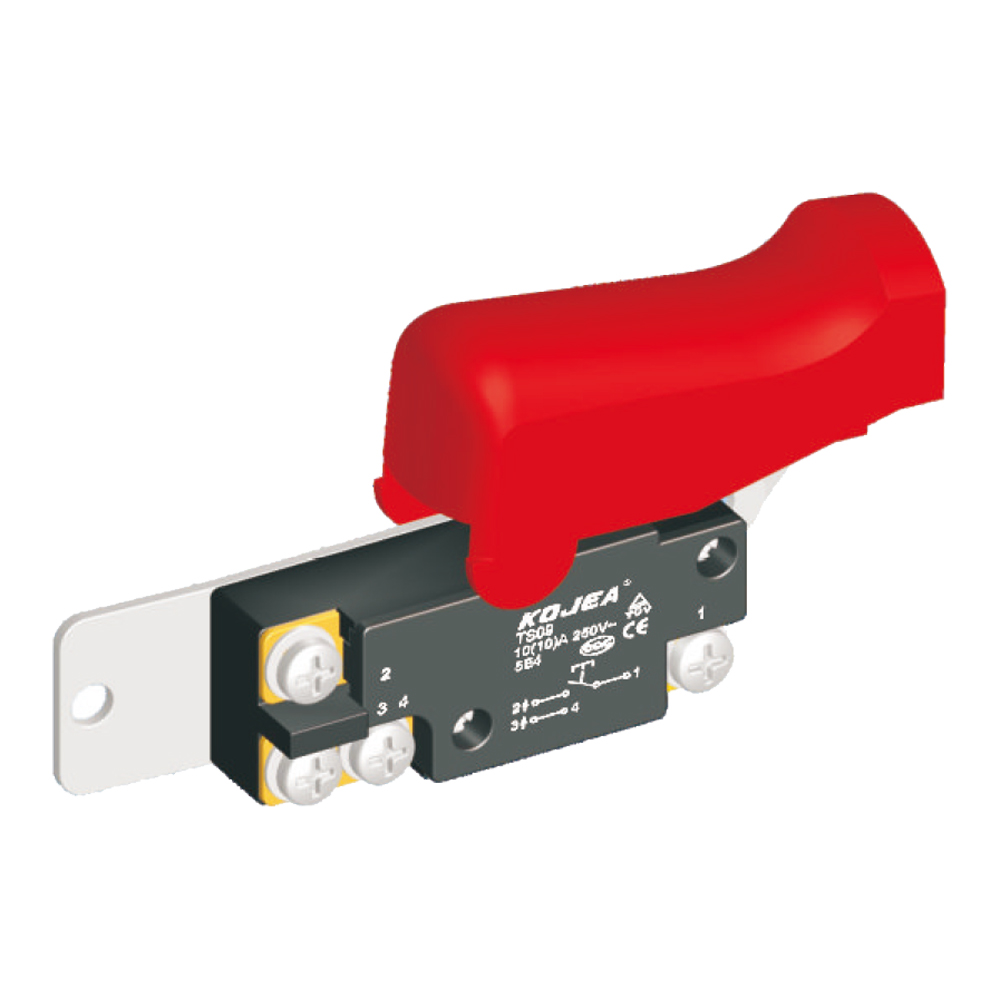

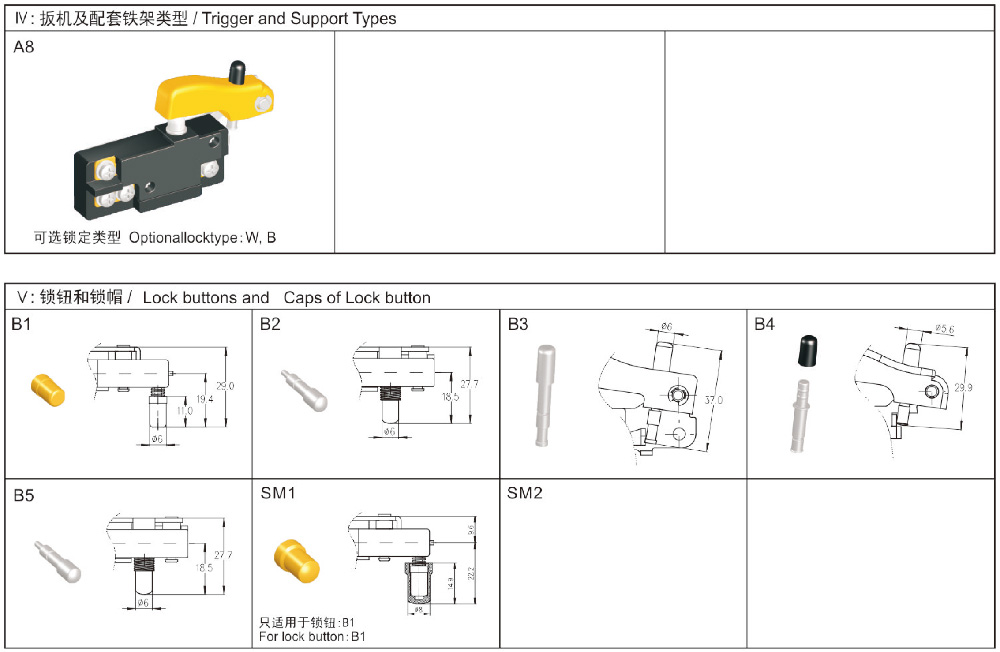

 Optional with different supports and triggers

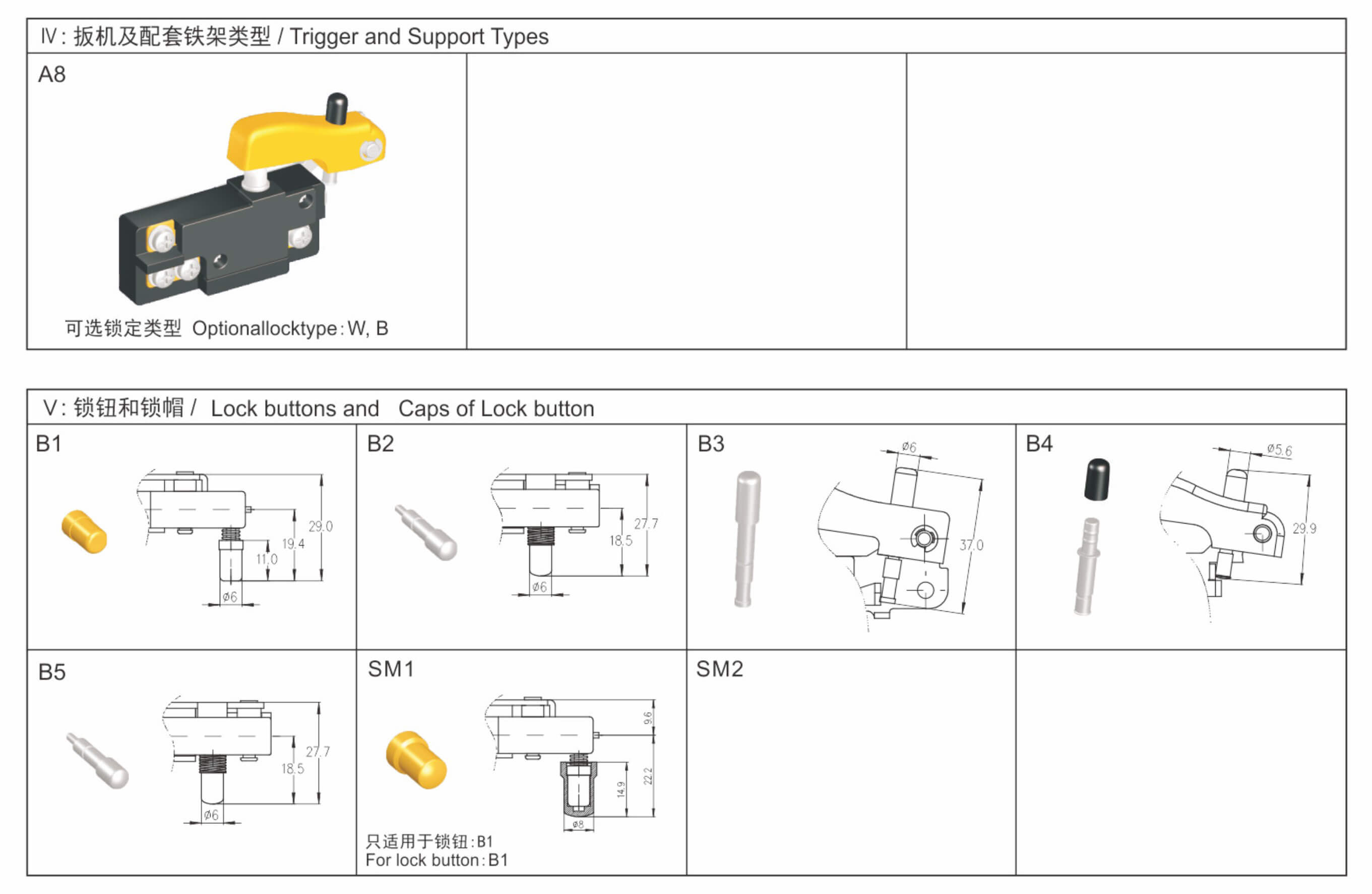

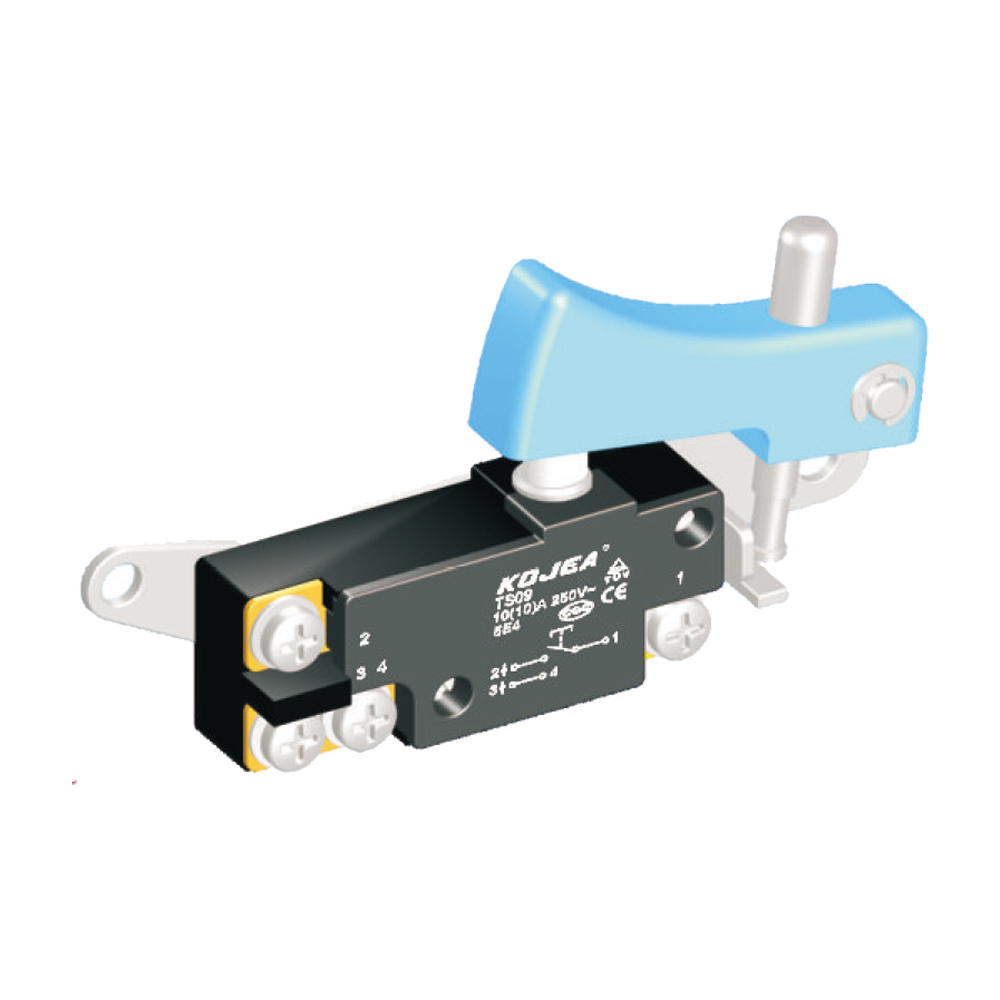

 Optional with Following lock types:

→  No Lock

→  Lock-on

→  Lock-off

Technical Data

→  Mechanical life endurance≥1E5
→  Electrical life endurance≥5E4
→  Max. Inrush current at 250V90A
→  Max. Inrush current at 125V60A
→  Contact resistance≤30m Ohm
→  Insulation resistance≥7M Ohm
→  Dielectric strength of function1500V
→  Dielectric strength of reinforced3000V
→  Ambient temperature0℃~55℃
→  FlammabilityUL 94V-0
→  Protection typeIP40
→  Suitable for appliances of protection class II

Terminal Type

 Input side/Output side:

→  Screw teminal M4

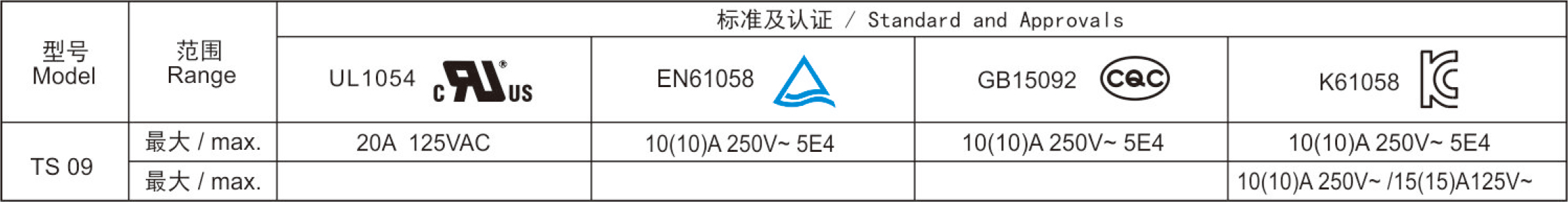

Electrical Parameters and Certifications

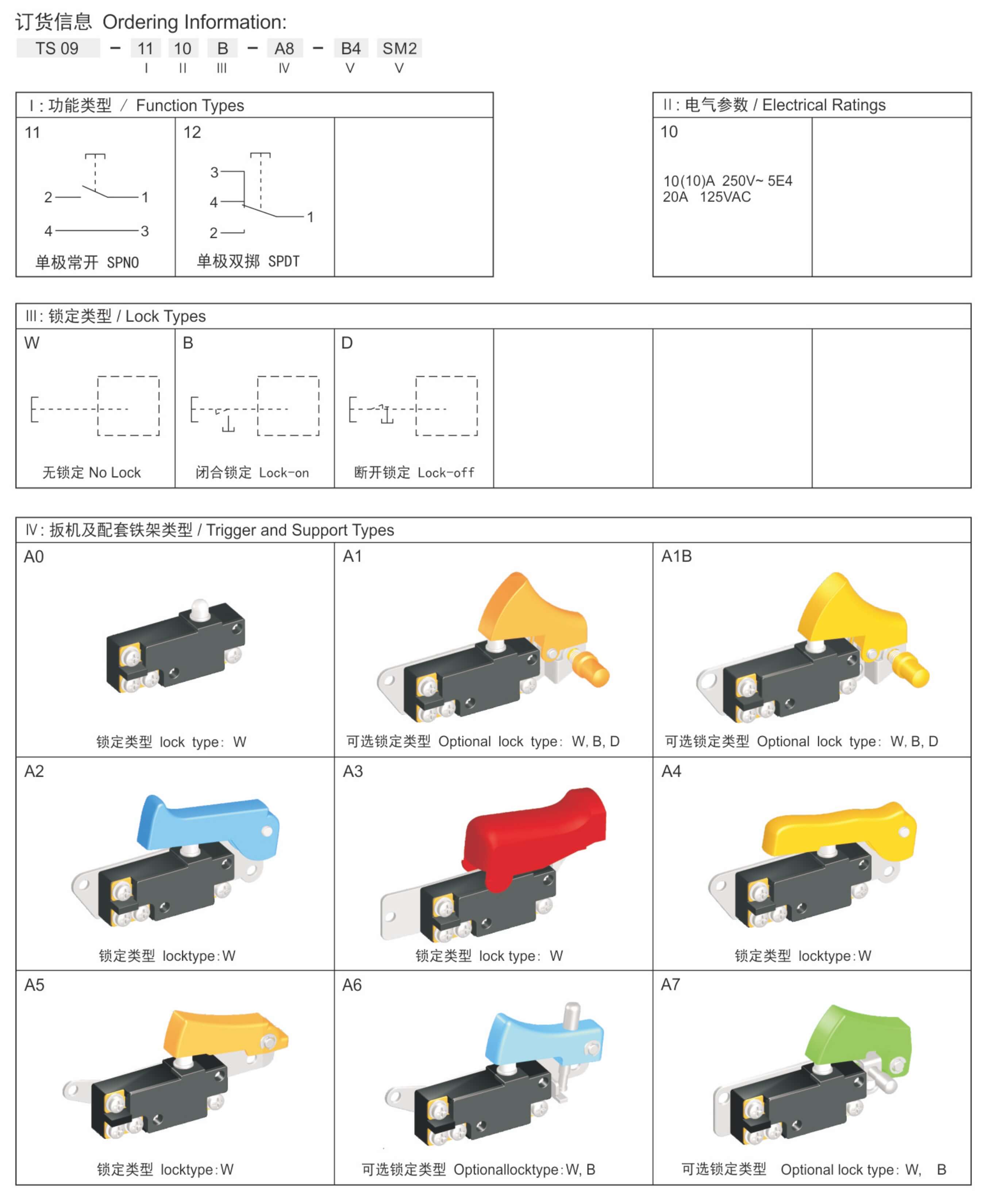

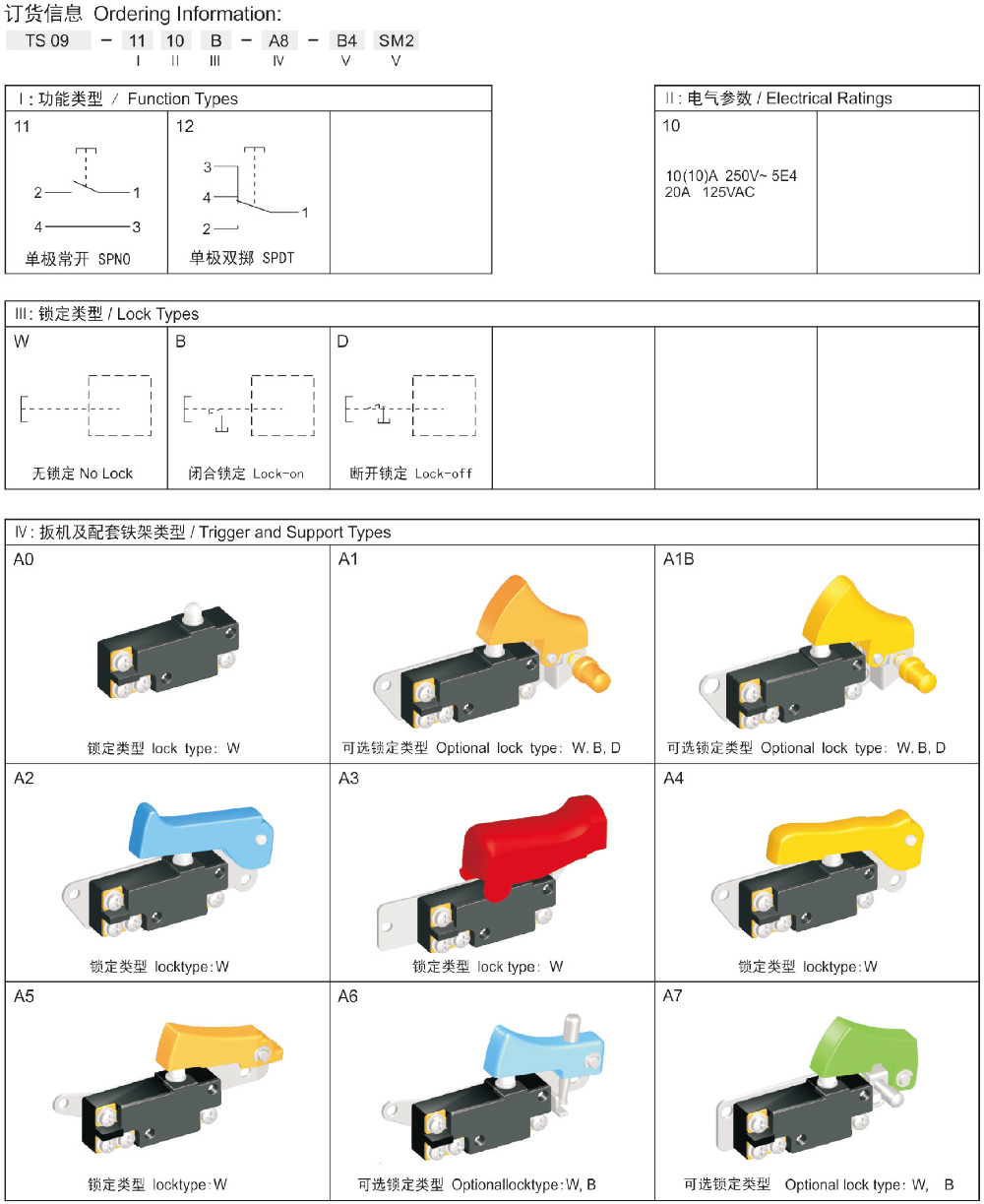

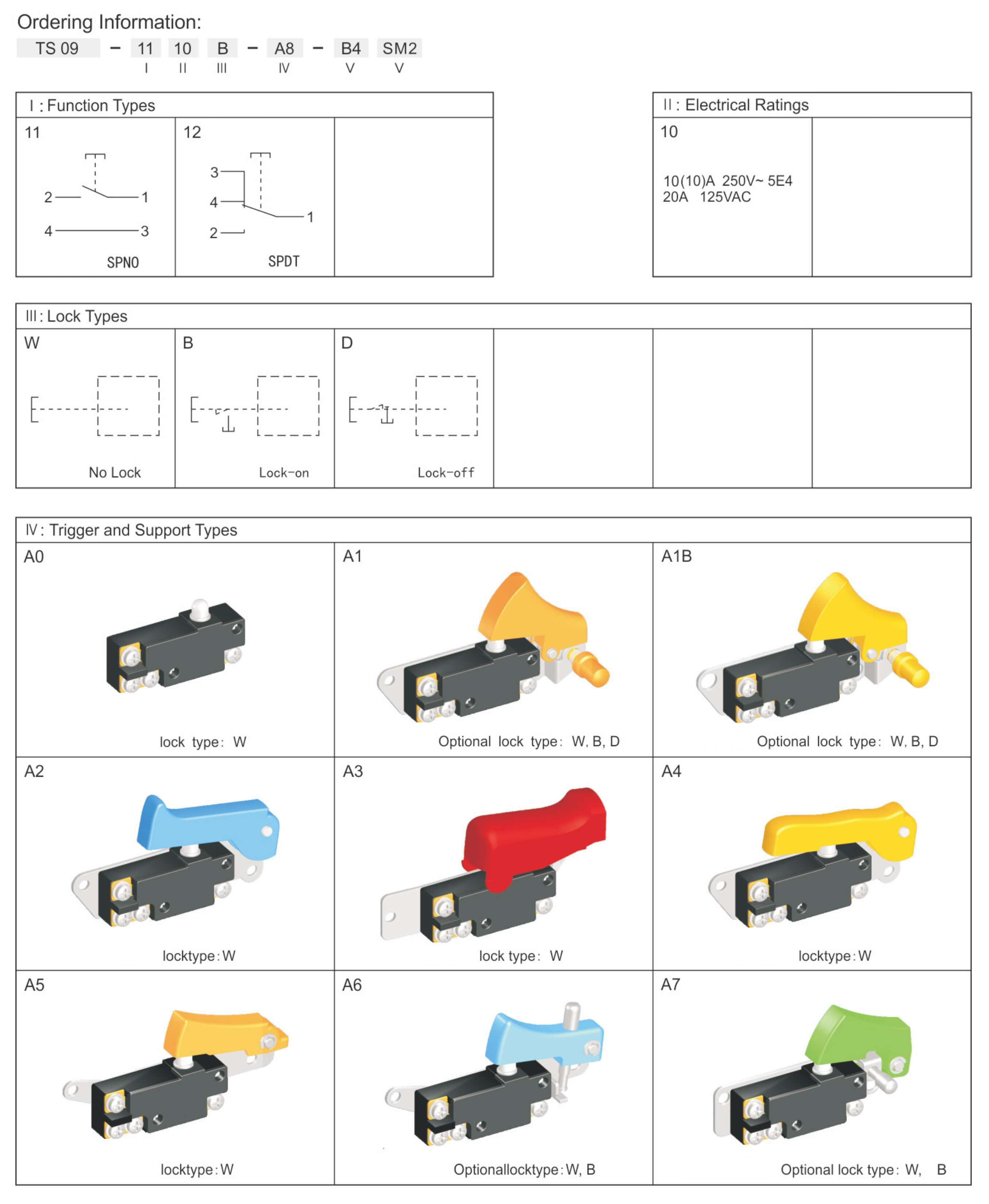

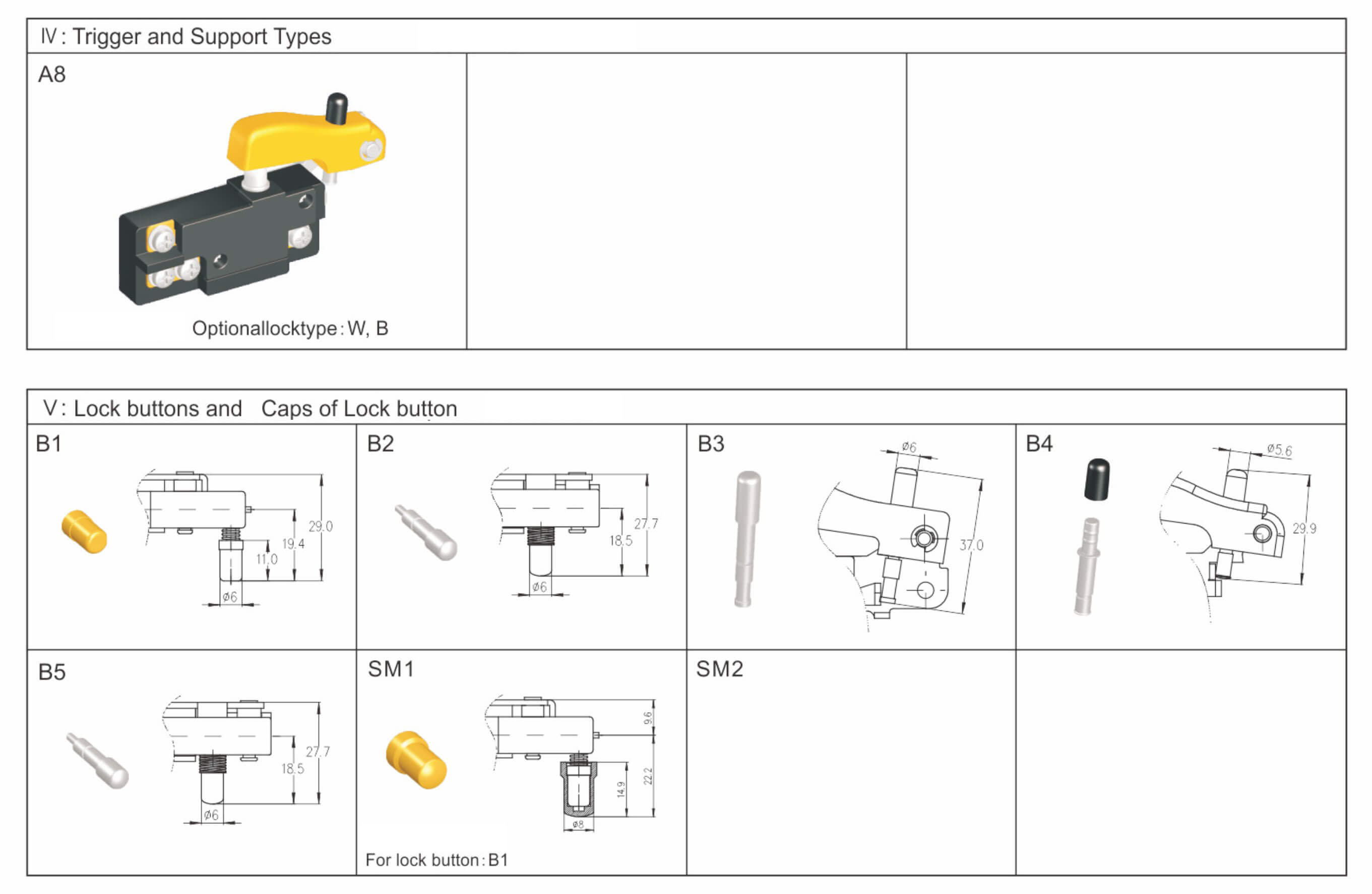

Ordering Information
