返回列表TS08 防尘快速动作扳机开关

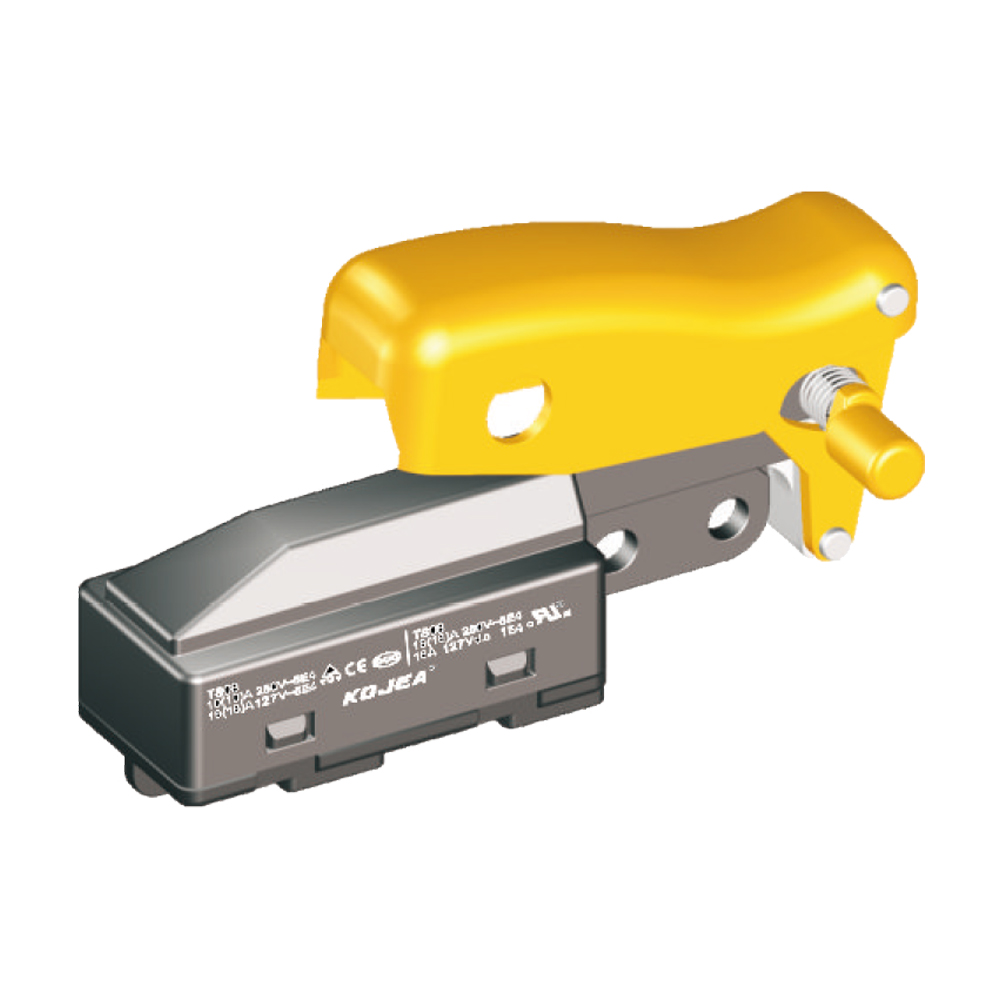

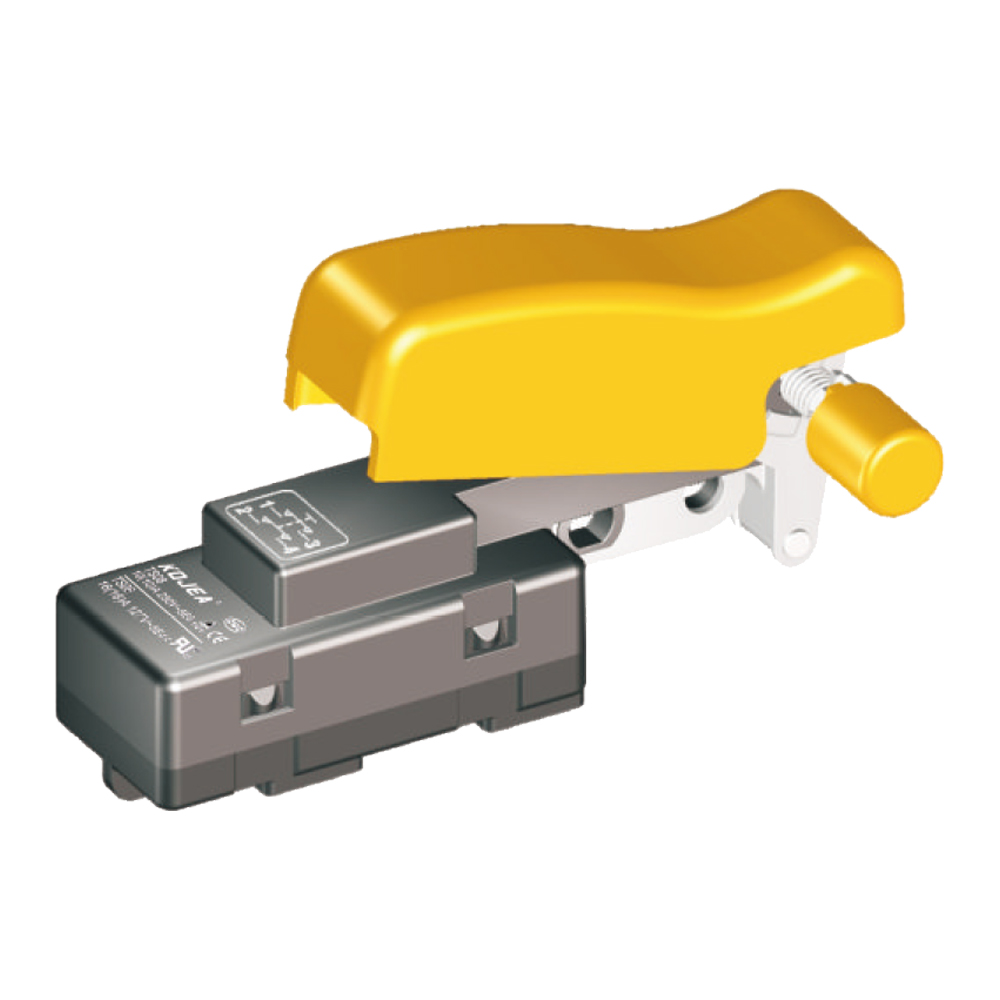

TS08
1
2

产品描述

TS08 series are general typehigh rated trigger switches, integrated dustproof, with snap-action structure, for used in high rated bench-top, portable power-tools and gardening tools such as: Cut-off Machines, Miter Saws, 150mm,180mm and 230mm Large Angle Grinders, Polishers, Circular Saws, Rotary Hammers, Demolition Hammers, Electric Chain Saws, etc.

产品特征

 Optional with the function as follows:

→  DPNO (Double Pole Normally Open)

→  One Pole NO, the other NC

→  SPDT (with pole joint)

 Optional with the accessories as follows:

→  Trigger coverde with rubber (overmolding)

→  Connection Piece for brake

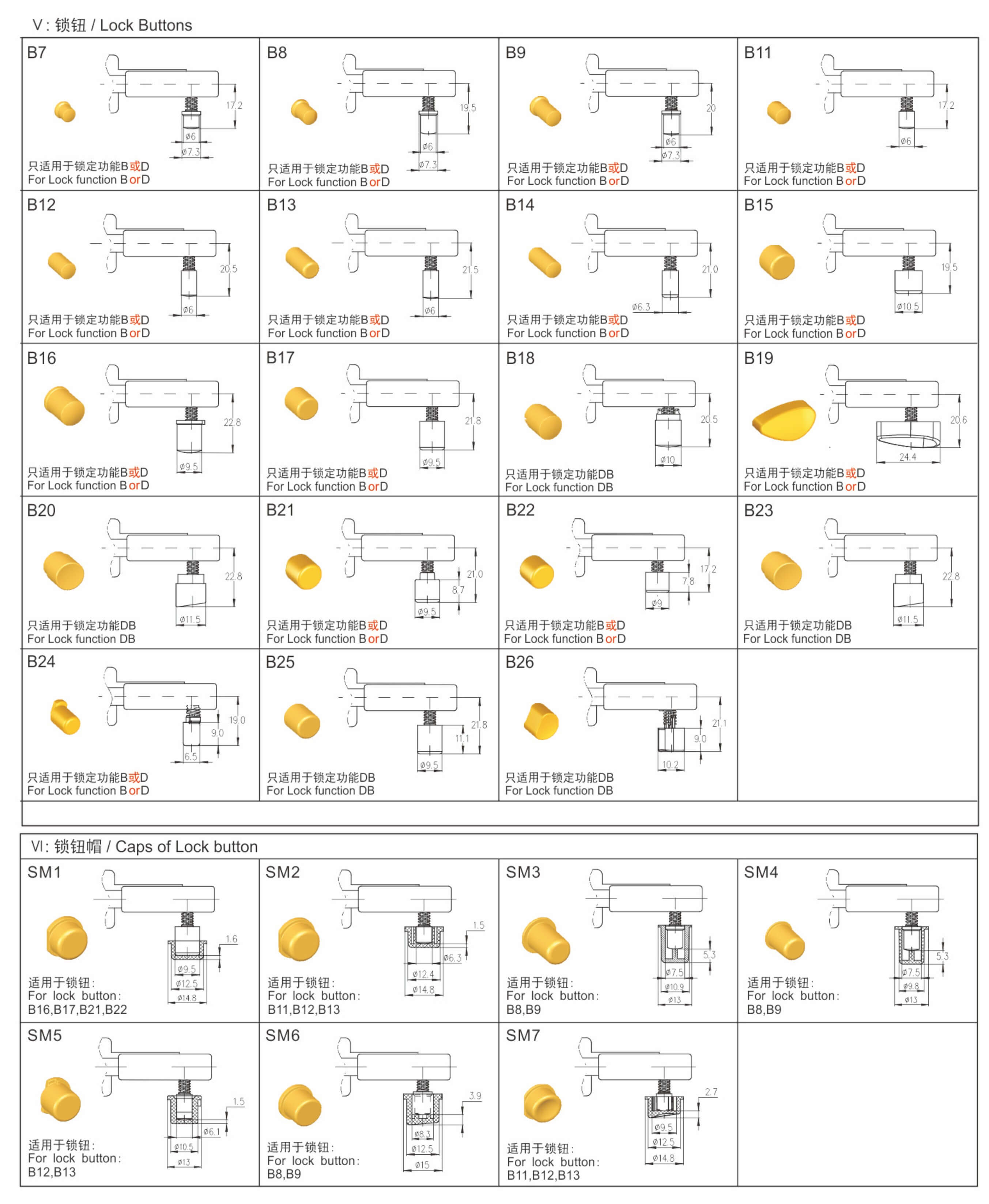

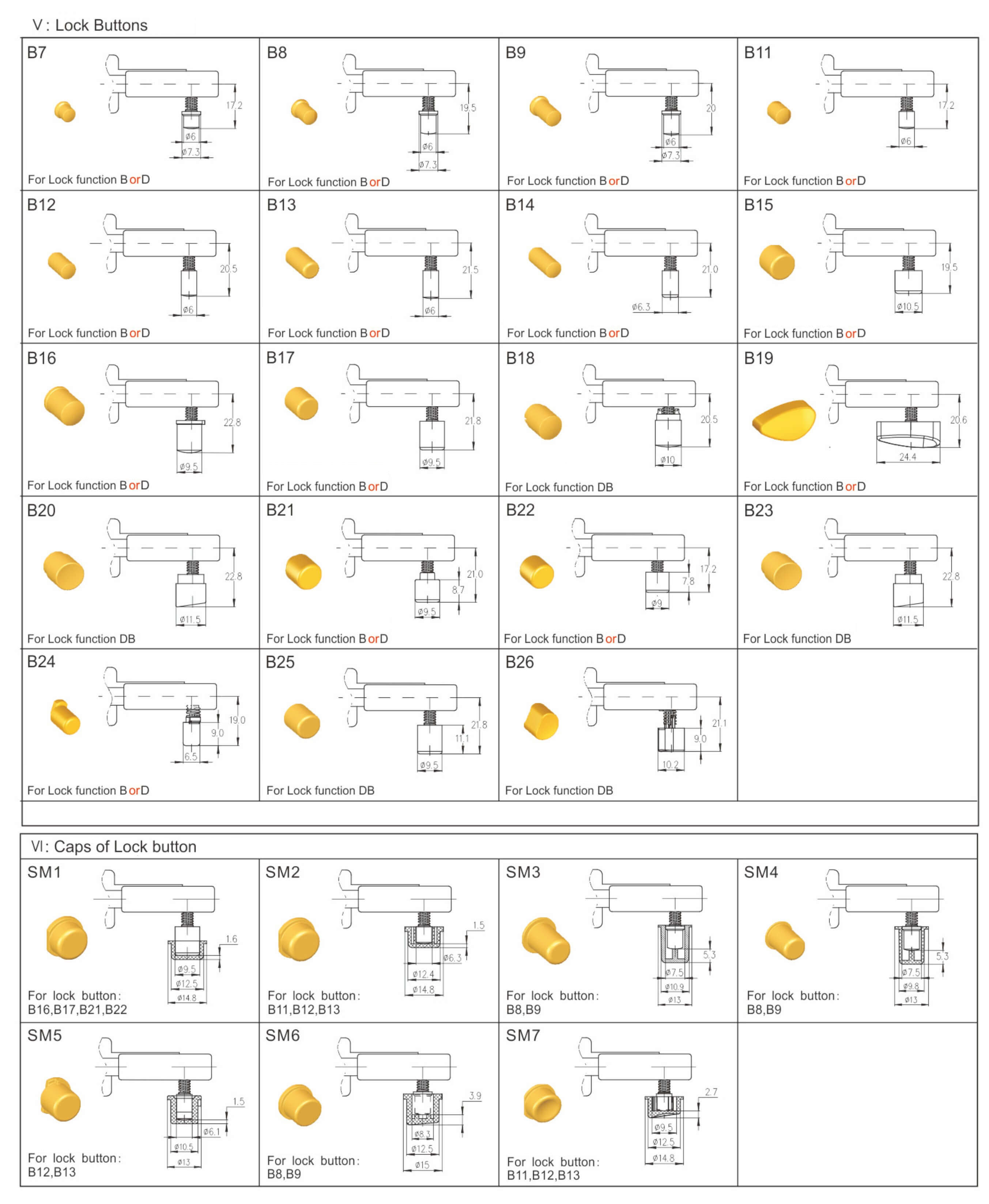

 Optional with Following lock types:

→  No Lock

→  Lock-on

→  Lock-off

→  Lock-off with lock-on

→  Some shell for lock-off, the resistibility of lock-off ≥300N

技术数据

→  Mechanical life endurance≥1E5
→  Electrical life endurance≥5E4
→  Max. Inrush current at 250V90A
→  Max. Inrush current at 127V132A
→  Contact resistance≤30m Ohm
→  Insulation resistance≥7M Ohm
→  Dielectric strength of function1500V
→  Dielectric strength of reinforced3000V
→  Ambient temperature0℃~55℃
→  FlammabilityUL 94V-0
→  Protection typeIP40
→  Suitable for appliances of protection class II

端子类型

 Input side/Output side:

→  4×Screw teminal M4

★ Utility Model patented

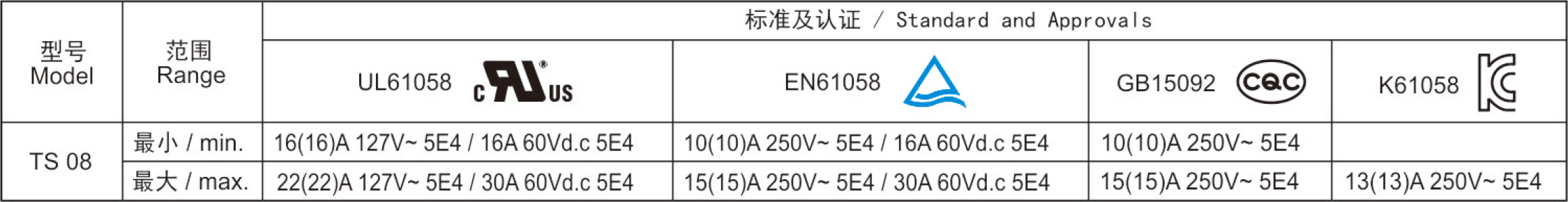

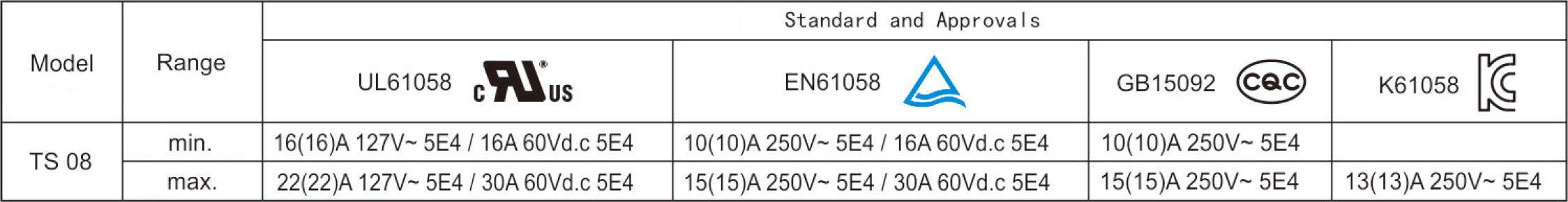

电气参数和认证

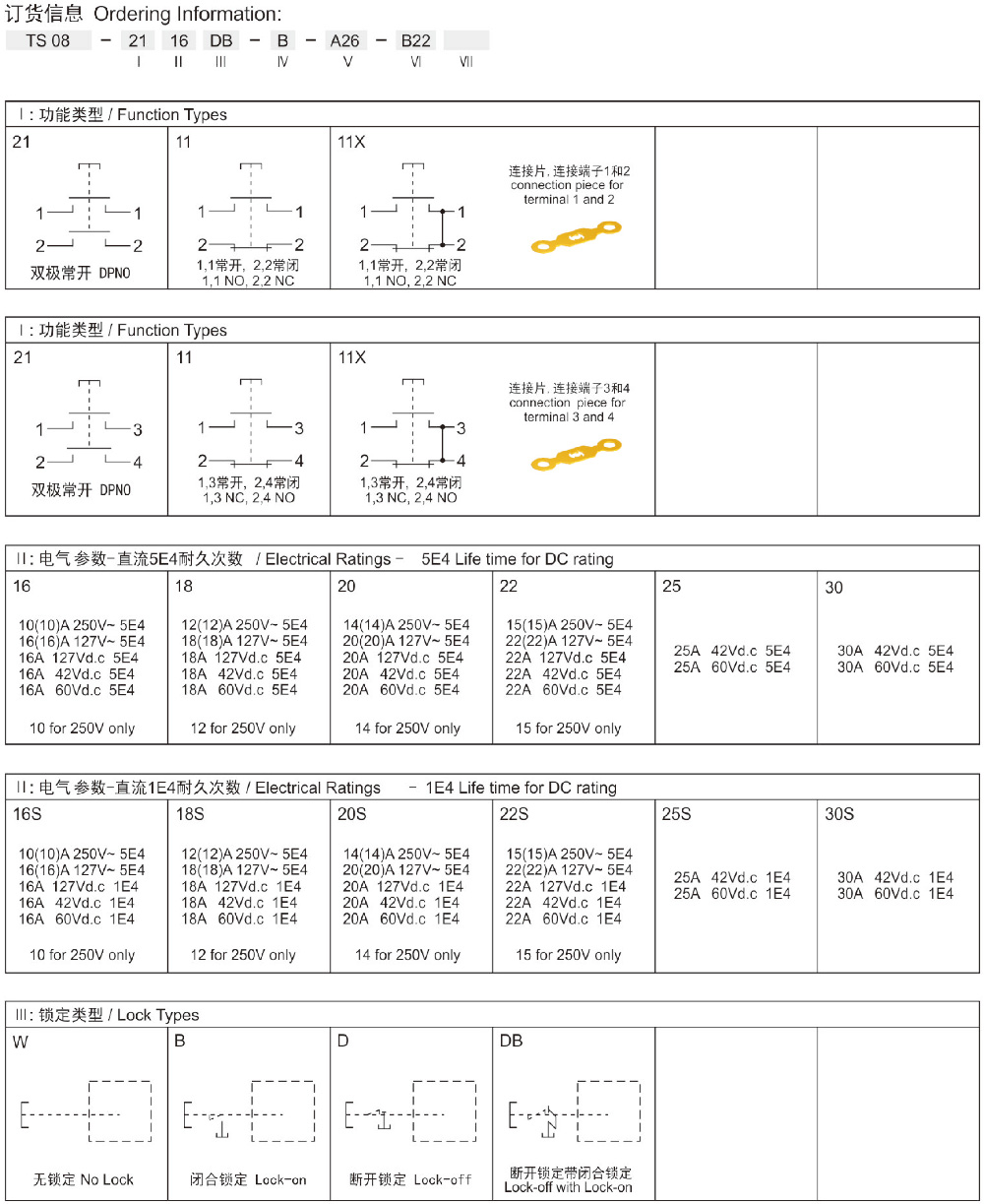

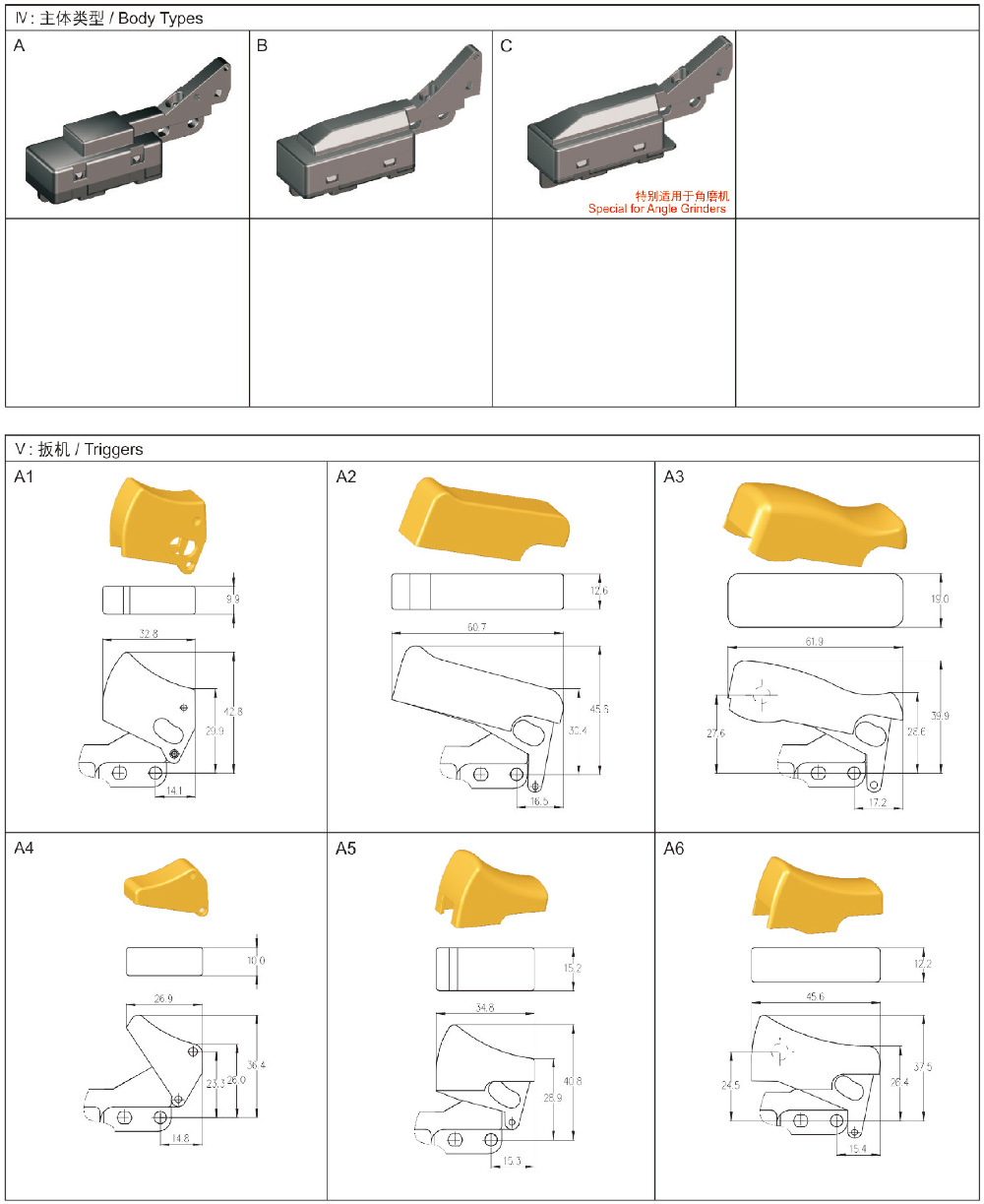

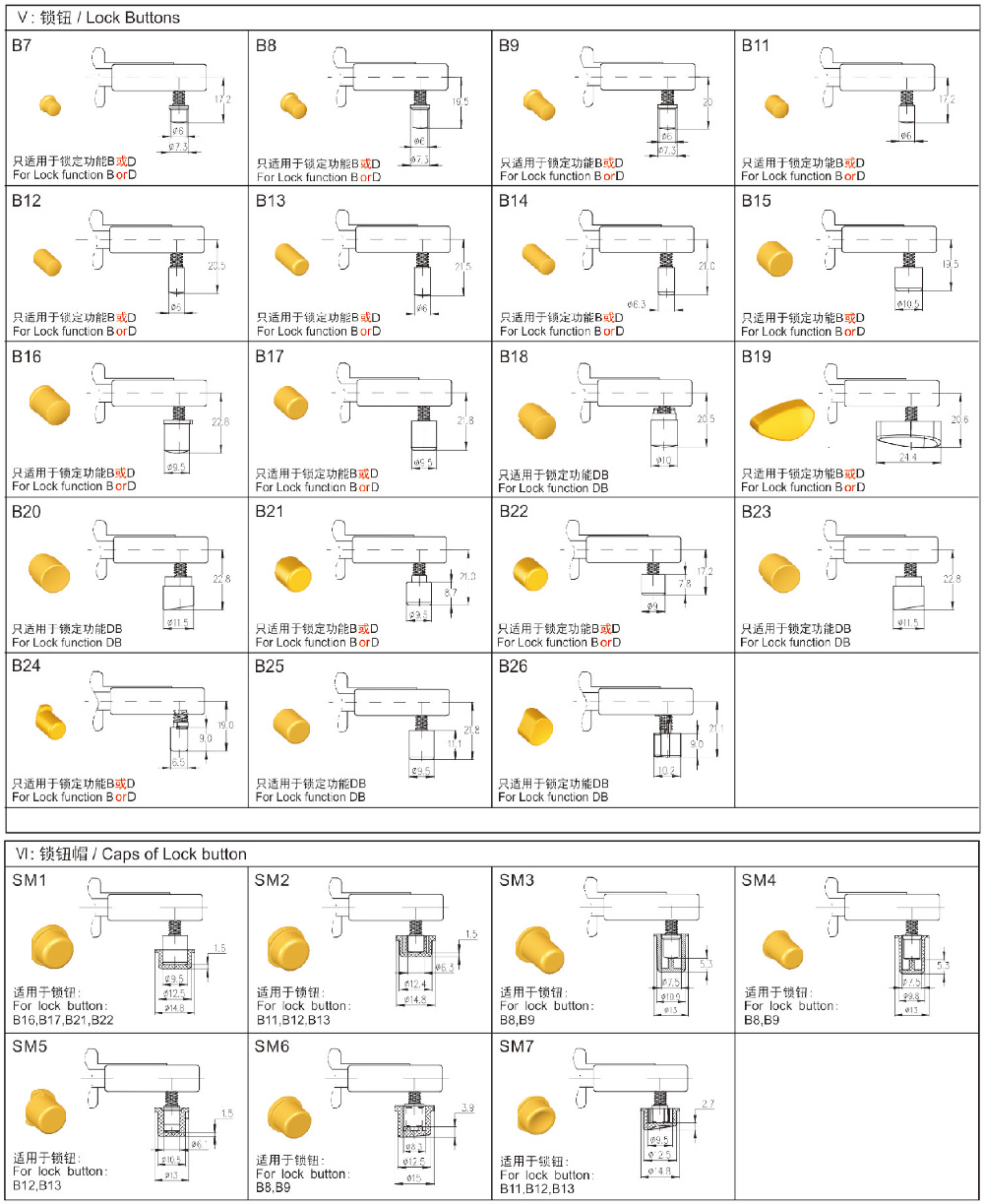

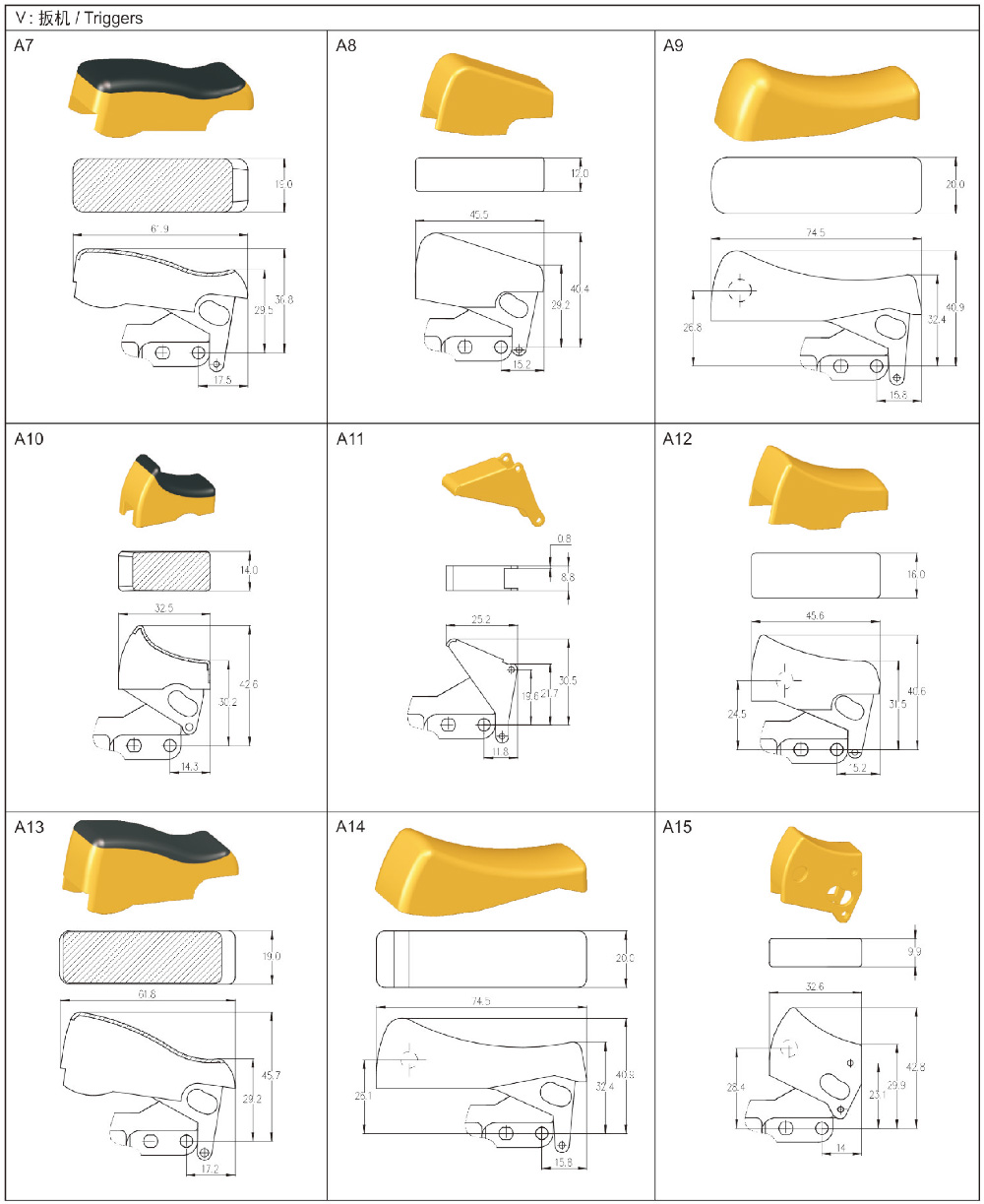

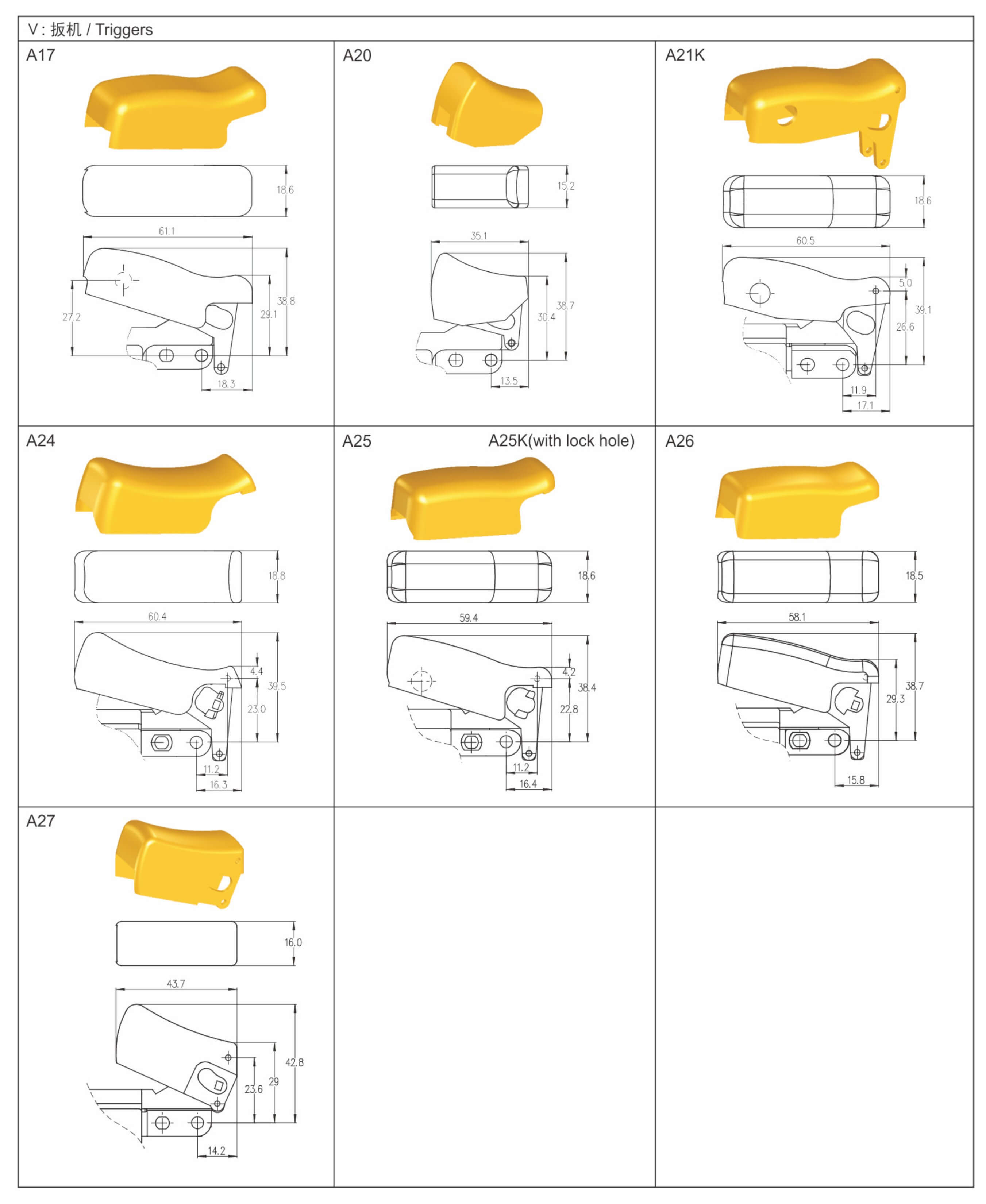

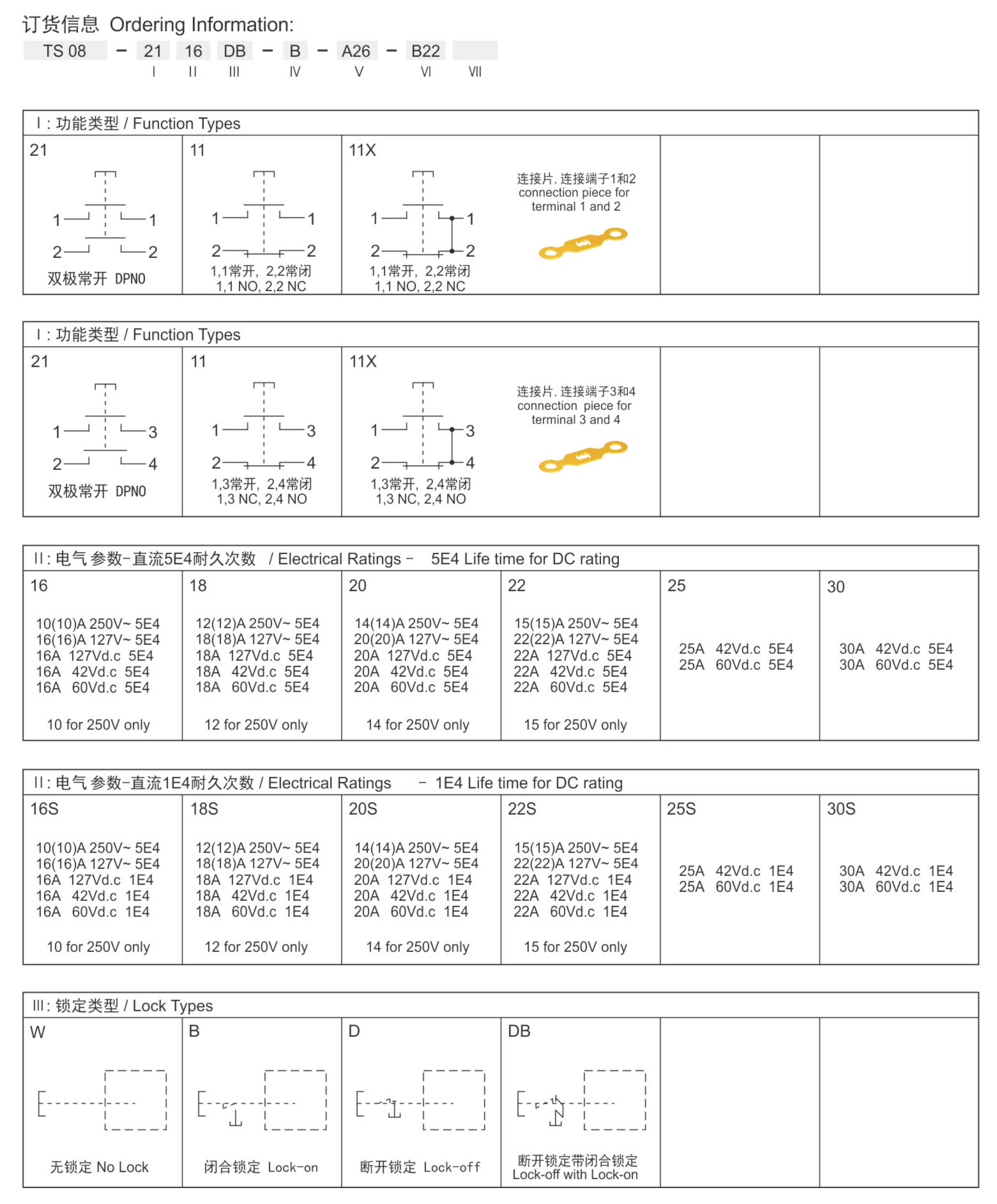

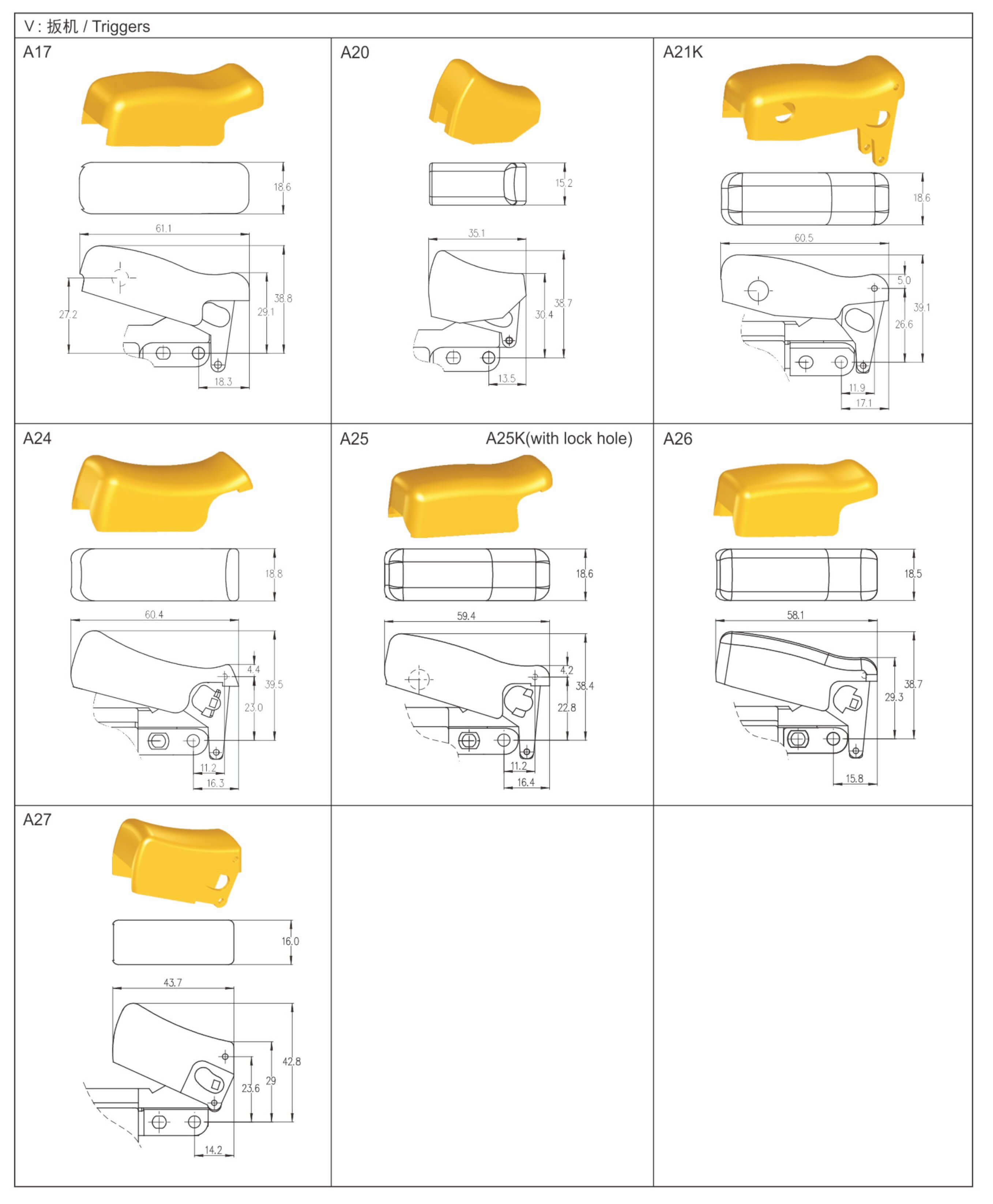

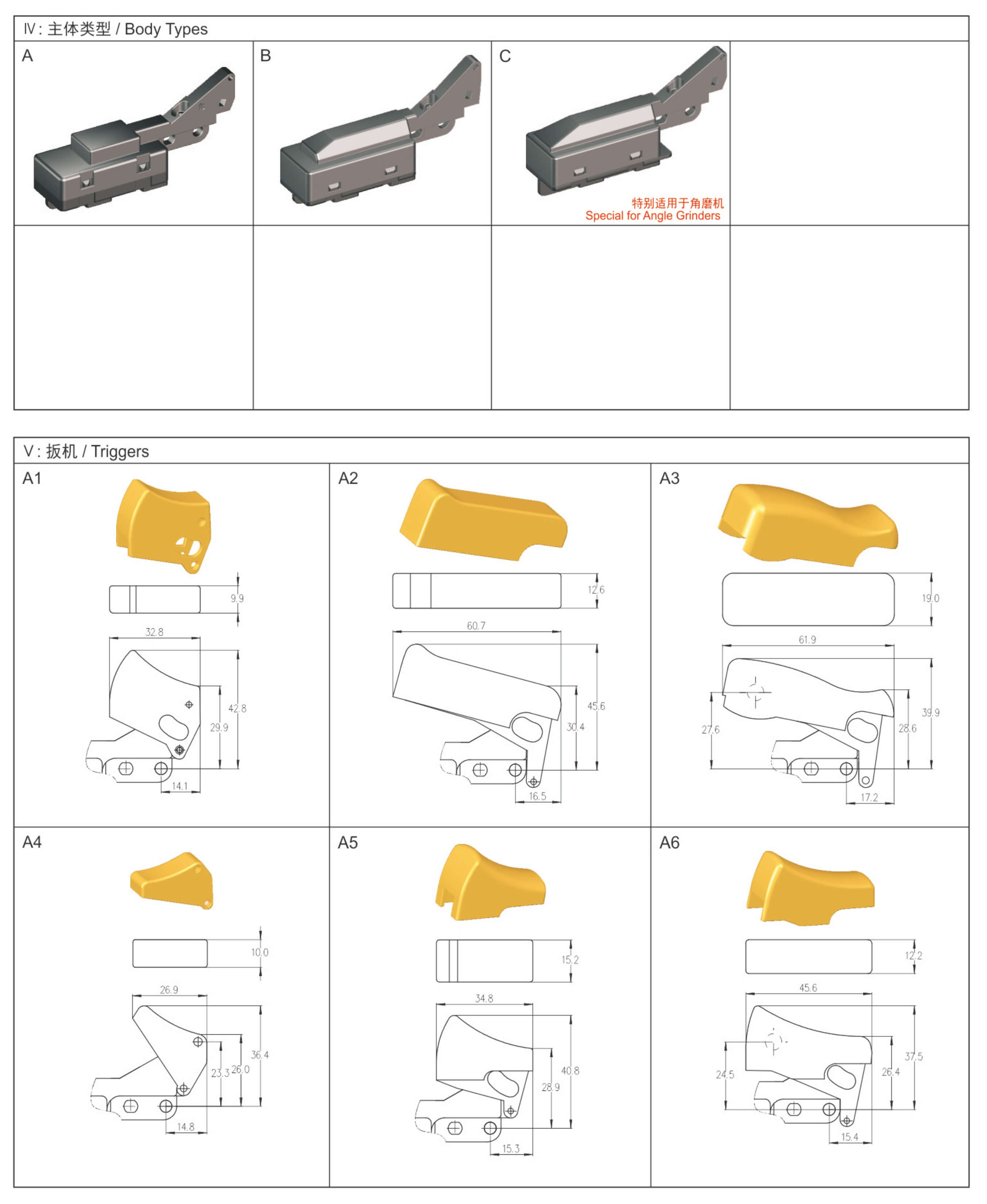

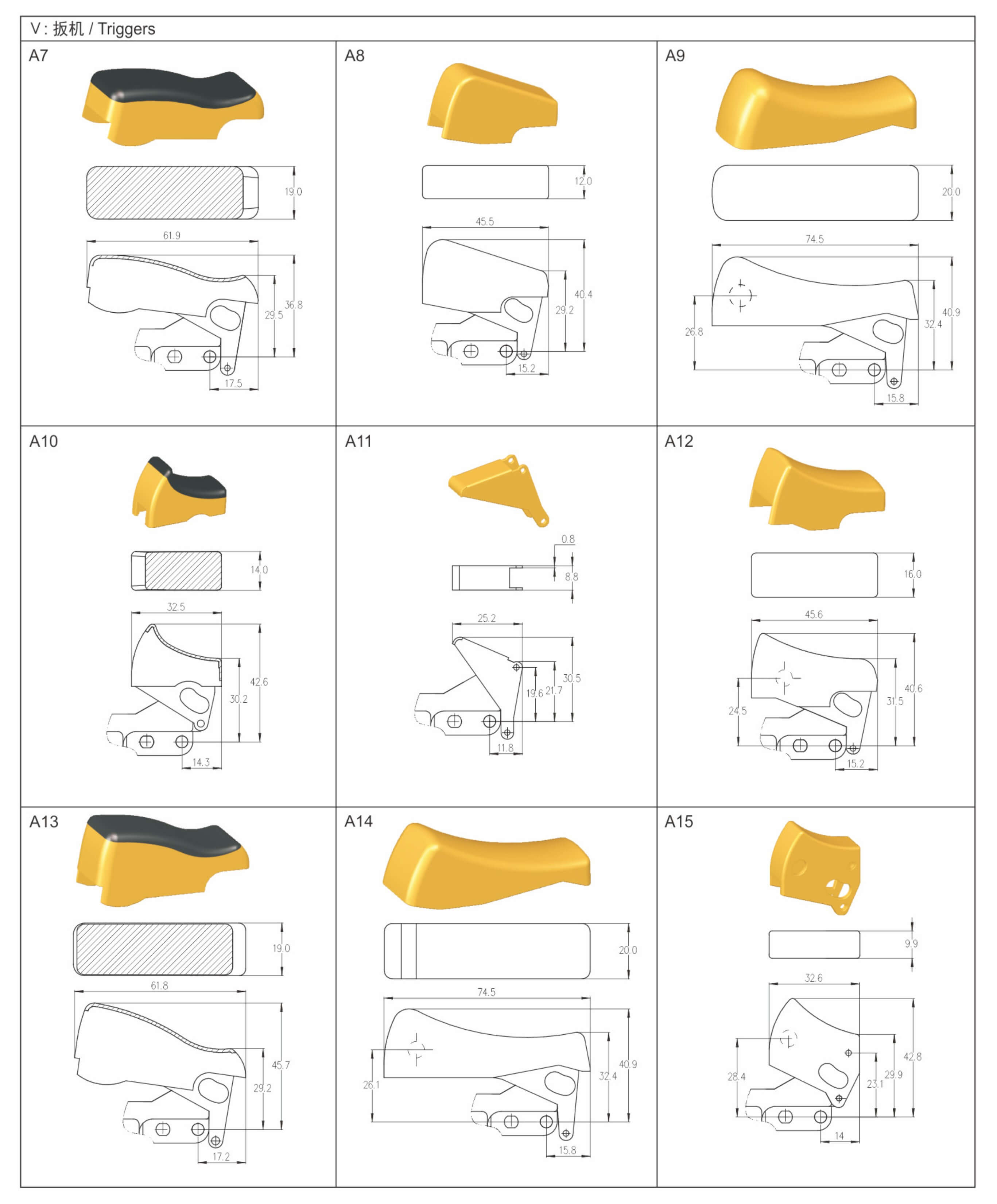

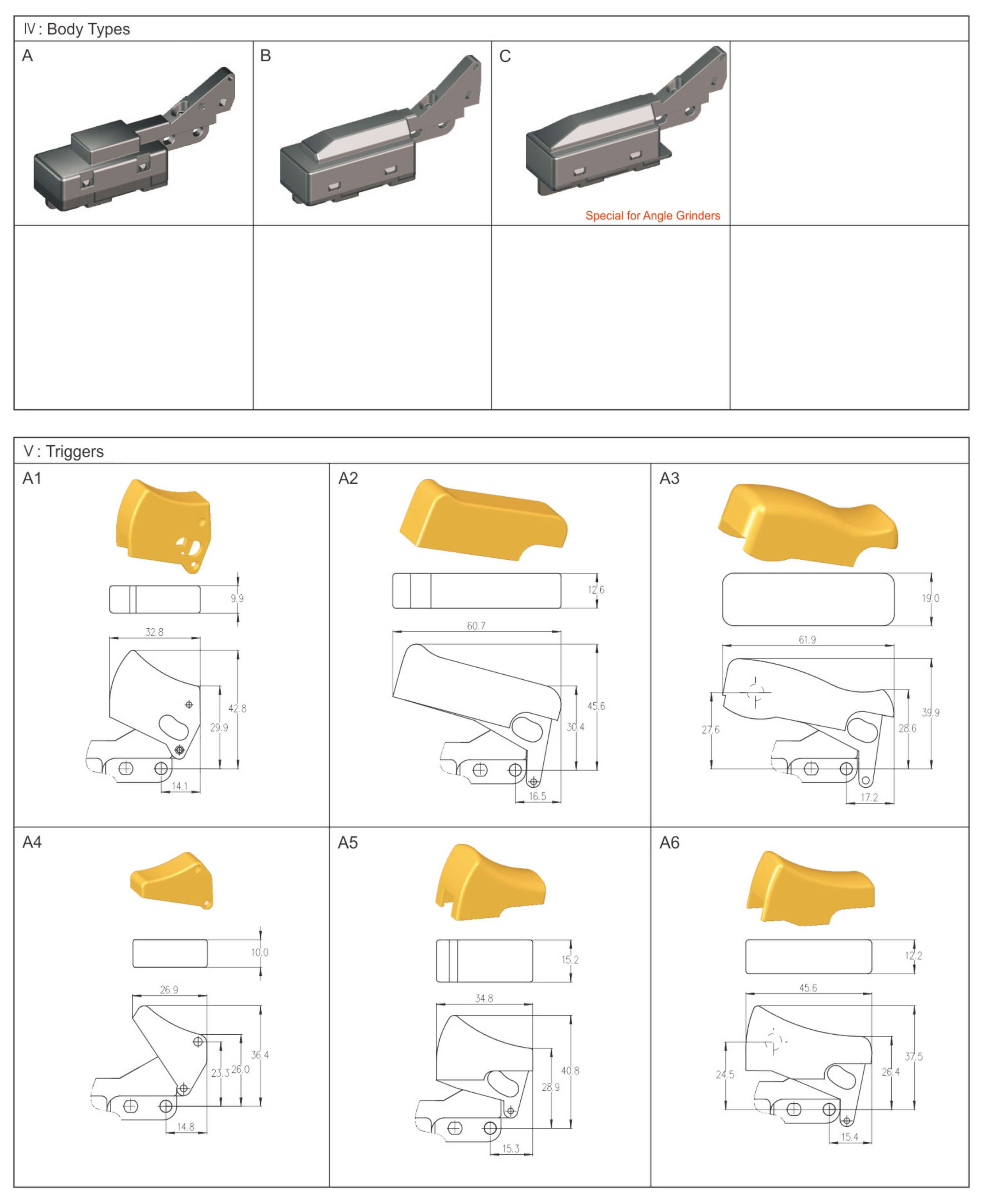

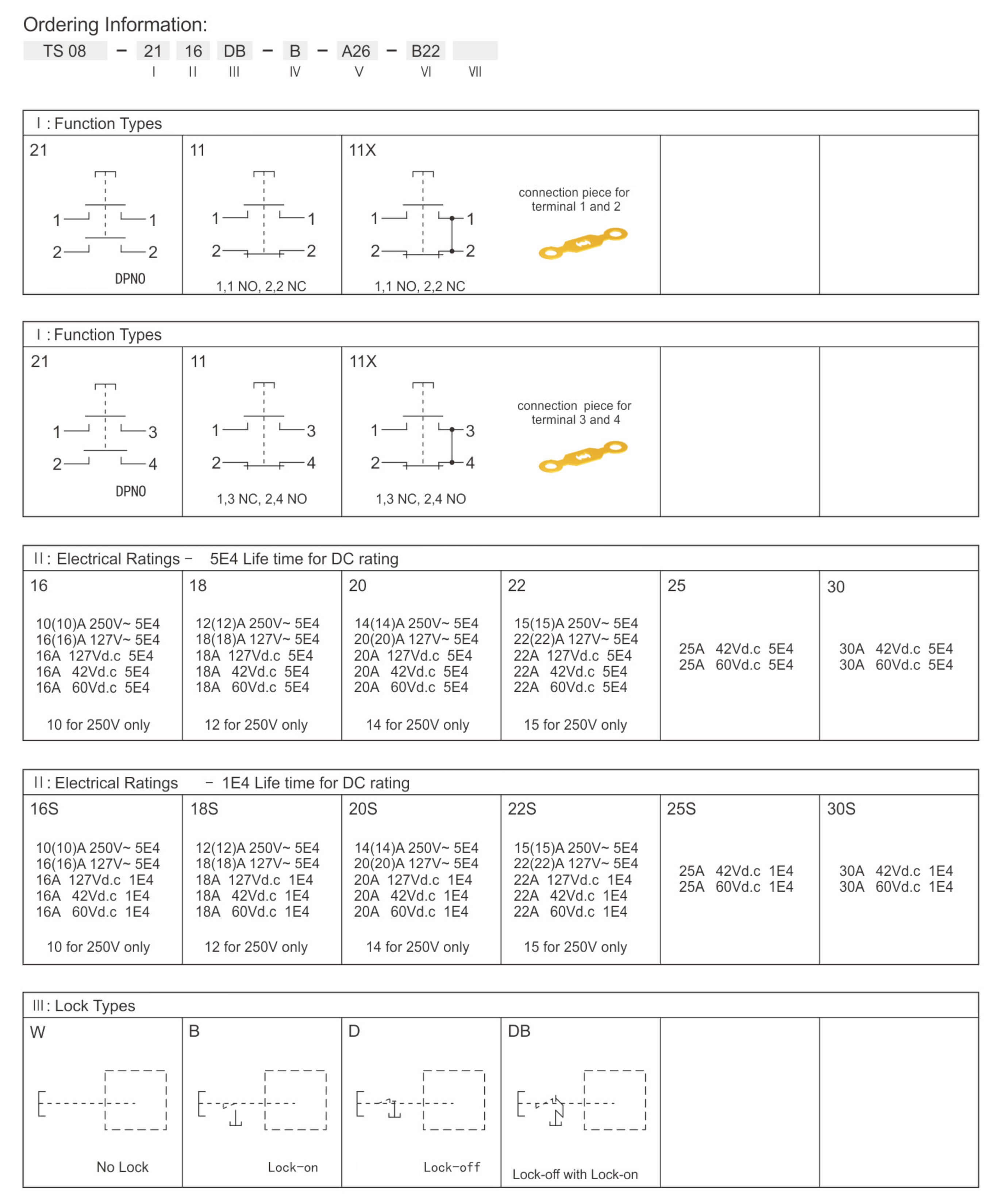

订货信息
