TS07
1
2

Product Description

TS07 series are one general type trigger switch, with snap-action structure, optional integrated dustproof, for used in power-tools and gardening tools such as: Electric Mixers, Circular Saws, Jig Saws, Polishers Grinders, Electric Planers, Rotary Hammers, Demolition Hammers, Miter Saws, Cut-off Machines, Electric ChainSaws, Electric Lawnmowers, etc.

Product Features

 Optional with Following lock types:

→  No Lock

→  Lock-on

→  Lock-off

 Optional with the function or accessories as follows:

→  DPNO (Double Pole Normally Open)

→  SPNO (Single Pole Normally Open)

→  One Pole NO, the other NC

→  Rubberized Trigger (overmolding)

Technical Data

→  Mechanical life endurance≥1E5
→  Electrical life endurance≥5E4
→  Max. Inrush current at 250V90A
→  Max. Inrush current at 127V120A
→  Contact resistance≤30m Ohm
→  Insulation resistance≥7M Ohm
→  Dielectric strength of function1500V
→  Dielectric strength of reinforced3000V
→  Ambient temperature0℃~55℃
→  FlammabilityUL 94V-0
→  Protection typeIP40
→  Suitable for appliances of protection class II

Terminal Type

 Input side/Output side:

→  Pillar teminal Φ=3.5mm

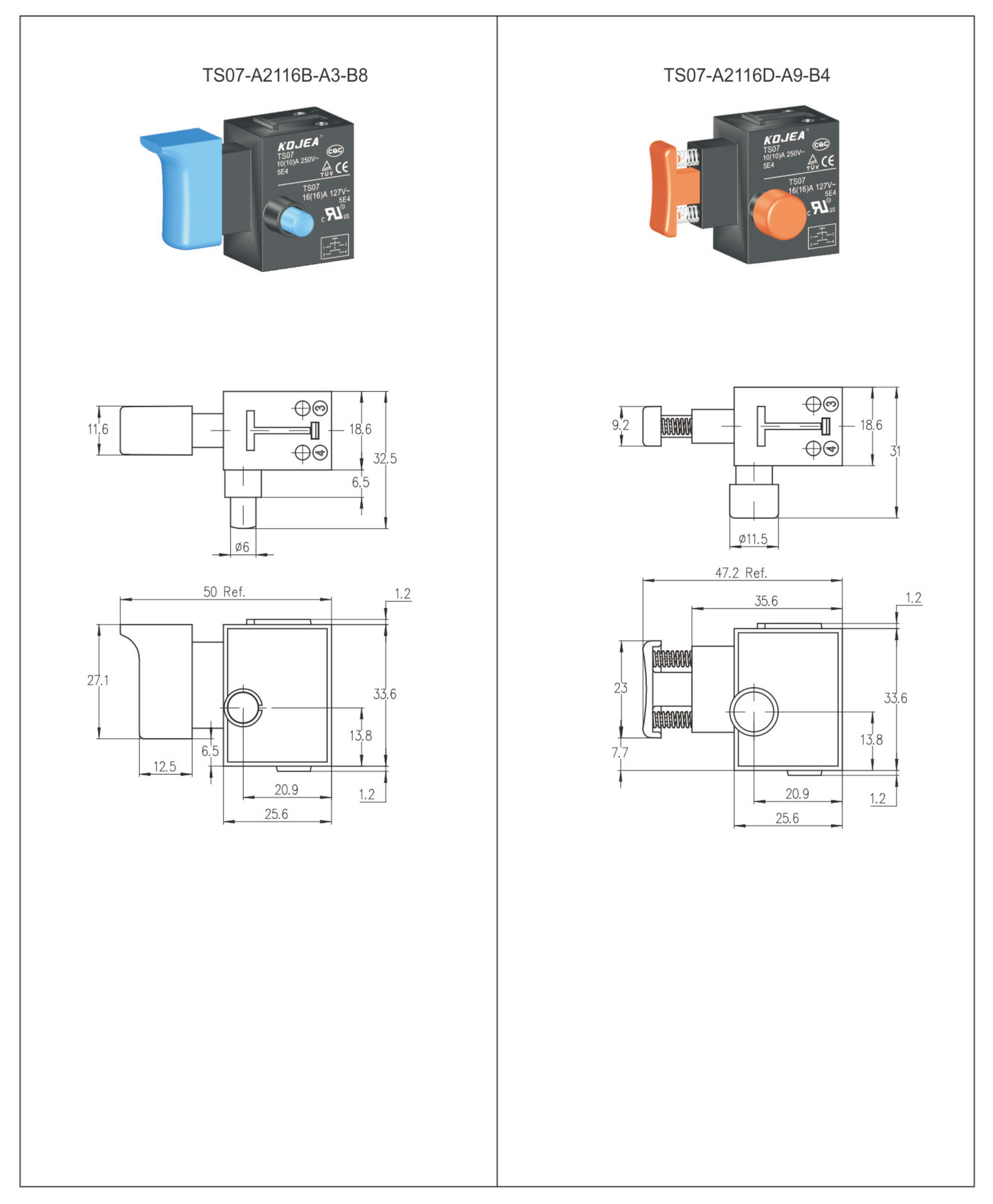

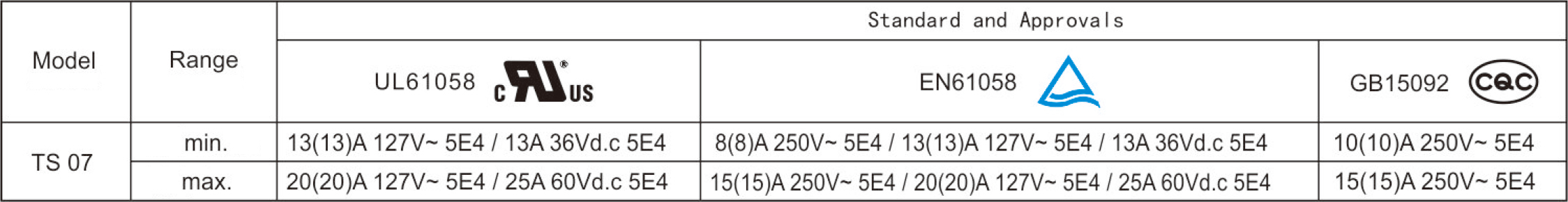

Electrical Parameters and Certifications

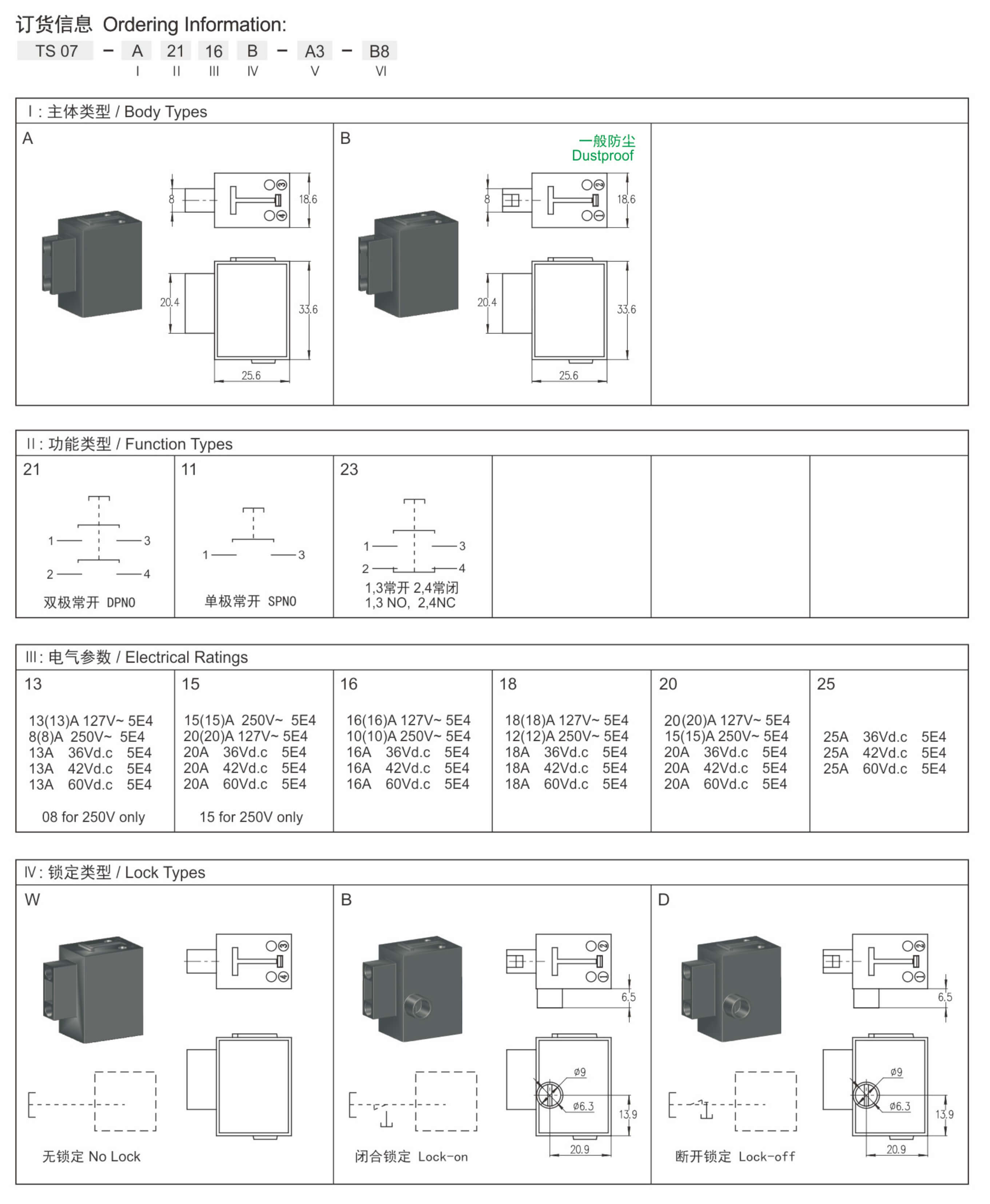

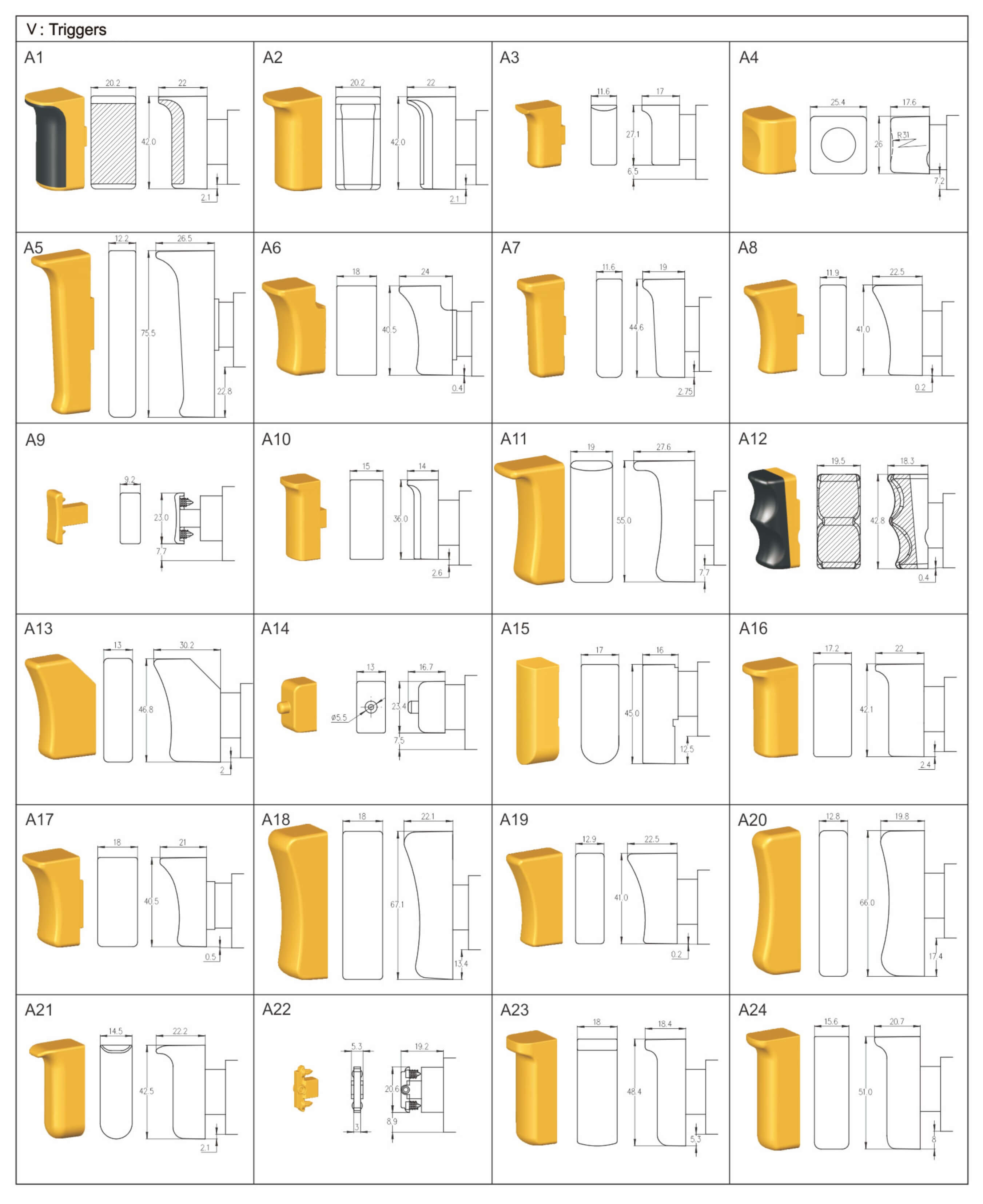

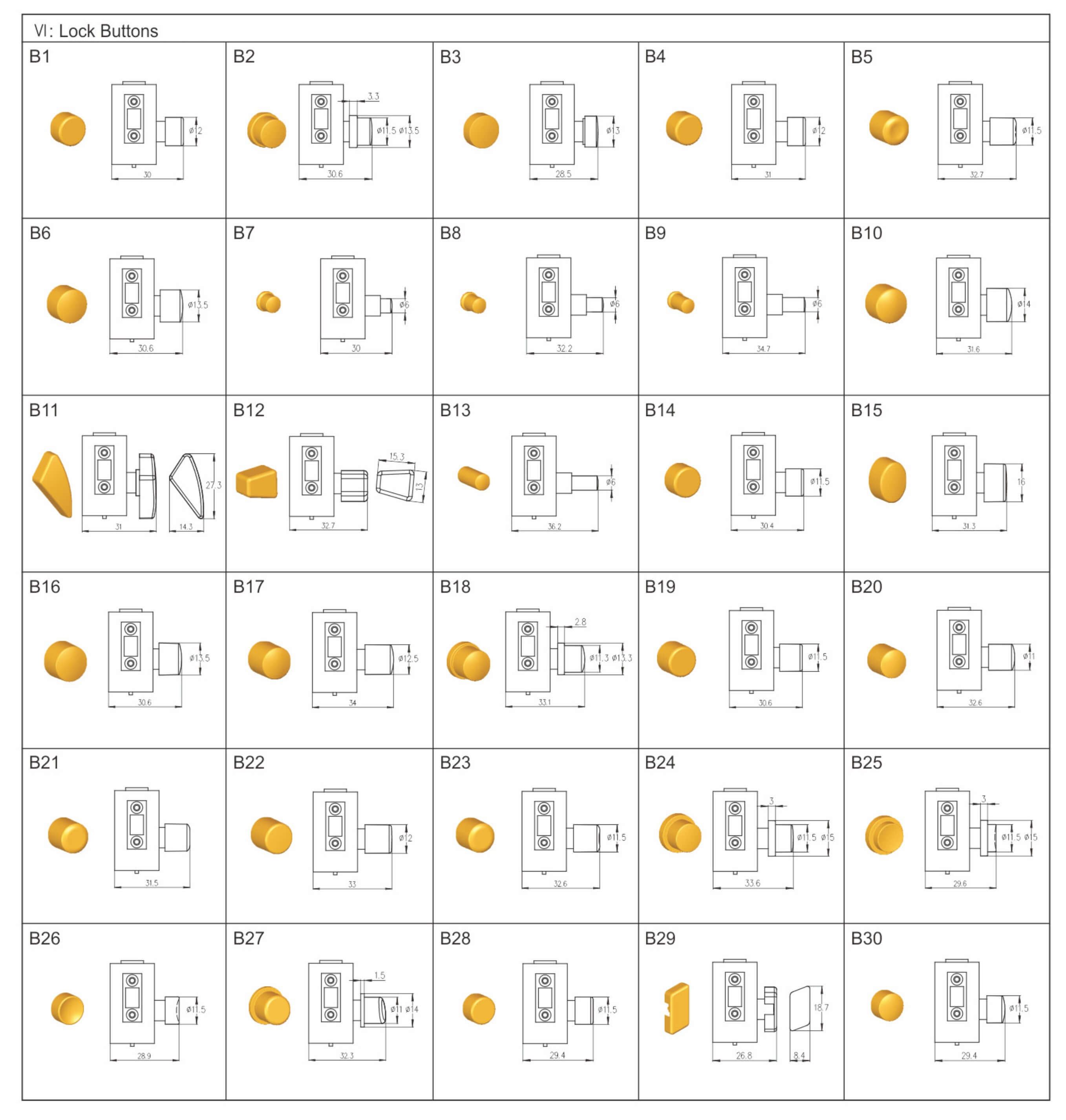

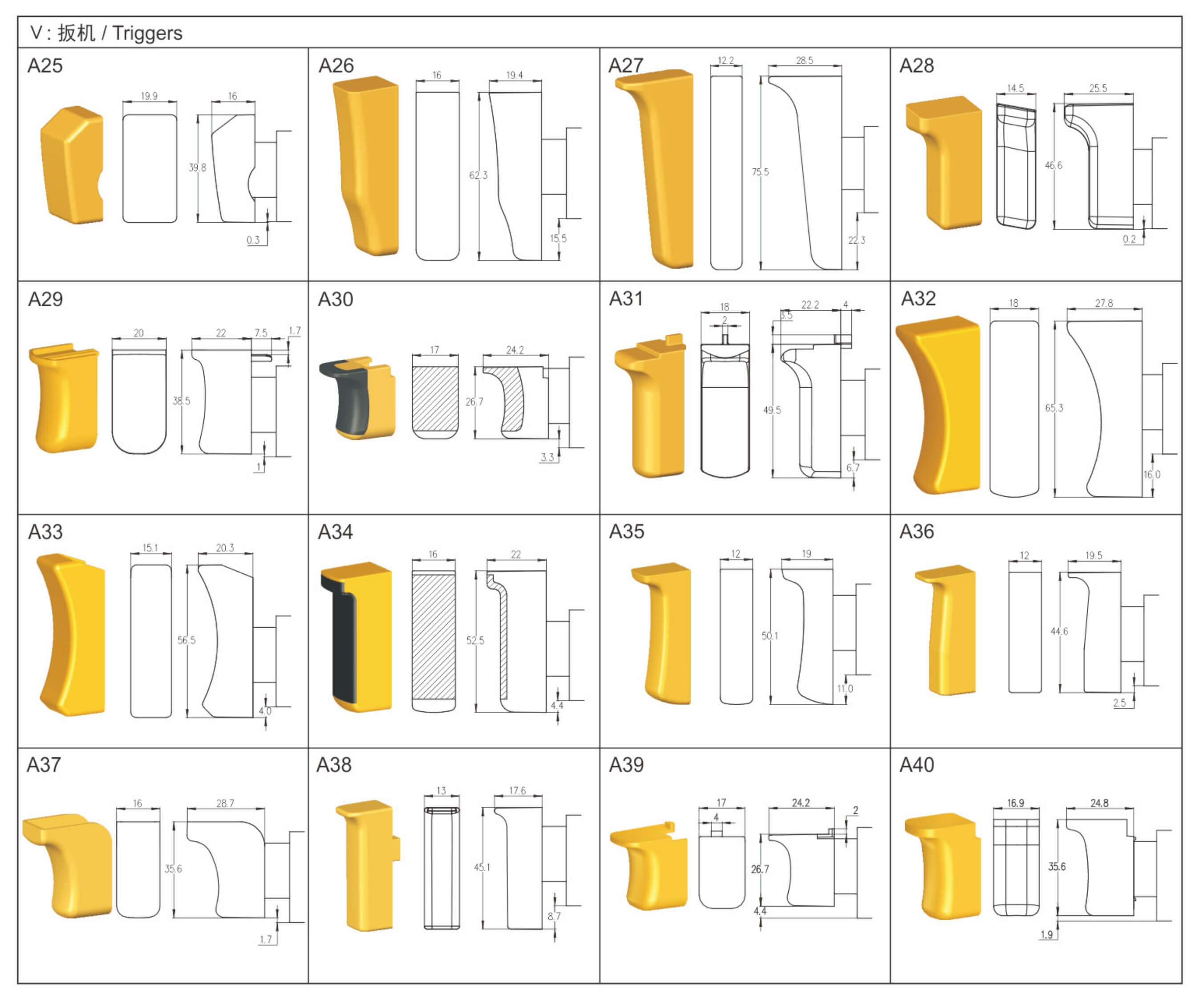

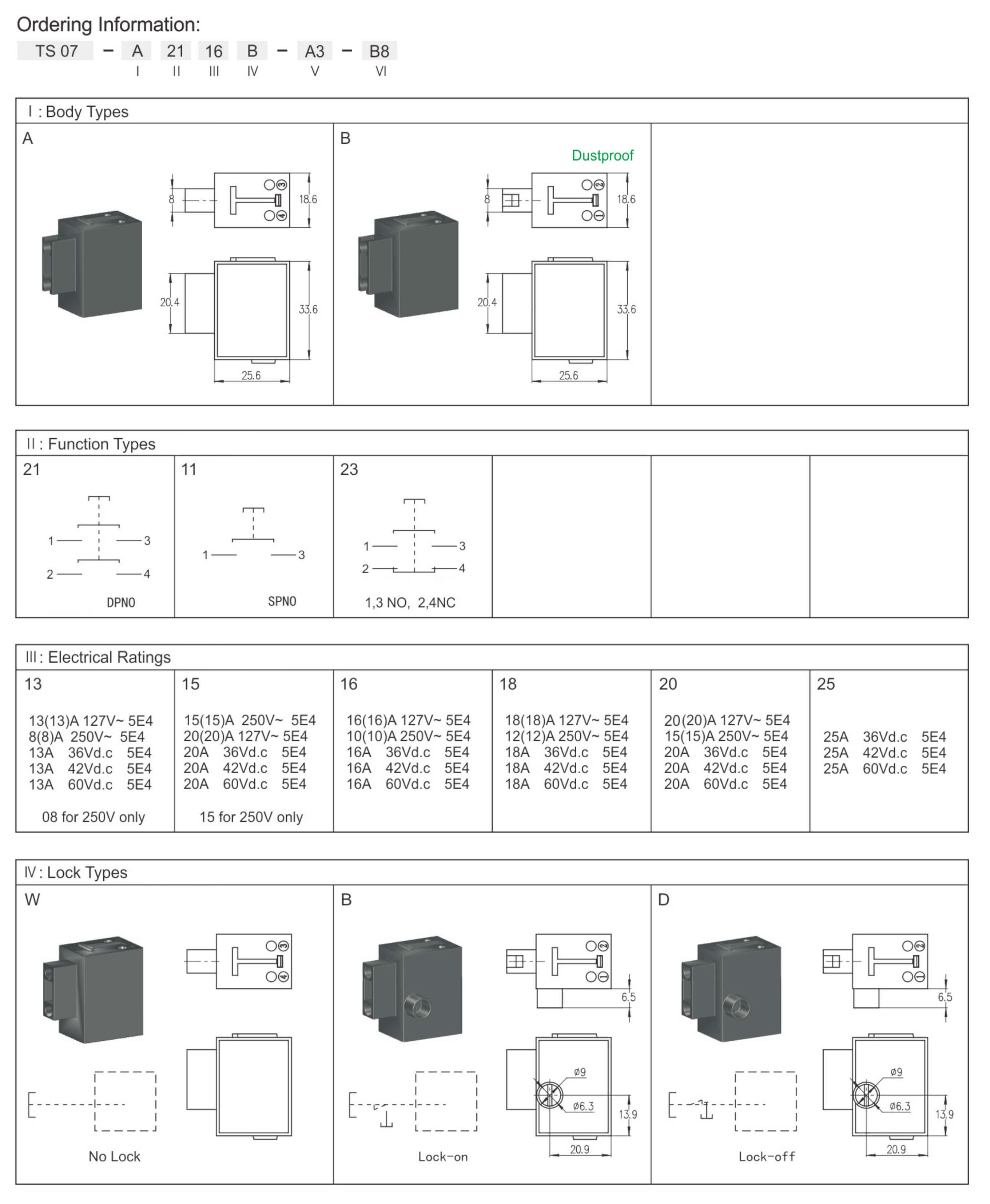

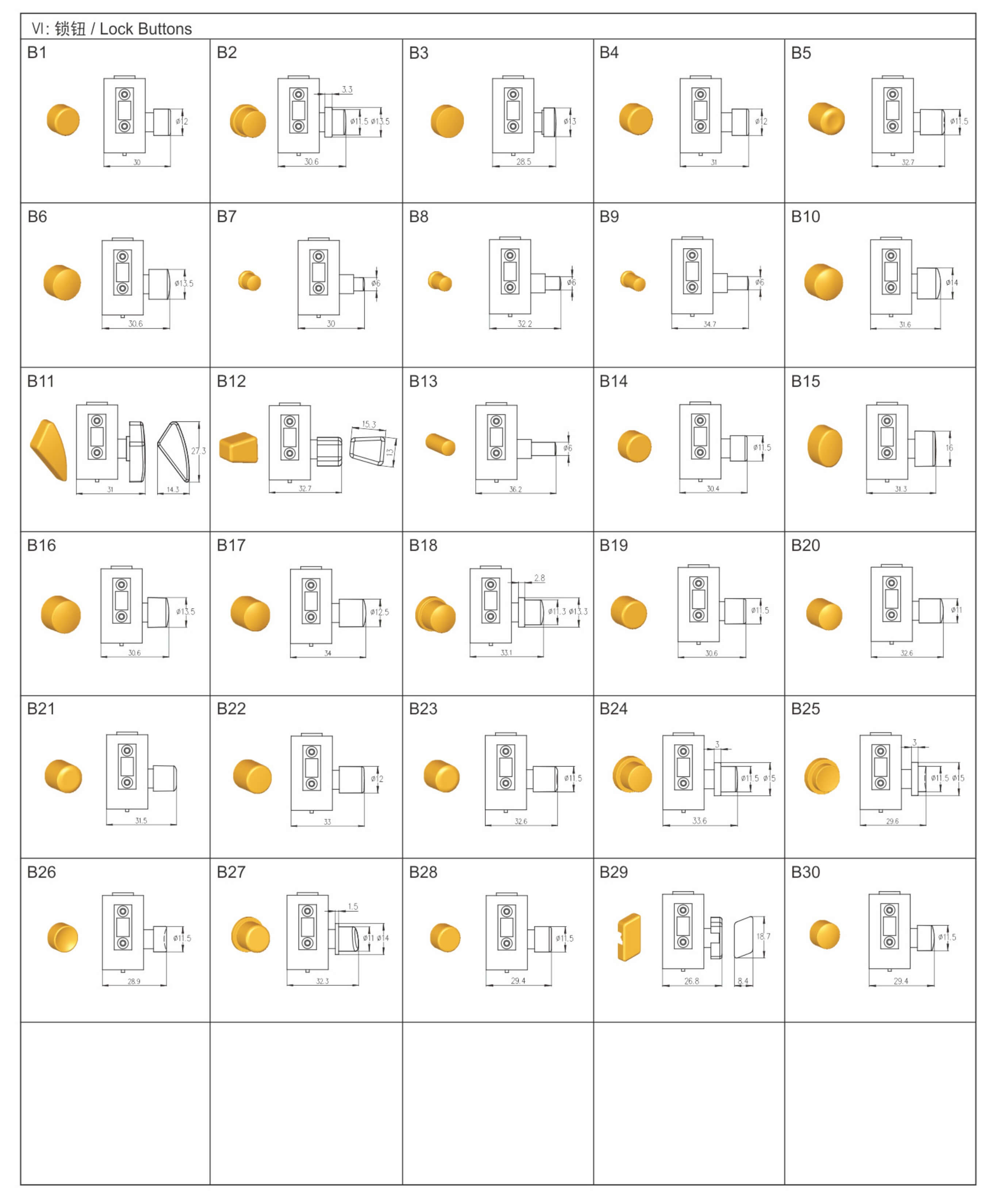

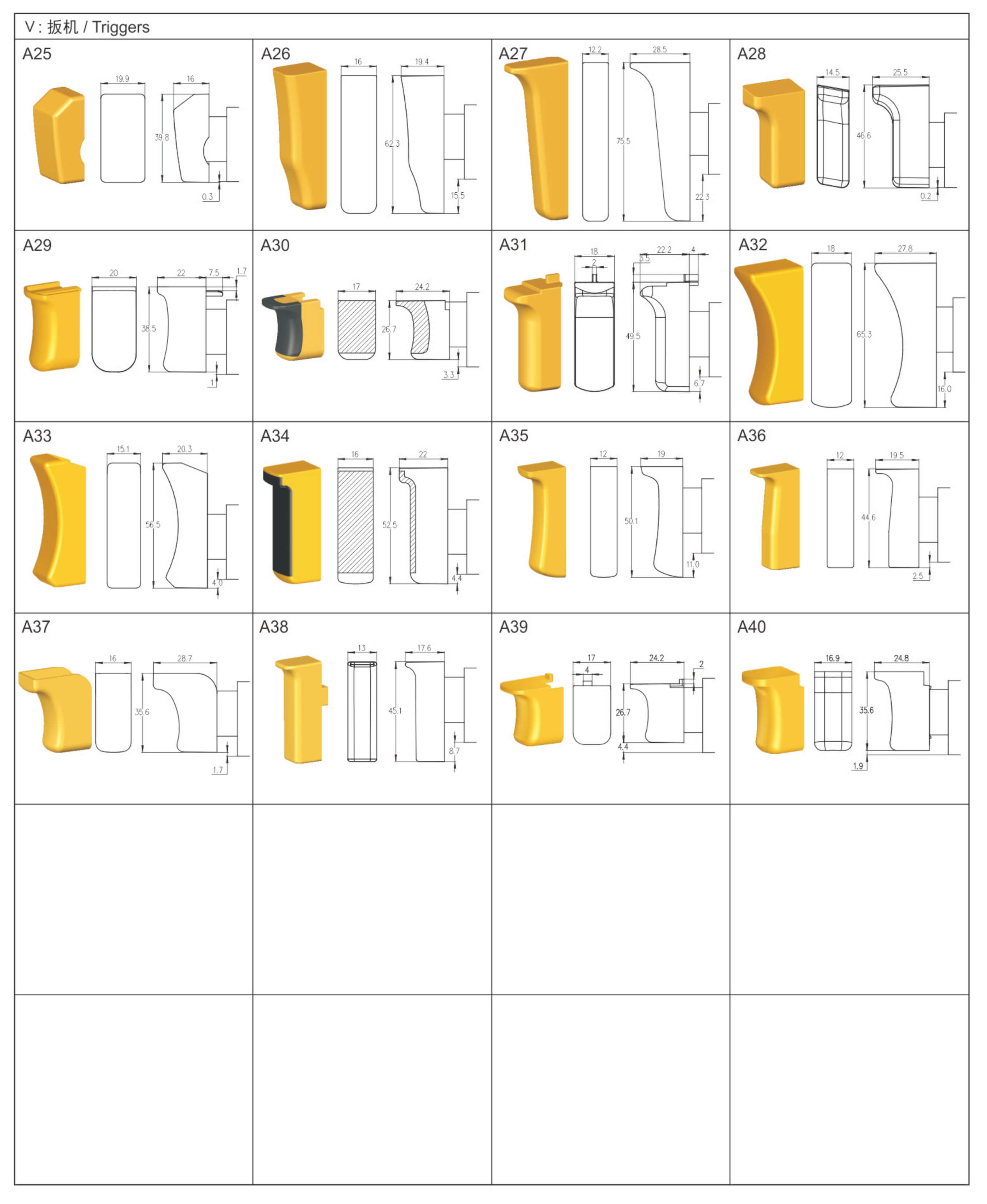

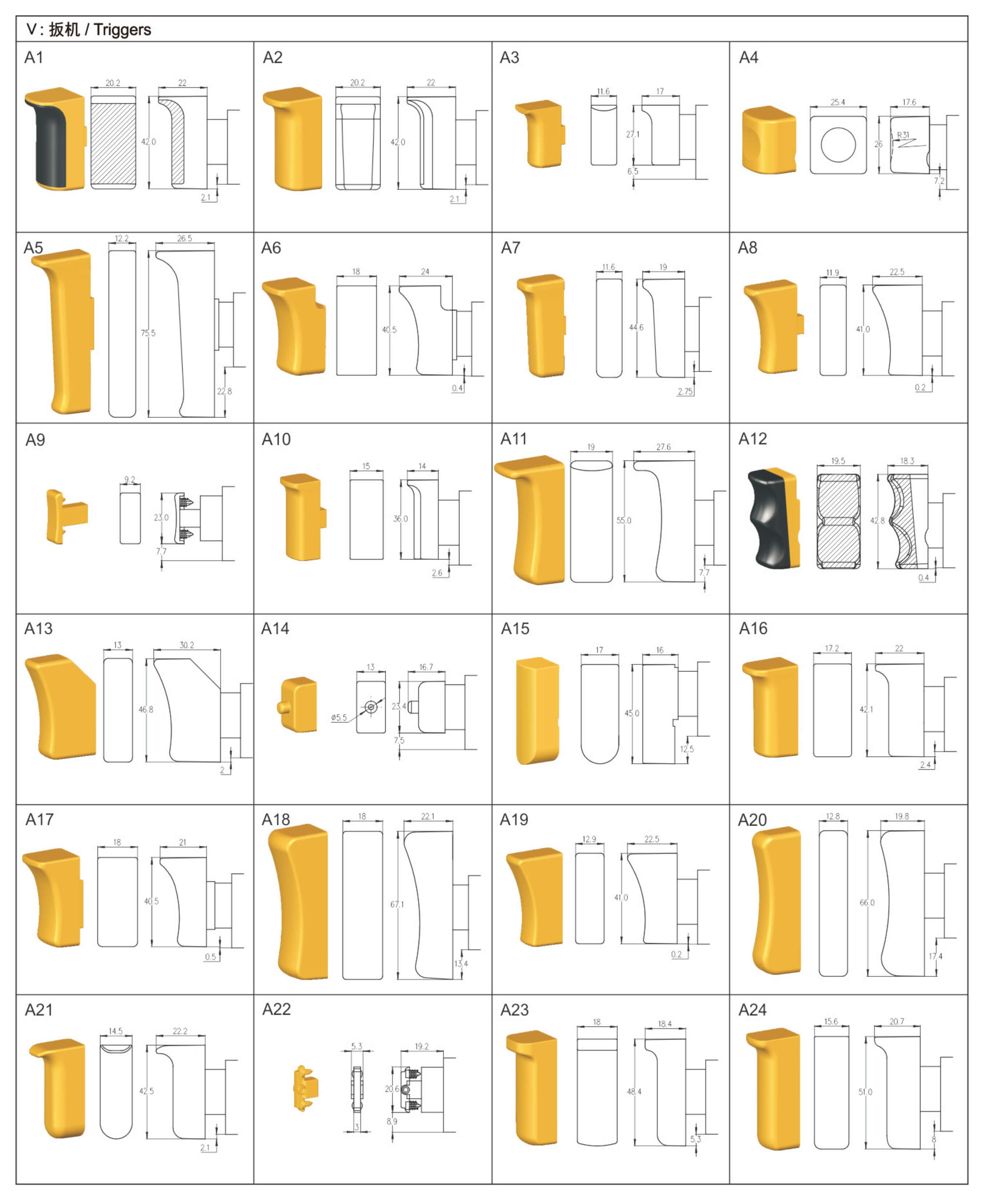

Ordering Information
