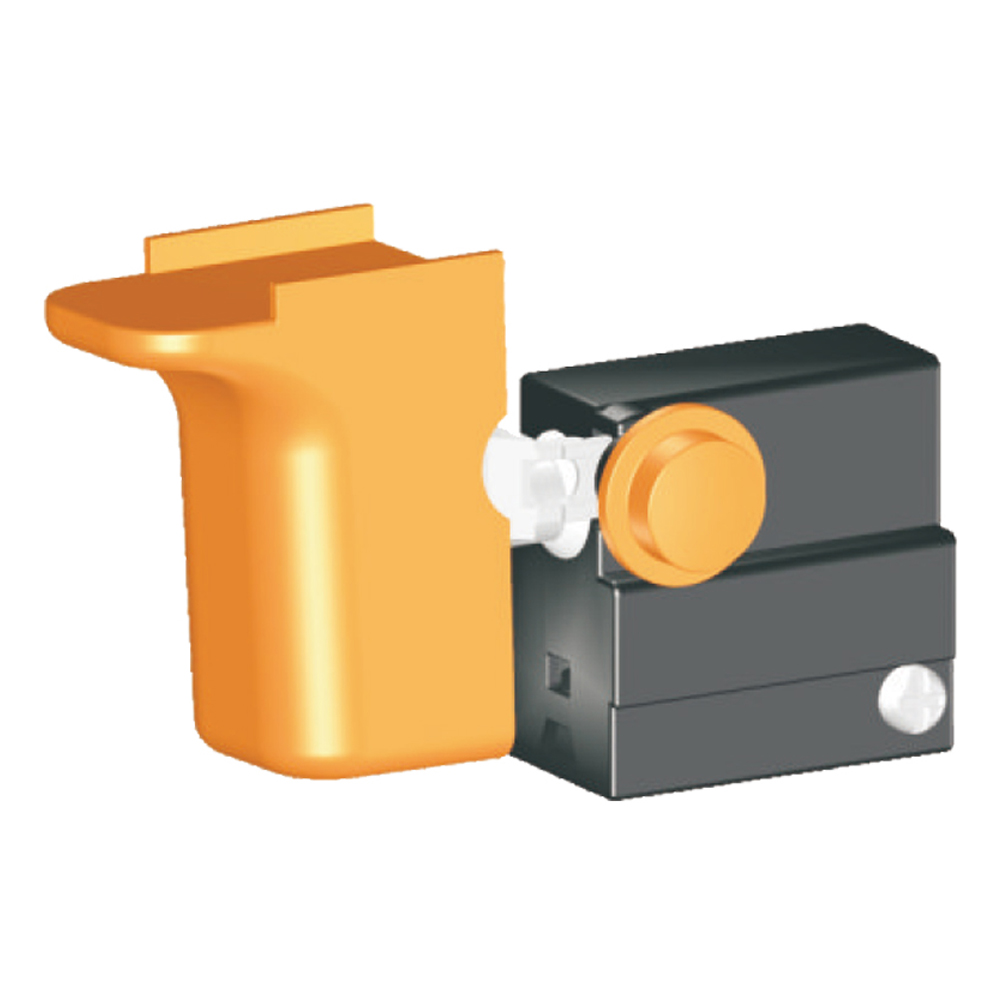

返回列表TS06 (防尘)扳机开关

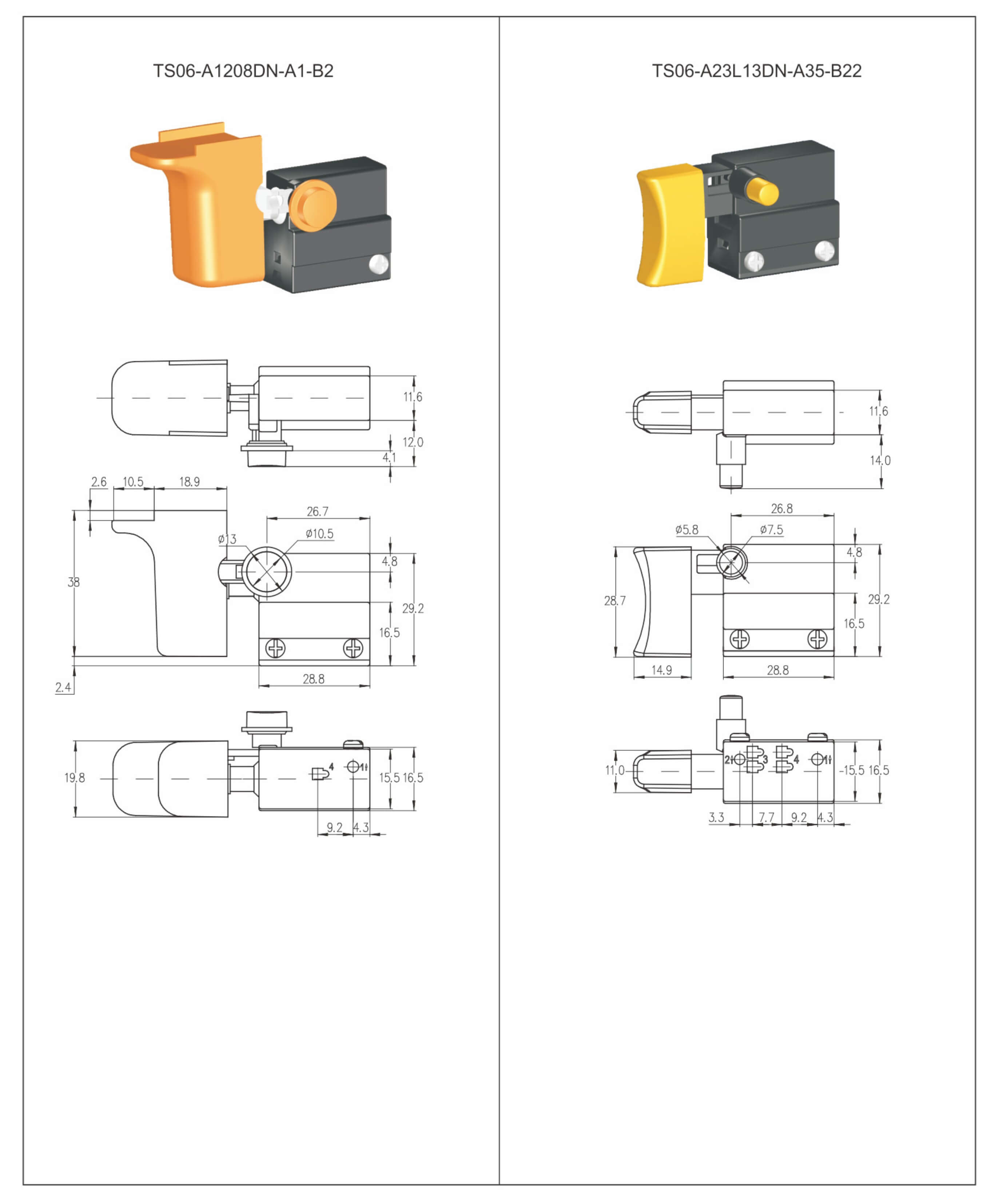

TS06
1
2

产品描述

TS06 series are one general type trigger switch, optional integrated dustproof version, commonly for used in power tools such as: Marble Cutters, Circular Saws, Electric Hammers, Electric Routers, Belt Sanders, Belt Saws, Electric Planers, Electric Mixers, Electric Sprayers, etc.

产品特征

 Optional with the function as follows:

→  DPNO (Double Pole Normally Open)

→  SPNO (Single Pole Normally Open)

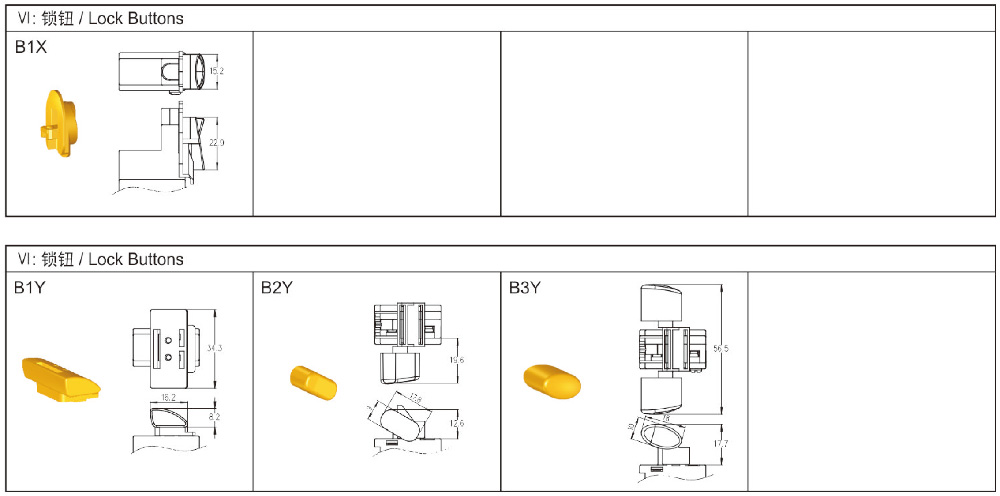

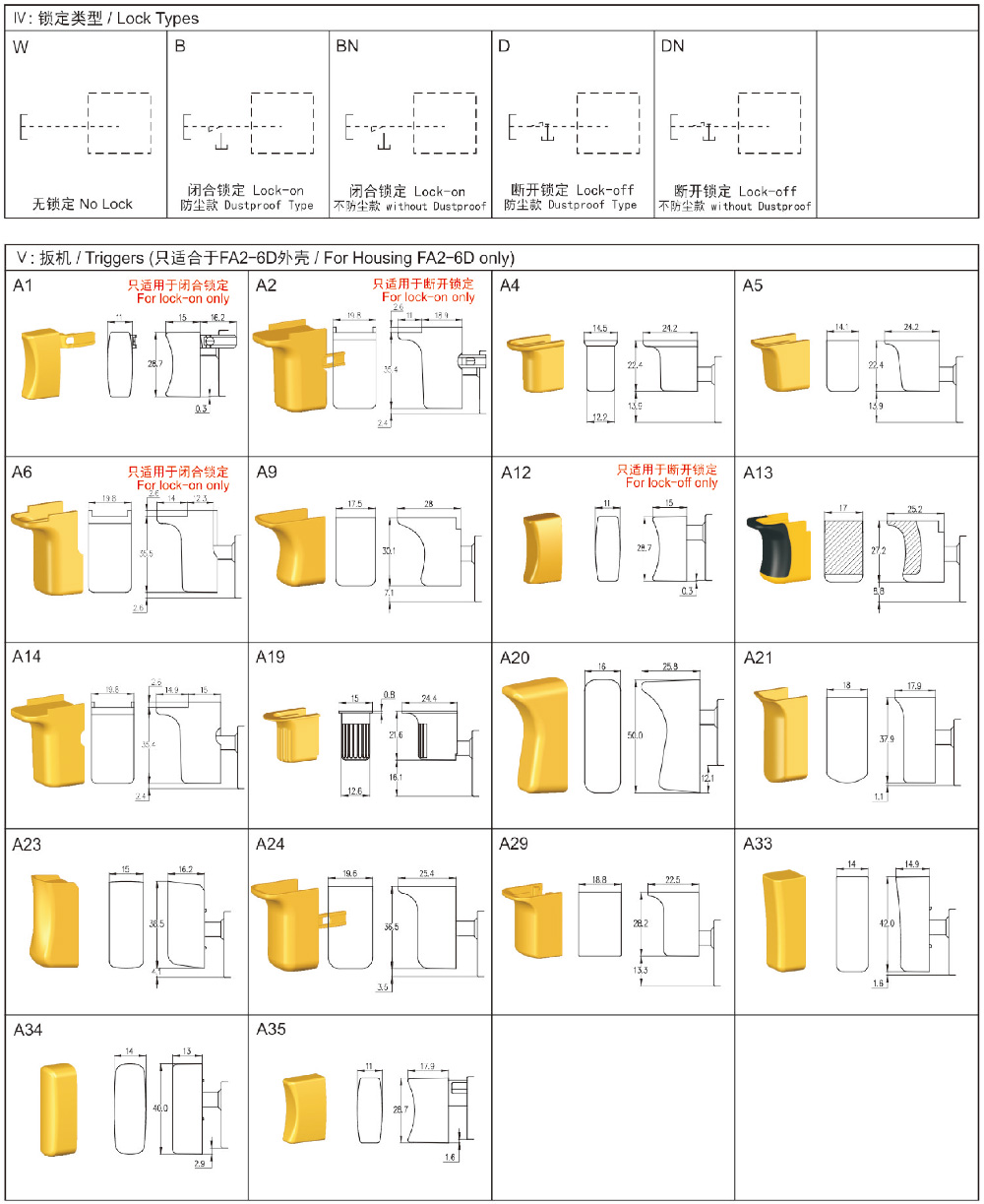

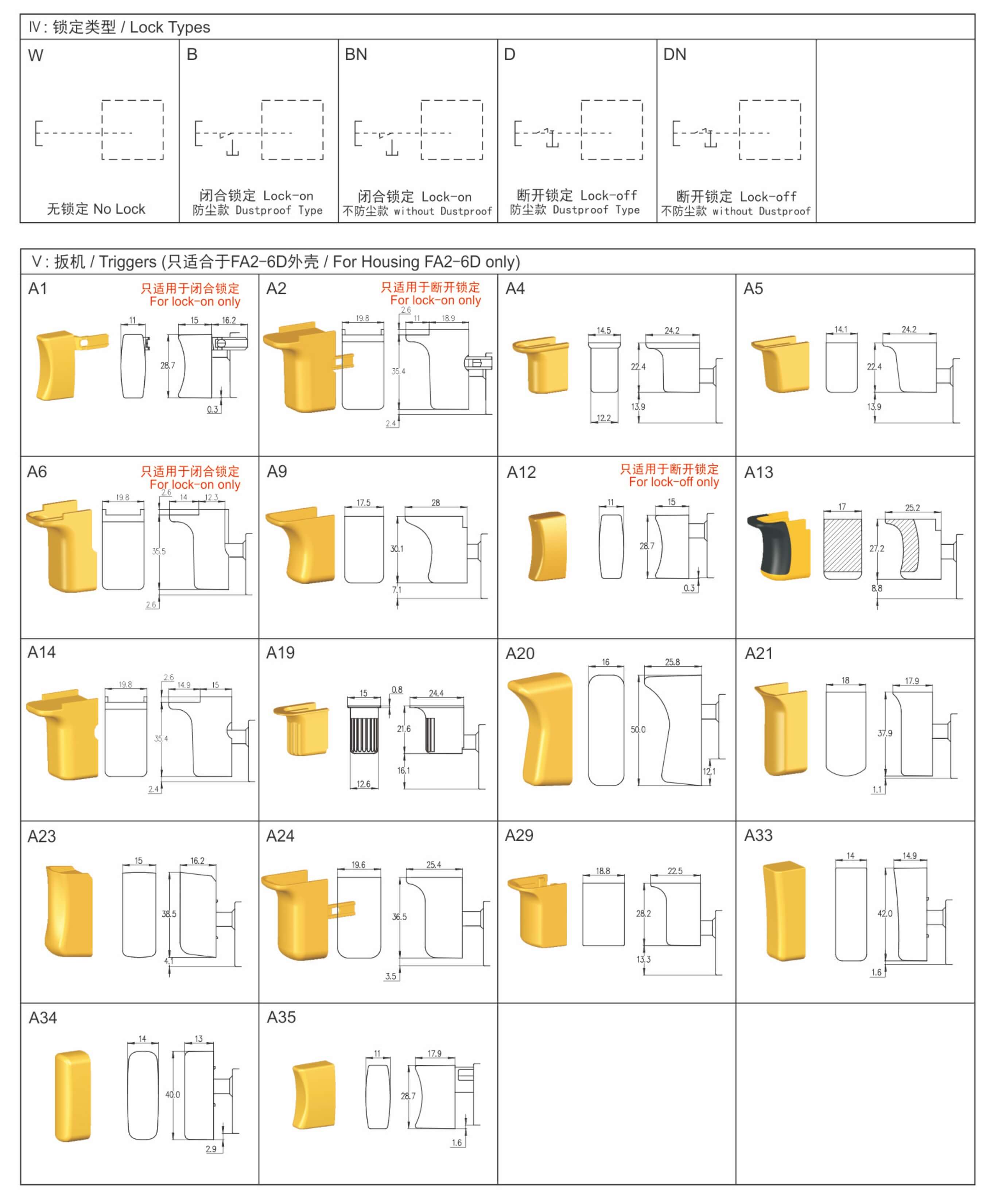

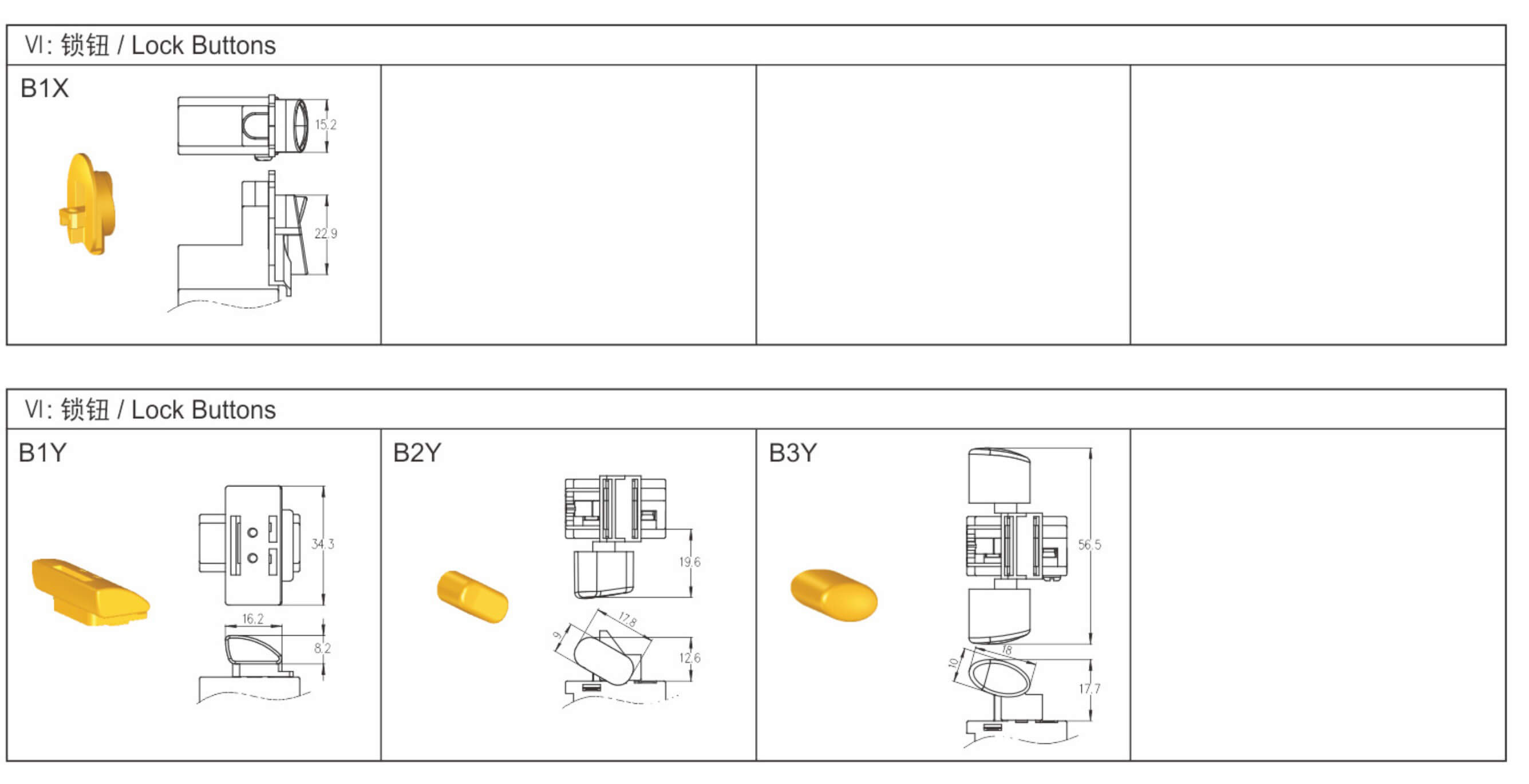

 Optional with Following lock types:

→  No Lock

→  Lock-on

→  Lock-off

技术数据

→  Mechanical life endurance≥1E5
→  Electrical life endurance≥5E4
→  Max. Inrush current at 250V48A
→  Max. Inrush current at 125V96A
→  Contact resistance≤30m Ohm
→  Insulation resistance≥7M Ohm
→  Dielectric strength of function1500V
→  Dielectric strength of reinforced3000V
→  Ambient temperature0℃~55℃
→  FlammabilityUL 94V-0
→  Protection typeIP40
→  Suitable for appliances of protection class II

端子类型

 Input side:

→  Pillar teminal Φ=3mm

→   Push-in terminals for soldered strands, strands with end sleeves or strands with end claws

 Output side:

→   Push-in terminals for soldered strands, strands with end sleeves or strands with end claws

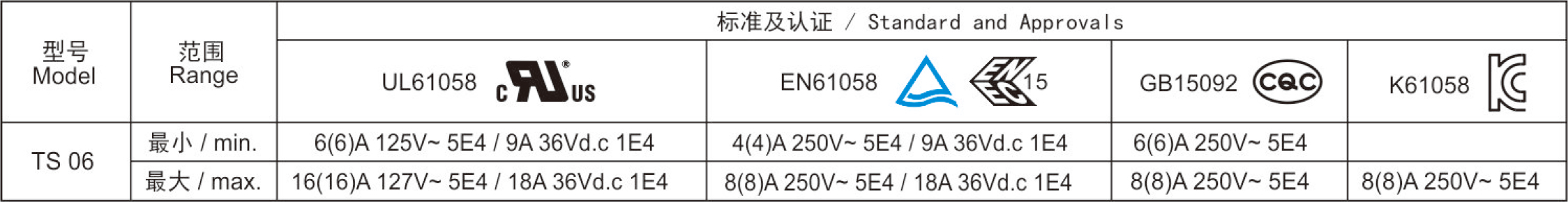

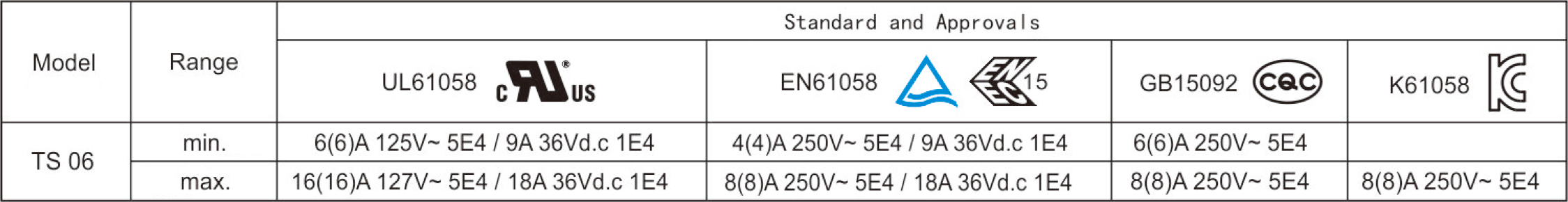

电气参数和认证

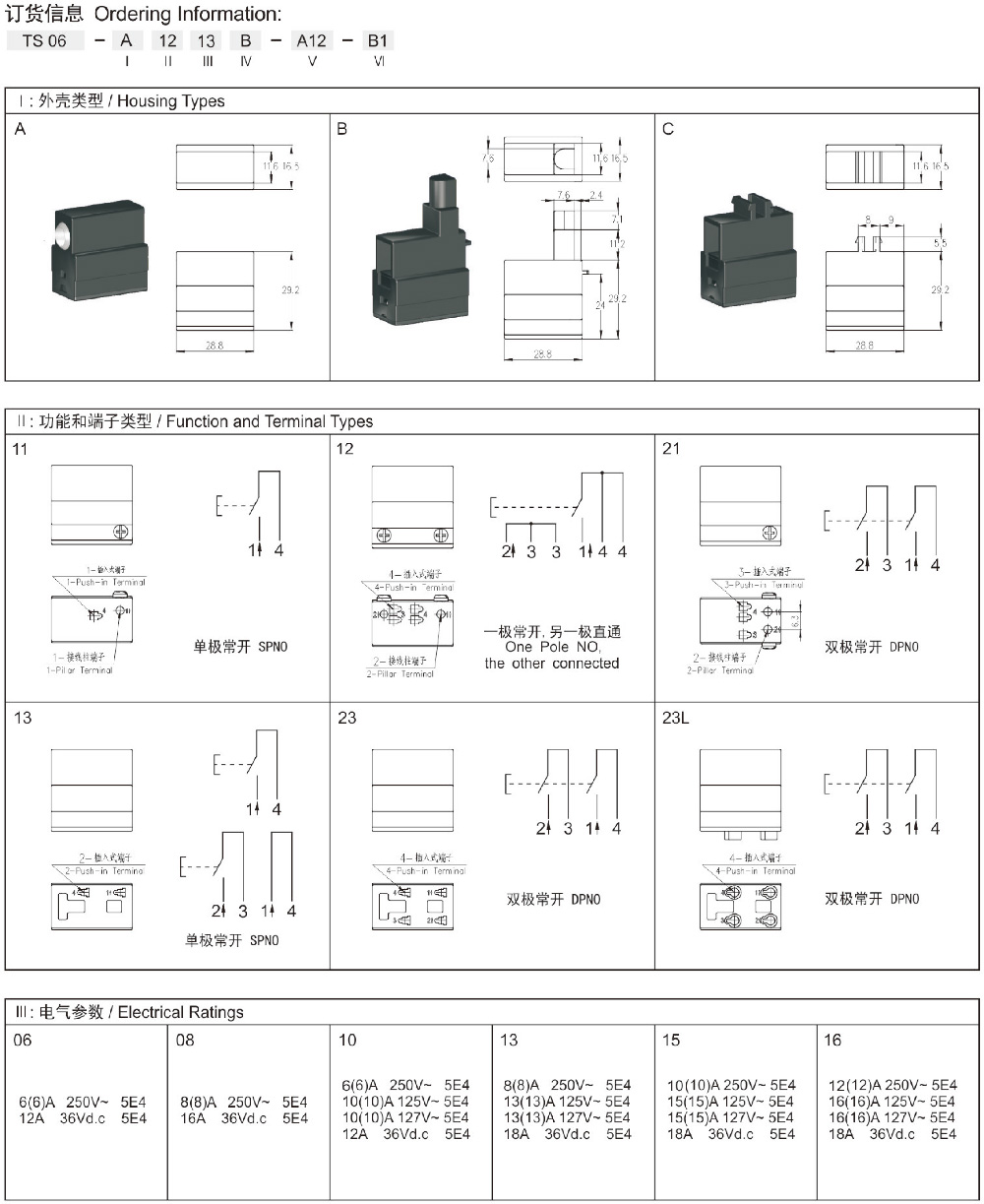

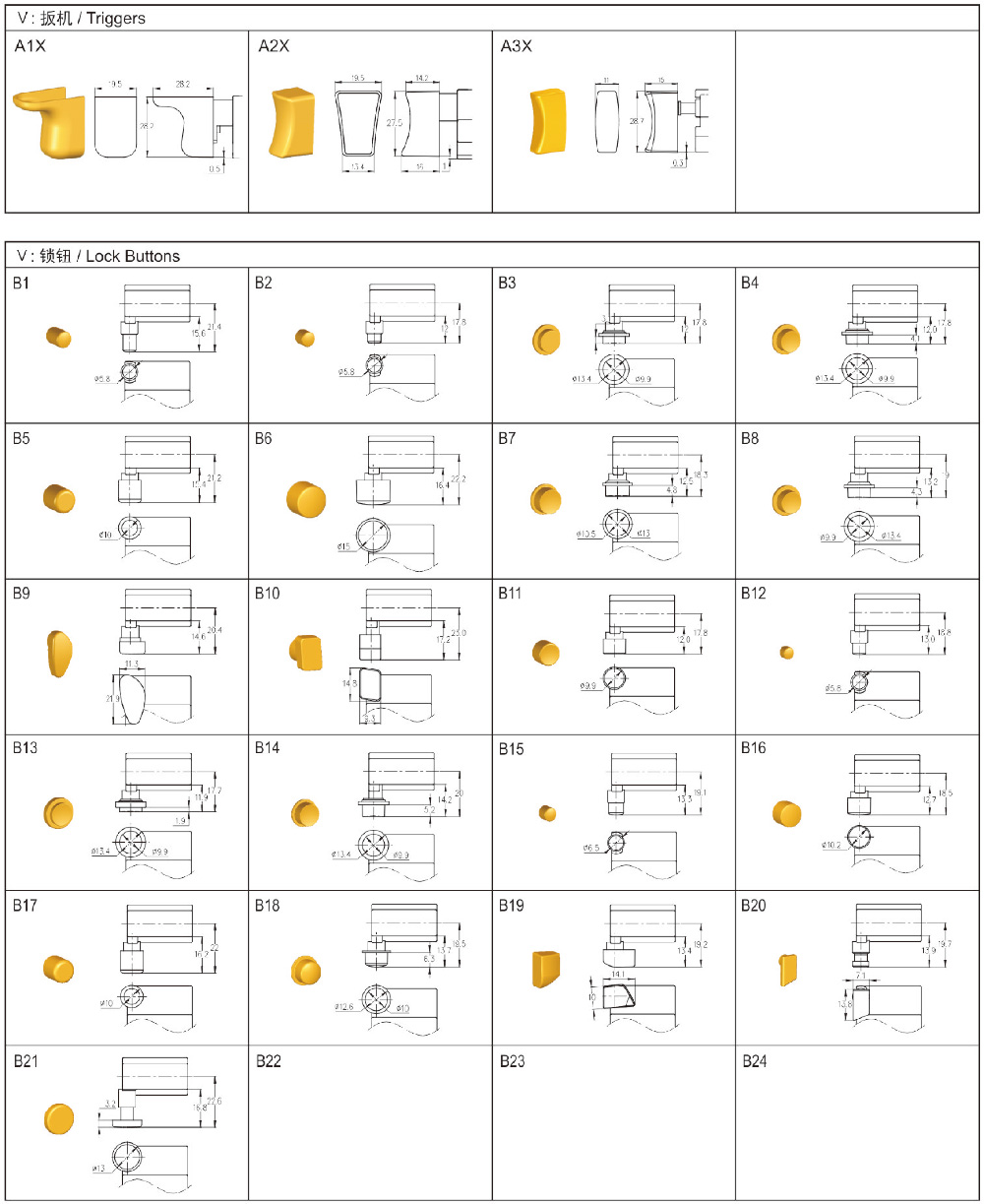

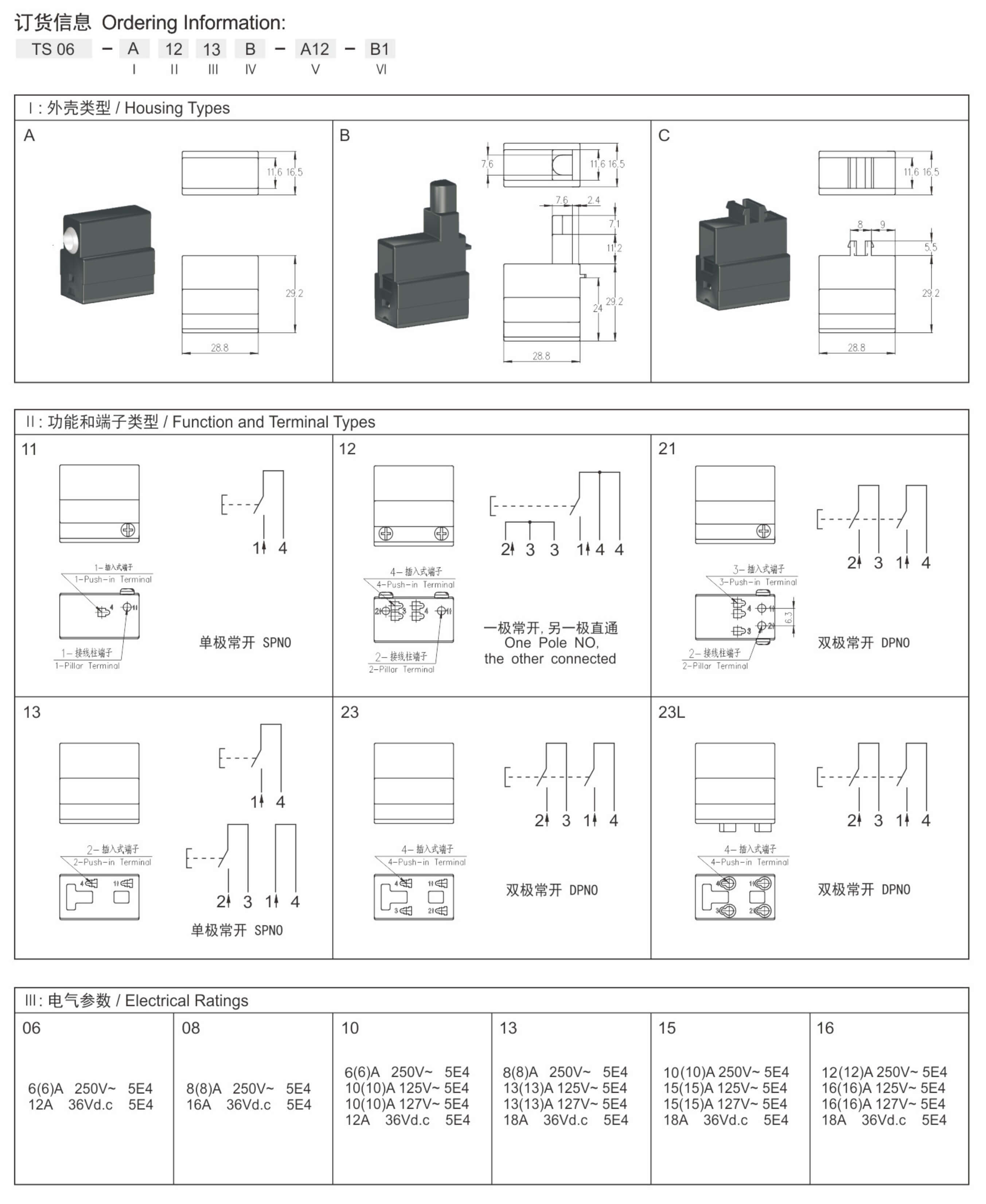

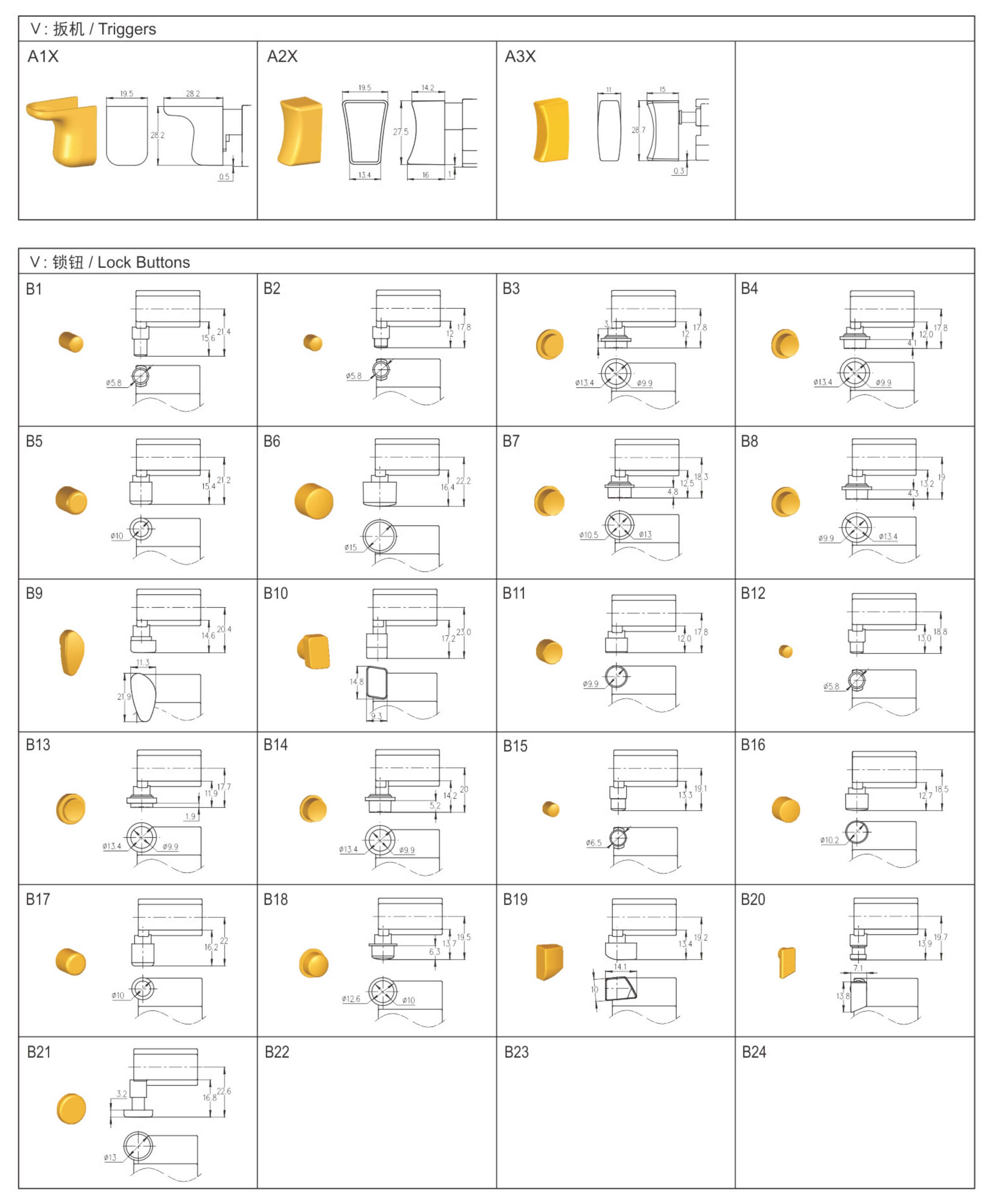

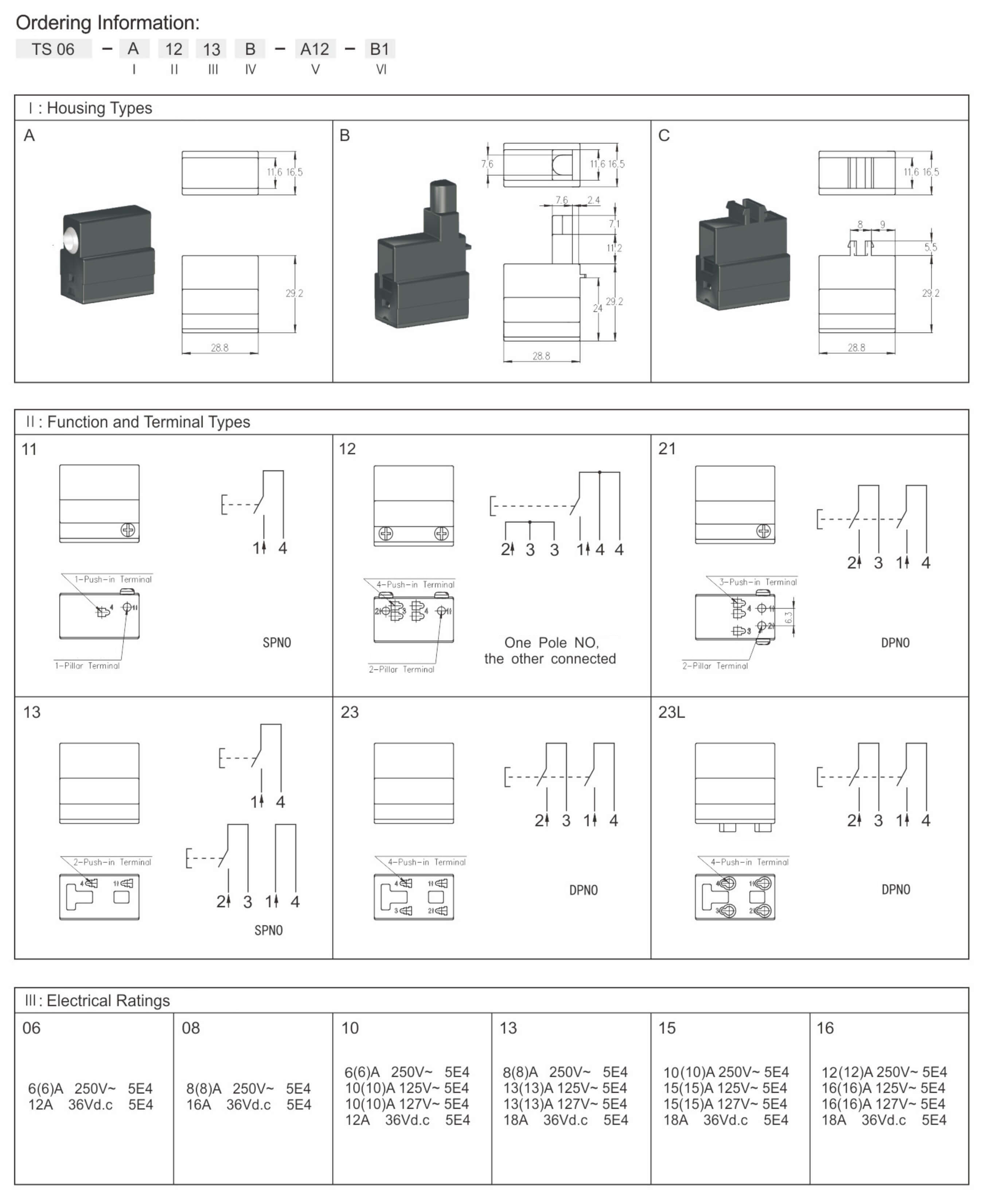

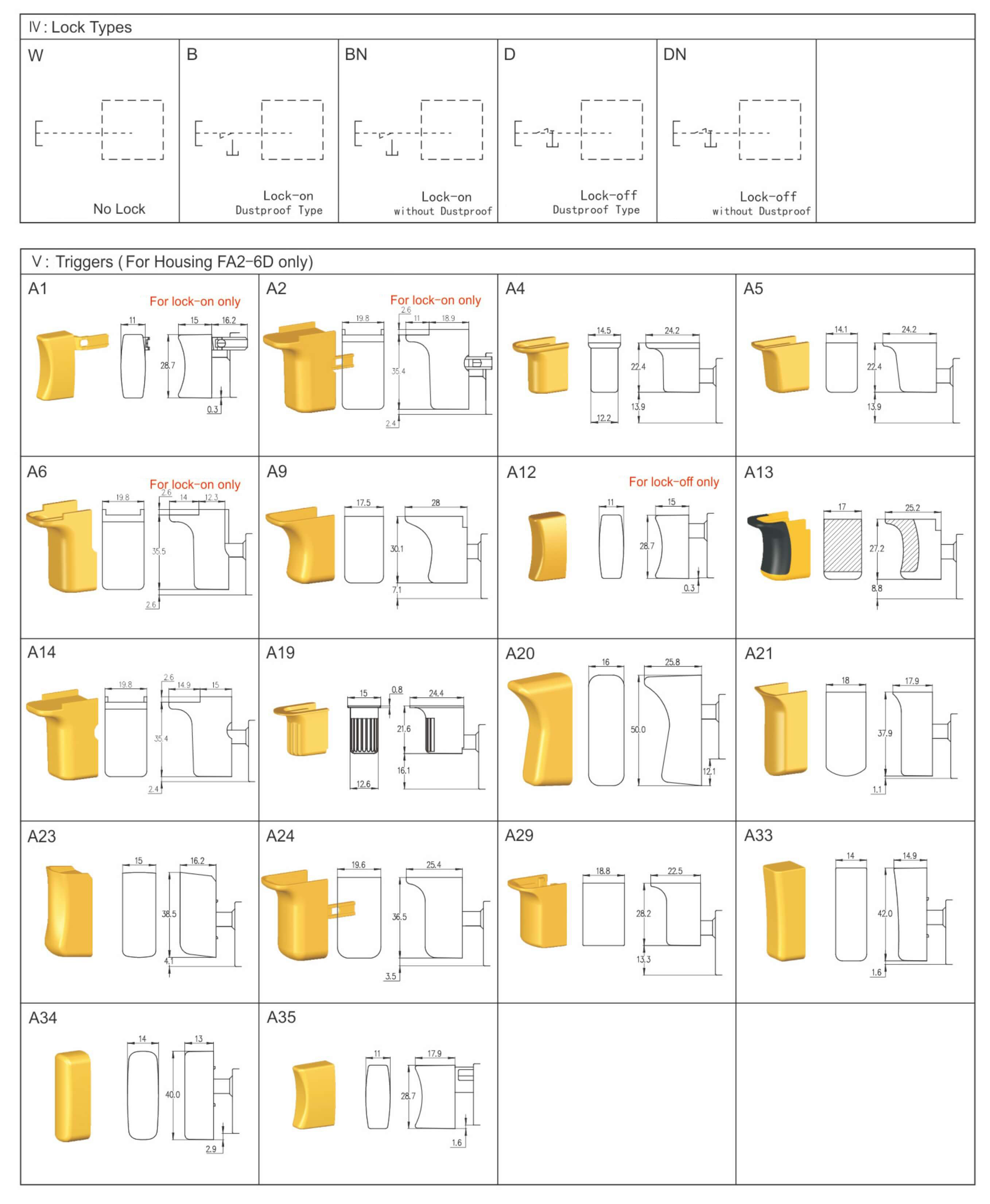

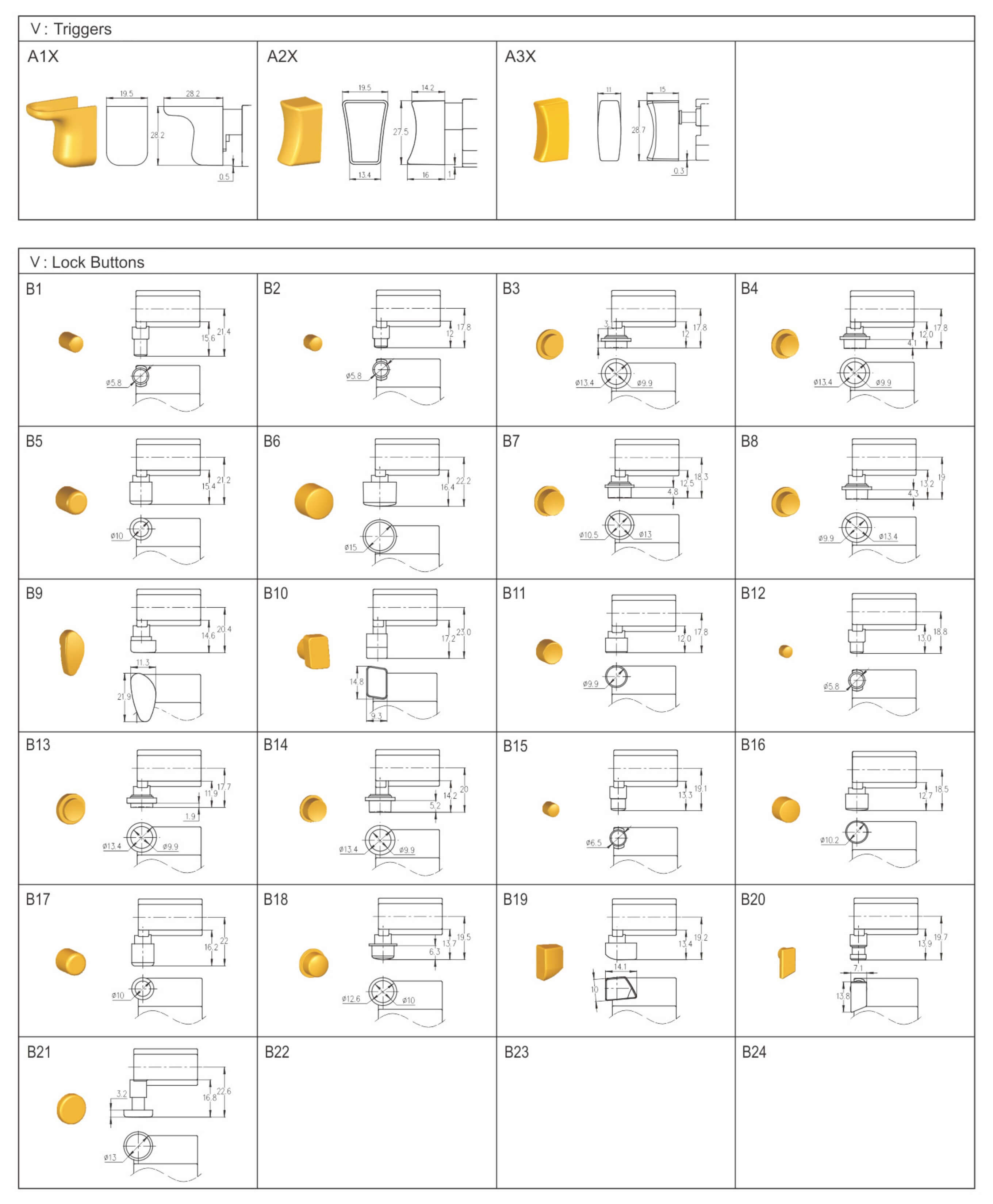

订货信息
