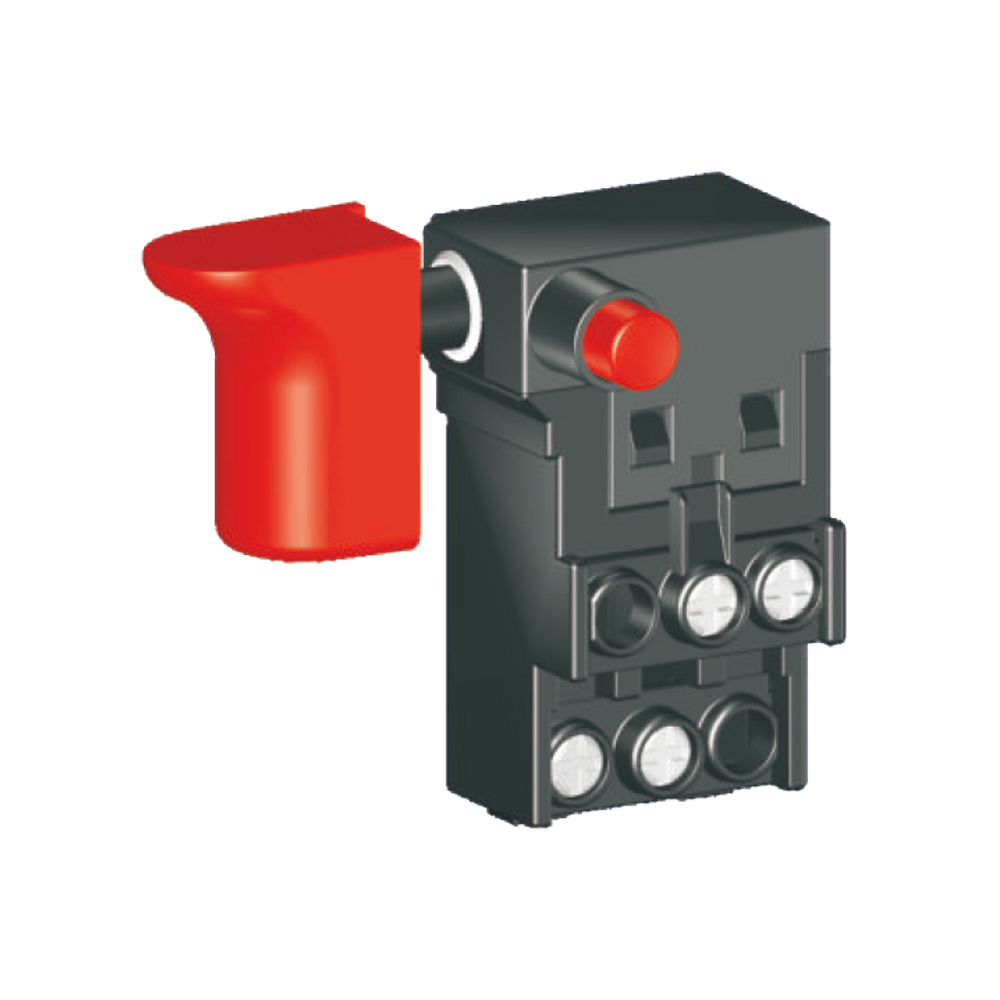

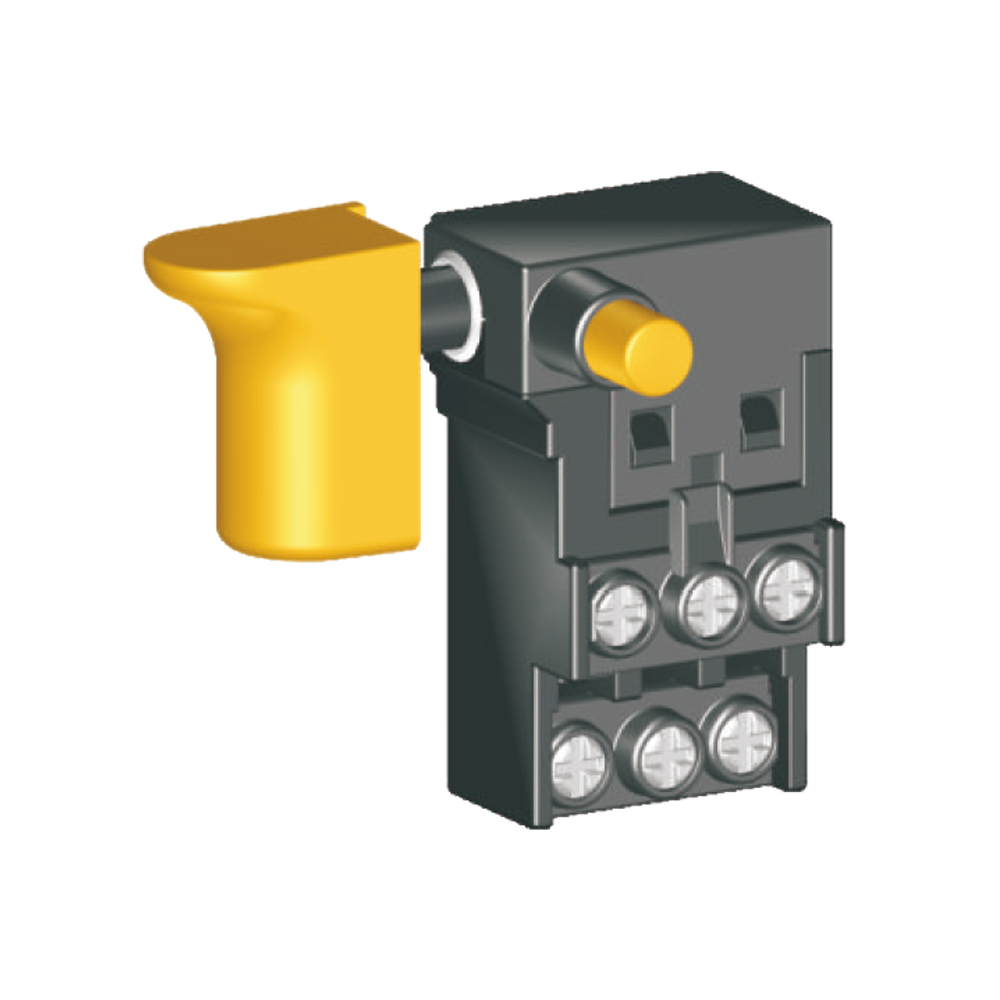

TS05
1
2

Product Description

TS05 series are onegeneral type trigger switch, integrated dustproof, commonly for used in portable power tools such as: Cut-off Machines, Miter Saws, Marble Cutters, Circular Saws, Electric Hammers, Electric Routers, Belt Sanders, Electric Planers, etc.

Product Features

 Optional with the function as follows:

→  DPNO (Double Pole Normally Open)

→  DPDT (Double Pole Double Throw)

→  One Pole NO, the other NC

→  One Pole NO, the other DT

 Optional with Following lock types:

→  No Lock

→  Lock-on

→  Lock-off

Technical Data

→  Mechanical life endurance≥1E5
→  Electrical life endurance≥5E4
→  Max. current at 250V60A
→  Max. current at 125V96A
→  Contact resistance≤30m Ohm
→  Insulation resistance≥7M Ohm
→  Dielectric strength of function1500V
→  Dielectric strength of reinforced3000V
→  Ambient temperature0℃~55℃
→  FlammabilityUL 94V-0
→  Protection typeIP40
→  Suitable for appliances of protection class II

Terminal Type

 Input side/Output side:

→  Pillar terminals Φ=3.0mm

★ Utility Model patented

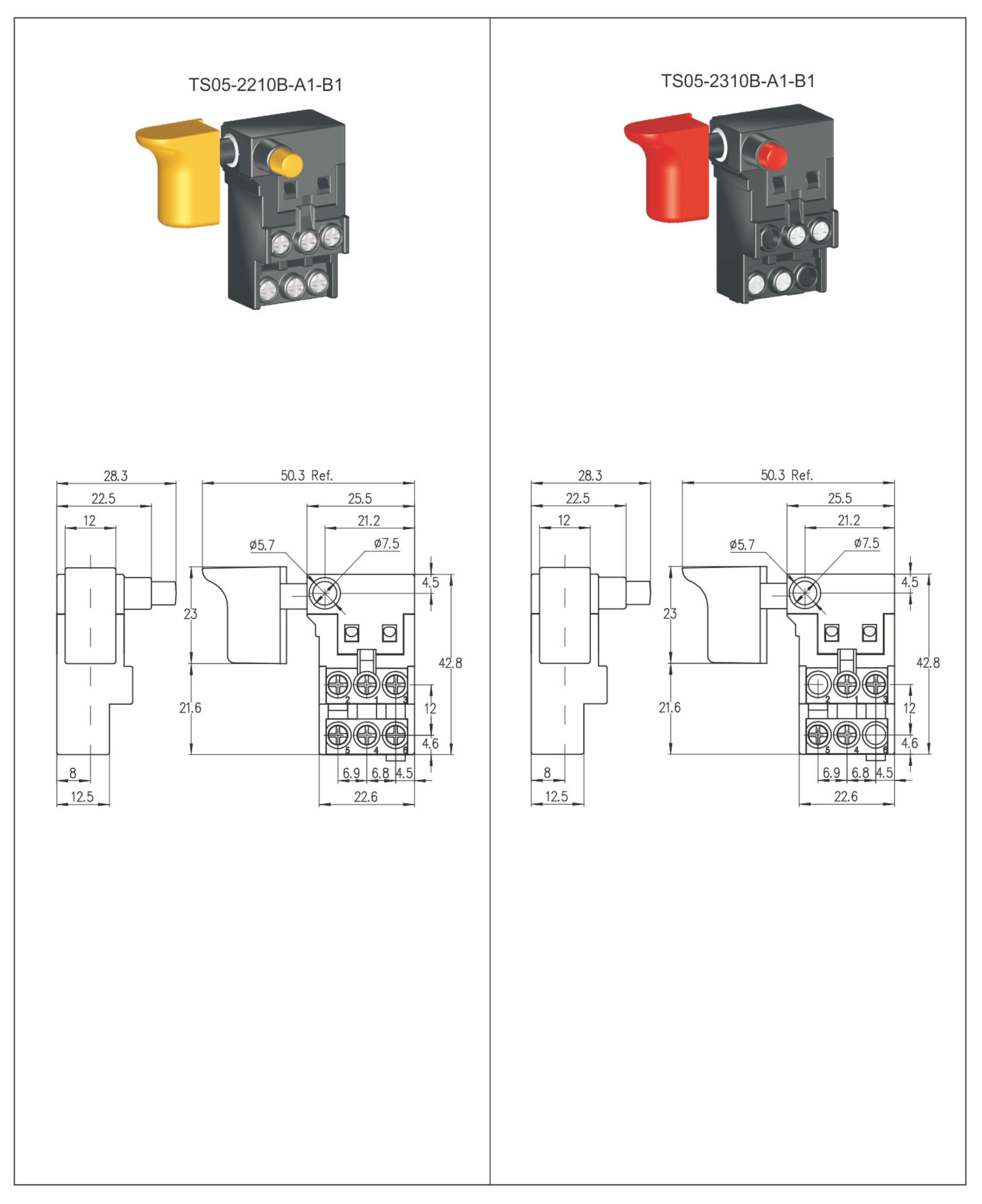

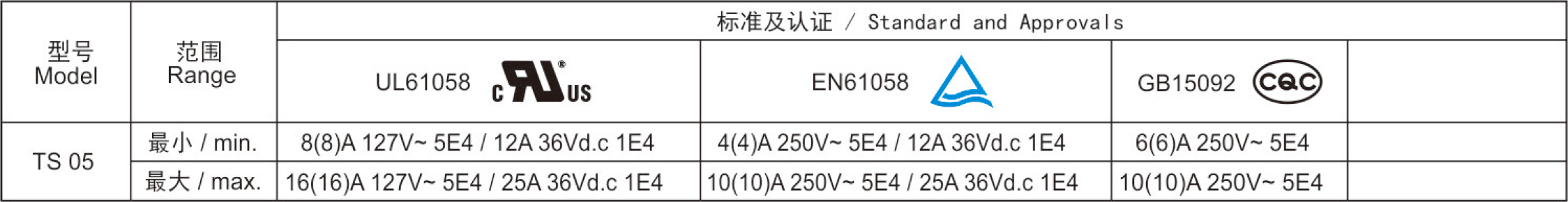

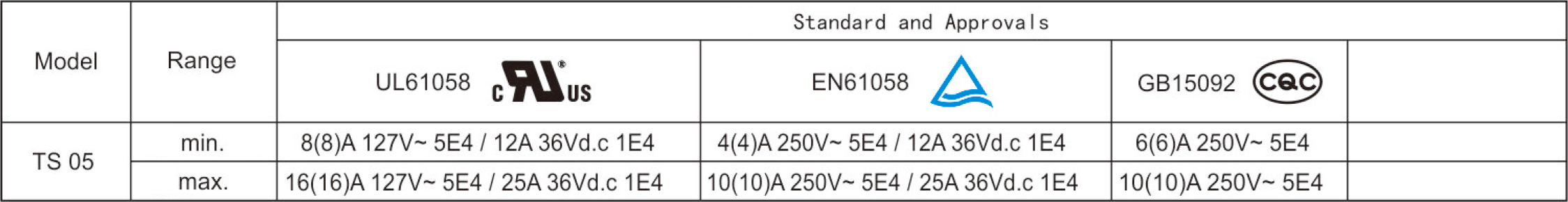

Electrical Parameters and Certifications

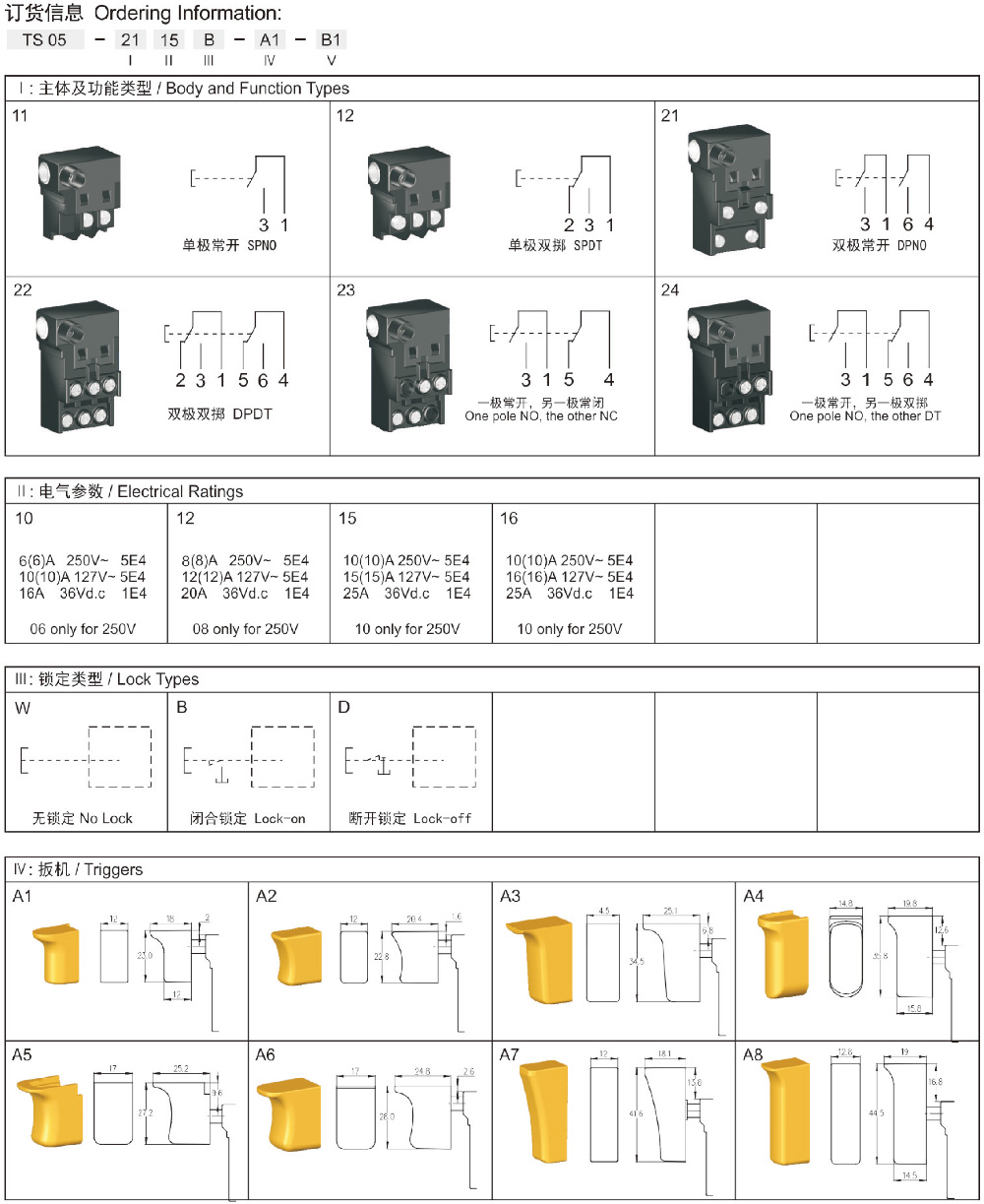

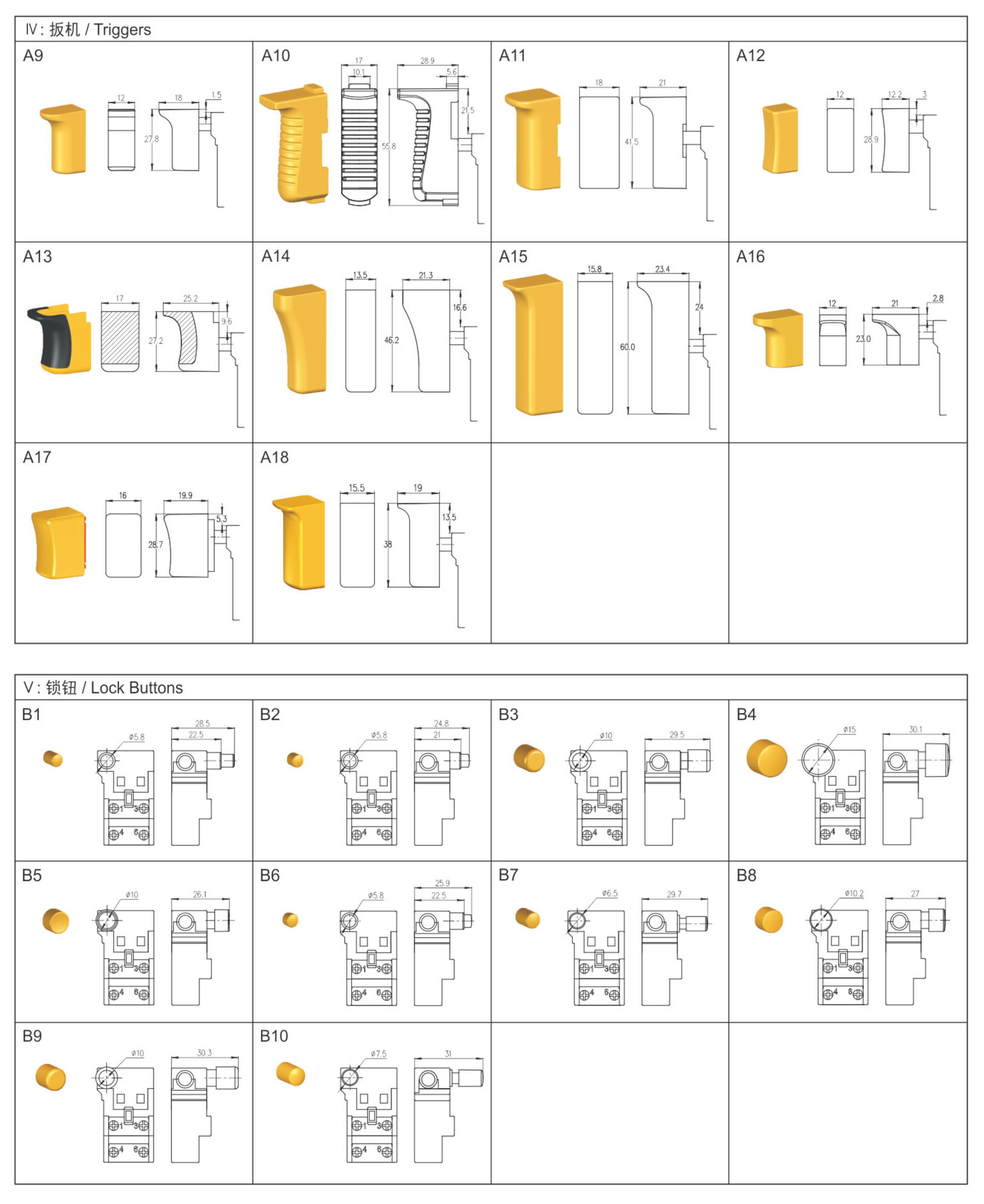

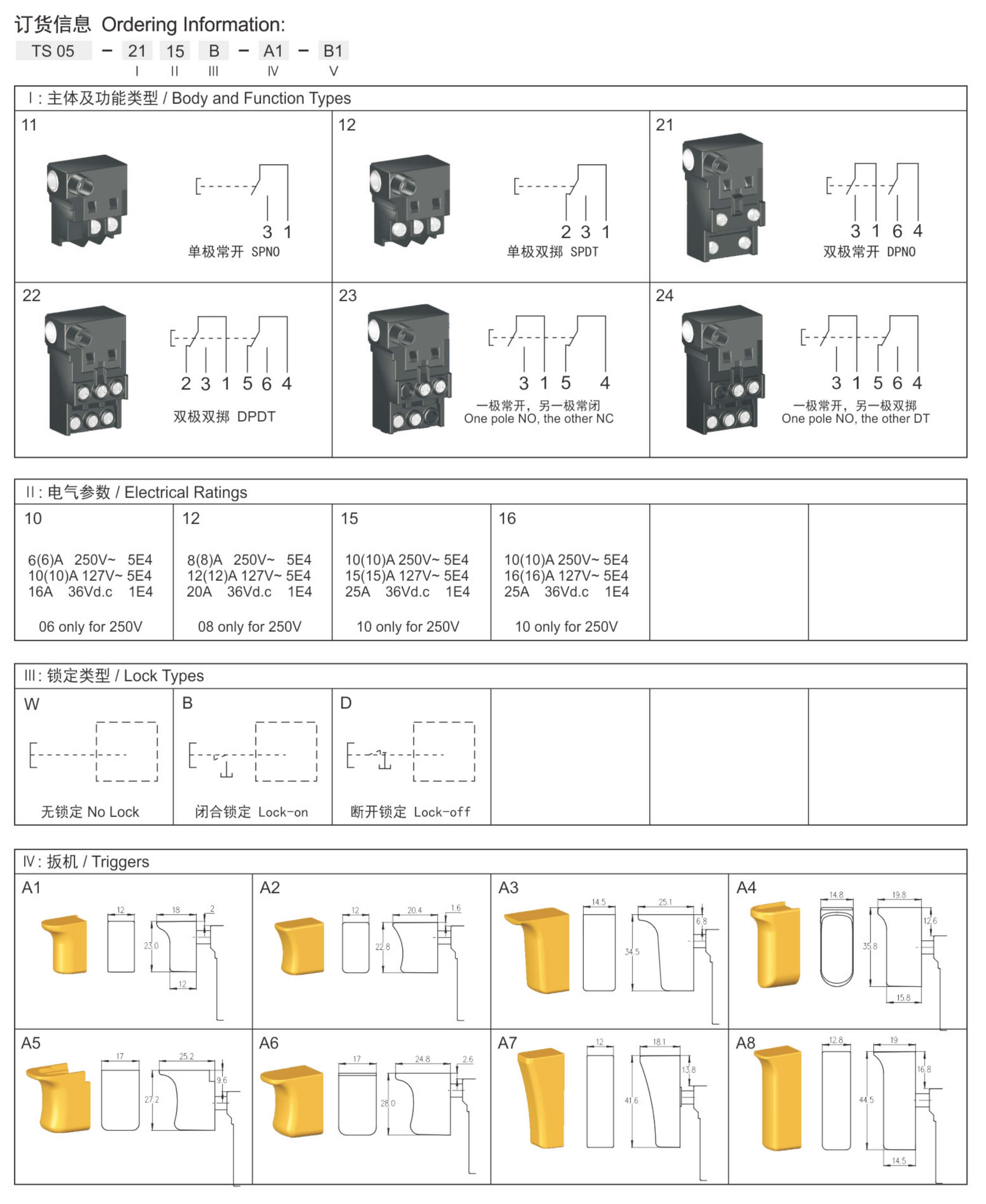

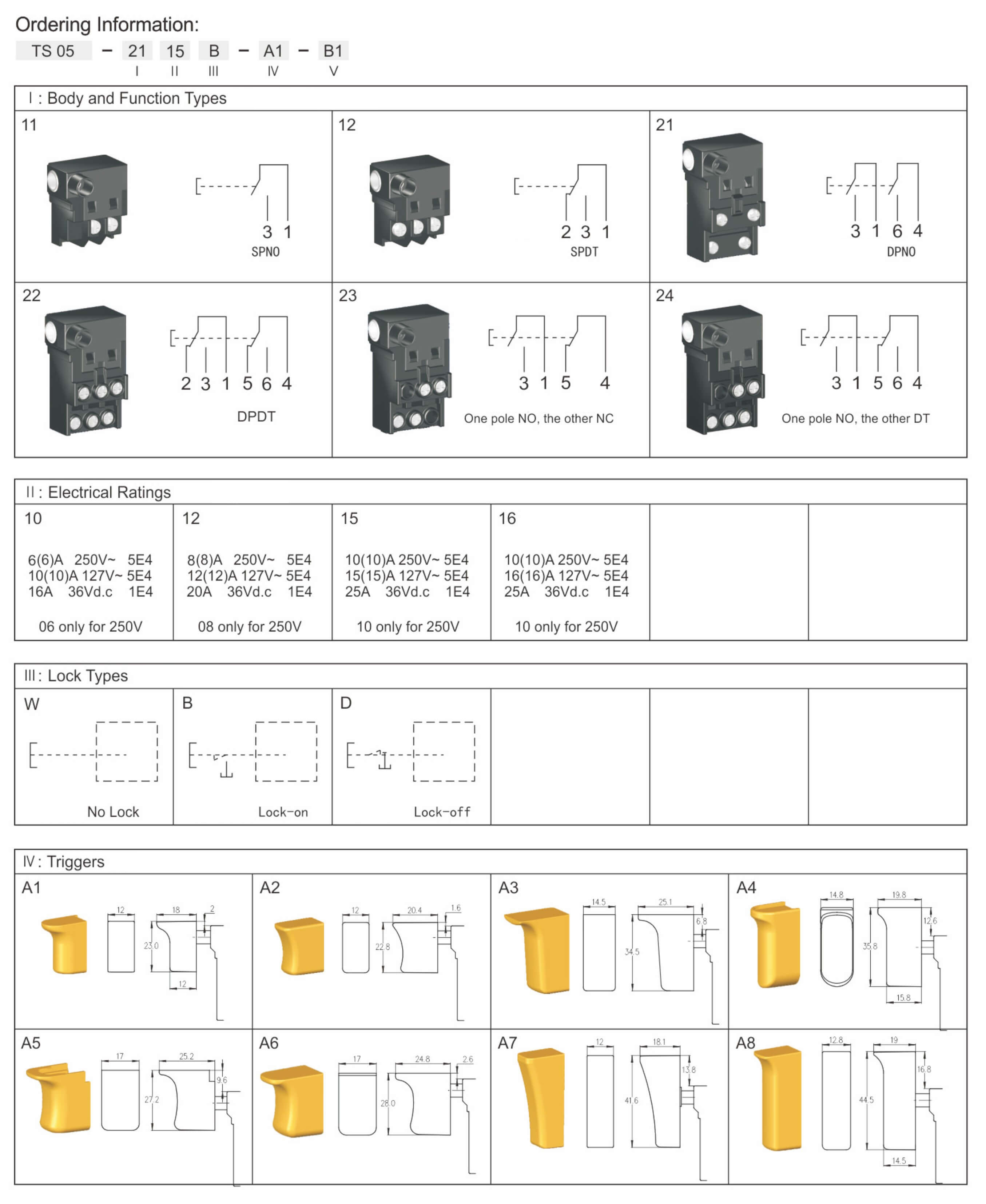

Ordering Information
