返回列表TS04 防尘扳机开关

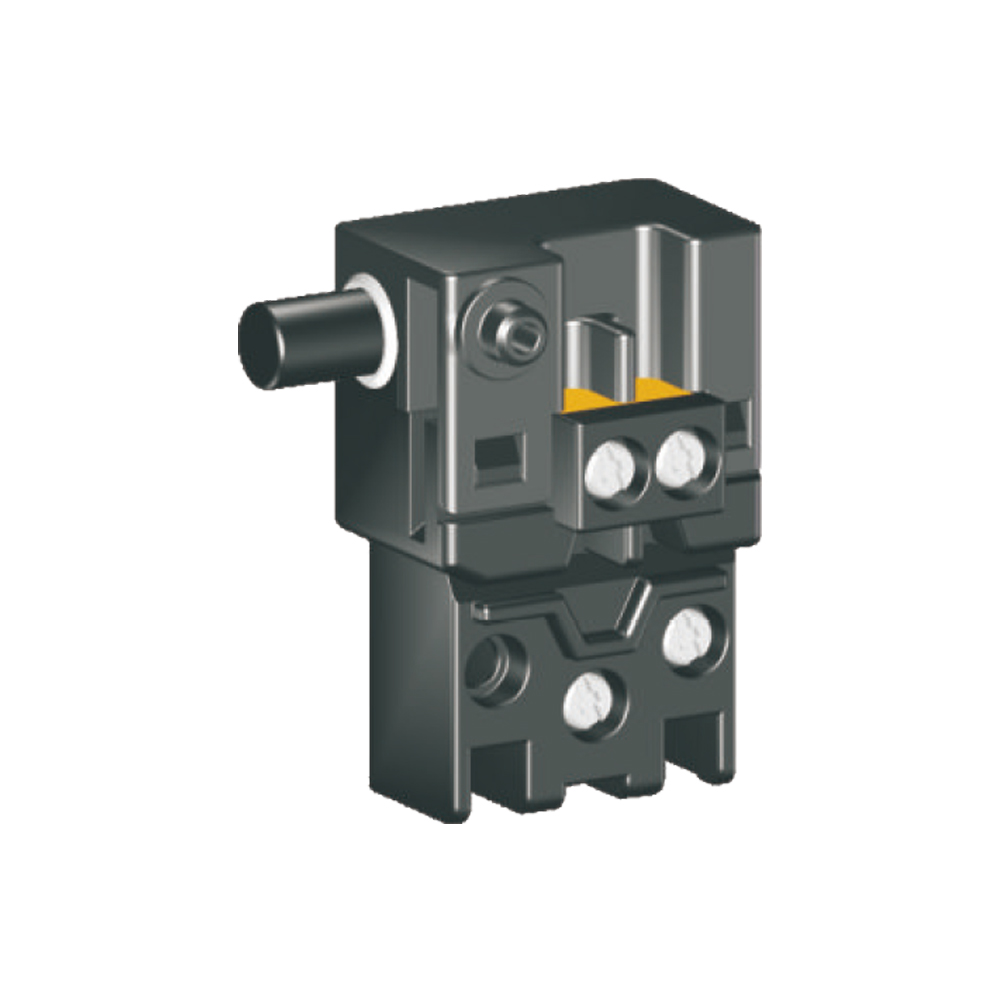

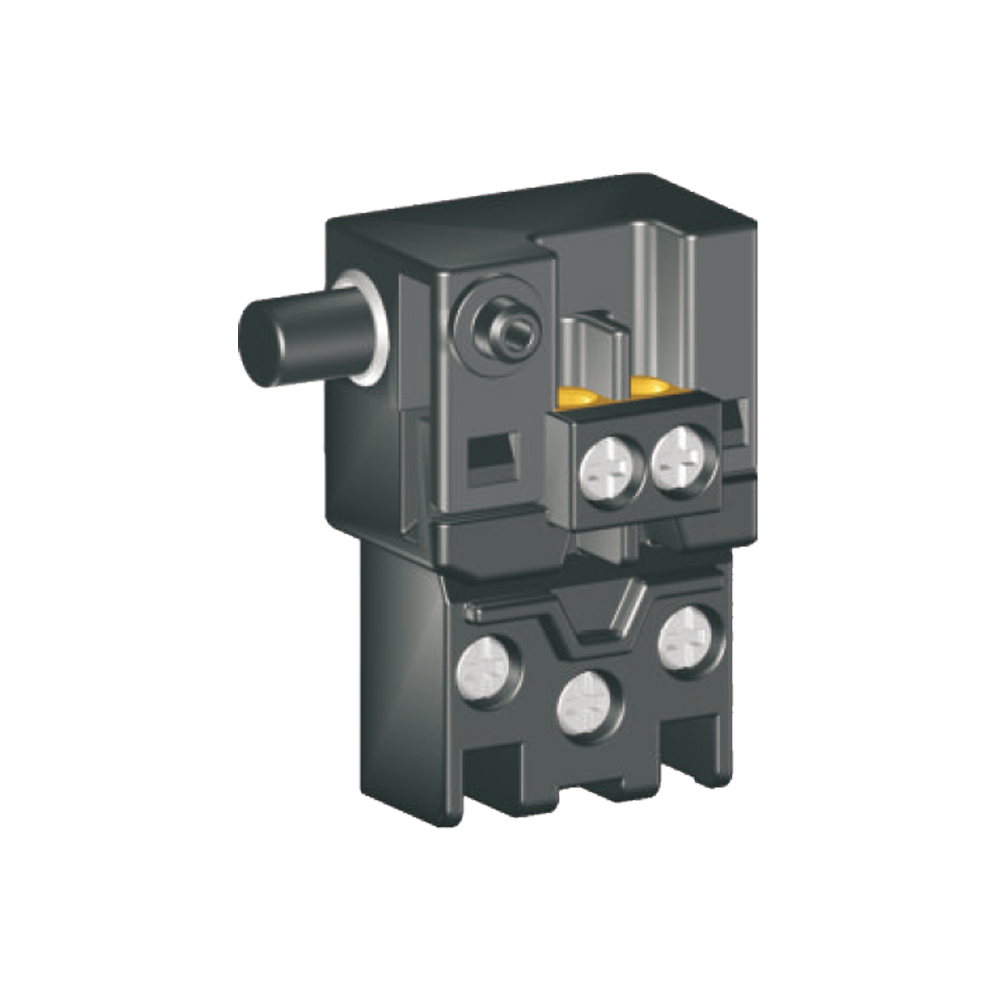

TS04
1
2

产品描述

TS04 series are onegeneral type trigger switch, integrated dustproof, commonly for used in powertools such as: Cut-off Machines, Miter Saws, Circular Saws, Electric Hammers, etc.

产品特征

 Optional with the function as follows:

→  SPNO (Single Pole Normally Open)

→  SPDT (Single Pole Double Throw)

→  One Pole NO, the other Directly

→  One Pole DT, the other Directly

 Optional with the accessor as follows:

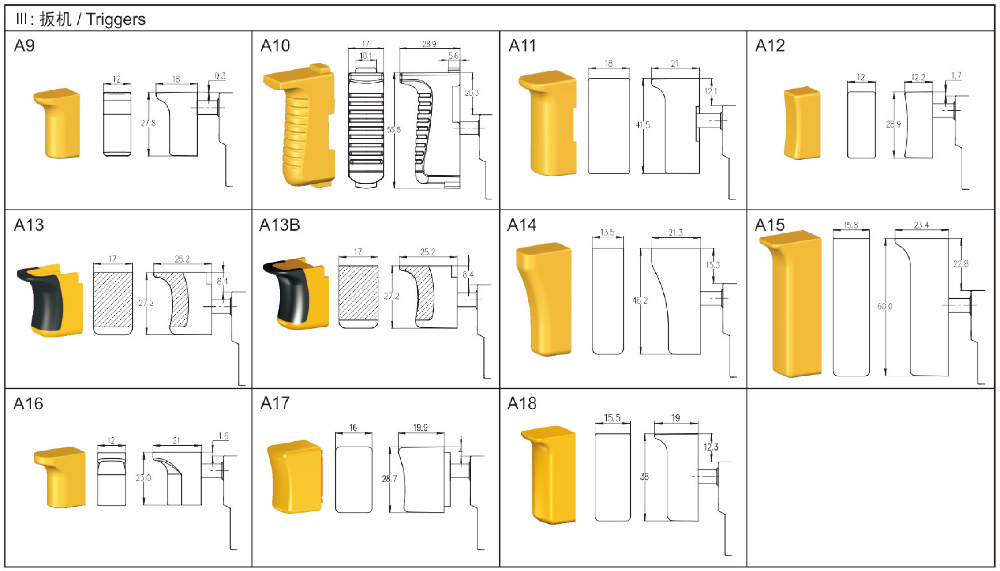

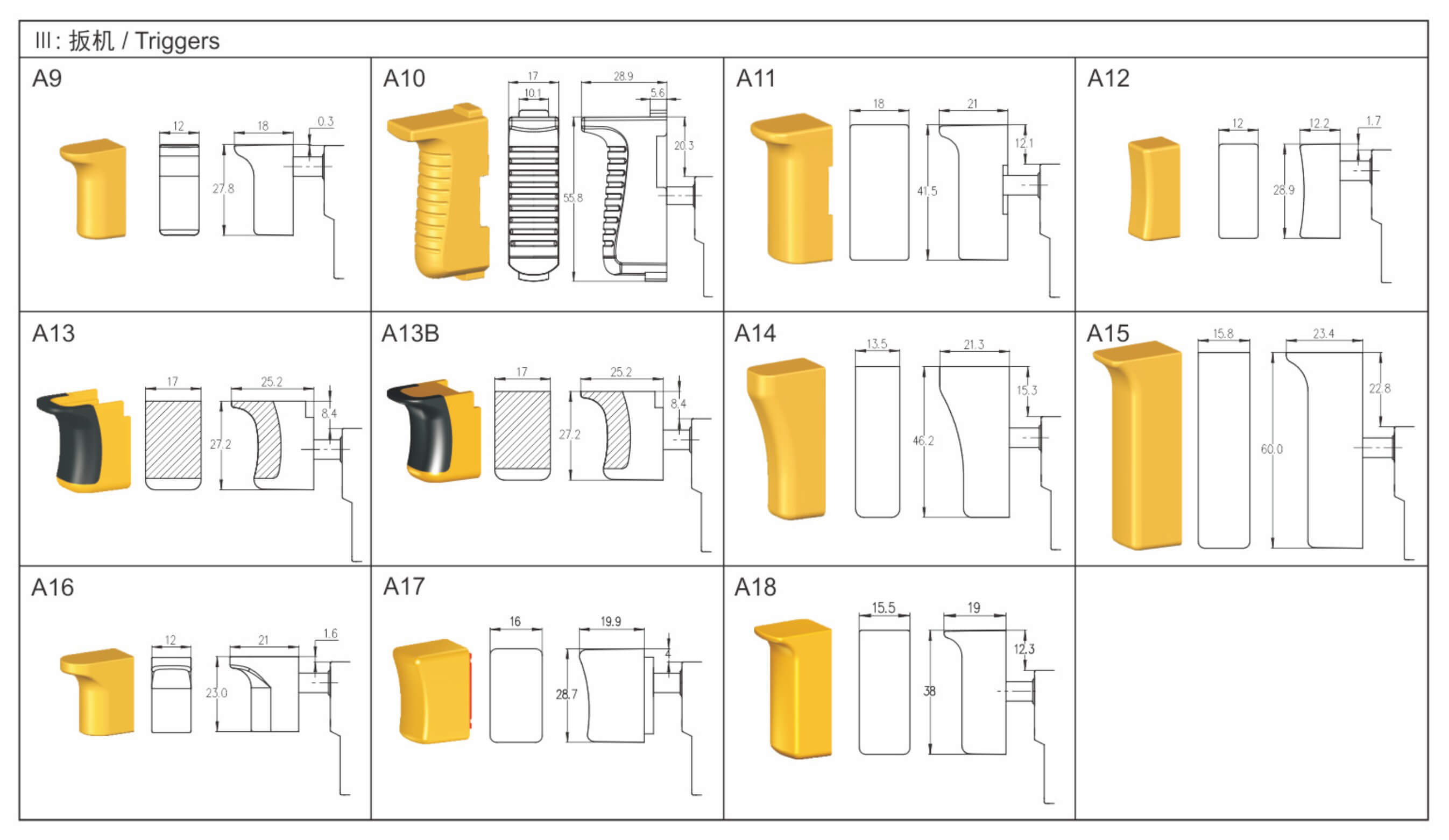

→  Rubberized Trigger (overmolding)

技术数据

→  Mechanical life endurance≥1E5
→  Electrical life endurance≥5E4
→  Max. Inrush current at 250V60A
→  Max. Inrush current at 125V90A
→  Contact resistance≤30m Ohm
→  Insulation resistance≥7M Ohm
→  Dielectric strength of function1500V
→  Dielectric strength of reinforced3000V
→  Ambient temperature0℃~55℃
→  FlammabilityUL 94V-0
→  Protection typeIP40
→  Suitable for appliances of protection class II

端子类型

 Input side/Output side:

→  Pillar teminal Φ=3.0mm

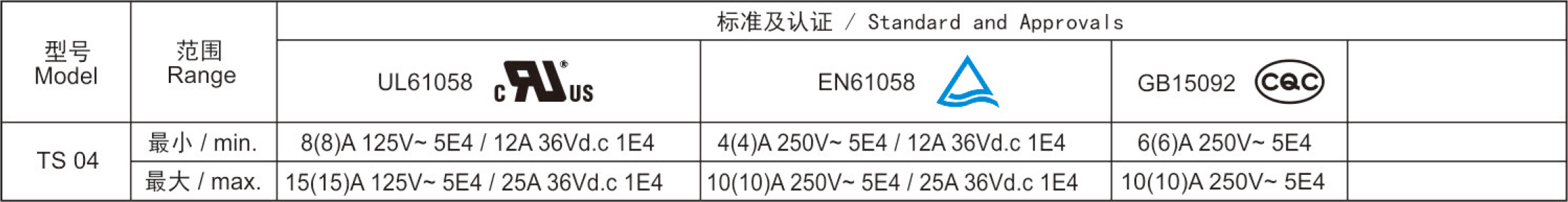

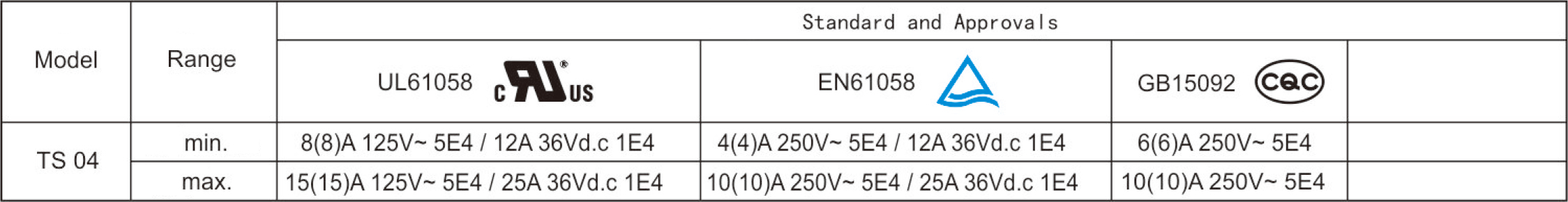

电气参数和认证

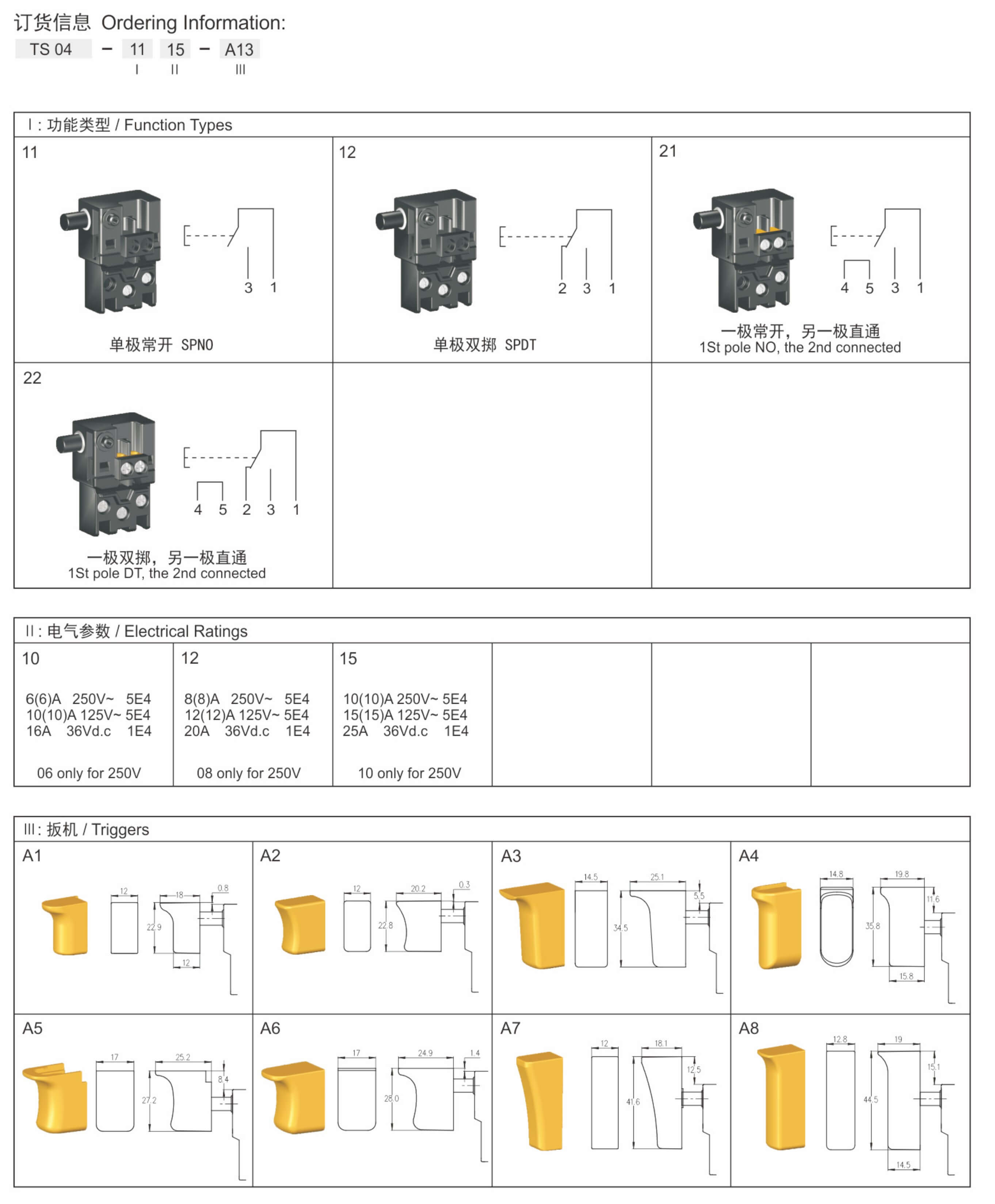

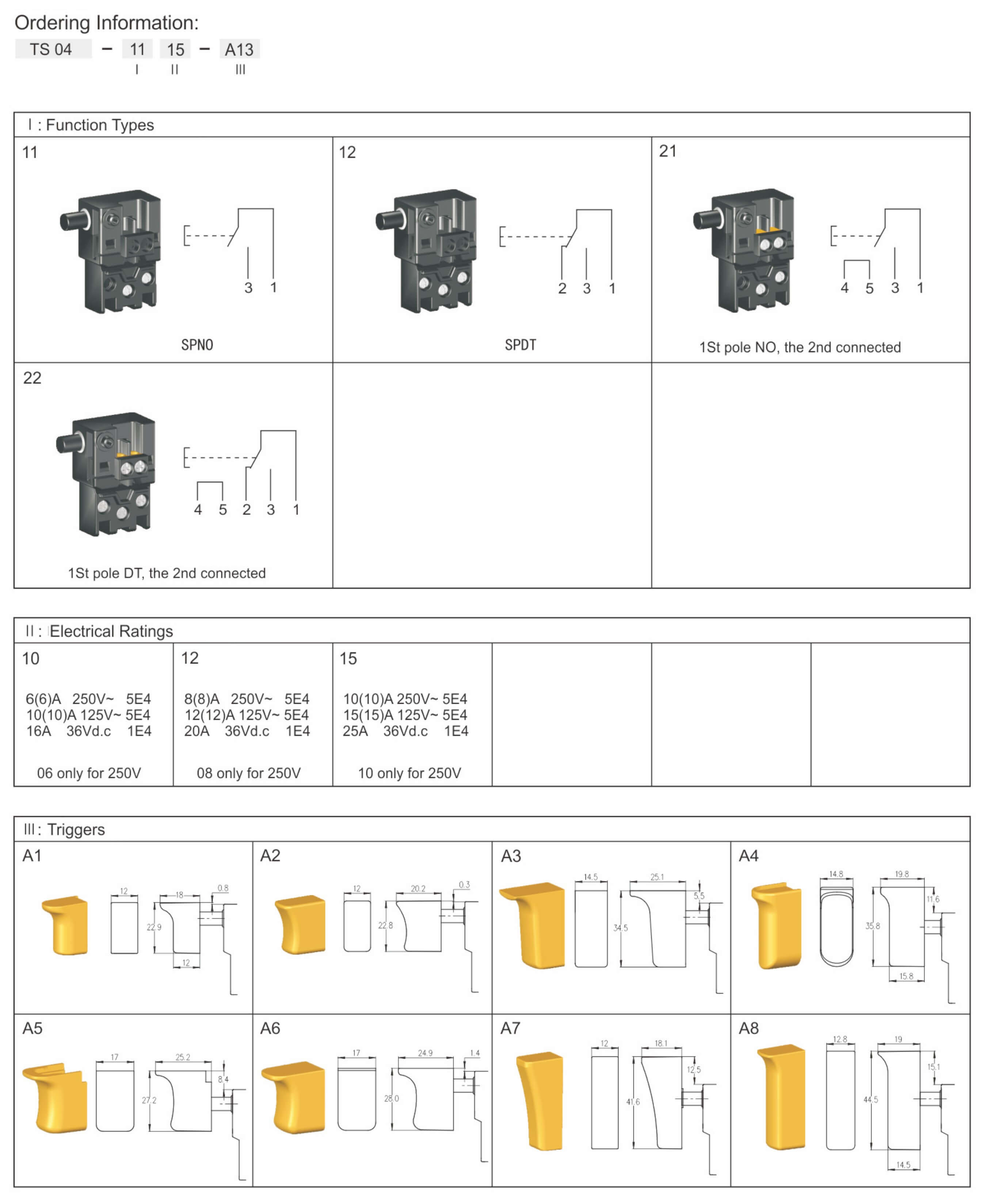

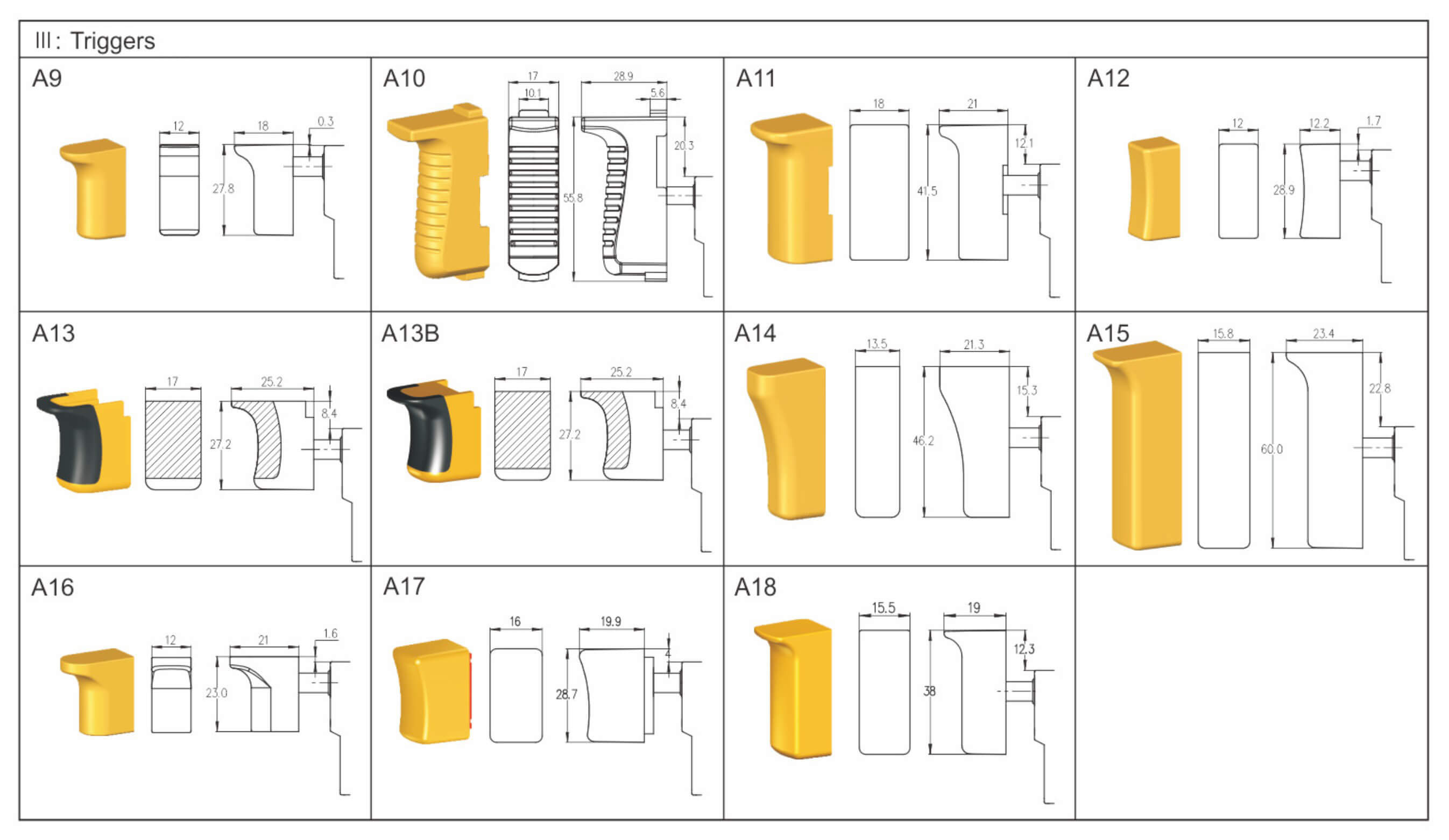

订货信息
