返回列表TS02 防尘快速动作扳机开关

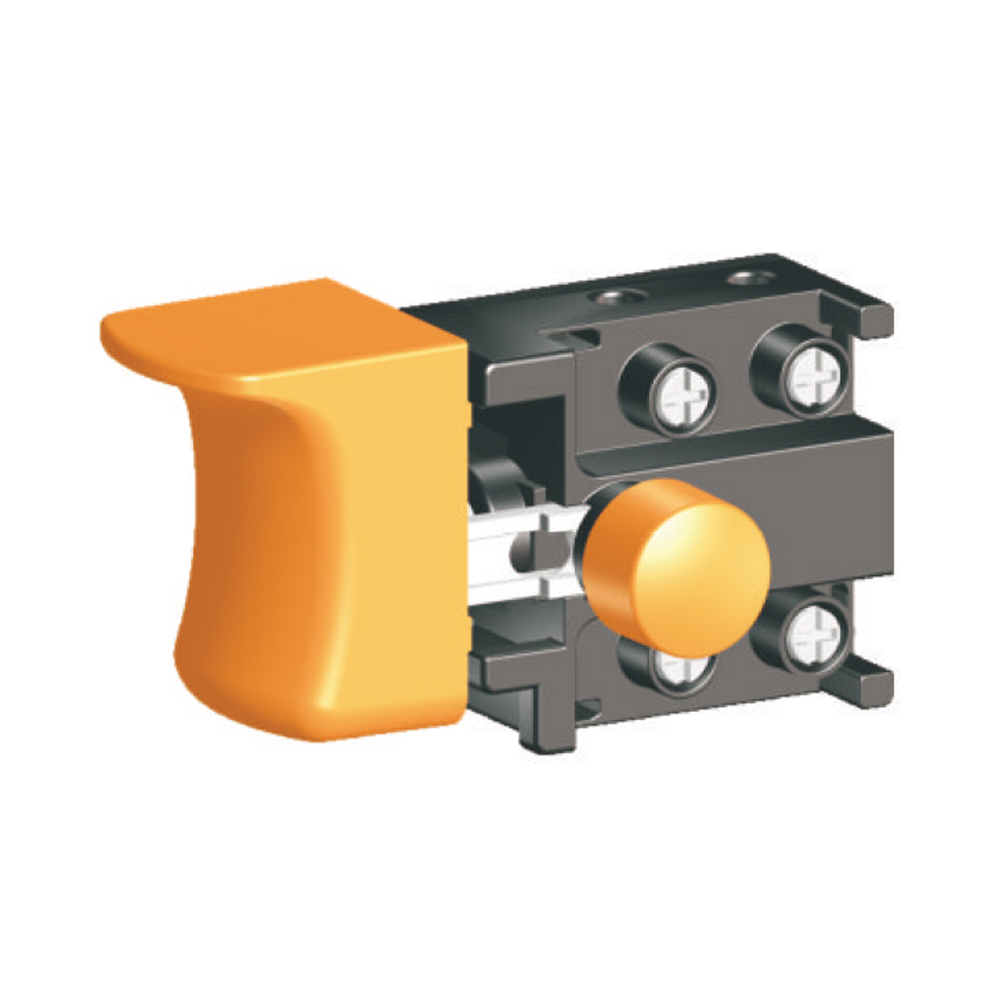

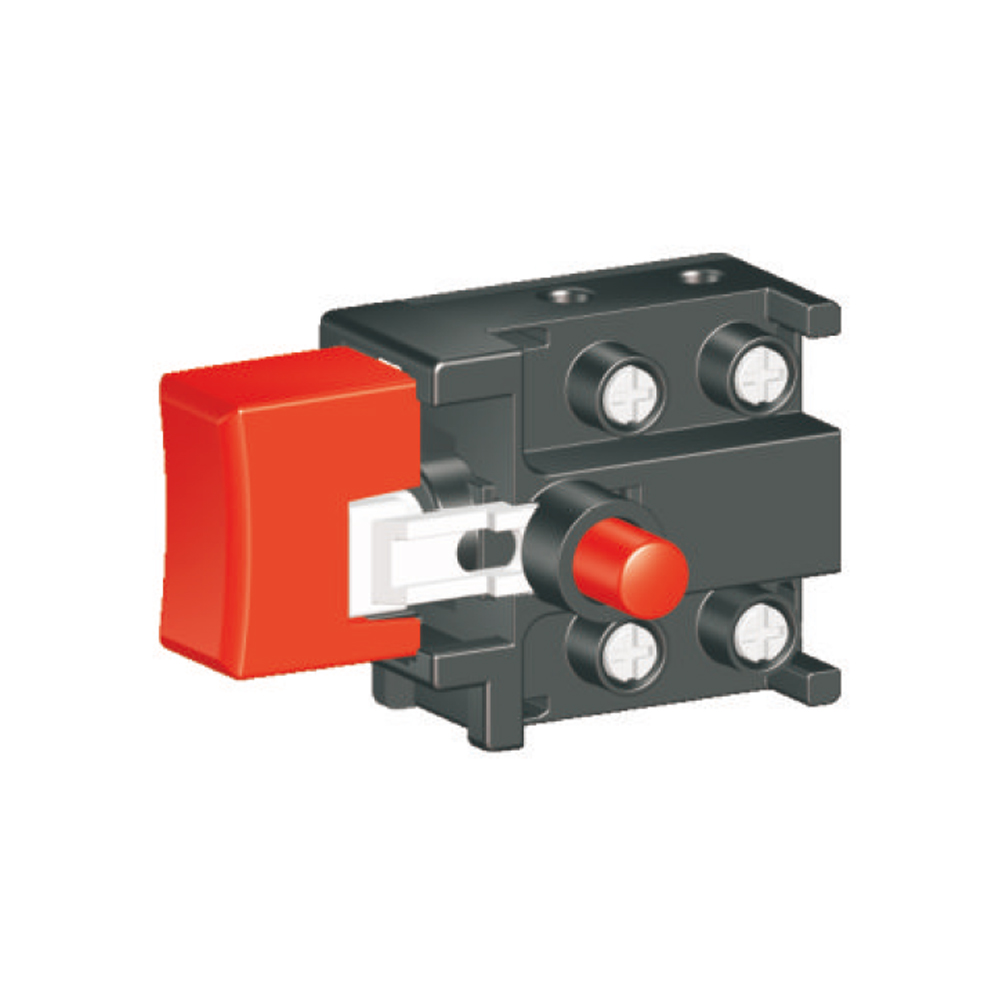

TS02

产品描述

TS02 series are general type trigger switch, integrated dustproof, with snap-action structure, commonly for used in portable power tools such as: Electric Drills, Rotary Hammers, Reciprocating Saws, Jig Saws, Angle Grinders, Electric Mixers, Cut-Off Machines, Marble Cutters, Electric Routers, Circular Saws, BeltSanders, Orbit Sanders, Polishers, Electric Planrs, Electric Sprayers, Electric Nailers, etc. Besides, they are also suitable for gardening tools, such as: GrassTrimmers, Electric Chain Saws, Electric Lawnmowers, Electric Snowthrowers, etc.

产品特征

 Optional with Following lock types:

→  No Lock

→  Lock-on

→  Lock-off

 Optional with the accessor as follows:

→  Rubberized Trigger (overmolding)

技术数据

→  Mechanical life endurance≥1E5
→  Electrical life endurance≥5E4
→  Max. Inrush current at 250V60A
→  Max. Inrush current at 125V96A
→  Contact resistance≤30m Ohm
→  Insulation resistance≥7M Ohm
→  Dielectric strength of function1500V
→  Dielectric strength of reinforced3000V
→  Ambient temperature0℃~55℃
→  FlammabilityUL 94V-0
→  Protection typeIP40
→  Suitable for appliances of protection class II

端子类型

 Input side:

→  2×Pillar teminal Φ=2.9mm

 Output side:

→  2×Pillar teminal Φ=2.9mm

→   4×Push-in terminals for soldered strands, strands with end sleeves or strands with end claws

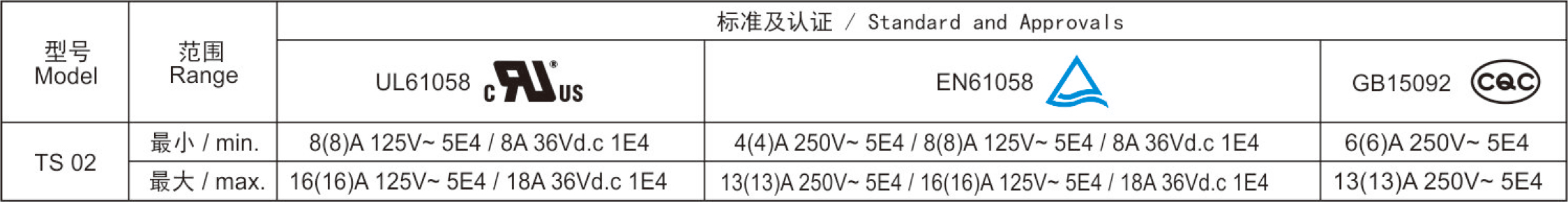

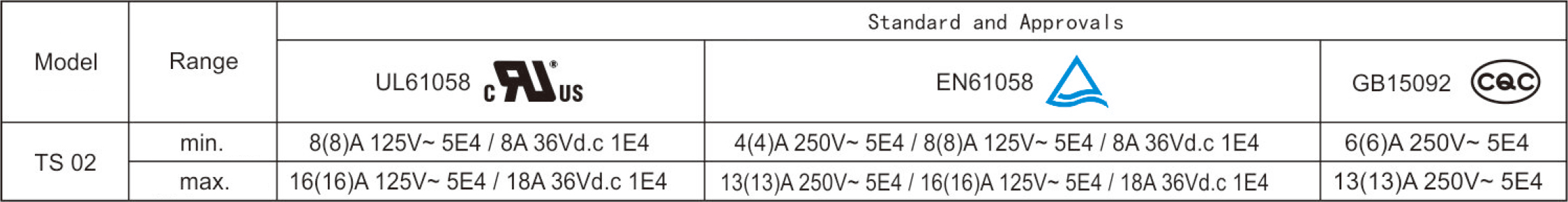

电气参数和认证

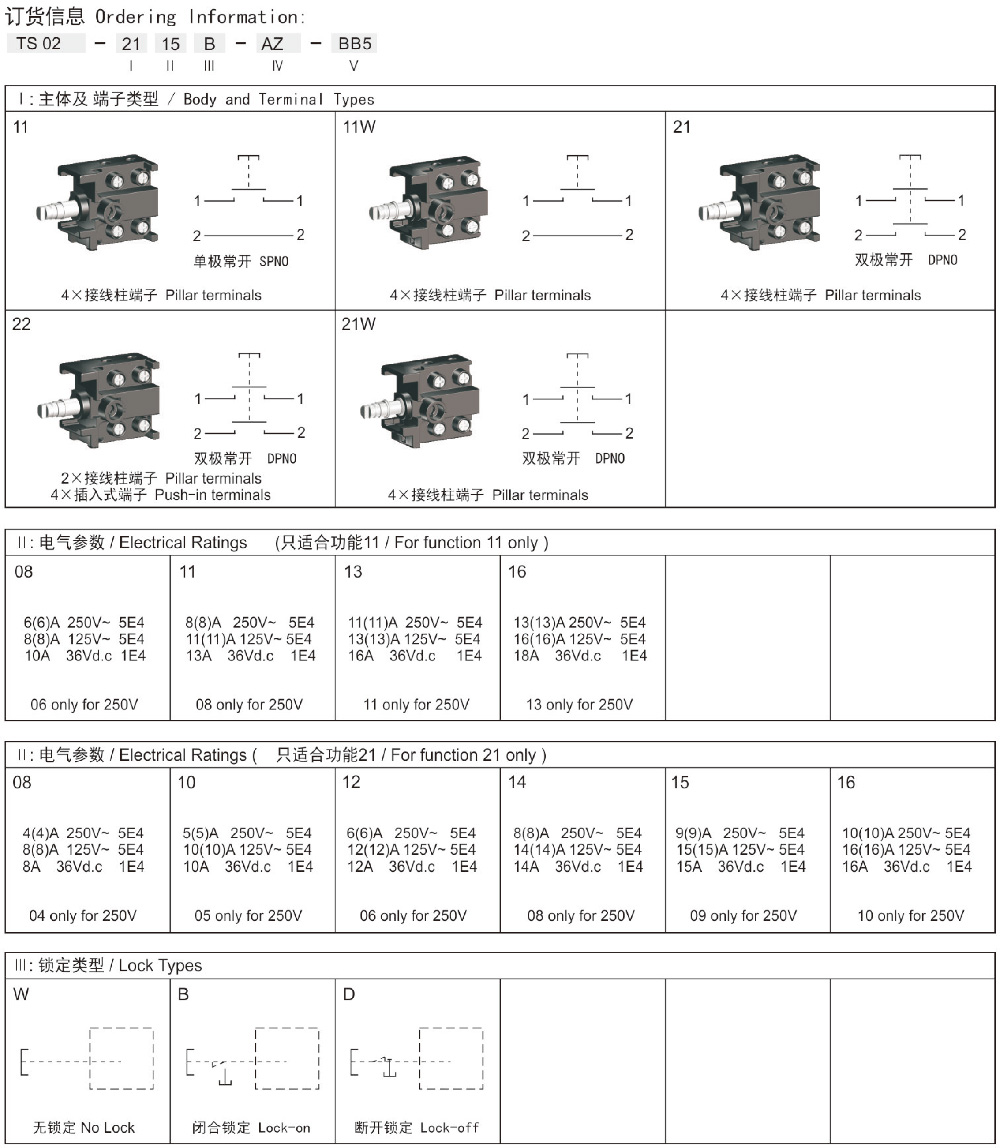

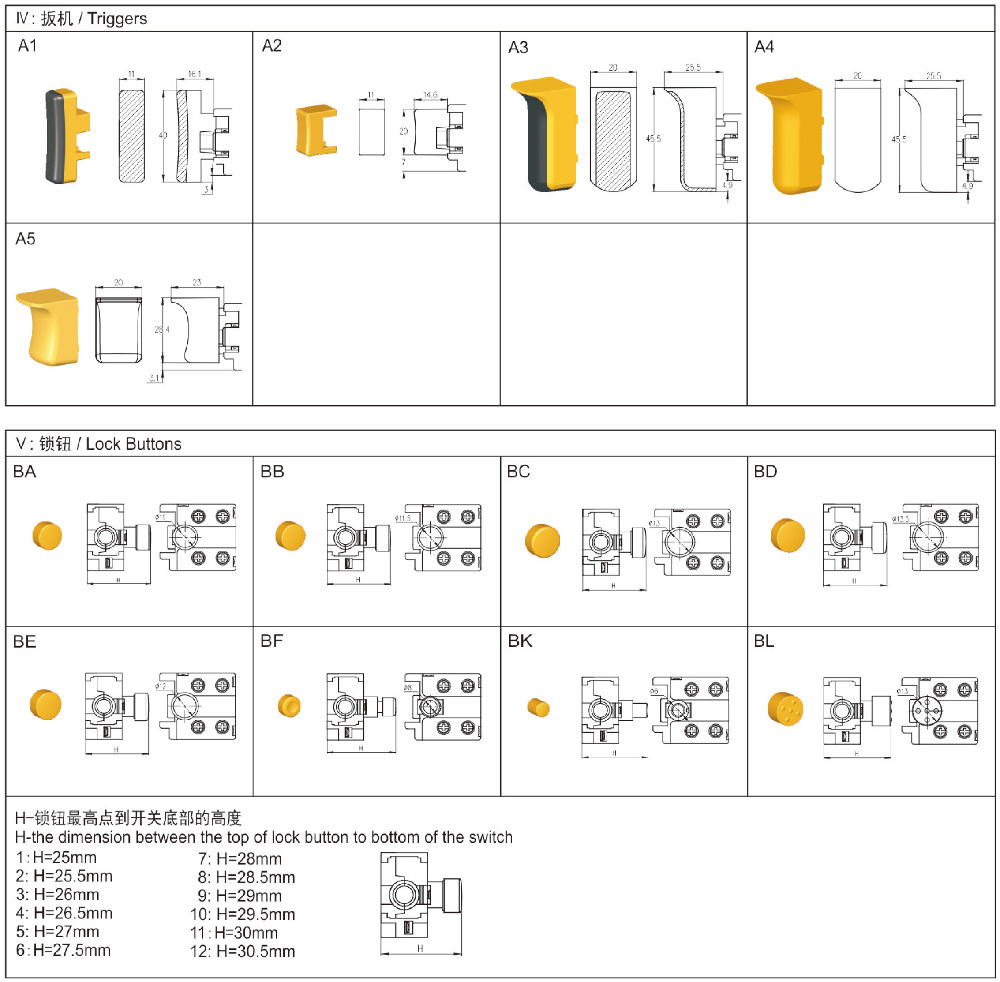

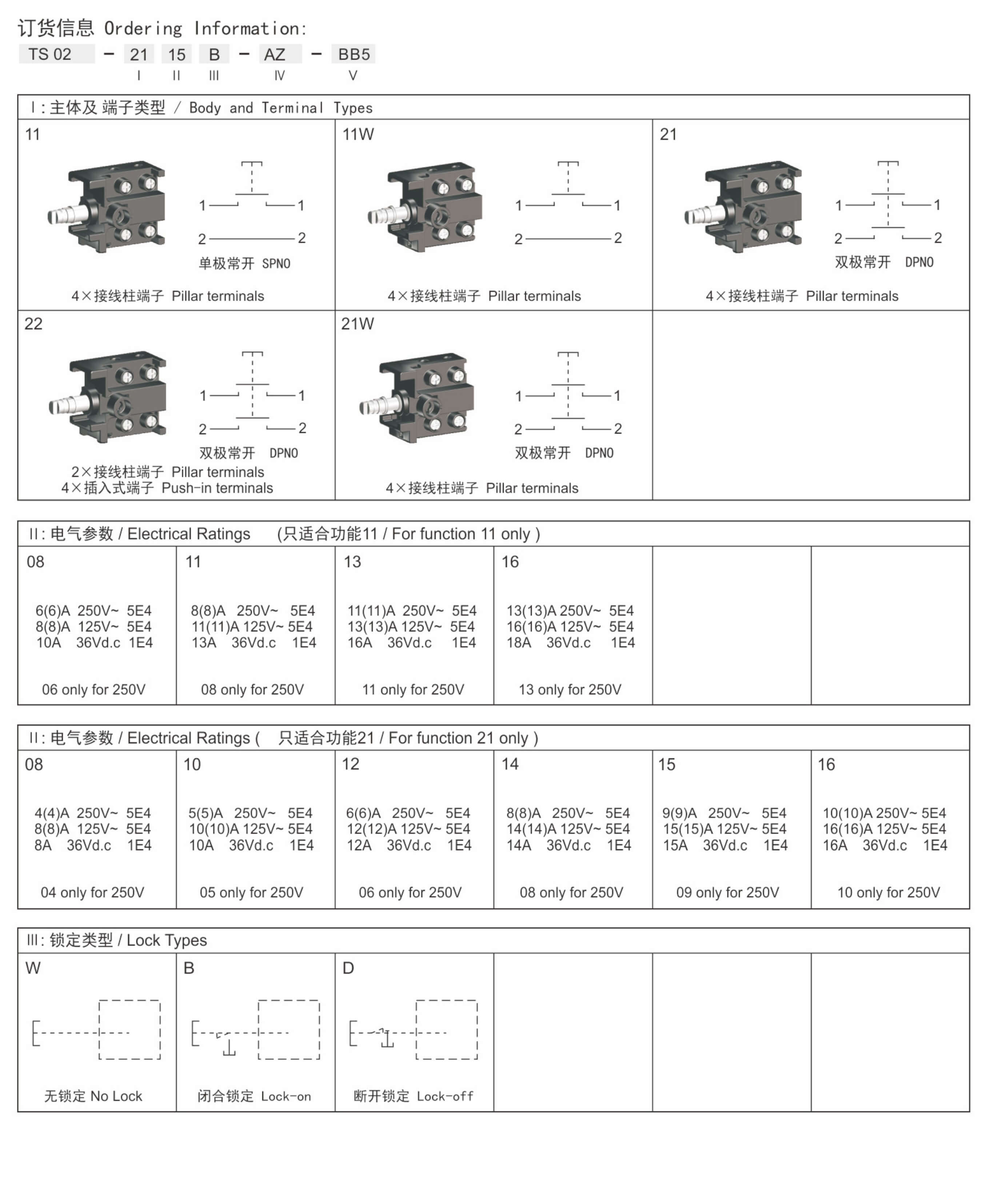

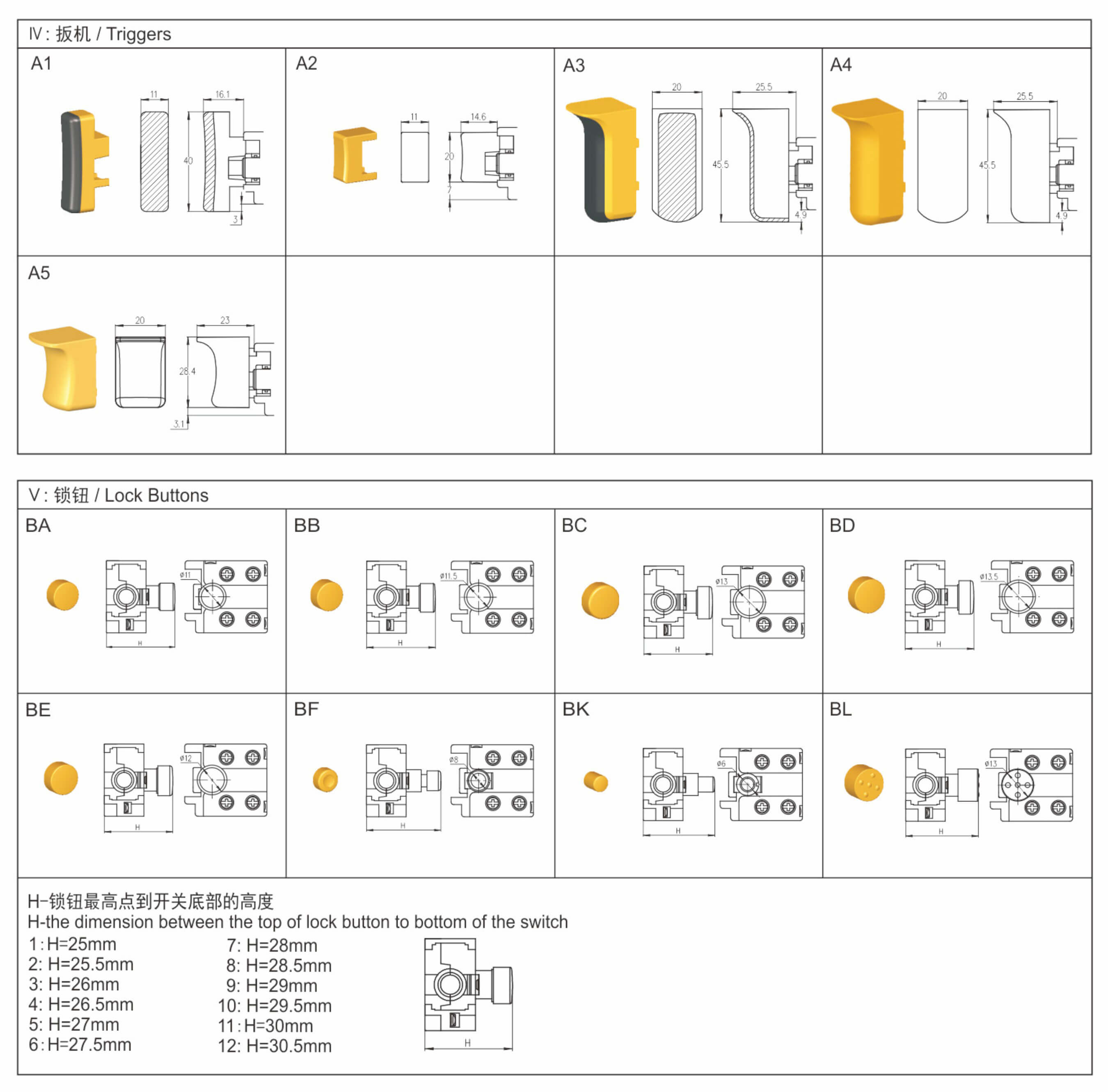

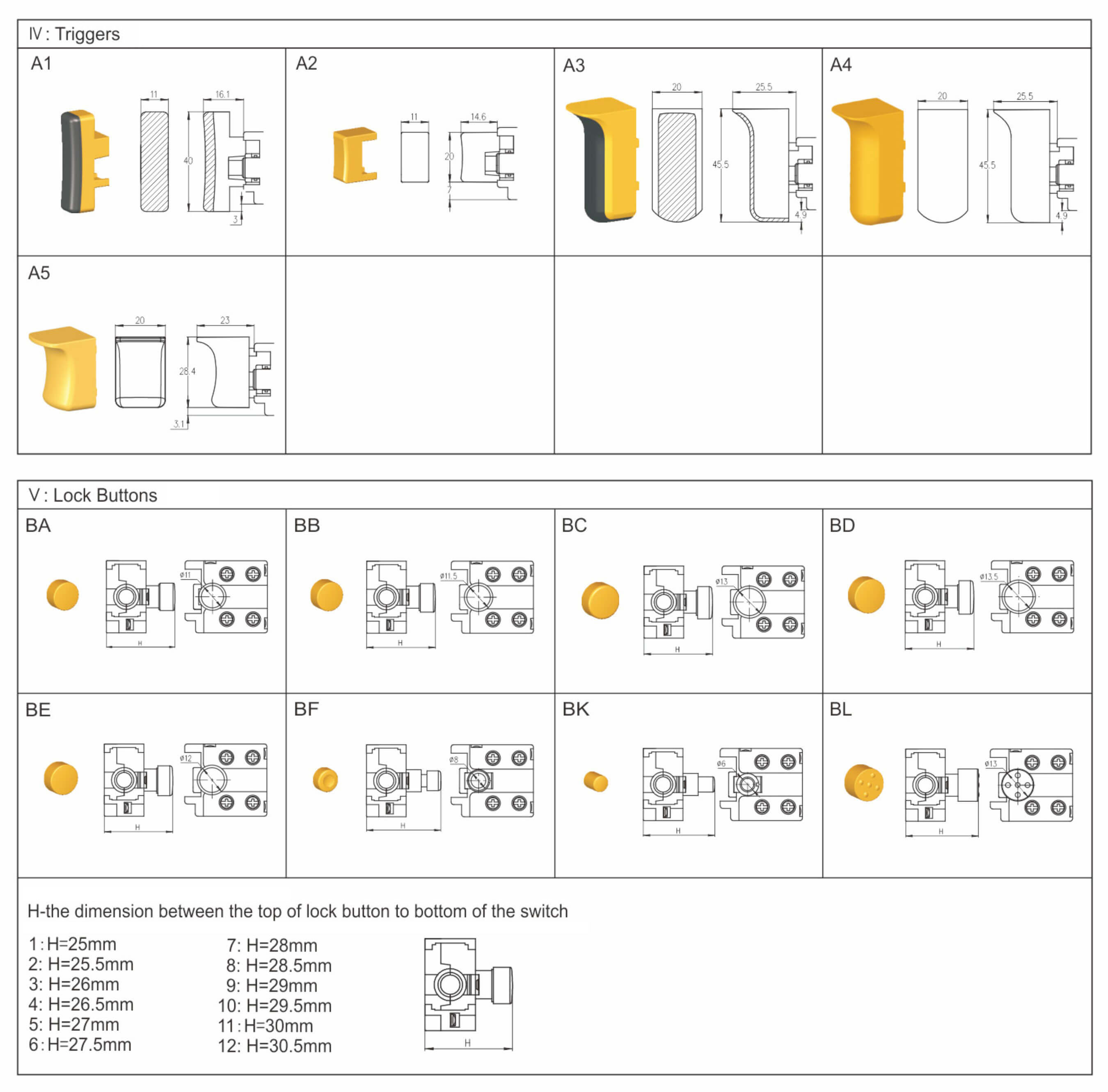

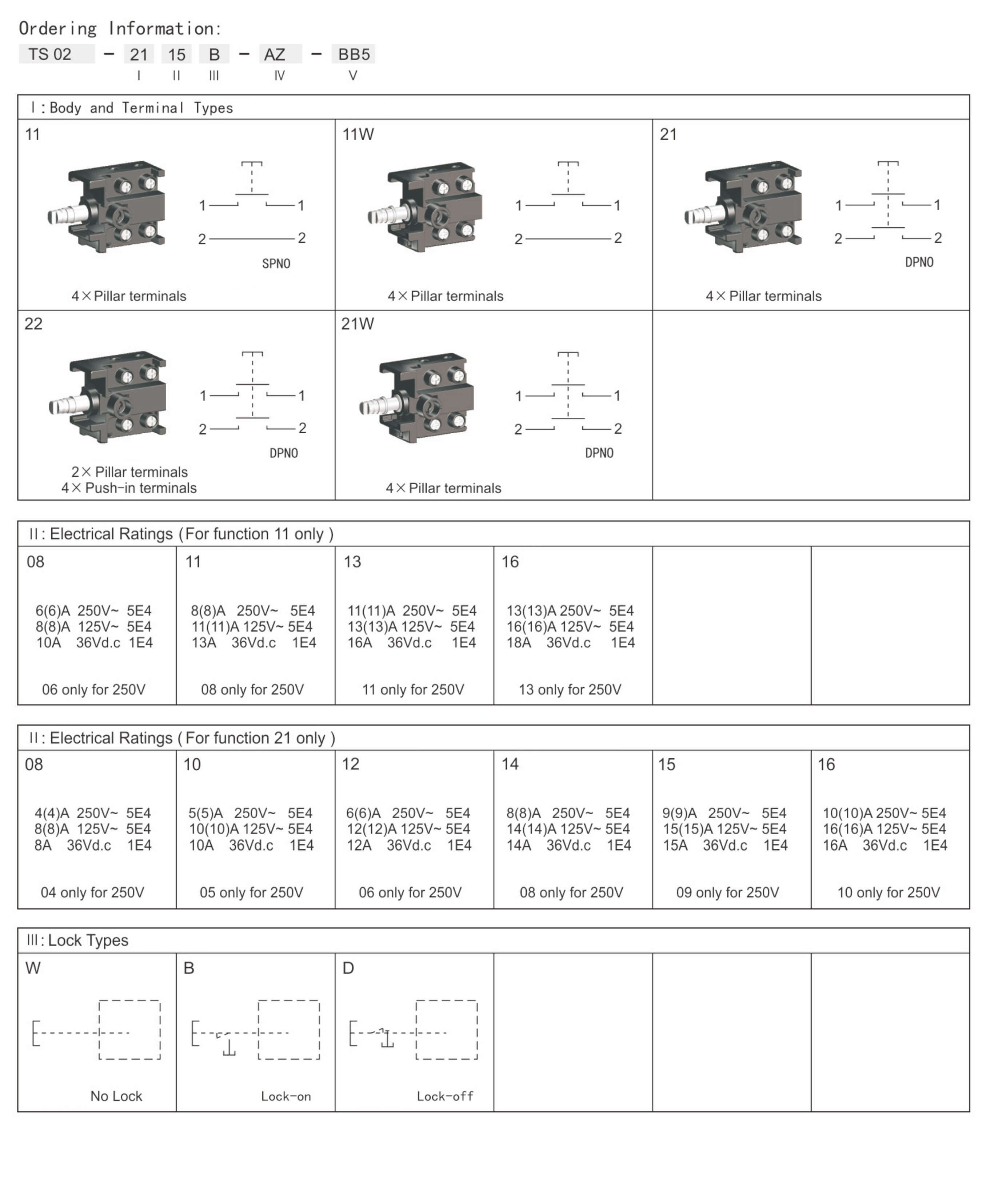

订货信息
