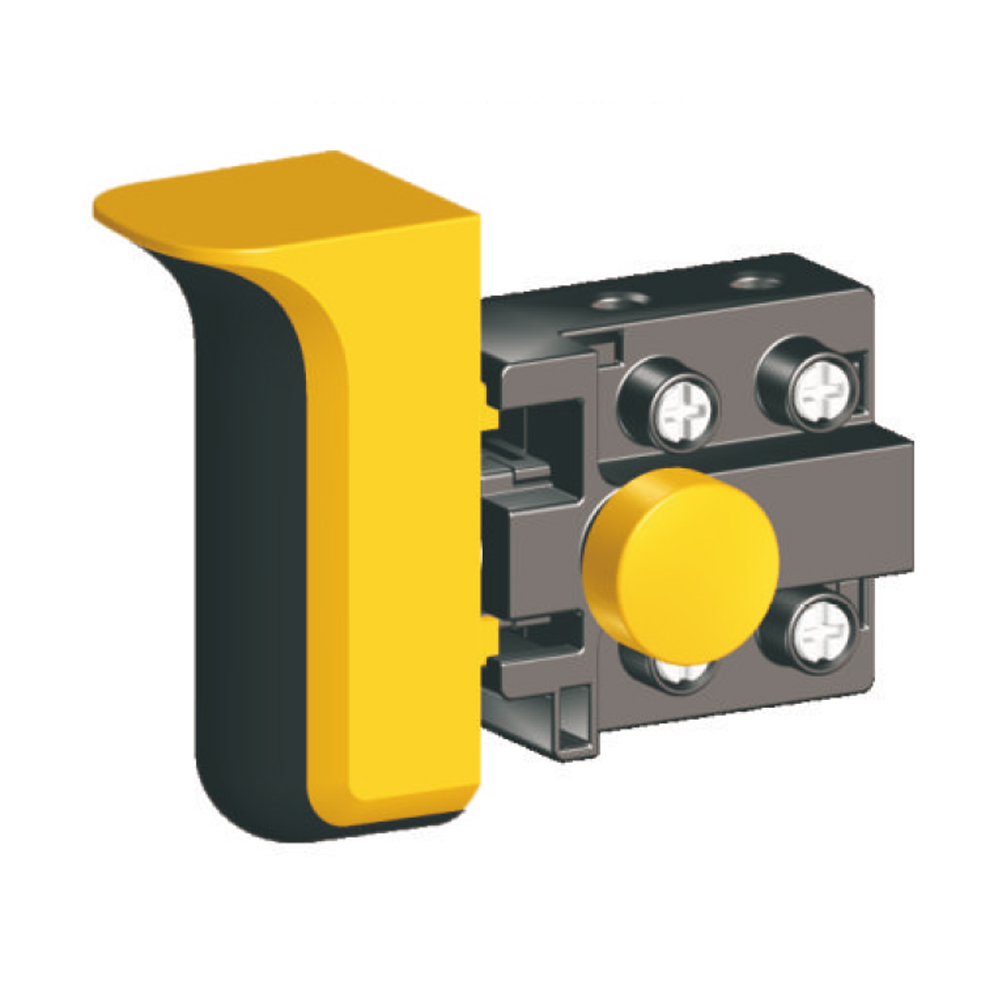

返回列表TS01 防尘扳机开关

TS01
1
2

产品描述

TS01 series are general type trigger switch, integrated dustproof, commonly for used in portable power tools such as: Electric Drills, Rotary Hammers, Reciprocating Saws,Jig Saws, Electric Mixers, Cut-Off Machines, Marble Cutters, Electric Routers, Circular Saws, Belt Sanders, Orbit Sanders, Polishers, Electric Planers, Electric Sprayers, Electric Nailers, etc. Besides, they are also suitable for power gardening tools, such as: Grass Trimmers, Electric Chain Saws, Electric Lawnmowers, Electric Snowthrowers, etc.

产品特征

 Optional with Following lock types:

→  No Lock

→  Lock-on

→  Lock-off

→  Lock-off with Lock-on

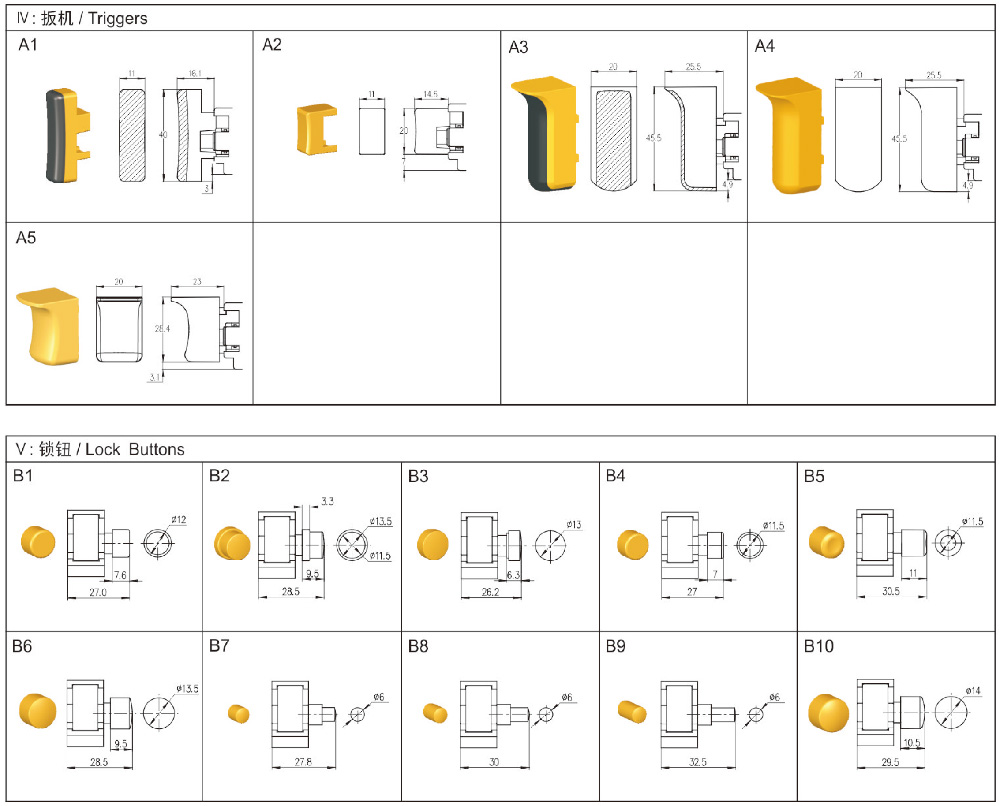

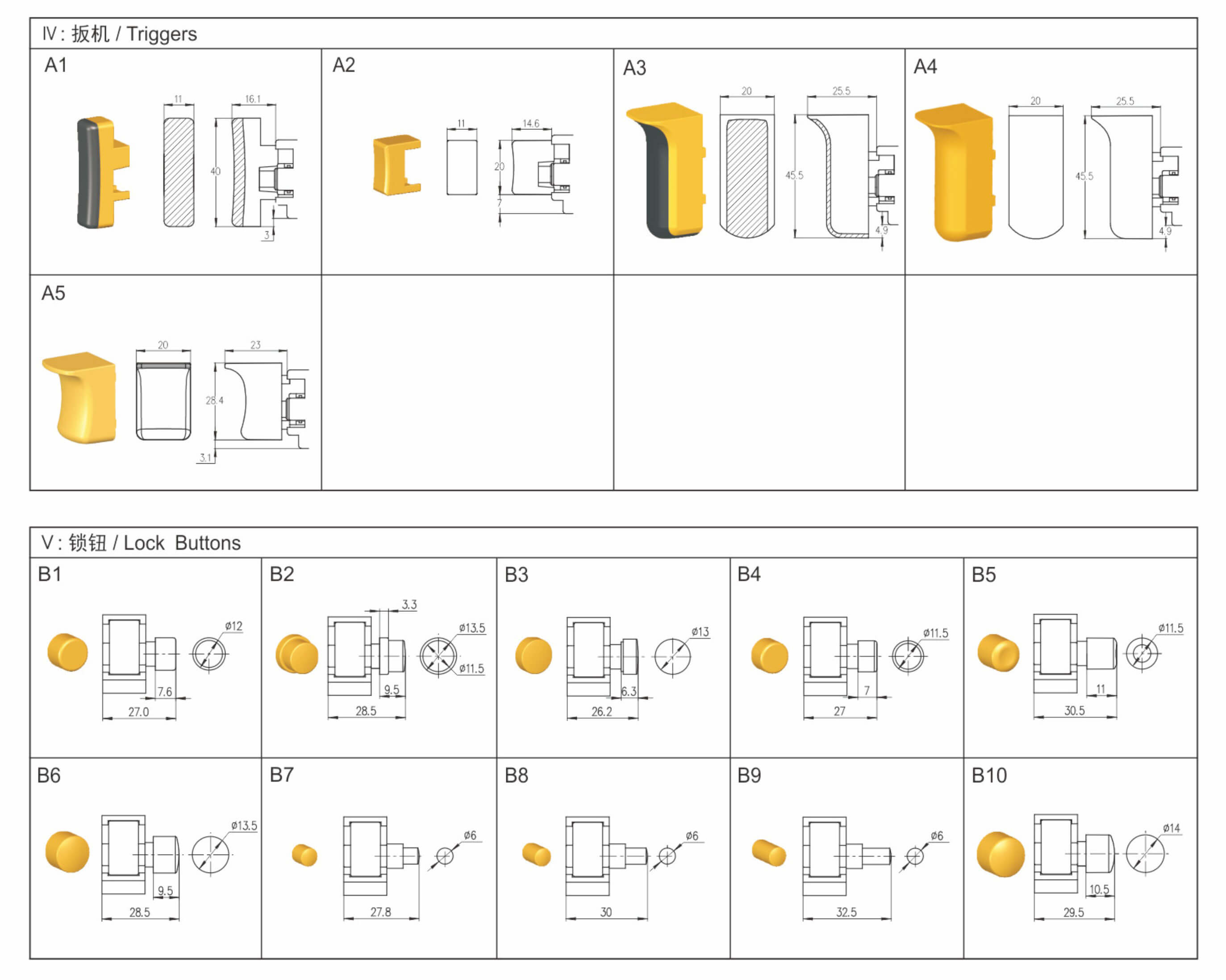

 Optional with the accessor as follows:

→  Rubberized Trigger (overmolding)

技术数据

→  Mechanical life endurance≥1E5
→  Electrical life endurance≥5E4
→  Max. Inrush current at 250V60A
→  Max. Inrush current at 125V96A
→  Contact resistance≤30m Ohm
→  Insulation resistance≥7M Ohm
→  Dielectric strength of function1500V
→  Dielectric strength of reinforced3000V
→  Ambient temperature0℃~55℃
→  FlammabilityUL 94V-0
→  Protection typeIP40
→  Suitable for appliances of protection class II

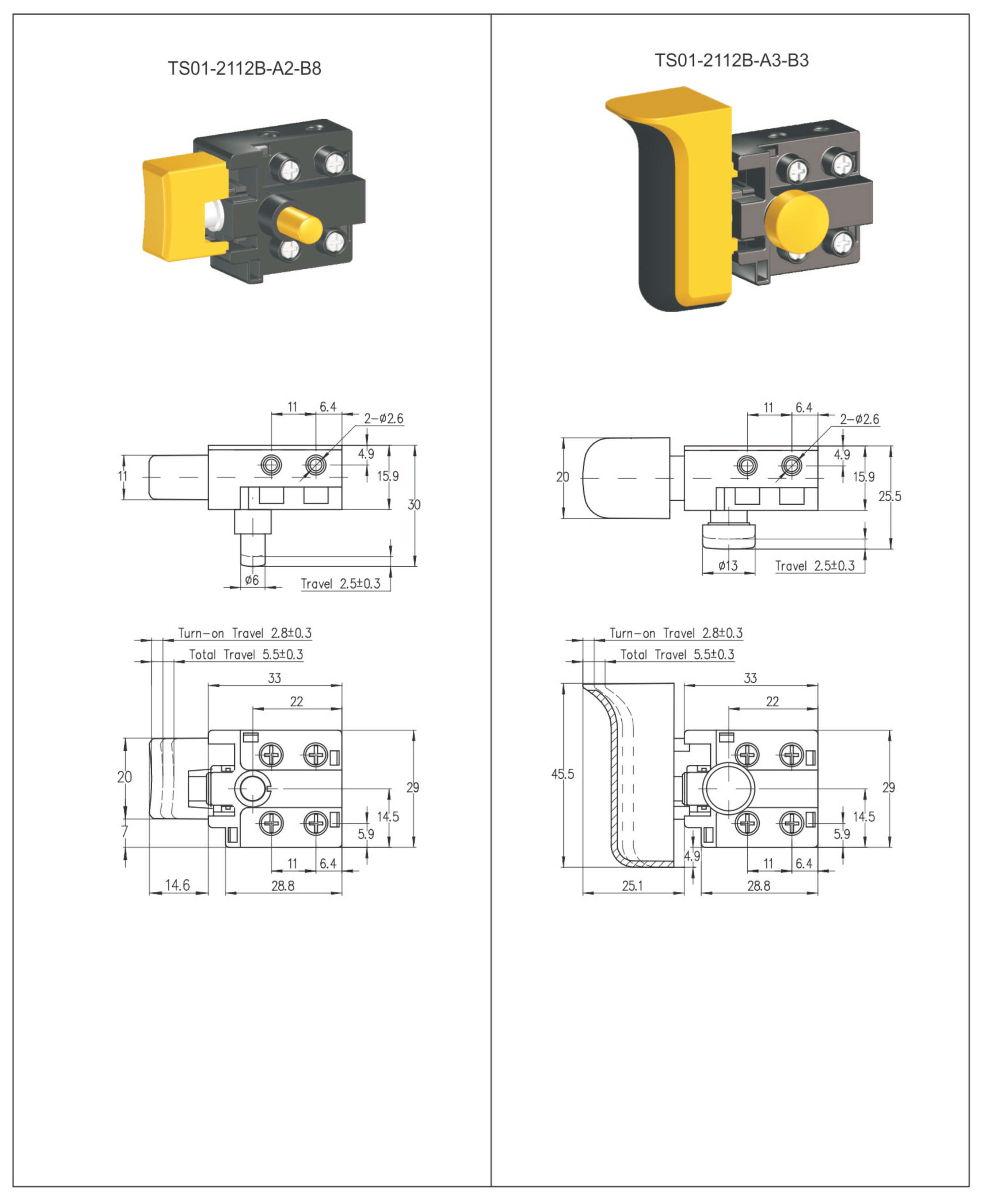

端子类型

 Input side:

→  2×Pillar teminal Φ=2.6mm or 2.8mm

 Output side:

→  2×Pillar teminal Φ=2.6mm or 2.8mm

→   4×Push-in terminals for soldered strands, strands with end sleeves or strands with end claws

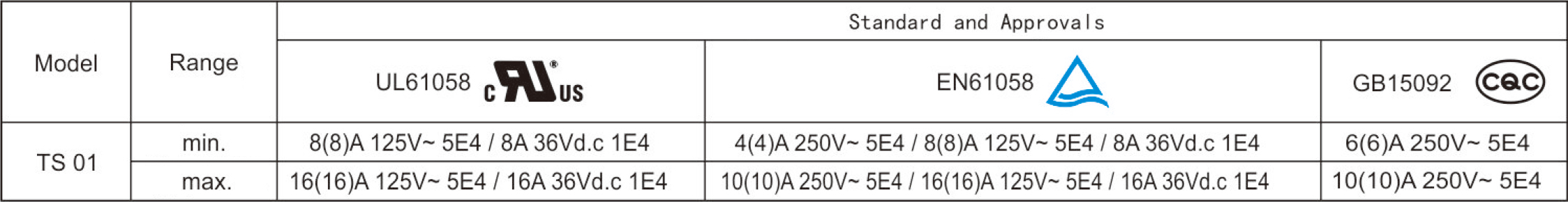

电气参数和认证

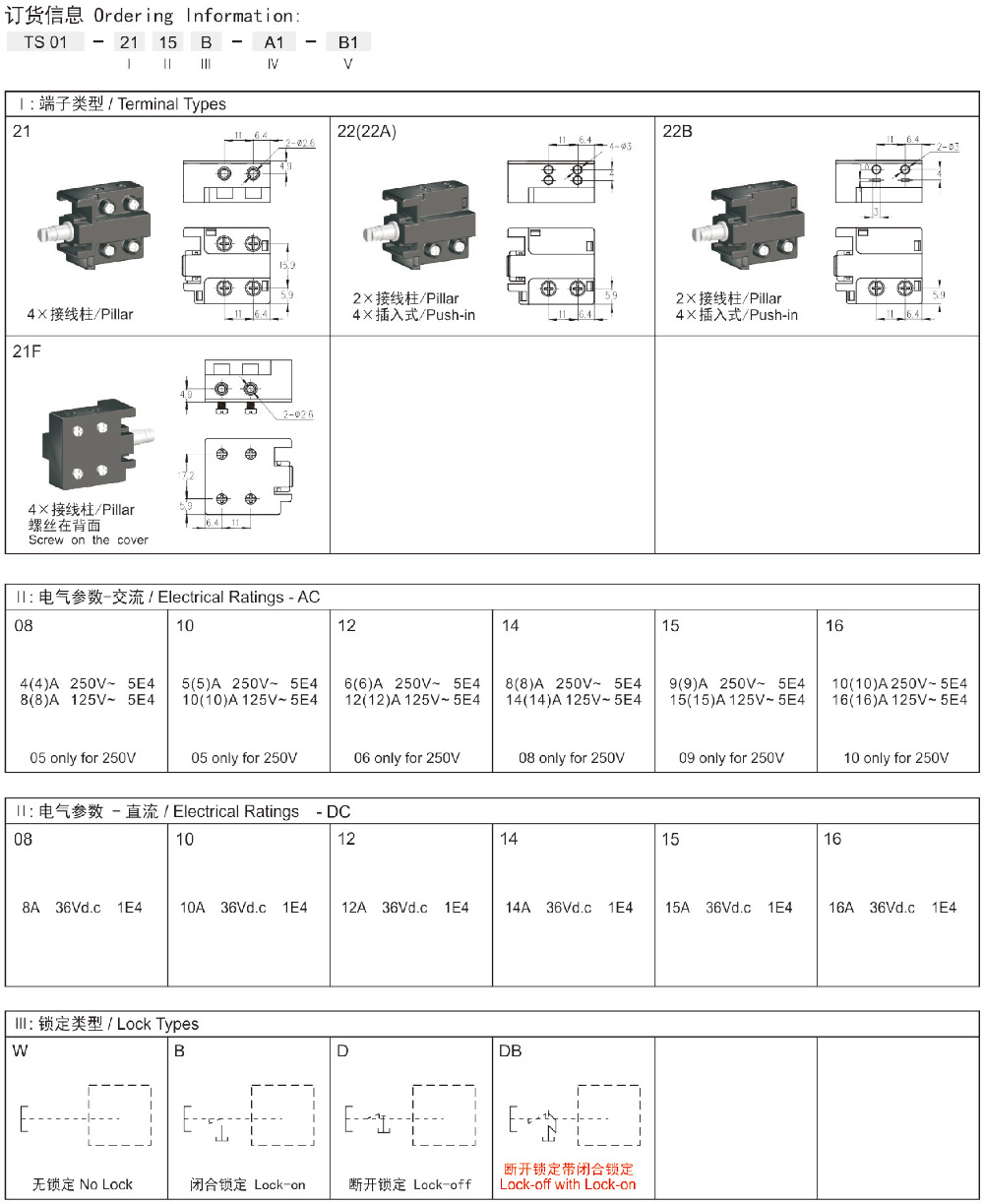

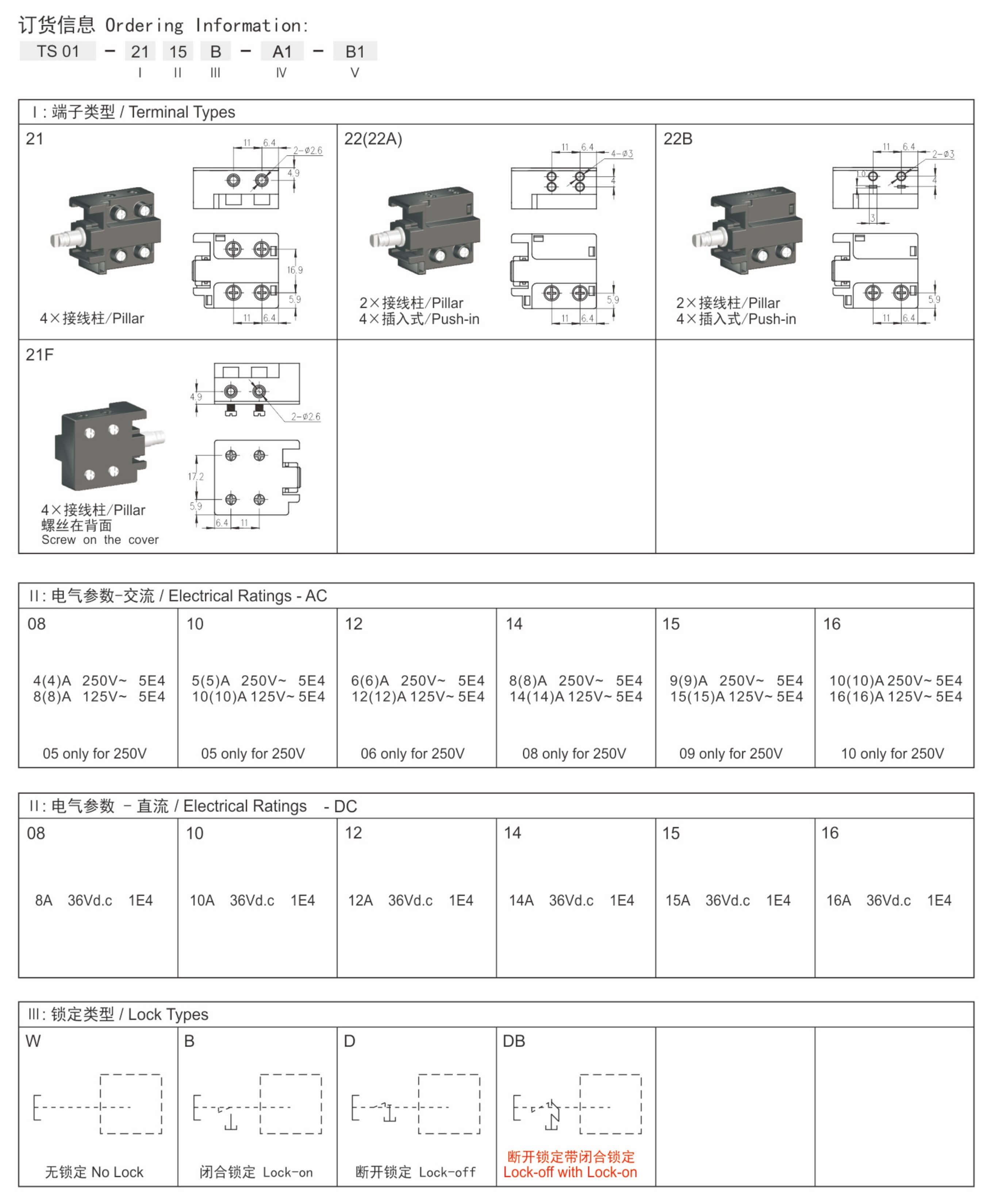

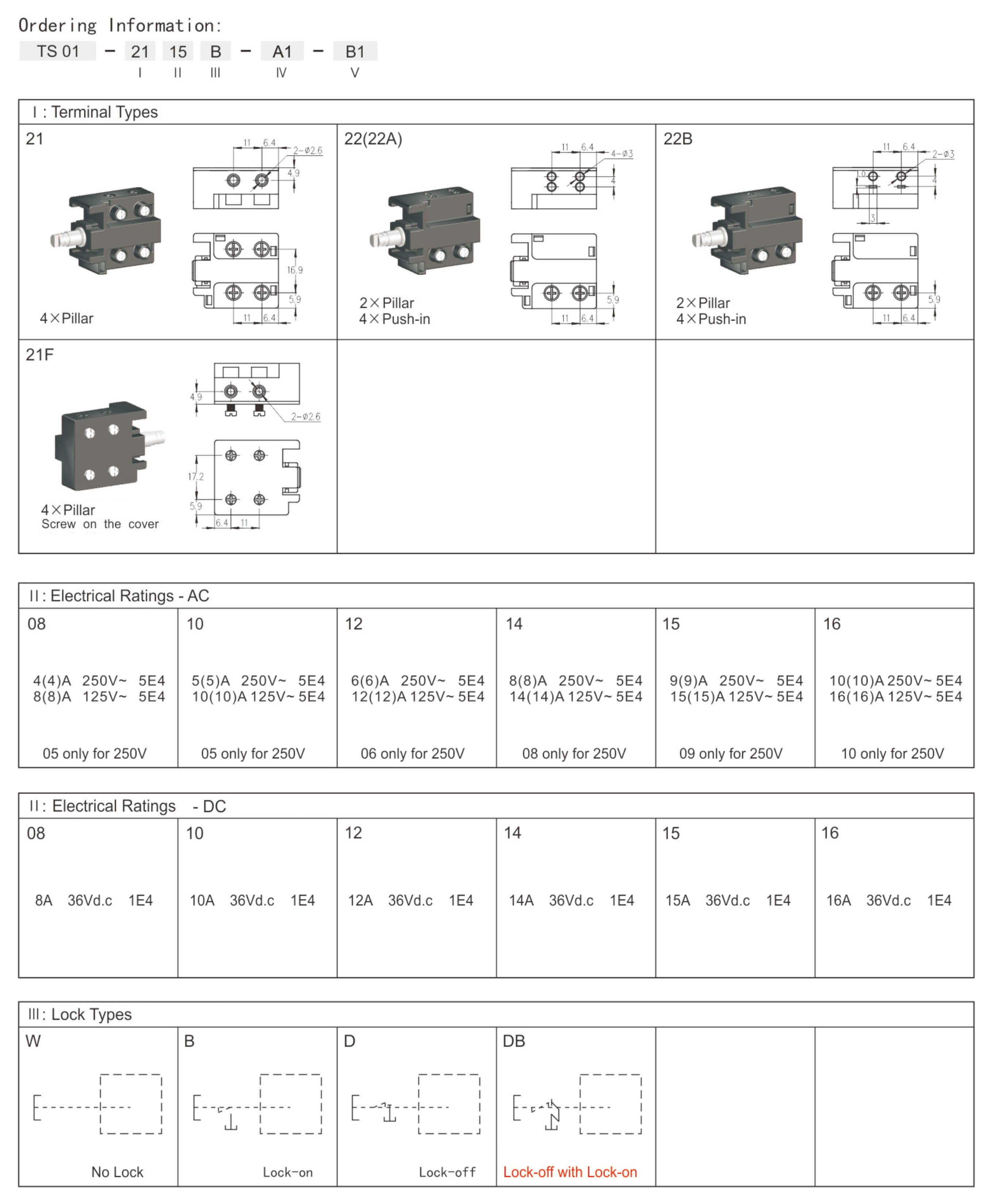

订货信息
