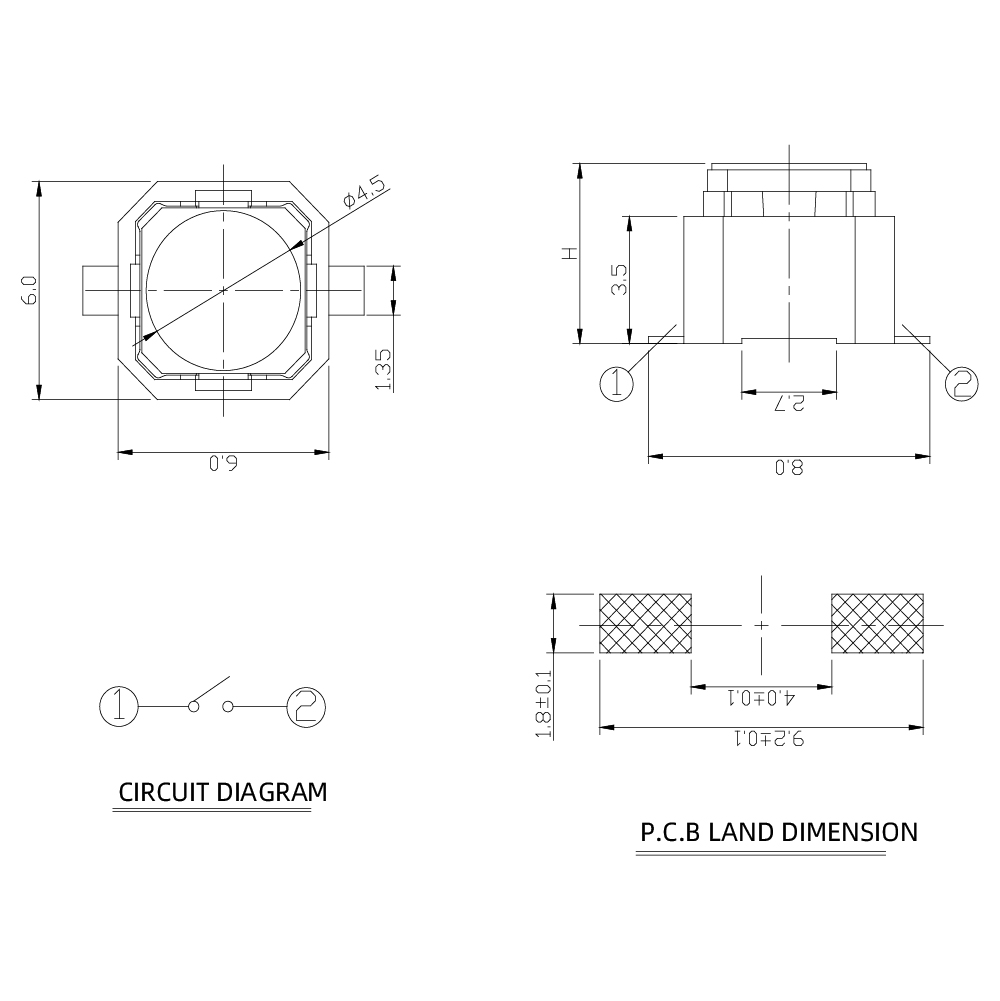

标准6 x 6mm整体尺寸结构 (Construction with standard dimension 6 x 6mm overall size)
提供SMT和THT两种端子设计 (SMT and THT termination design both available)
独特的点击感和密封的触点系统 (Unique click and a sealed contact system)
可用于操作各种电子设备，例如电话、PDA、DVD、数码相机、音频设备、仪器仪表设备、自动化设备控制等。 (They can operate all types of electronic equipment such as the telephone, PDA, DVD, digital camera, audio equipment, instrument and meter equipment, autoimmunization equipments control etc.)
| 项目 Items | 参数 Standard | |
|---|---|---|
| 工作温度范围 Operating temperature range | -20℃ to +70℃ | |
| 电气性能 Electrical performance | 额定电流 Rating | 100mA. 12V DC |
| 绝缘电阻 Insulation resistance | 100MΩ min. 100V DC | |
| 介电强度 Dielectric strength | 250V AC for 1 min. | |
| 接触电阻 Contact resistance | 100mΩ max. | |
| 耐用性 Durability | 寿命 Lifetime | 100,000 Cycles |
| 机械性能 Mechanical performance | 动作力 Actuating Force | 250 ± 50 gf |
| 行程 Travel | 1.30 ± 0.10 mm | |
