◆ DW02 系列是一款通用型的转盘电子调速器，集成一般防尘功能，应用于各类手持电动工具，如：电锤，曲线锯，往复锯，抛光机，搅拌器，电木铣，砂光机，100，125和150角向磨光机，模具电磨等
◆ DW02 series are one general type AC Dial Wheel Speed Controls, integrated dustproof, for popular used in portable power-tools such as: Rotary Hammers, Jig Saws, Reciprocating Saws, Polisher Grinders,Electric Mixers,ElectricRouters, Sanders, 100~150mm Angle Grinders,Die Grinders, etc.

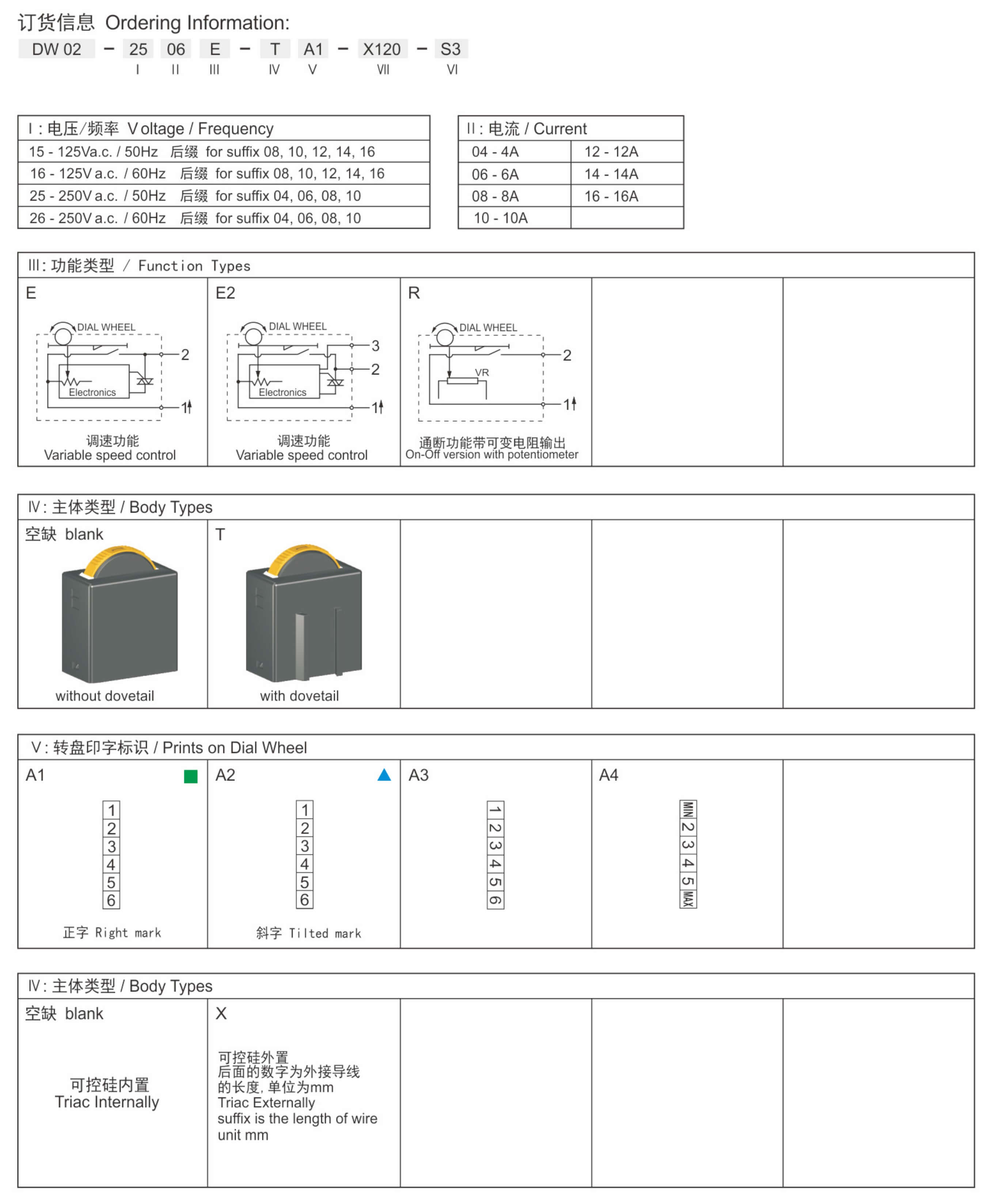

◆ 可选带以下功能： Optional with the function as follows:
→ 全波调速 Full-wave speed control
→ 半波调速 Half-wave speed control
→ 通断功能带可变电阻输出 On-Off version with Passive linear potentiometer
◆ 可选带以下附件： Optional with the accessor as follows:
→ 初始电压微调节旋钮 Knob for adjusting start voltage

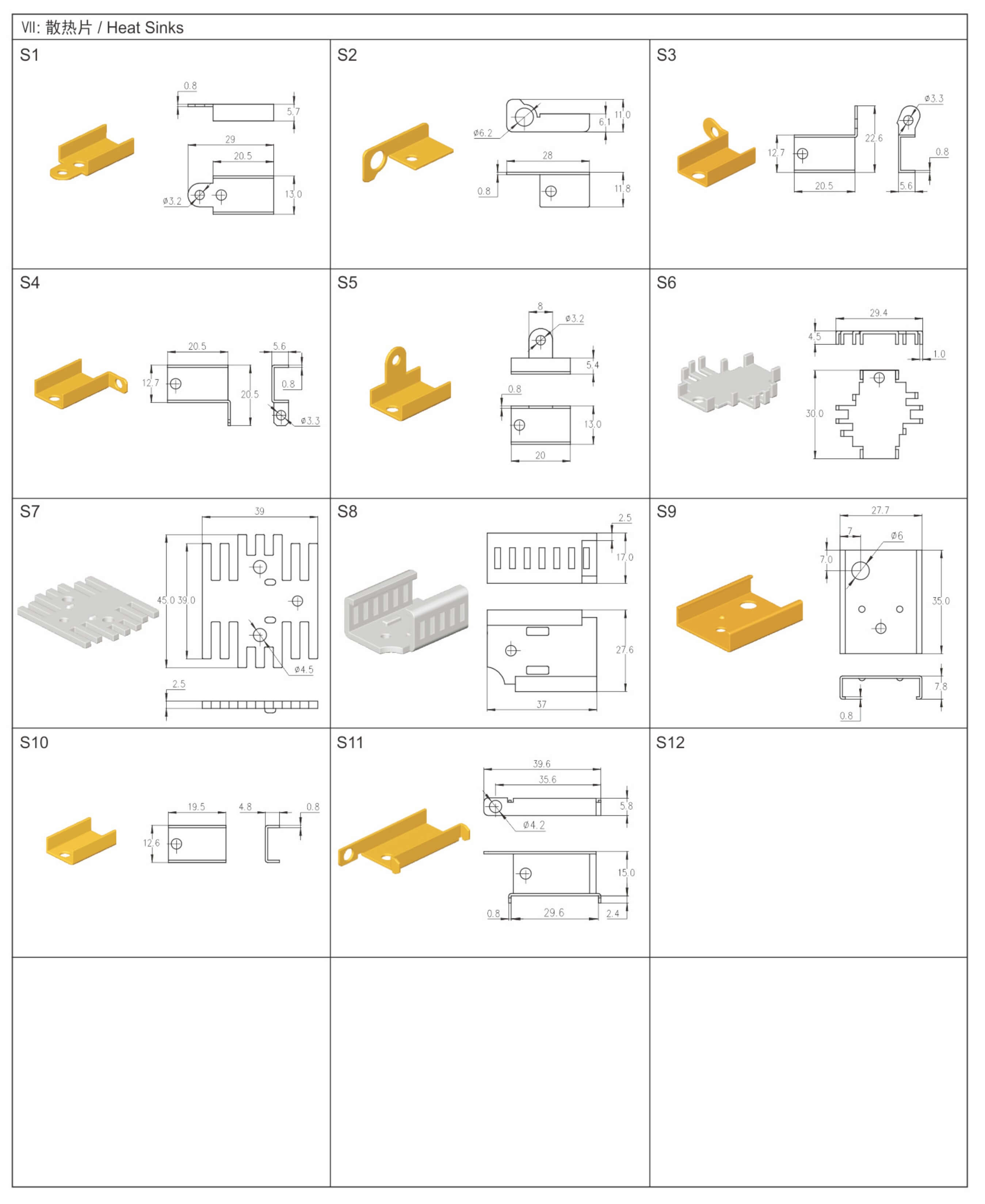

→ 可控硅外置适合更大电流并可附带散热片 External Triac version for high currents additional with heat sink
▲ 可选转盘一档印字与壳体上表面成67.5° Optional the angle between the printing of 1 and the up surface of shell is 67.5°
■ 可选转盘一档印字与壳体上表面成90° Optional the angle between the printing of 1 and the up surface of shell is 90°
| → 机械耐久寿命 Mechanical life endurance | ≥1E5 |
| → 电气耐久寿命 Electrical life endurance | ≥5E4 |
| → 最大电流 Max. current at 250V | 10A |
| → 最大电流 Max. current at 125V | 16A |
| → 接触电阻 Contact resistance | ≤30m Ohm |
| → 绝缘电阻 Insulation resistance | ≥7M Ohm |
| → 基本介电强度 Dielectric strength of function | 500V |
| → 加强介电强度 Dielectric strength of reinforced | 3000V |
| → 环境温度 Ambient temperature | 0℃~55℃ |
| → 阻燃等级 Flammability | UL 94V-0 |
| → 防护等级 Protection type | IP40 |
◆ 开关内部电子部分在相应使用中一并做过相关测试，本开关适合做二类器具开关使用
◆ The electronics in the switches had to be tested together with the corresponding appliances, so the switches are suitable for appliance of class II.
◆ 输入端/输出端 Input side/Output side:
→ 插入式端子 可插入沾锡导线、带插片端子导线或铜包头导线 Push-in terminals for soldered strands, strands with end sleeves or strands with end claws
