◆ PB01 系列是一款通用型的按钮开关，集成防尘功能一般应用于各类需要高防尘要求的手持式电动工具，如：100，125和150角向磨光机，抛光机，模具电磨，砂光机等
◆ PB01 series are general type push-button switch, integrated dustproof, commonly for used in portable heavy dust power-tools such as: 100mm, 125mm and 150mm Angle Grinders, Polisher Grinders, Die Grinders, Sanders, etc.

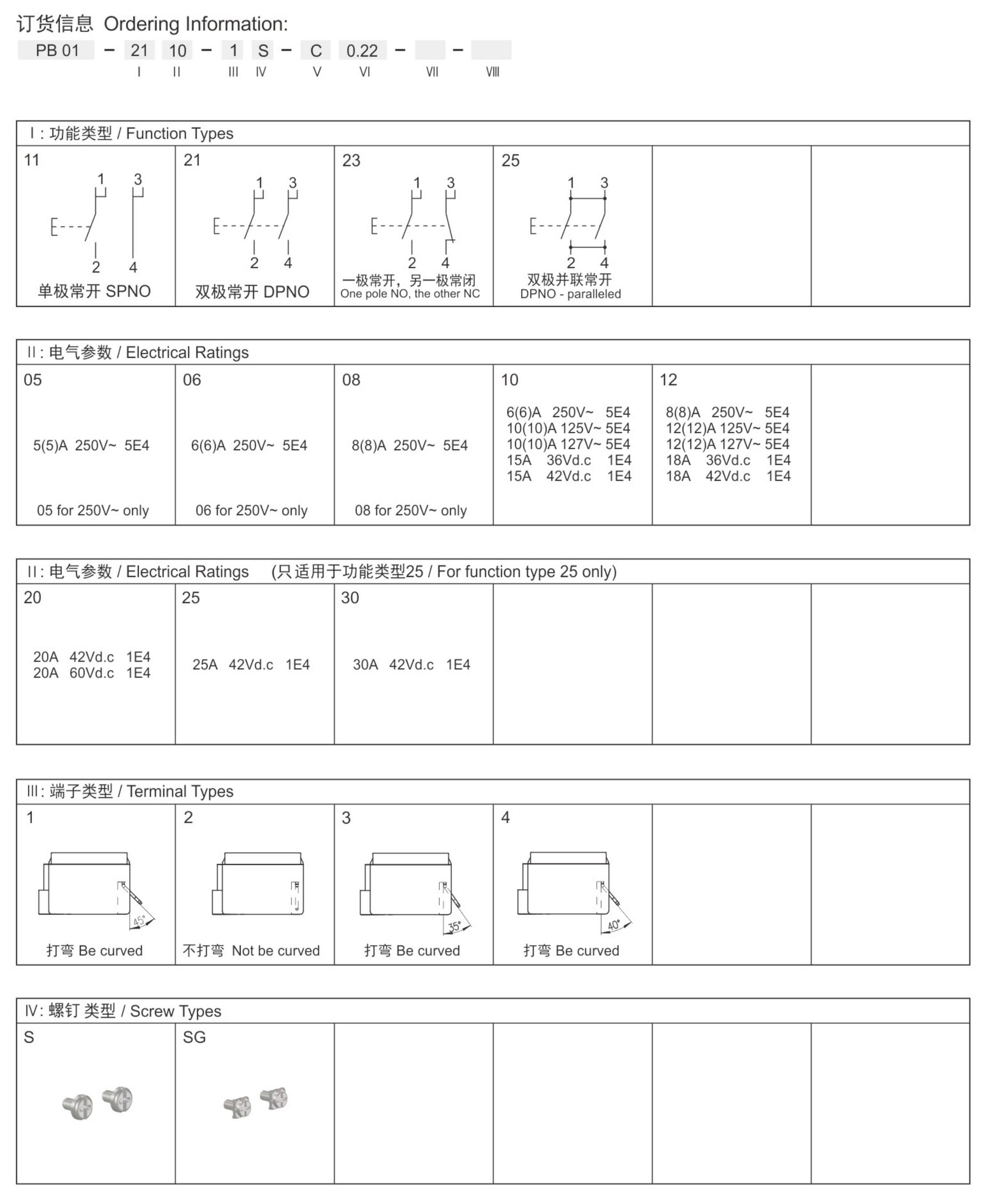

◆ 可选带以下功能： Optional with the function as follows:
→ 单极常开 SPNO(Single Pole Normally Open)
→ 双极常开 DPNO(Double Pole Normally Open)
→ 双极并联常开 DPNOP(Double Pole Normally Open Paralleled)
→ 一极常闭，另一极常开 One Pole Normally Open, the other Normally Close

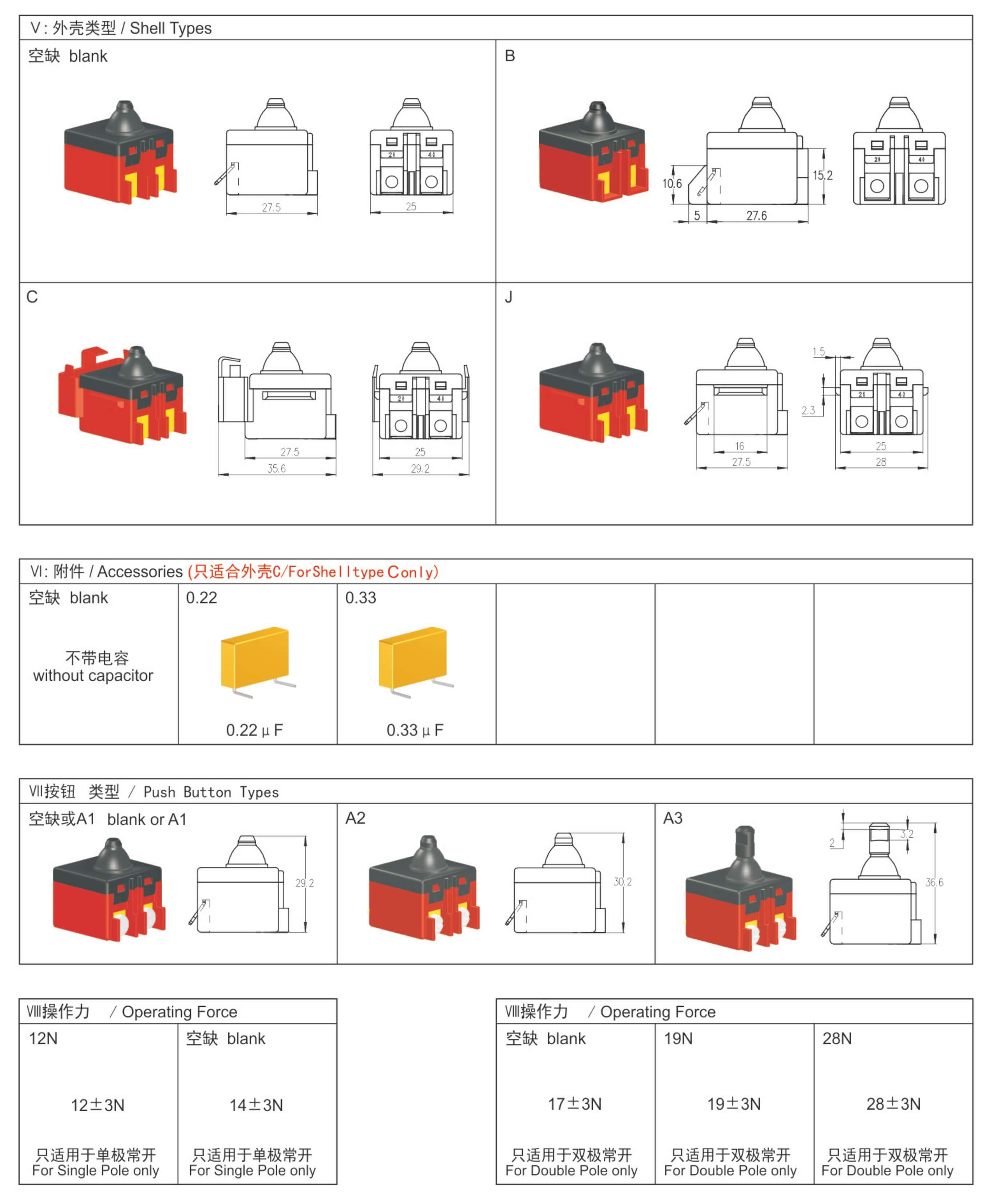

◆ 可选带以下附件： Optional with the accessor as follows:
→ 滤波电容（电容值由客户选定，一般为0.22μF或0.33μF） Suppression capacitor (commonly 0.22 or 0.33μF)
| → 机械耐久寿命 Mechanical life endurance | ≥1E5 |
| → 电气耐久寿命 Electrical life endurance | ≥5E4 |
| → 最大冲击电流 Max. Inrush current at 250V | 48A |
| → 最大冲击电流 Max. Inrush current at 127V | 72A |
| → 接触电阻 Contact resistance | ≤30m Ohm |
| → 绝缘电阻 Insulation resistance | ≥7M Ohm |
| → 基本介电强度 Dielectric strength of function | 1500V |
| → 加强介电强度 Dielectric strength of reinforced | 3000V |
| → 环境温度 Ambient temperature | 0℃~55℃ |
| → 阻燃等级 Flammability | UL 94V-0 |
| → 防护等级 Protection type | IP40 |
| → 适用于II类防护器具 Suitable for appliances of protection class II | |
◆ 输入端 Input side:
→ 螺钉端子 Screw terminals M3.5
◆ 输出端 Output side:
→ 插片端子 Plug-in terminals 2.8×0.8mm
