◆ MS01 系列是一款标准型的微动开关，触点间隙≥3.0mm，用途极广，可用于各类电动工具和园林工具，如：型材切割机，斜切锯，高压清洗机打草机，修枝剪，电链锯，电动螺丝刀，电动钉枪，电动喷枪，脚踏开关等也可应用于各类家用电器及办公设备，如：碎纸机，微波炉，水泵浮球开关，游戏摇杆，门开关等。
◆ MS01 series are one standard micro switches, contact gap≥ 3.0mm, commonly for used in all kinds of power-tools and gardening tools, such as Cut-off Machines, Miter Saws, Electric Chain Saws, Grass Trimmers, Hedge Trimmers, Electric Screw Drivers, Electric Nailers, Electric Sprayers, High Pressure Cleaner, etc. Also for used in home appliances and office equipments, such as Paper Shredders, Microwave Ovens, Pumps Ball Cock Switches, Game Control Handles, Door Switches, etc.

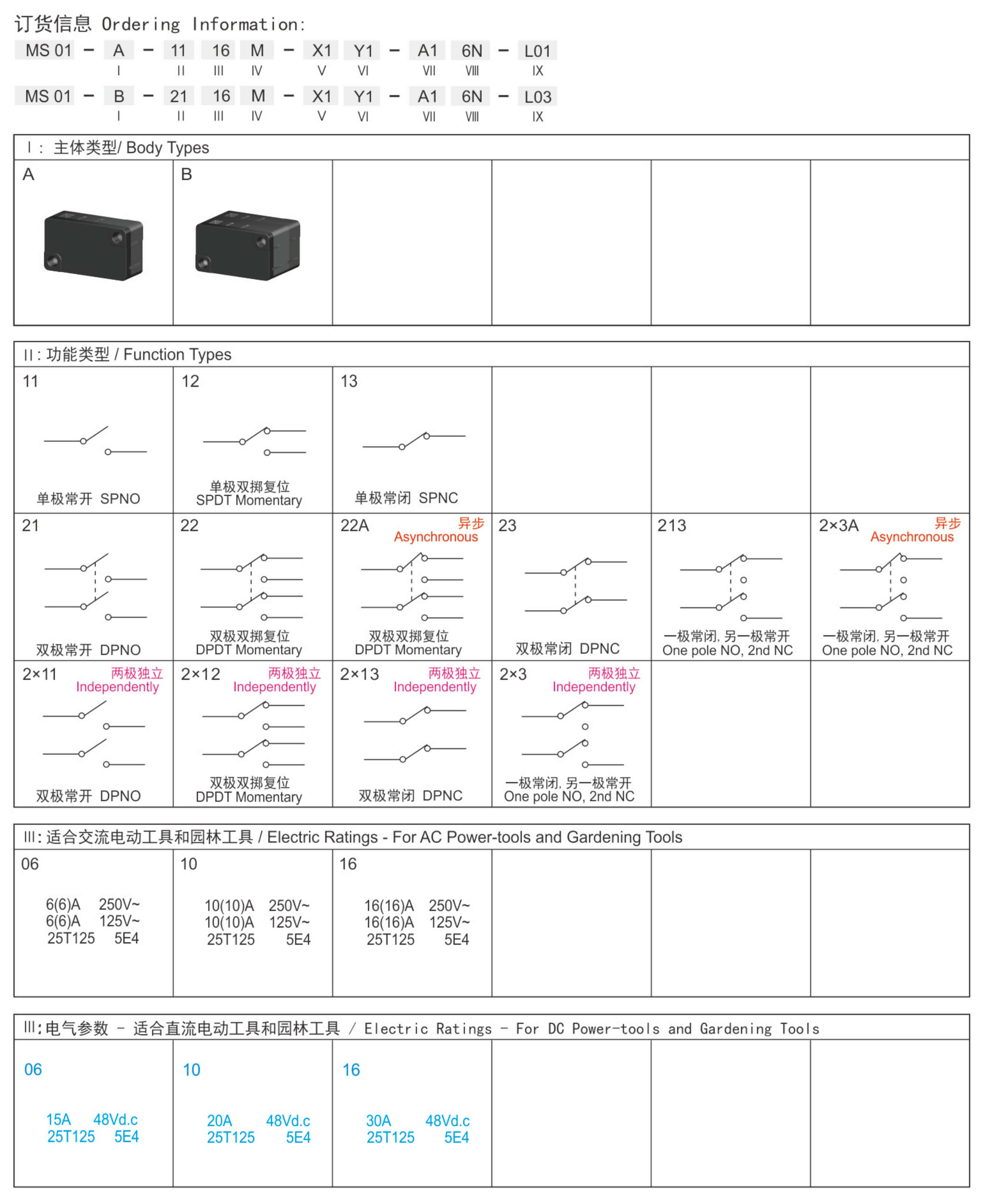

◆ 可附带以下功能 Optional with the function as follows:
→ 单极常开 SPNO (Single Pole Normally Open)
→ 单极常闭 SPNC (Single Pole Normally Close)
→ 单极常闭常开 SPCO (Single Pole Close and Open)
→ 双极常开 DPNO (Double Pole Normally Open)
→ 双极常闭 DPNC (Double Pole Normally Close)
→ 双极常闭常开 DPCO (Double Pole Close and Open)
→ 双极常闭常开异步 DPCO asynchronously (Double Pole Close and Open asynchronously)
→ 一极常开，另一极常闭 One Pole NO, the other NC
→ 一极常开，另一极常闭常开 One Pole NO, the other CO
◆ 可选附带以下附件 Optional with the accessories as follows:

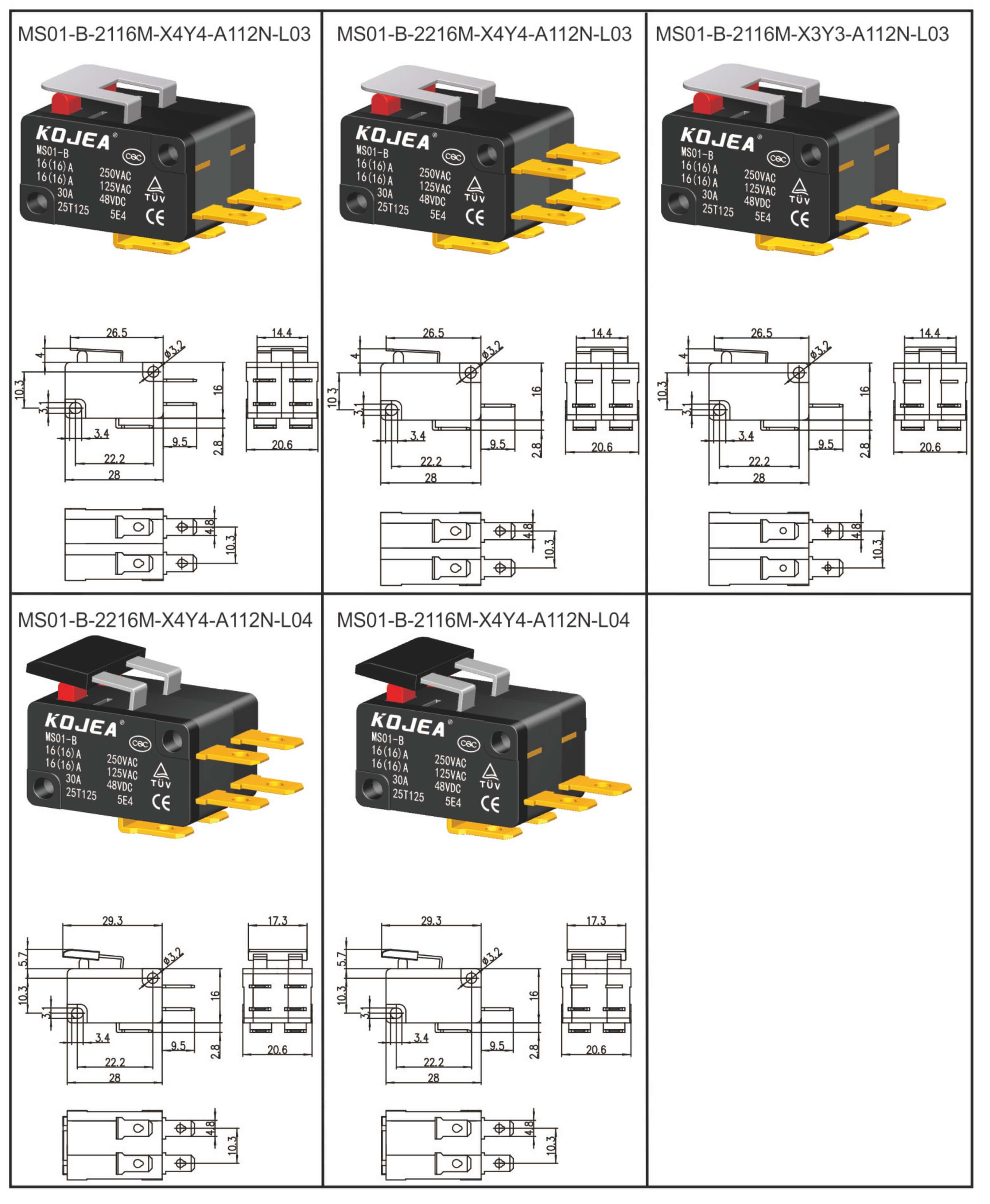

→ 压柄 Push Handle
| → 机械耐久寿命 Mechanical life endurance | ≥5E4 / 10E5 |
| → 电气耐久寿命 Electrical life endurance | ≥5E4 |
| → 最大冲击电流 Max. Inrush current at 250V | 84A |
| → 最大冲击电流 Max. Inrush current at 125V | 120A |
| → 接触电阻 Contact resistance | ≤30m Ohm |
| → 绝缘电阻 Insulation resistance | ≥7M Ohm |
| → 基本介电强度 Dielectric strength of function | 1500V |
| → 加强介电强度 Dielectric strength of reinforced | 3000V |
| → 环境温度 Ambient temperature | 0℃~55℃ |
| → 环境温度 Ambient temperature | -25℃~125℃ |
| → 阻燃等级 Flammability | UL 94V-0 |
| → 防护等级 Protection type | IP40 |
| → 适用于II类防护器具 Suitable for appliances of protection class II | |
| → 开关操作力选择范围 Operating force range | 3N~10N |
| → 开关内部触点间隙 Contact gap range | 0.8~0.3mm |

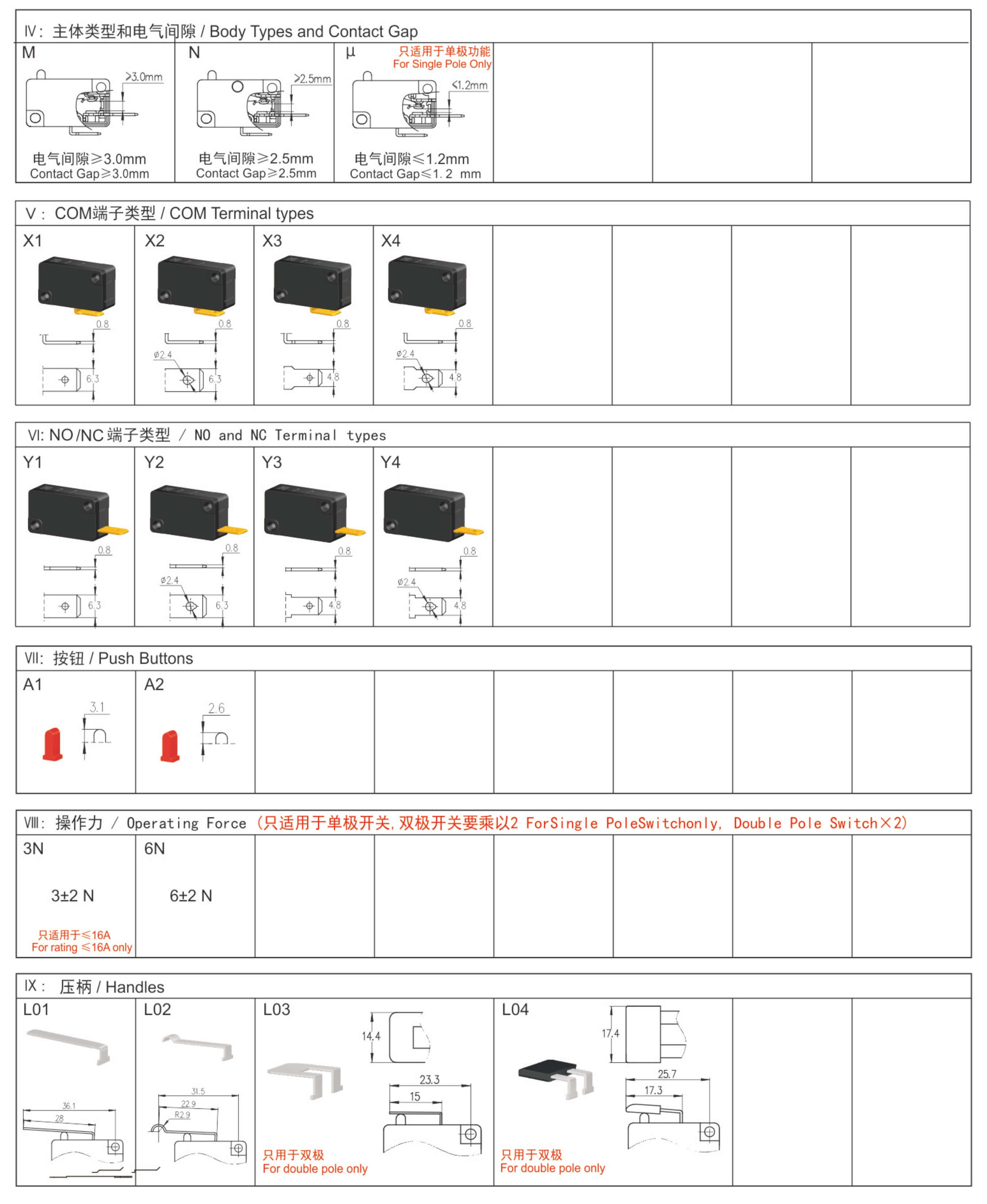

◆ COM, NO, NC端子 Terminals:
→ 插片端子 Plug-in terminals 6.3×0.8mm
→ 插片端子 Plug-in terminals 4.8×0.8mm
→ 插片端子 Plug-in terminals 4.8×0.5mm
→ 焊接端子 Solder terminals
→ 线路板焊接段子 PCB Solder terminals
★ 本产品荣获实用新型专利
★ Utility Model patented
