PS1007-170IF 10.0*10.0 series

列表.png Large handle area for enhanced stability

列表.png Reflow solderable

列表.png Smart Home Security Locks

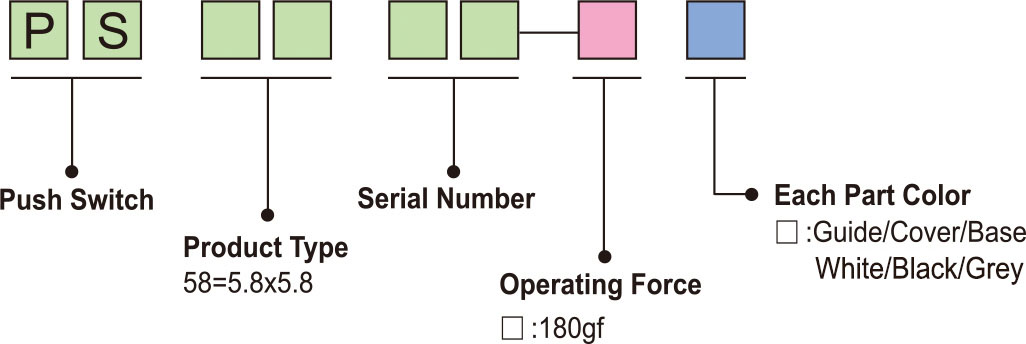

Ordering Information.jpg

Items		Standard
Operating temperature range		-40℃ to +85℃
Storage temperature range		-40℃ to +90℃
Electrical performance	Rating	100mA, 12V DC
	Insulation resistance	100MΩ min. 100V DC
	Dielectric strength	250V AC for 1 min.
	Contact resistance	100mΩ max.
Durability	Lifetime	10,000 Cycles
Mechanical performance	Actuating Force	500 ± 100 gf
Mechanical performance

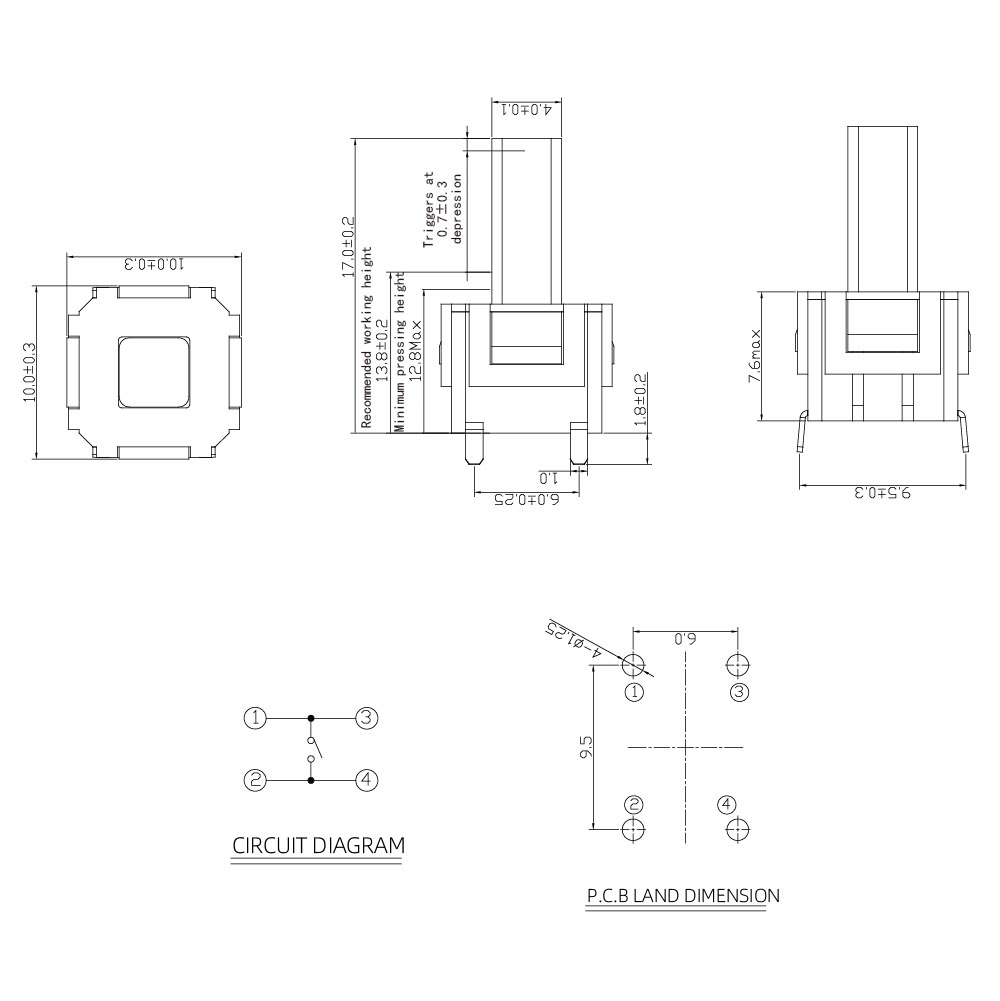

Specifications Diagram.jpg
