操作柄面积大更加稳定 (Large handle area for enhanced stability)
可回流焊接 (Reflow solderable)
智能家居: 智能门锁 (Smart Home Security Locks)
| 项目 Items | 参数 Standard | |
|---|---|---|
| 工作温度范围 Operating temperature range | -40℃ to +85℃ | |
| 保存温度范围 Storage temperature range | -40℃ to +90℃ | |
| 电气性能 Electrical performance | 额定电流 Rating | 100mA, 12V DC |
| 绝缘电阻 Insulation resistance | 100MΩ min. 100V DC | |
| 介电强度 Dielectric strength | 250V AC for 1 min. | |
| 接触电阻 Contact resistance | 100mΩ max. | |
| 耐用性 Durability | 寿命 Lifetime | 10,000 Cycles |
| 机械性能 Mechanical performance | 动作力 Actuating Force | 500 ± 100 gf |

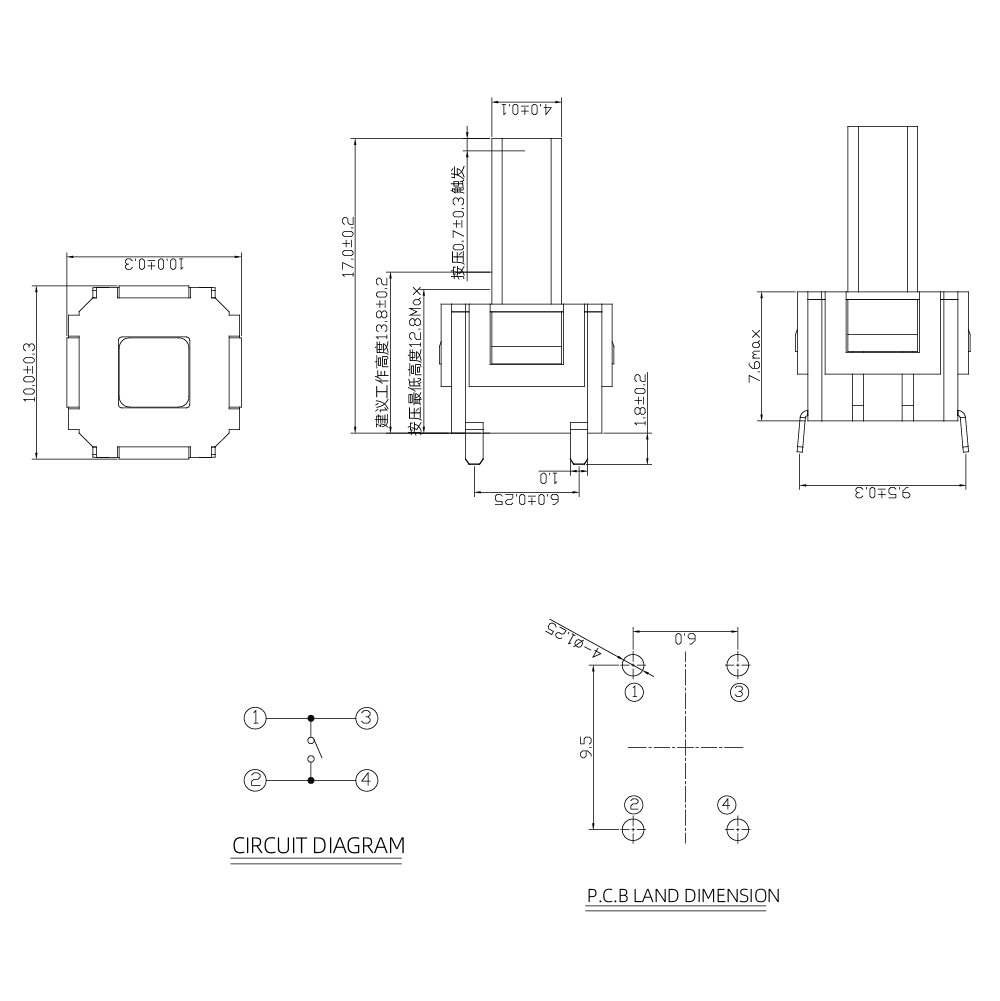

| 行程 Travel | 参考产品图纸 | |
