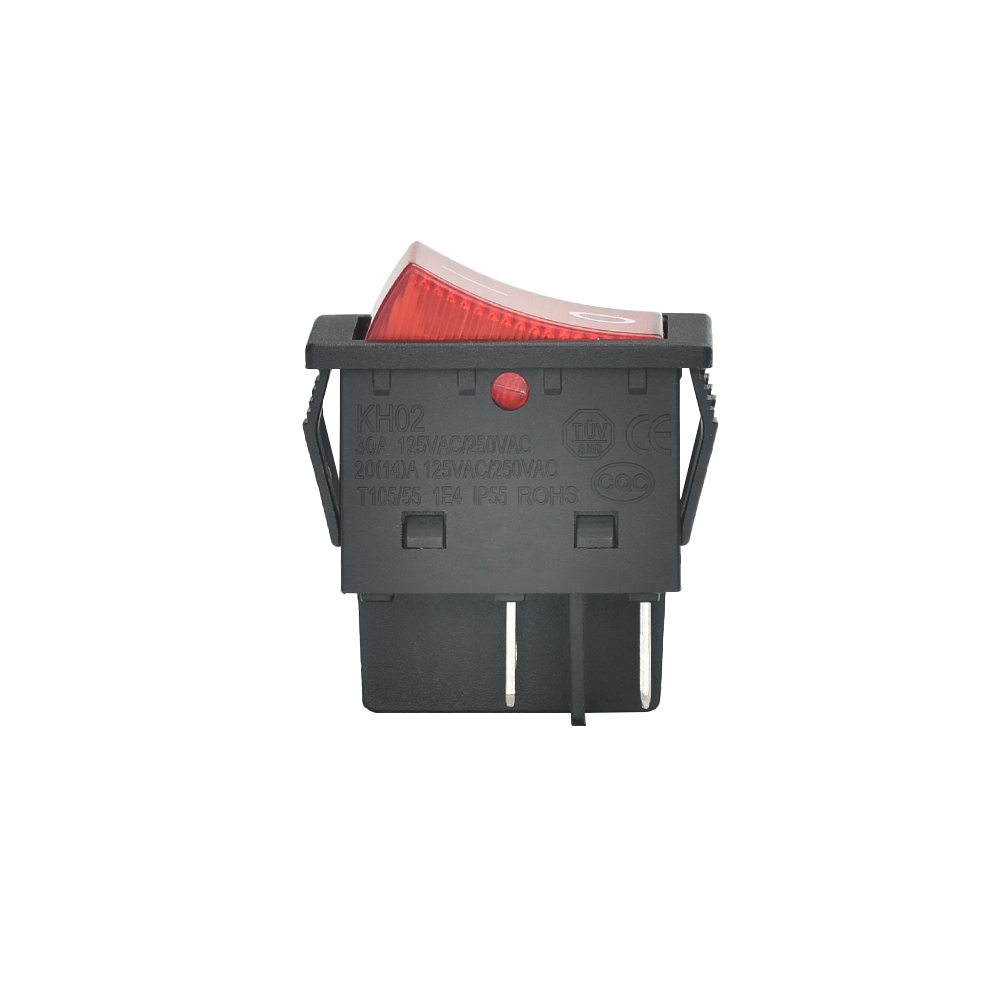

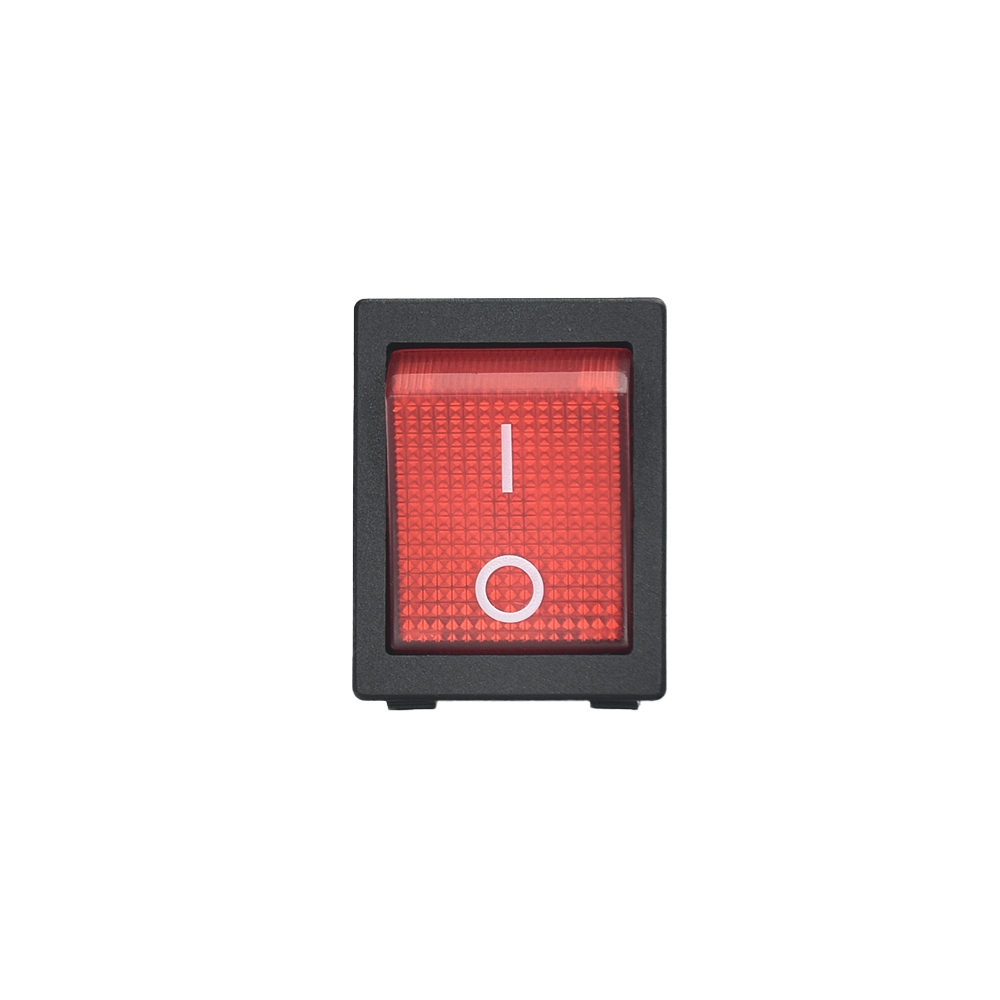

| Item | Rocker Switch |
| Housing Mterial | PA66 |
| Button Material | PC |
| Rating | 20A250VAC/10A125VAC/35A20VDC |
| Ambient Temperature | -10℃~+85 ℃ |
| Operating Temperature | -25℃~+85 ℃ |
| Contact Resistance | <50MΩ |
| Insulation Resistance | >10000 MΩ |
| Electrical Life | >50000 Cycles |
| Mechanical Life | >10000 Cycles |
| Ways And Pins | 1 Way and 4 Pins |
| Contacts | Copper with compound silver |
| Terminals & Mid pins | Copper with silver plated |
