Smaller size makes better heat convection during PC board wave soldering;
Top tape sealed to withstand wave soldering,board washing;
All plastics are UL 94V-0 grade fire retardant;
Gold plated contact to ensure low contact resistance and long mechanical life.
Hand-held electronic devices, such as PDA,MP3,radios;
Portable computer and electronic devices,such as notebook,computers;
Instrumentation and industrial control products,such as CDROM, coin changers
| Items | Standard | |
|---|---|---|
| Environmental | Operating temperature range | -20℃ to +85℃ |
| Storage Temperature Range | -40℃ to +85℃ | |
| Electrical performance | Electrical Life | 2,000 Operations |
| Non-Switching Rating | 100mA, 50VDC | |
| Switching Rating | 25mA, 24VDC | |
| Mechanical performance | Mechanical Life | 2,000 Operations |
| Operating force | 1,000gf max. | |
| Travel | 1.0mm | |

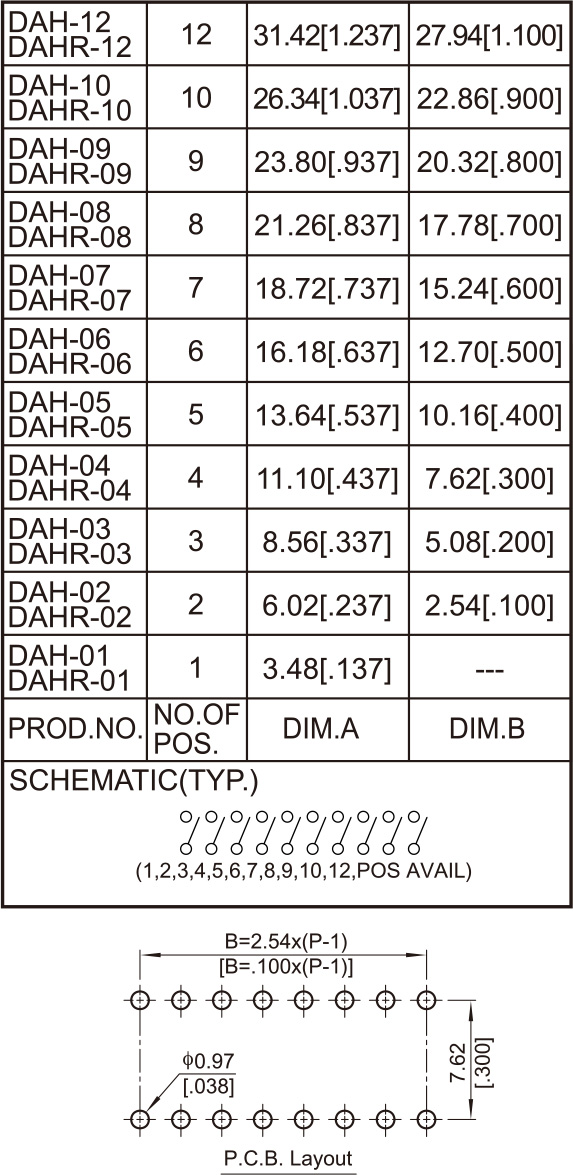

| Package | Tube | DAH(R)-01(-T):130pcs/tube DAH(R)-02(-T):76pcs/tube DAH(R)-03(-T):55pcs/tube DAH(R)-04(-T):42pcs/tube DAH(R)-05(-T):34pcs/tube DAH(R)-06(-T):29pcs/tube DAH(R)-07(-T):25pcs/tube DAH(R)-08(-T):22pcs/tube DAH(R)-09(-T):20pcs/tube DAH(R)-10(-T):18pcs/tube DAH(R)-12(-T):15pcs/tube |
