The switch sounds silvery, feeling and rhythm are perfect;

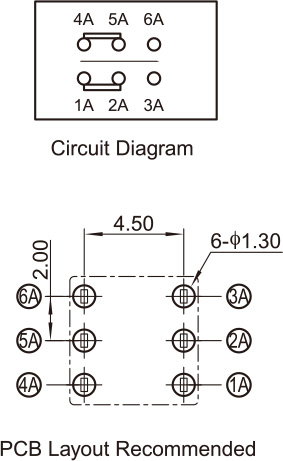

Contact ways:SPDT & DPDT;

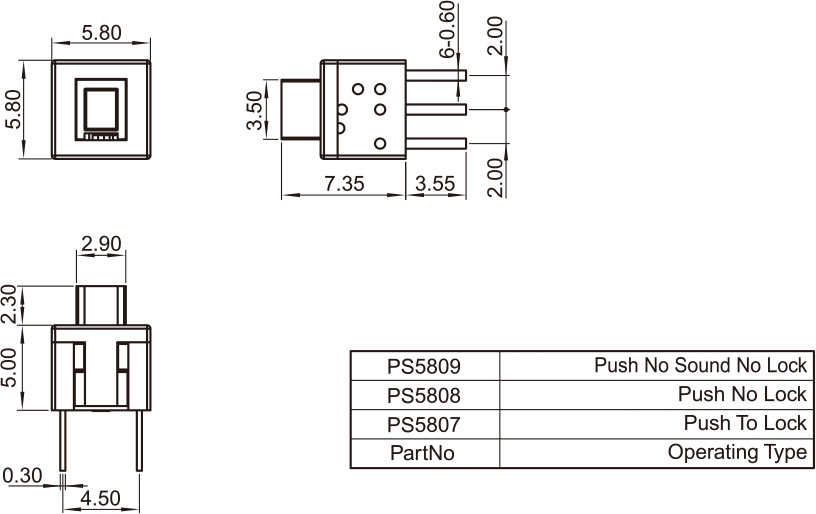

There are 2 operating modes:Self-Lock and Non-Lock;
The state of terminals and height of pushbutton can be designed according to customer's requirements;
The pushbutton switches can operate computer ancillary equipment, TV, audio equipment, all kinds of small autoimmunization equipment and instruments etc.
| Items | Standard | |
|---|---|---|
| Operating temperature range | -30℃ to +85℃ | |
| Electrical performance | Rating | 10mA. 30V DC |
| Insulation resistance | 100MΩ min. 500V DC | |
| Dielectric strength | 250V AC for 1 min. | |
| Contact resistance | 100mΩ max. | |
| Durability | Lifetime | 10,000 Cycles |
| Mechanical performance | Operating force | 180gf |
