返回列表TVAU29 3.0x3.5 垂直按压轻触开关

TVAU29

产品特征

Microminiature, light operating;
Goodfeeling and long life;
Snap-in type, can be mounted directly on P.C. Board and good for electrostatic discharge;
lt has a lot of choices for button shape and height and it is easily to install all kind of product.

产品应用

They can operate all types of electronic equipment such as the telephone, PDA, DVD, digital camera, audio equipment, instrument and meter equipment, autoimmunization equipments control etc.

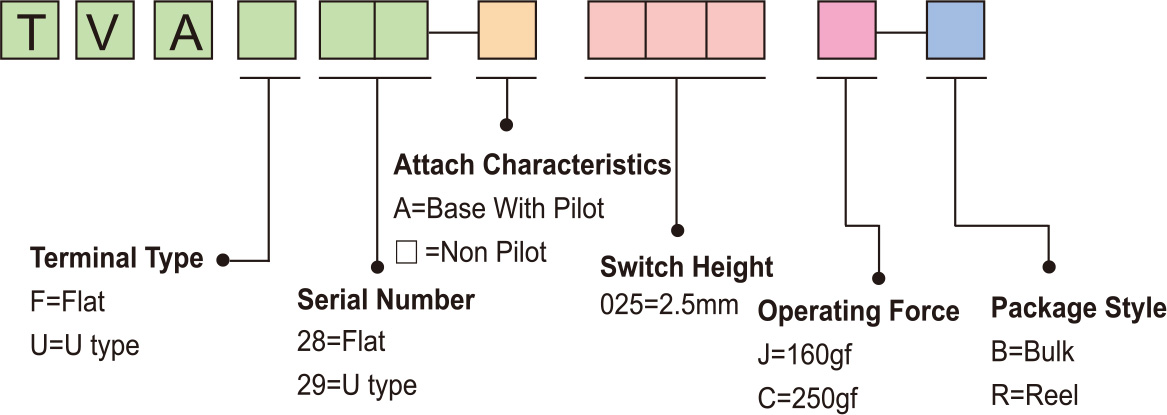

订货信息


技术参数

ItemsStandard
Operating temperature range-30℃ to +85℃
Electrical performanceRating50mA. 12V DC
Insulation resistance100MΩ min. 100V DC
Dielectric strength250V AC for 1 min.
Contact resistance100mΩ max.
DurabilityLifetime50,000 Cycles
Mechanical performanceOperating forceJ:160gf
C:250gf
Travel0.20 ± 0.1mm

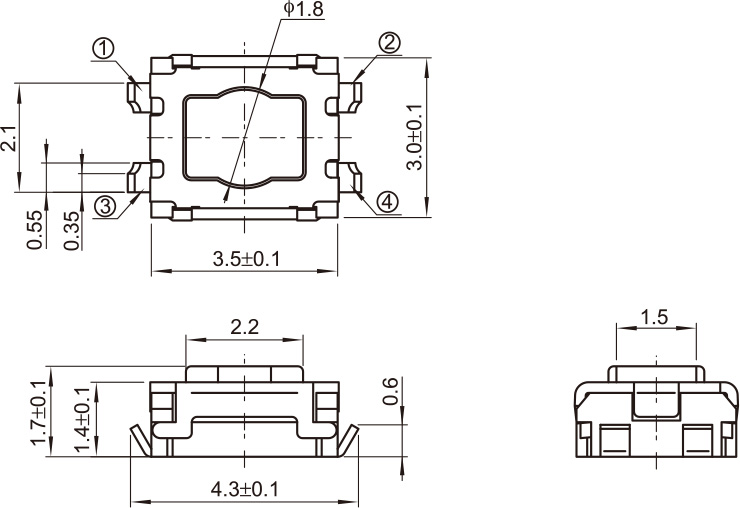

规格图

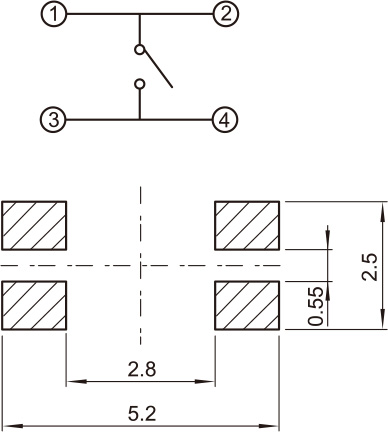

电路图
