◆ AT02 series are general type multi-speed trigger switches with by-passcontact, integrated dustproof, for popular used in portable power-tools such as: 6mm Drills, 10mm Drills, Impact Drills, Impact Screw Drivers, Rotary Hammers, Jig Saws, Electric Mixers, Orbit Sanders, etc. Also used for Foot switch of Hanging Carving Machine.

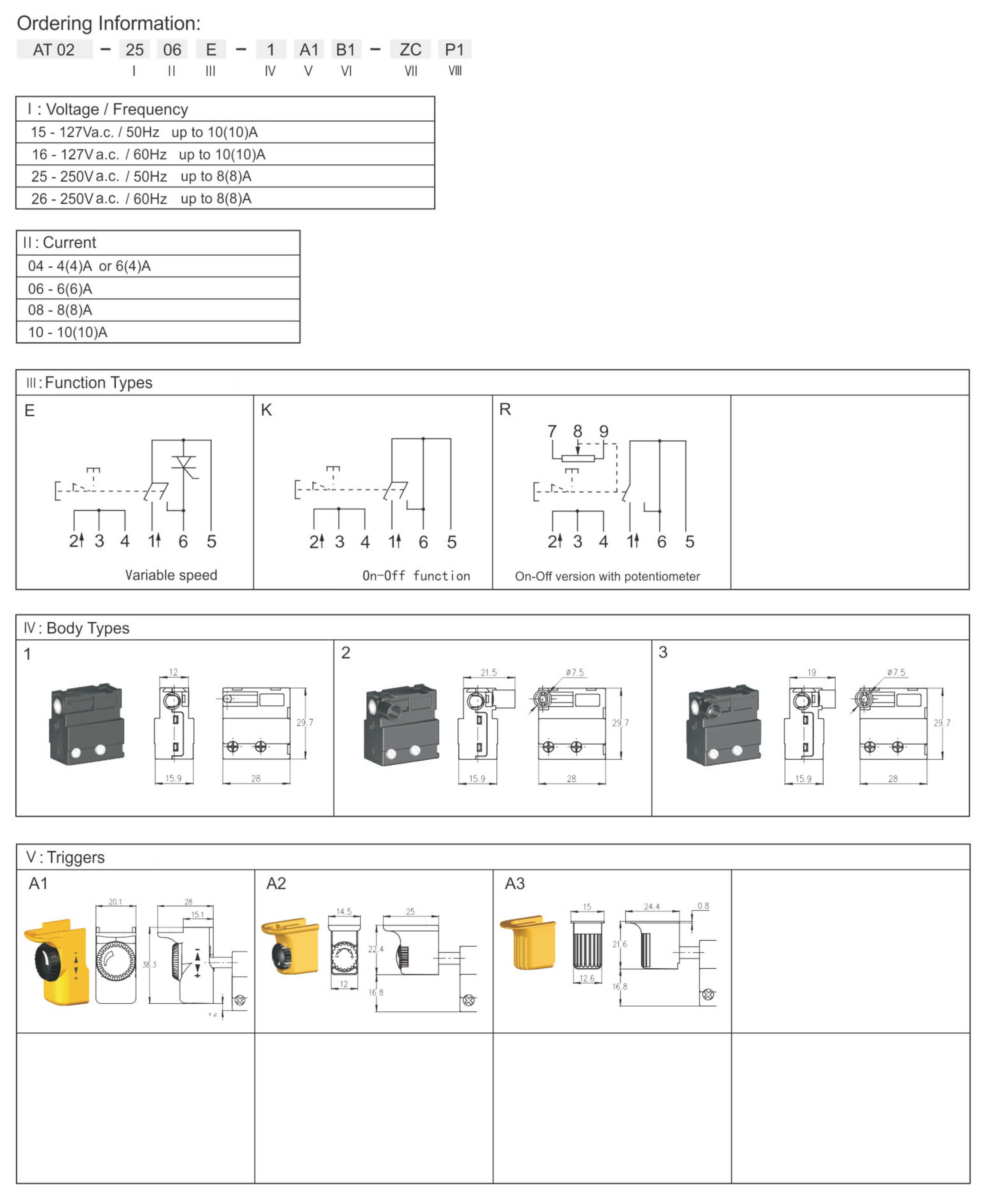

◆ Optional with the function as follows:
→ Full-wave speed control
→ Half-wave speed control
→ On-Off version
→ On-Off with Passive linear potentiometer
→ Speed limited in forward or reverse

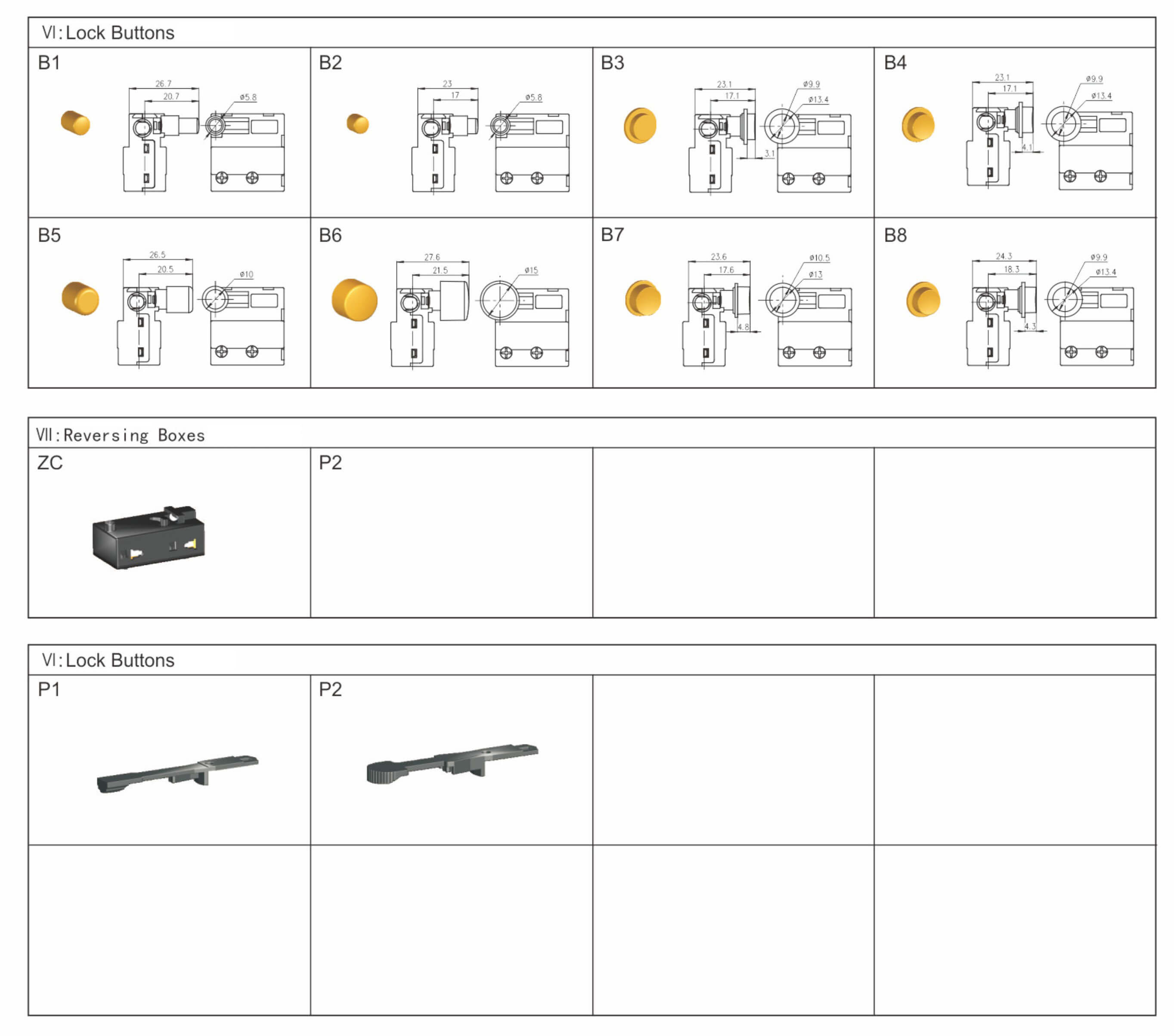

◆ Optional with Following lock types:
→ No Lock
→ Lock-on
◆ Optional with the accessor as follows:
→ Knob for adjusting start voltage
→ Dial wheel of Trigger
→ Rubberized Trigger (overmolding)
→ Triac or SCR connected to PCB externally, optional with heat-sink
◆ The electronics in the switches had to be tested together with the corresponding appliances, so the switches are suitable for appliance of class II.
◆ Input side:
→ Pillar teminal Φ=3mm
◆ Output side and Eeversing box side:
→ Push-in terminals for soldered strands, strands with end sleeves or strands with end claws
