◆ MS01 series are one standard micro switches, contact gap≥ 3.0mm, commonly for used in all kinds of power-tools and gardening tools, such as Cut-off Machines, Miter Saws, Electric Chain Saws, Grass Trimmers, Hedge Trimmers, Electric Screw Drivers, Electric Nailers, Electric Sprayers, High Pressure Cleaner, etc. Also for used in home appliances and office equipments, such as Paper Shredders, Microwave Ovens, Pumps Ball Cock Switches, Game Control Handles, Door Switches, etc.

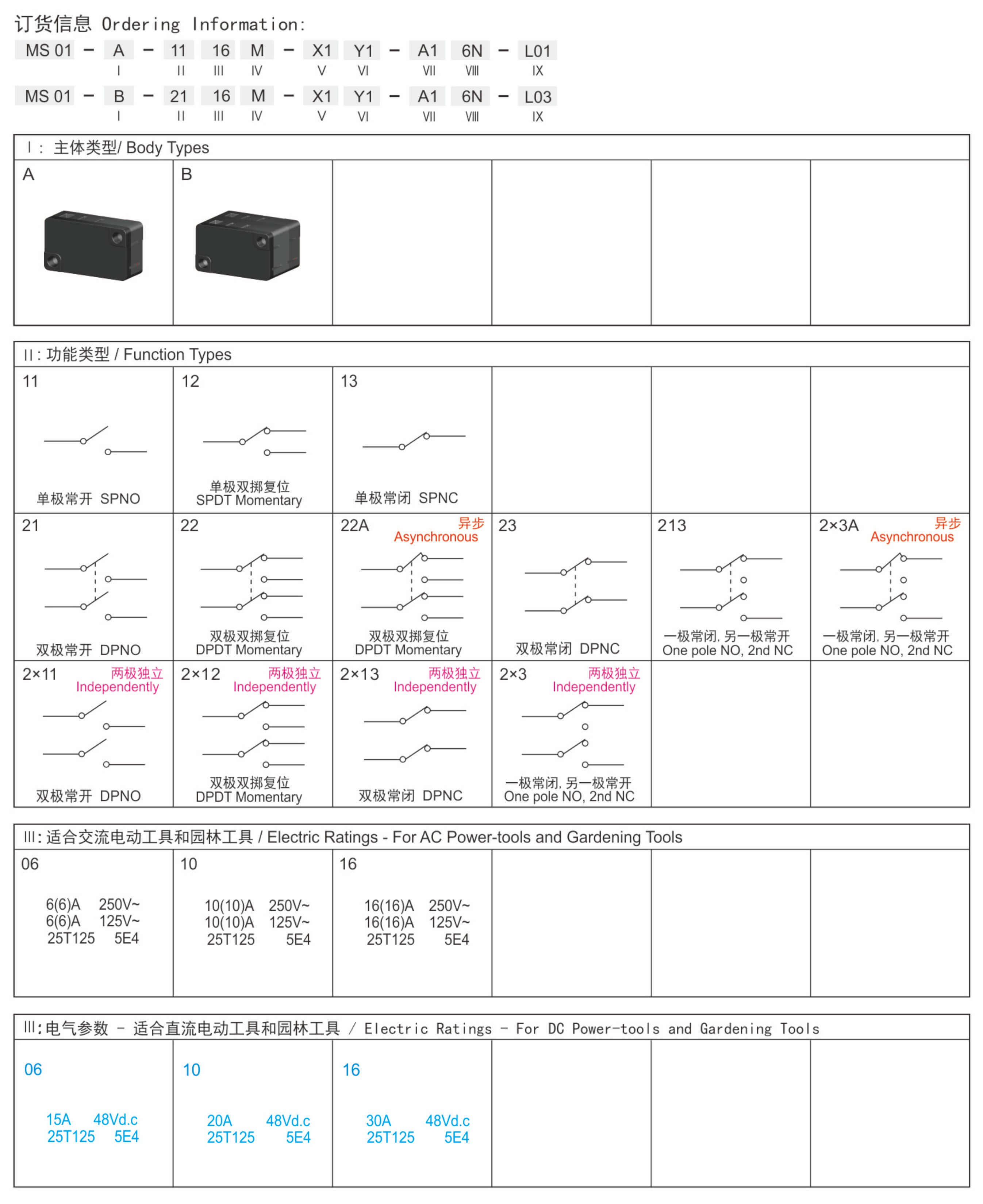

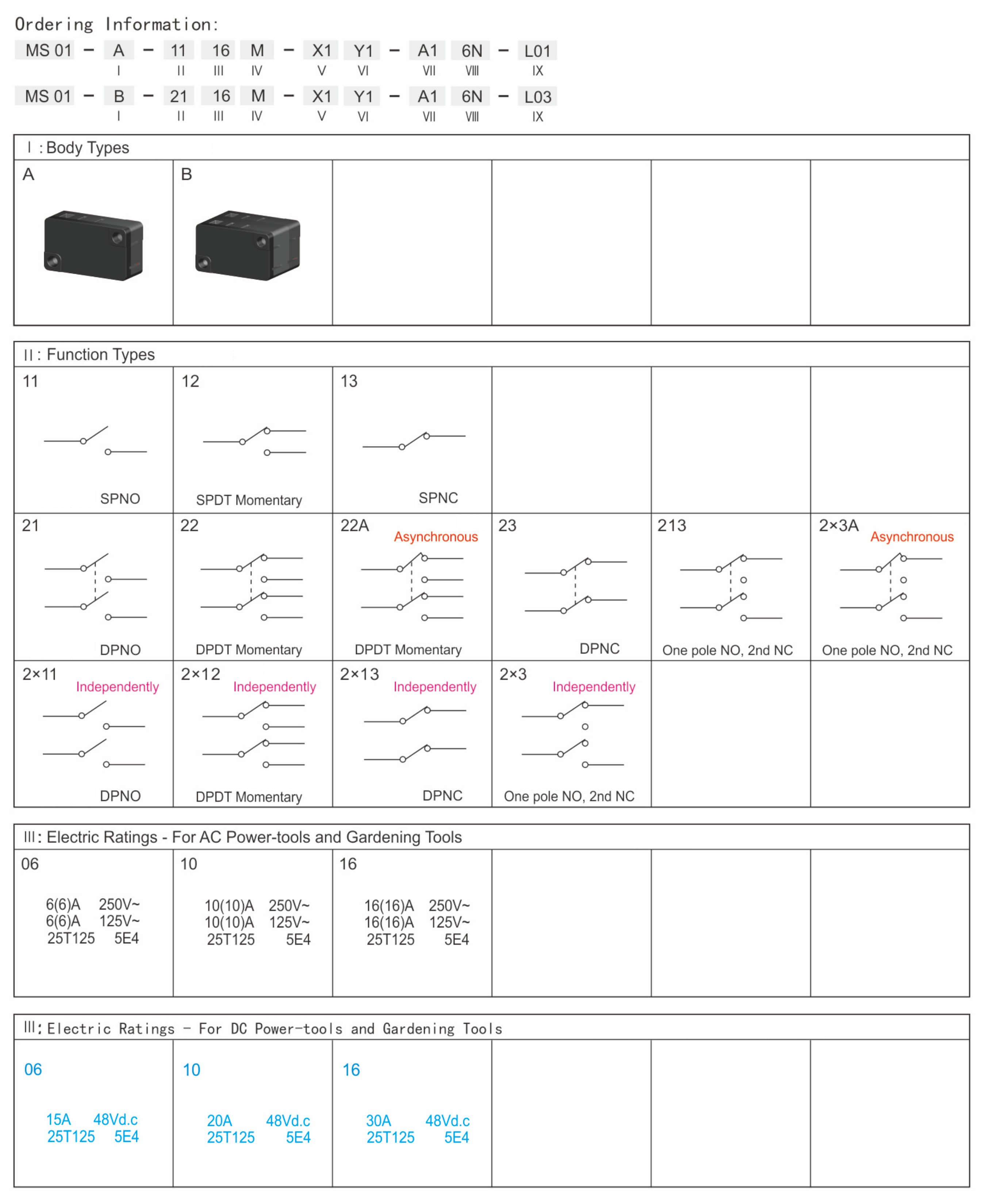

◆ Optional with the function as follows:
→ SPNO (Single Pole Normally Open)
→ SPNC (Single Pole Normally Close)
→ SPCO (Single Pole Close and Open)
→ DPNO (Double Pole Normally Open)
→ DPNC (Double Pole Normally Close)
→ DPCO (Double Pole Close and Open)
→ DPCO asynchronously (Double Pole Close and Open asynchronously)
→ One Pole NO, the other NC
→ One Pole NO, the other CO
◆ Optional with the accessories as follows:

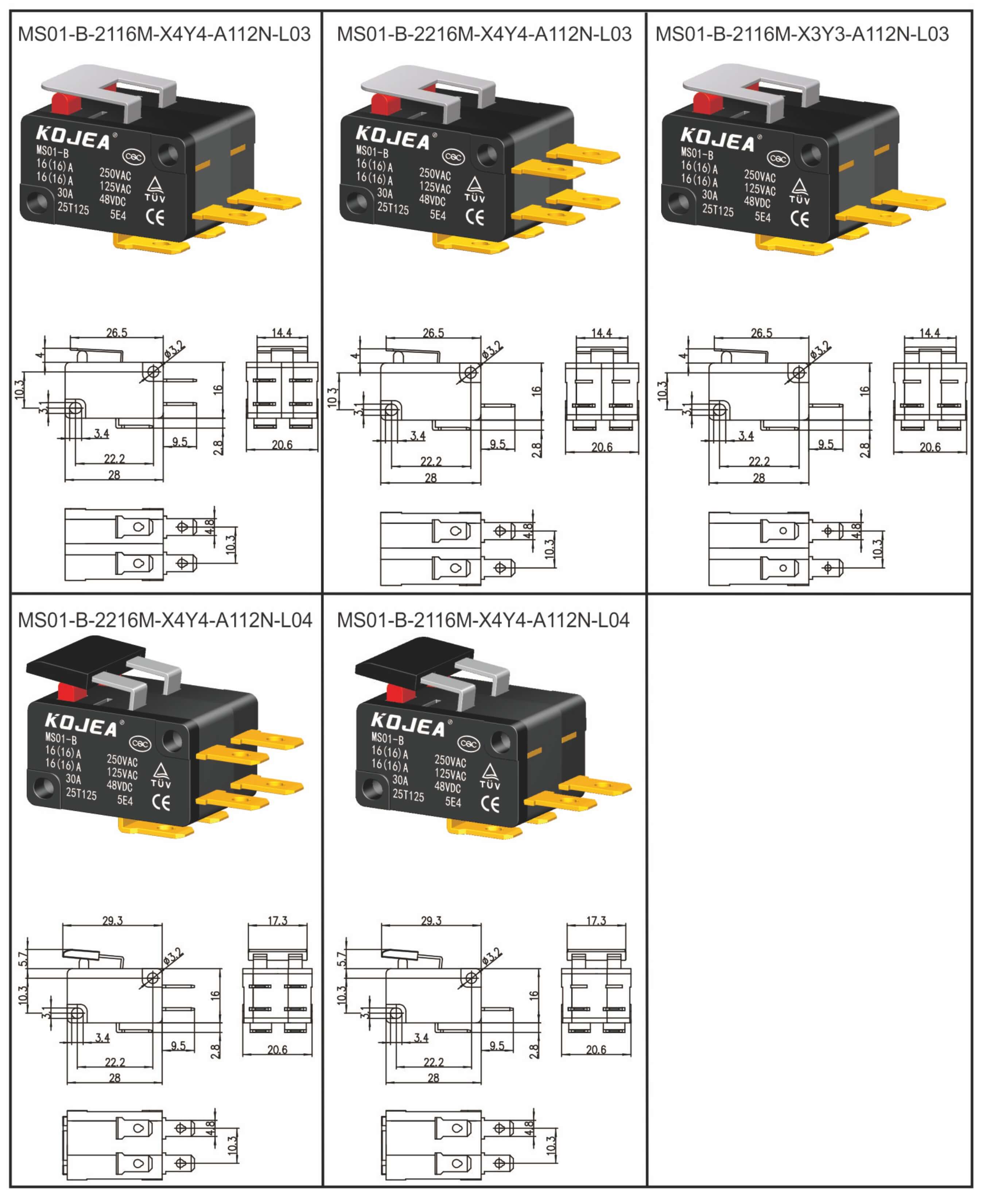

→ Push Handle
| → Mechanical life endurance | ≥5E4 / 10E5 |
| → Electrical life endurance | ≥5E4 |
| → Max. Inrush current at 250V | 84A |
| → Max. Inrush current at 125V | 120A |
| → Contact resistance | ≤30m Ohm |
| → Insulation resistance | ≥7M Ohm |
| → Dielectric strength of function | 1500V |
| → Dielectric strength of reinforced | 3000V |
| → Ambient temperature | 0℃~55℃ |
| → Ambient temperature | -25℃~125℃ |
| → Flammability | UL 94V-0 |
| → Protection type | IP40 |
| → Suitable for appliances of protection class II | |
| → Operating force range | 3N~10N |
| → Contact gap range | 0.8~0.3mm |

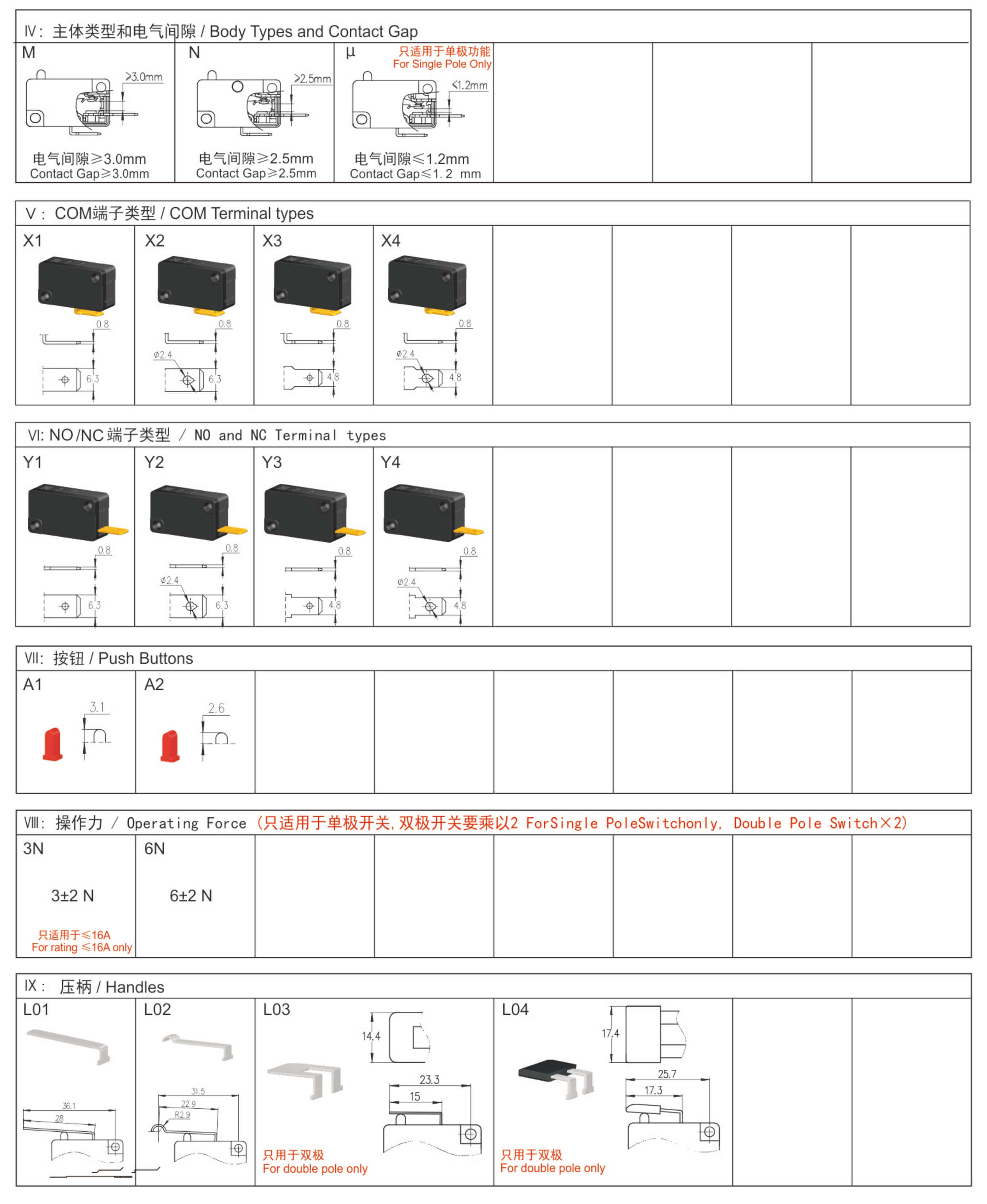

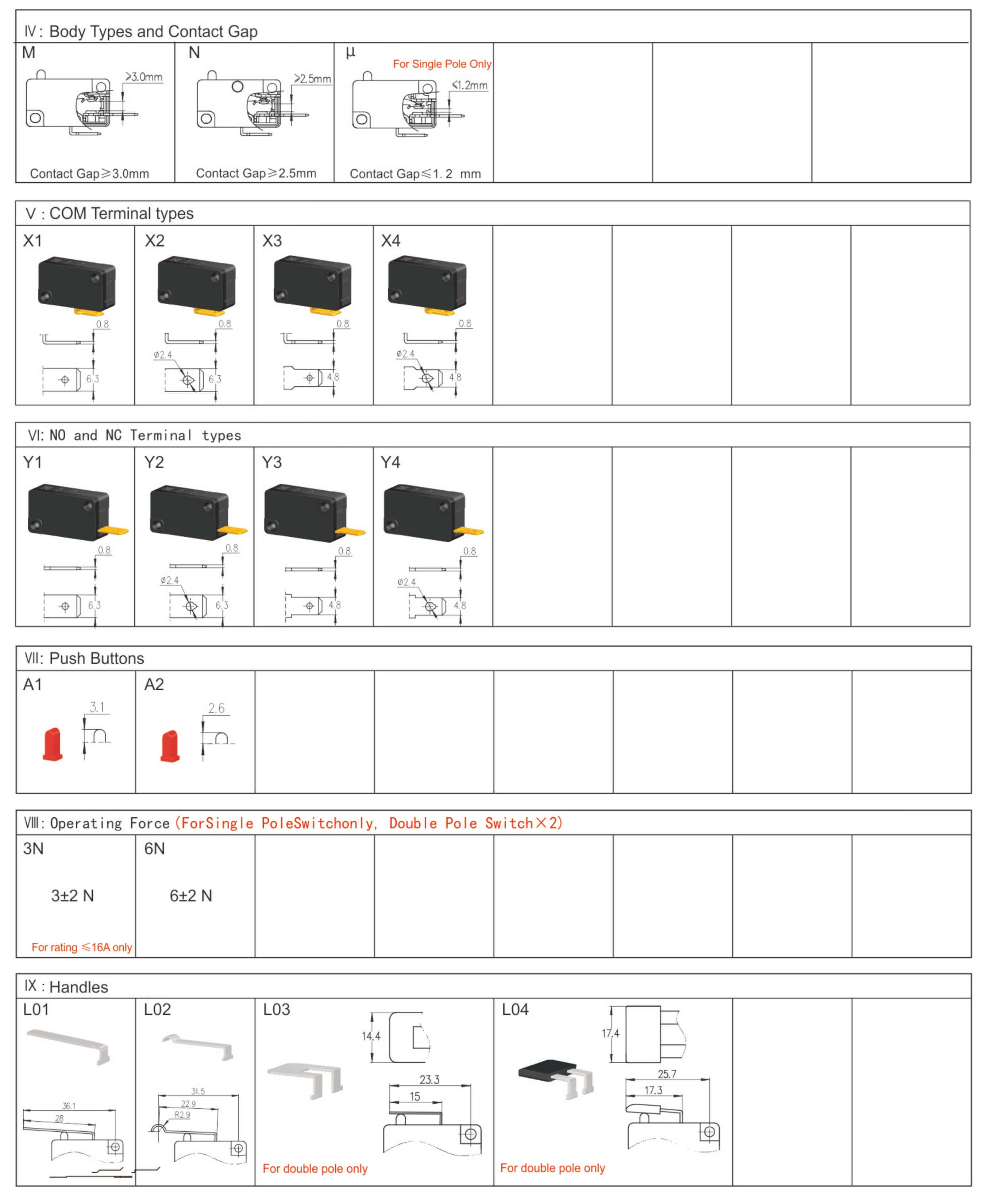

◆ Terminals:
→ Plug-in terminals 6.3×0.8mm
→ Plug-in terminals 4.8×0.8mm
→ Plug-in terminals 4.8×0.5mm
→ Solder terminals
→ PCB Solder terminals
★ Utility Model patented
