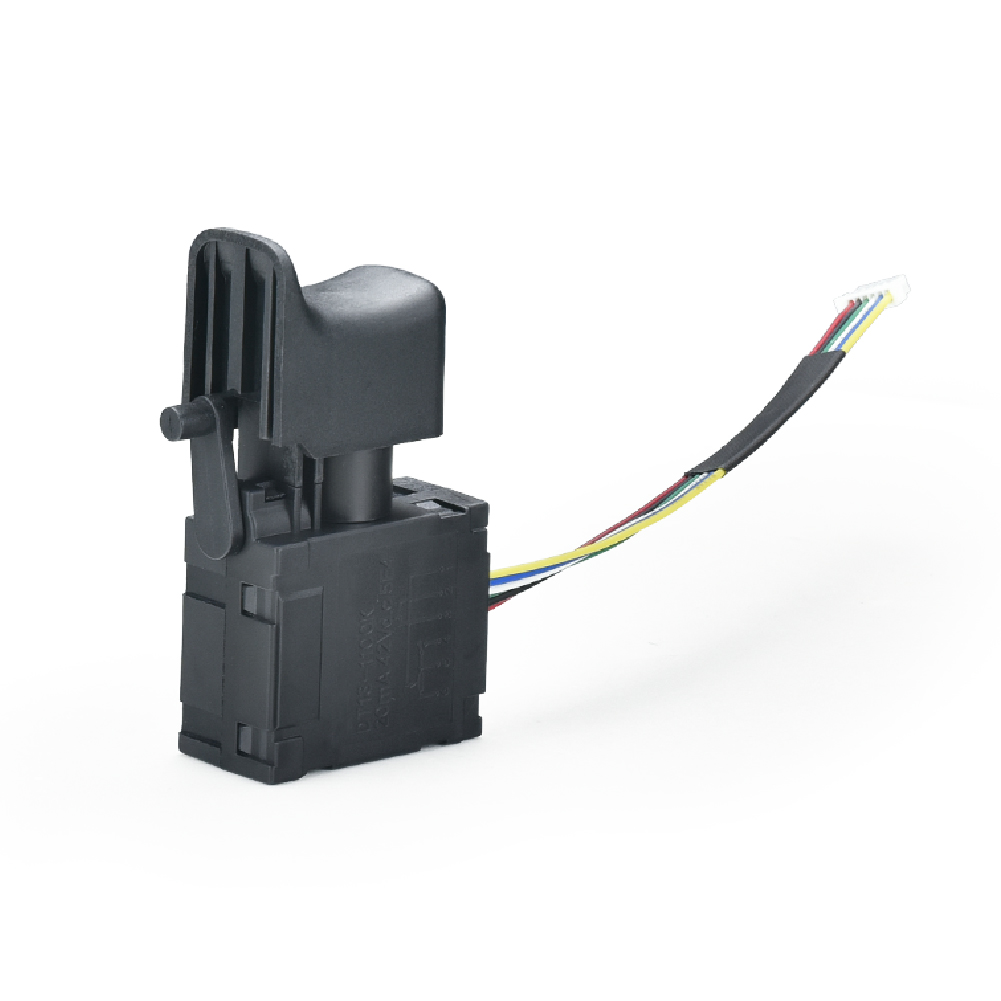

◆ DT05 系列是一款通用型的直流扳机开关，集成防尘功能和机械刹车接点，应用于各类直流充电式手持电动工具和园林工具，如：充电式电钻，充电式电锤，充电式螺丝起子，充电式冲击扳手，充电式吹吸机，充电式打草机等等
◆ DT05 series are general type DC trigger switches, integrated dustproof and mechnical brake contact, commonly for used in DC cordless portable power-tools and gardening power-tools such as: Cordless Drills, Cordless Screw Drivers, Cordless Blowers, Cordless Grass Trimmer,etc.
◆ 可附带以下附件： Optional with the accessor as follows:
→ 换向盒 Rversing box
→ 外接各种联接导线 Auxiliary wire output

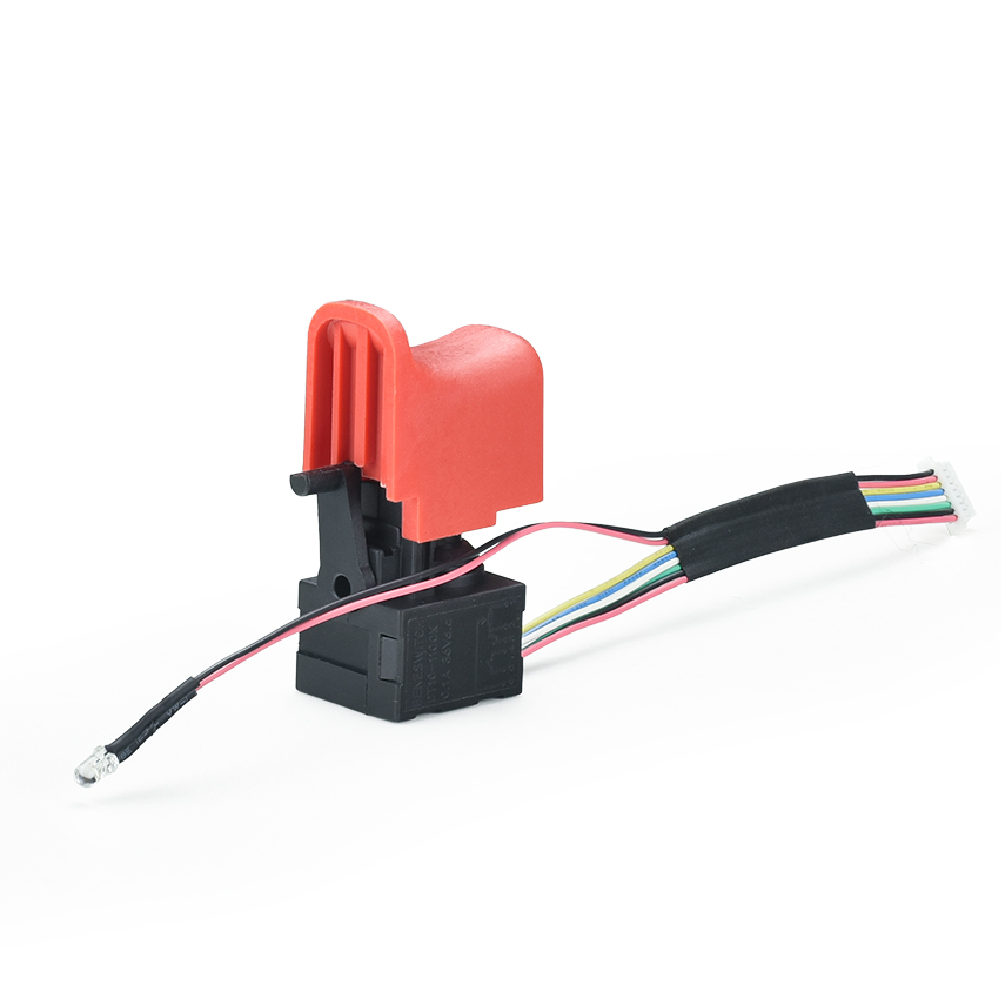

→ 带软胶扳机 Trigger coverde with rubber (overmolding)
| → 机械耐久寿命 Mechanical life endurance | ≥1E5 |
| → 电气耐久寿命 Electrical life endurance | ≥5E4 |
| → 最大电流 Max. current at 24Vd.c | 20A |
| → 接触电阻 Contact resistance | ≤30m Ohm |
| → 绝缘电阻 Insulation resistance | ≥7M Ohm |
| → 基本介电强度 Dielectric strength of function | 1300V |
| → 加强介电强度 Dielectric strength of reinforced | 2600V |
| → 环境温度 Ambient temperature | 0℃~55℃ |
| → 阻燃等级 Flammability | UL 94V-0 |
| → 防护等级 Protection type | IP40 |
◆ 开关内部电子部分在相应使用中一并做过相关测试，本开关适合做二类器具开关使用
◆ The electronics in the switches had to be tested together with the corresponding appliances, so the switches are suitable for appliance of class II.
◆ 输入端/输出端 Input side/Output side:
→ 焊接端子 Solder teminal
→ 沾锡导线 Wire with tin conductor
◆ 换向盒 Reversing Box:
→ 焊接端子 Solder teminal
→ 沾锡导线 Wire with tin conductor
◆ 电位器输出 Potentiometer Output:
→ 沾锡导线 Wire with tin conductor
→ 带插头导线 Wire terminal with Plug
