◆ DT01 系列是一款专用型的直流信号扳机开关，集成防尘功能，是特别为直流无刷充电式电动工具设计的，可适用于：无刷充电式电钻，无刷充电式电锤，无刷充电式螺丝起子，无刷充电式冲击扳手等。特殊设计的外形可以和线路板直接连接，而不需要外接导线。
◆ DT01 series are one special type DC signal trigger switches, integrated dustproof, designed specially for used in Brushless DC power-tools such as: Brushless Cordless Drills, Brushless Cordless Screw Drivers, Brushless Cordless Impact Wrenches, etc. With special design for assembly with PCB, needn't any wires.

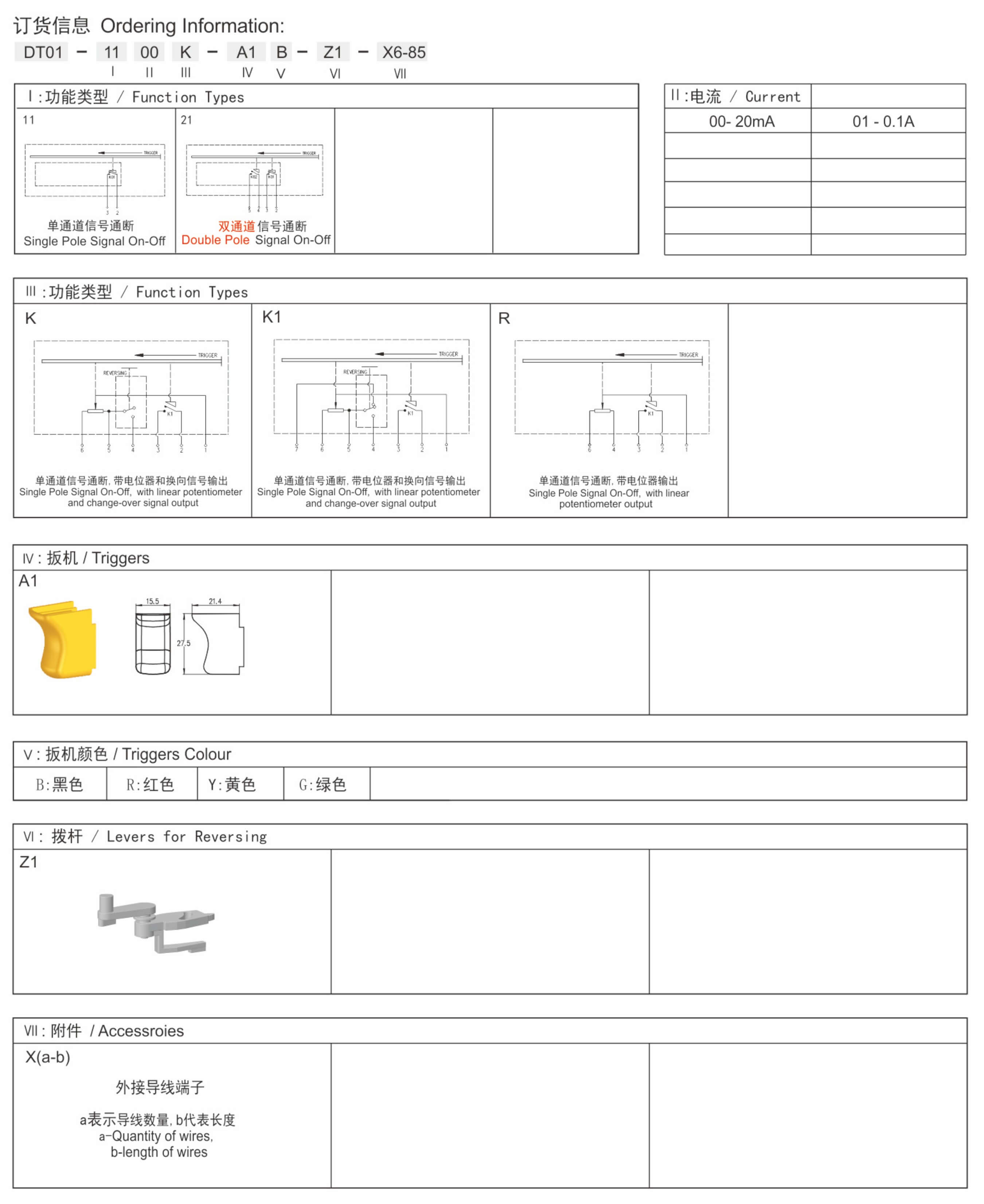

◆ 可附带以下功能或附件： Optional with the function or accessor as follows:
→ 信号通断带电位器输出功能 Single On-off version with linear potentiometer
→ 信号通断带正反转信号输出和电位器输出功能 Single On-off version with Reversing and linear potentiometer
→ 信号刹车 Single Brake
→ 带软胶扳机 Trigger covered with rubber (overmolding)
| → 机械耐久寿命 Mechanical life endurance | ≥5E4 |
| → 电气耐久寿命 Electrical life endurance | ≥1E4 |
| → 最大电流 Max. current at 42Vd.c | 0.1A |
| → 接触电阻 Contact resistance | ≤30m Ohm |
| → 绝缘电阻 Insulation resistance | ≥7M Ohm |
| → 基本介电强度 Dielectric strength of function | 500V |
| → 加强介电强度 Dielectric strength of reinforced | 500V |
| → 环境温度 Ambient temperature | 0℃~55℃ |
| → 阻燃等级 Flammability | UL 94V-0 |
| → 防护等级 Protection type | IP40 |
◆ 开关内部电子部分在相应使用中一并做过相关测试，本开关适合做二类器具开关使用
◆ The electronics in the switches had to be tested together with the corresponding appliances, so the switches are suitable for appliance of class II.
◆ 输入端/输出端 Input side/Output side:
→ 导线端子 Wire terminal
→ 带插头导线端子 Wire terminal with Plug
