Smaller size makes better heat convection during PC board wave soldering;
Top tape sealed to withstand wave soldering,board washing;
All plastics are UL 94V-0 grade fire retardant;
Gold plated contact to ensure low contact resistance and long mechanical life.
Hand-held electronic devices, such as PDA,MP3,radios;
Portable computer and electronic devices,such as notebook,computers;
Instrumentation and industrial control products,such as CDROM, coin changers
| Items | Standard | |
|---|---|---|
| Environmental | Operating temperature range | -20℃ to +70℃ |
| Storage Temperature Range | -40℃ to +85℃ | |
| Electrical performance | Electrical Life | 2,000 Operatios |
| Non-Switching Rating | 100mA, 50VDC | |
| Switching Rating | 25mA, 24VDC | |
| Mechanical performance | Operating force | 1,000gf max. |
| Travel | 2.0mm | |

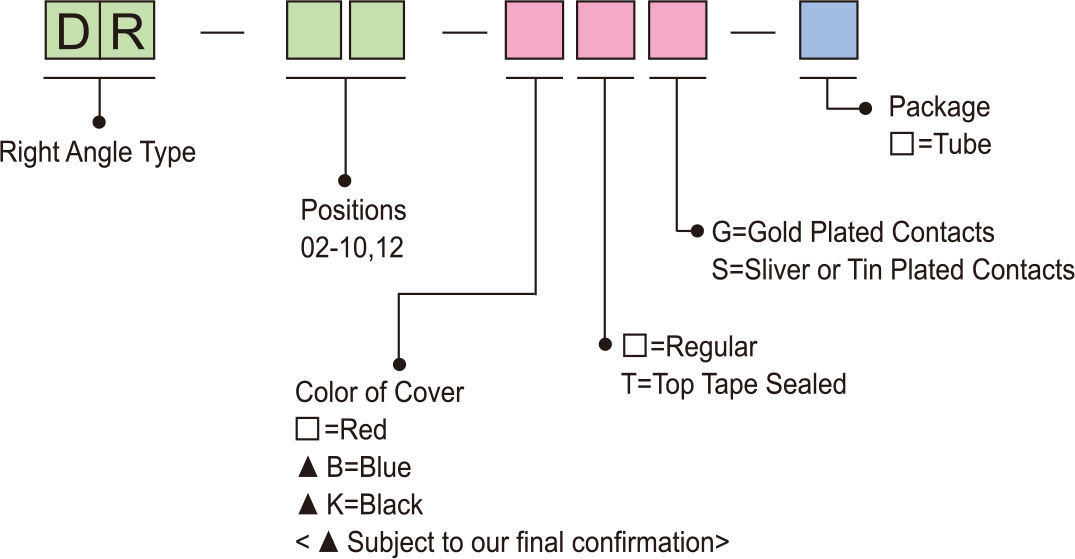

| Package | DR-02:73pcs/tube DR-03:52pcs/tube DR-04:40pcs/tube DR-05:33pcs/tube DR-06:28pcs/tube DR-07:24pcs/tube DR-08:21pcs/tube DR-09:19pcs/tube DR-10:17pcs/tube DR-12:14pcs/tube | DA-02-T:70pcs/tube DA-03-T:50pcs/tube DA-04-T:39pcs/tube DA-05-T:32pcs/tube DA-06-T:28pcs/tube DA-07-T:24pcs/tube DA-08-T:21pcs/tube DA-09-T:19pcs/tube DA-10-T:17pcs/tube DA-12-T:14pcs/tube |
