PS8510_8.5*8.5_Yueqing Kejian Electronics Co., Ltd.

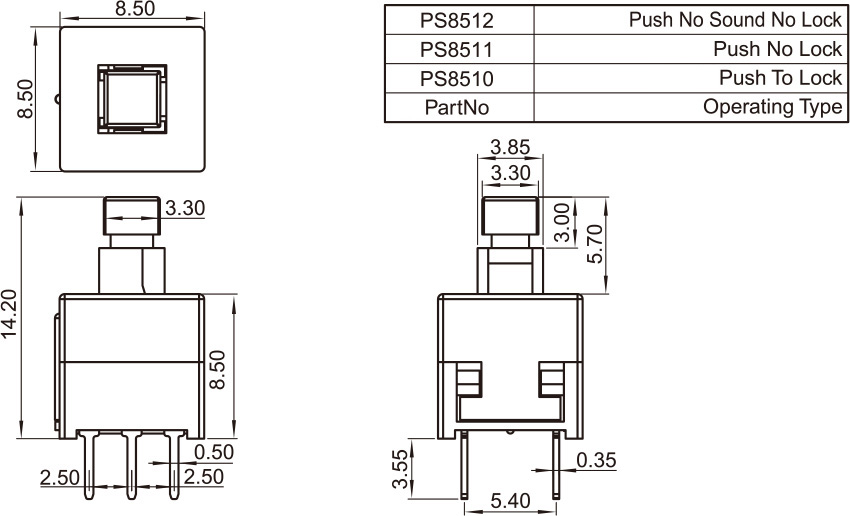

PS8510 8.5*8.5

Product Features

The switch sounds silvery, feeling and rhythm are perfect;
Contact ways:SPDT & DPDT;
There are 2 operating modes:Self-Lock and Non-Lock;
The state of terminals and height of pushbutton can be designed according to customer's requirements;

Product Applications

The pushbutton switches can operate computer ancillary equipment, TV, audio equipment, all kinds of small autoimmunization equipment and instruments etc.

Ordering Information

Ordering Information.jpg

Technical parameter

Items		Standard
Operating temperature range		-30℃ to +85℃
Electrical performance	Rating	10mA. 30V DC
	Insulation resistance	100MΩ min. 500V DC
	Dielectric strength	500V AC for 1 min.
	Contact resistance	100mΩ max.
Durability	Lifetime	10,000 Cycles
Mechanical performance	Operating force	240gf
