TMHM36 Multifunction Series

Product Features

列表.png Sharp click feel with a positive tactile feedback

列表.png Ultraminiature and light weight structure suitable for high density mounting, Economical but reliable

列表.png Insert molding in the contact with special treatment prevents flux build-up during soldering and permits auto-dipping

Product Applications

列表.png Can be used to operate various multifunctional electronic devices, such as cameras, digital cameras, digital camcorders, and small portable devices etc.

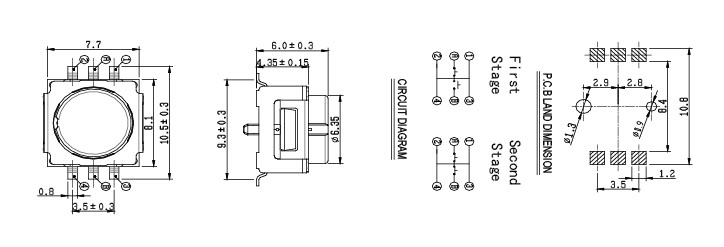

Ordering Information

Technical parameter

Items		Standard
Operating temperature range		-25℃ to +70℃
Electrical performance	Rating	100mA. 12V DC
	Insulation resistance	100MΩ min. 100V DC
	Dielectric strength	250V AC for 1 min.
	Contact resistance	100mΩ max.
Durability	Lifetime	10,000 cycles
Mechanical performance	Operating force	250±50gf
Mechanical performance	Travel	1st:0.40±0.20 mm 2st:0.85±0.30 mm
