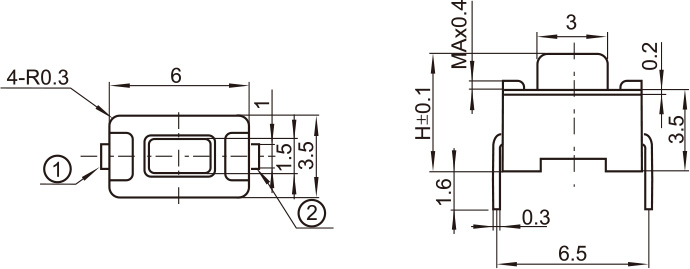

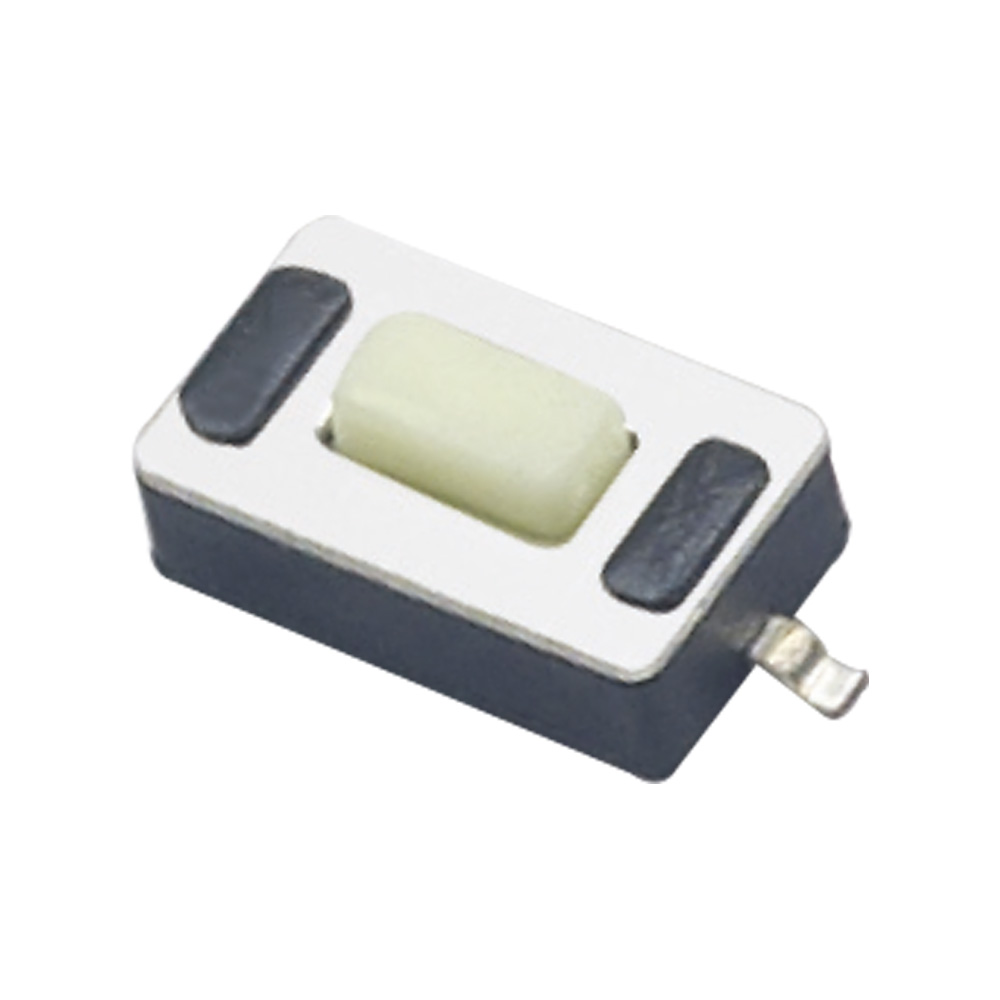

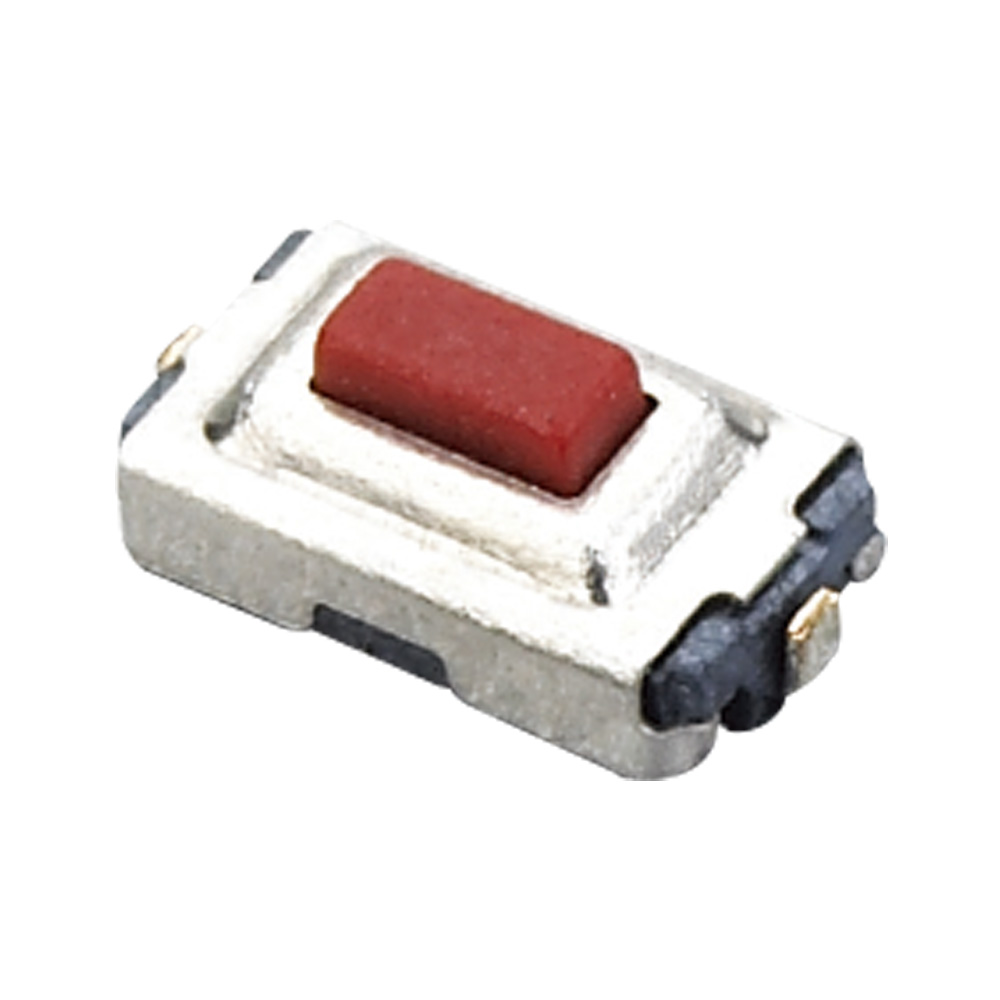

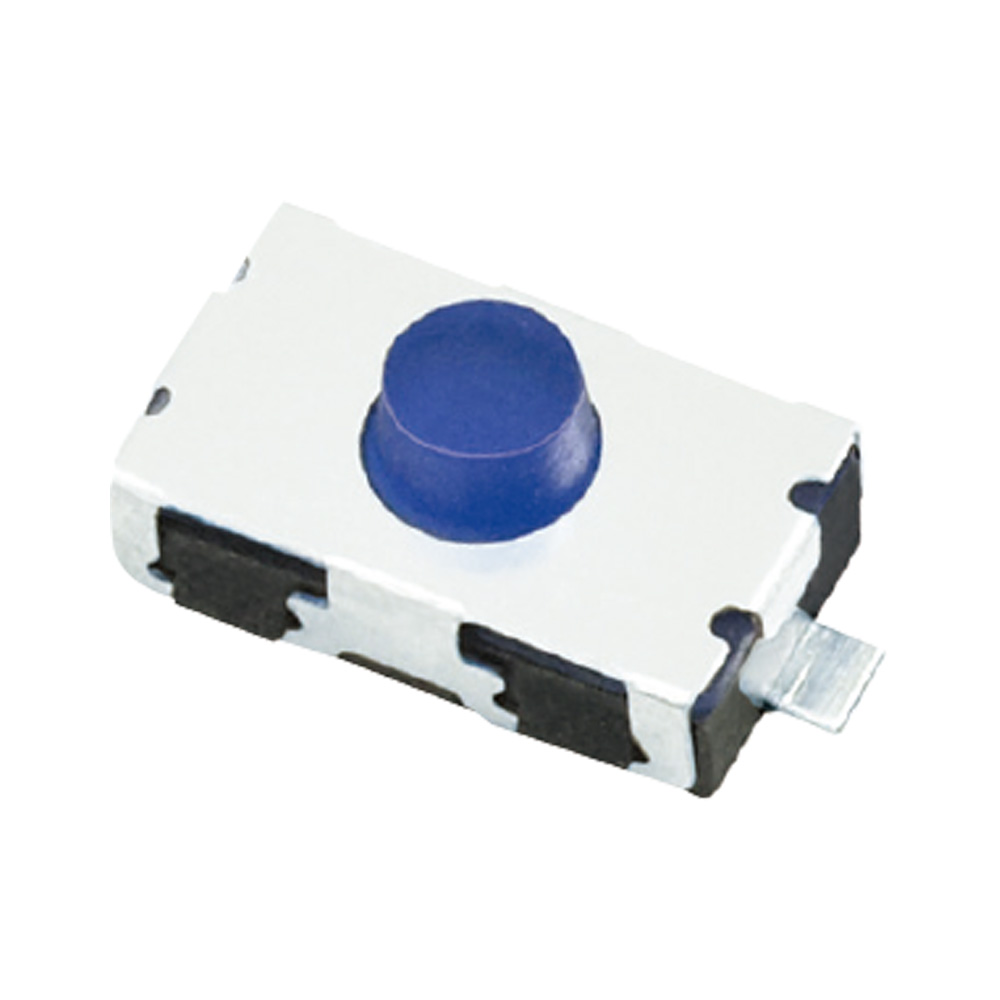

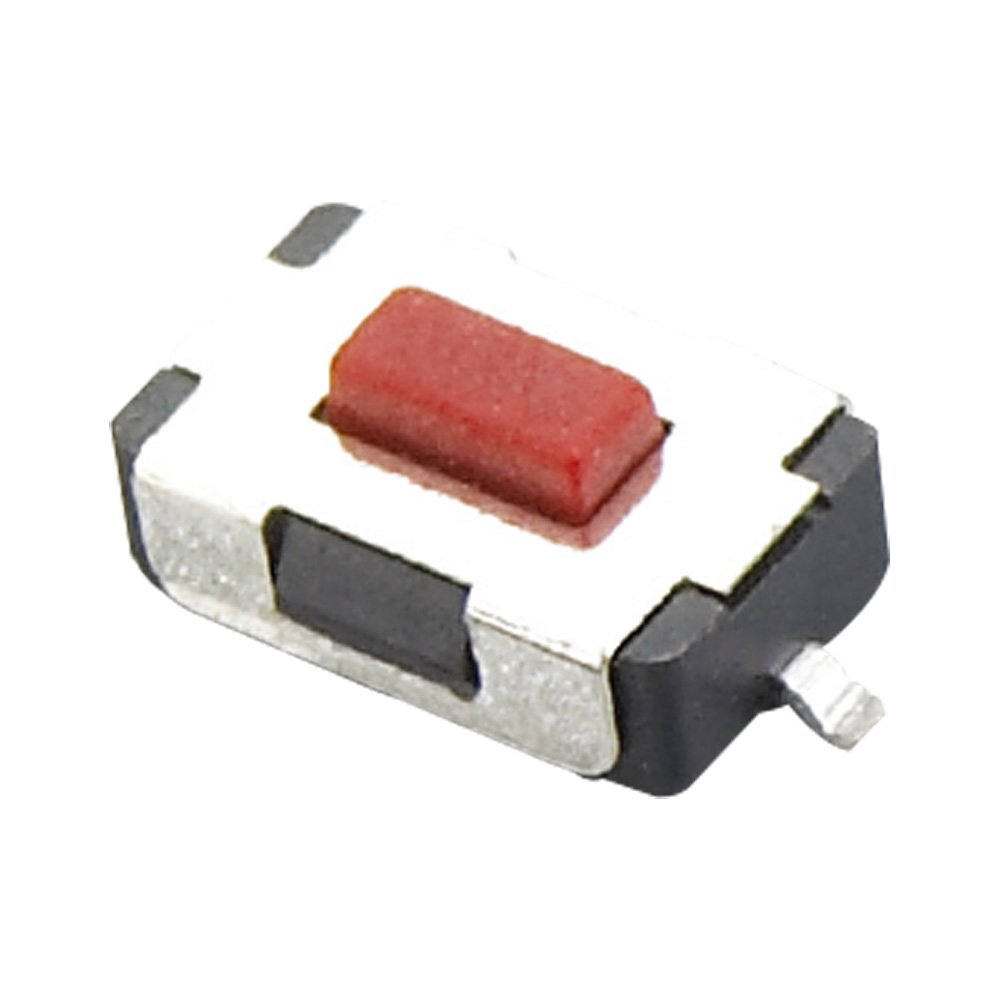

ReturnTVBJ12 3*6 Series

Product Features

Microminiature, light operating;
Goodfeeling and long life;
Snap-in type, can be mounted directly on P.C. Board and good for electrostatic discharge;
lt has a lot of choices for button shape and height and it is easily to install all kind of product.

Product Applications

They can operate all types of electronic equipment such as the telephone, PDA, DVD, digital camera, audio equipment, instrument and meter equipment, autoimmunization equipments control etc.

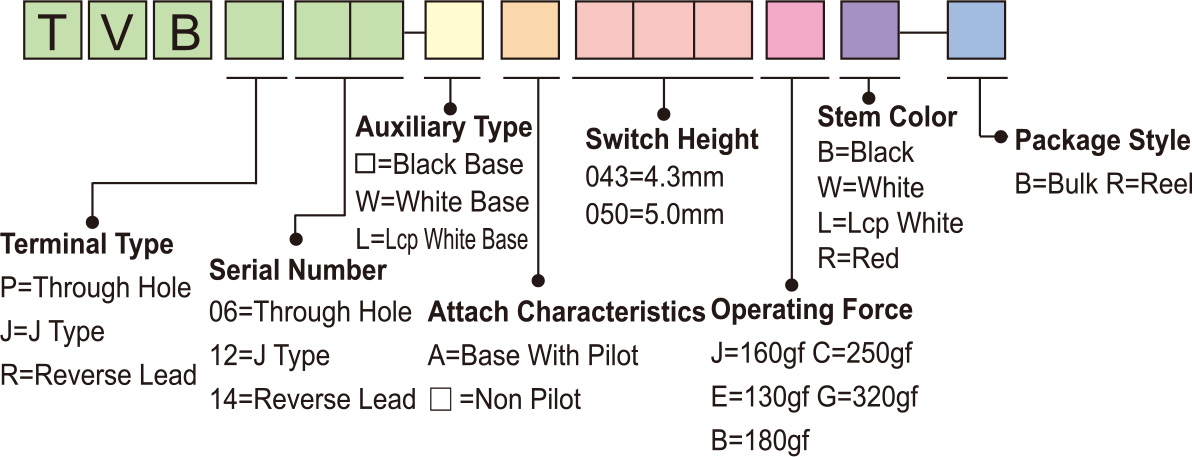

Ordering Information

Technical parameter

Items		Standard
Operating temperature range		-20℃ to +70℃
Electrical performance	Rating	50mA. 12V DC
	Insulation resistance	100MΩ min. 100V DC
	Dielectric strength	250V AC for 1 min.
	Contact resistance	100mΩ max.
Durability	Lifetime	D:E:J:50,000 Cycles C:30,000 Cycles
Mechanical performance	Operating force	J:160gf C:250gf D:70gf E:130gf B:180gf
Mechanical performance	Travel	0.25 ± 0.1mm
