◆ DT01 series are one special type DC signal trigger switches, integrated dustproof, designed specially for used in Brushless DC power-tools such as: Brushless Cordless Drills, Brushless Cordless Screw Drivers, Brushless Cordless Impact Wrenches, etc. With special design for assembly with PCB, needn't any wires.

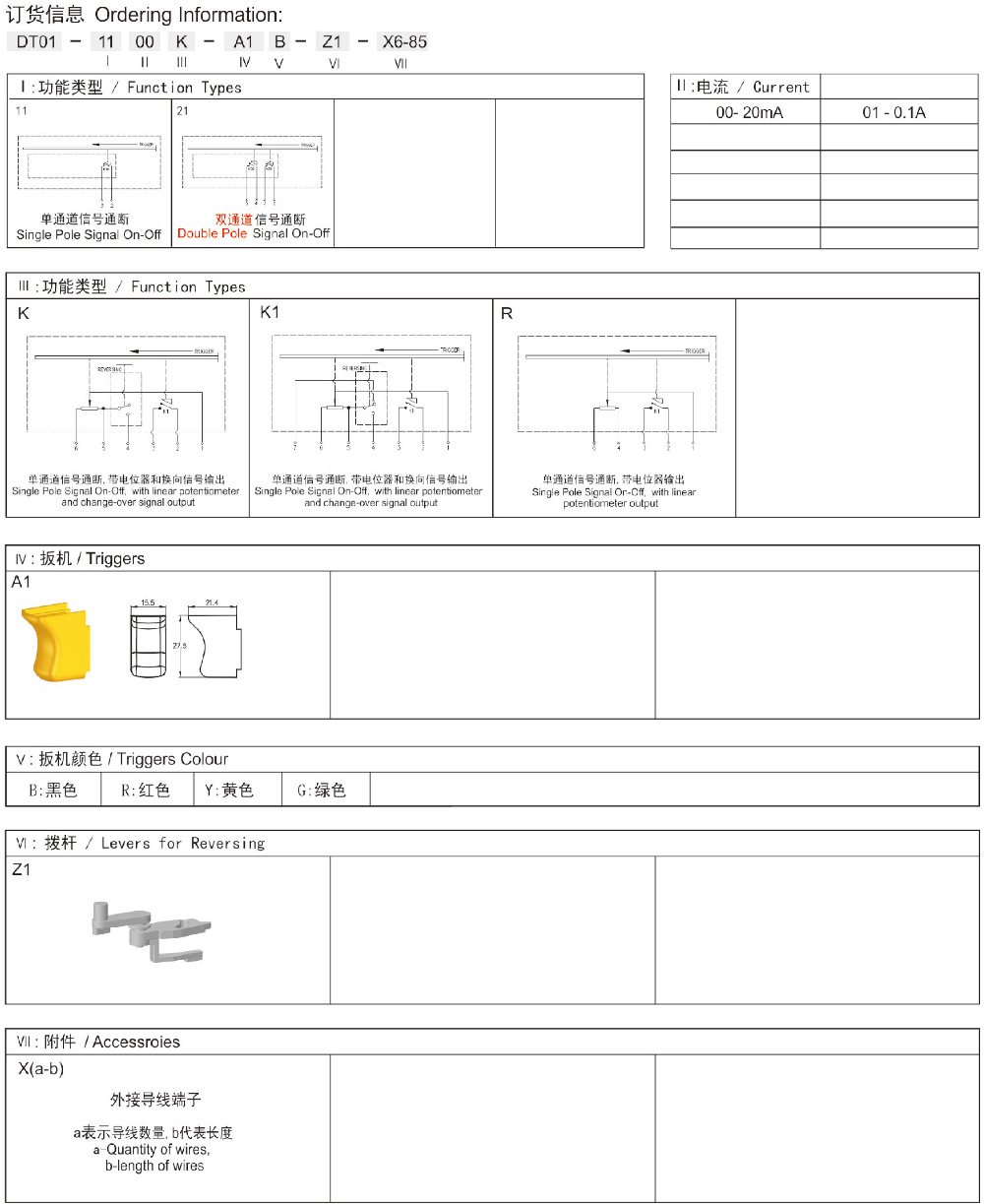

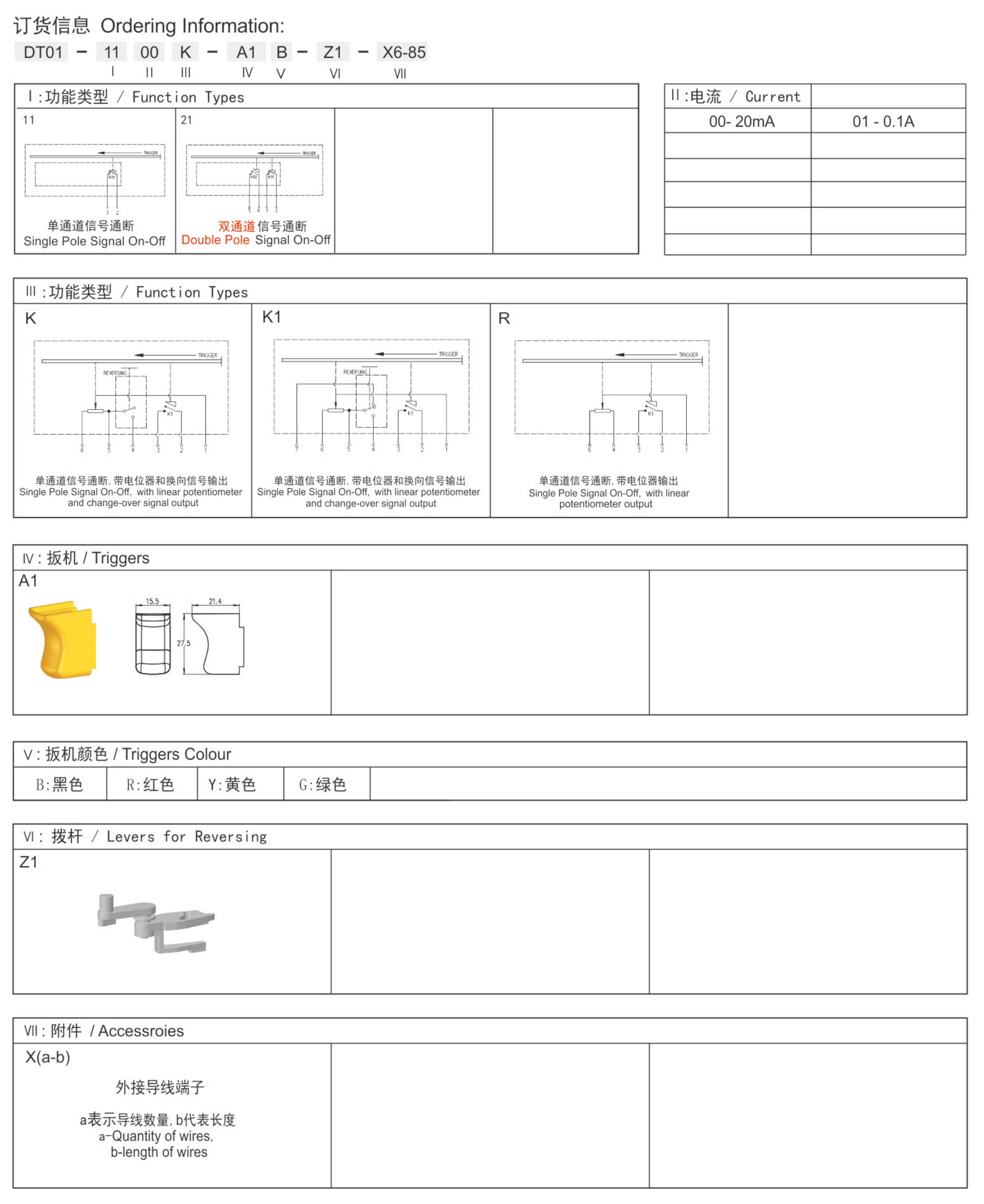

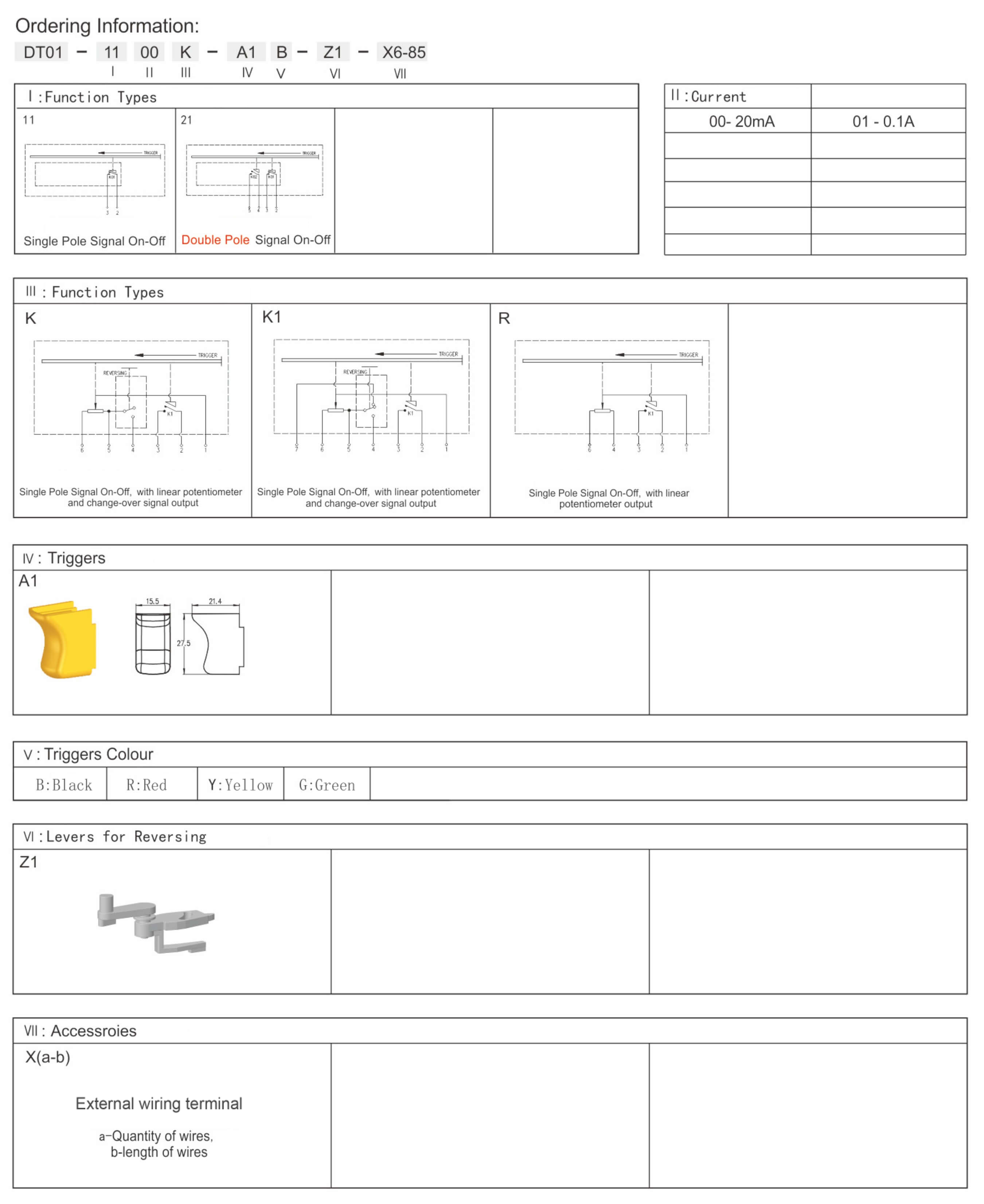

◆ Optional with the function or accessor as follows:
→ Single On-off version with linear potentiometer
→ Single On-off version with Reversing and linear potentiometer
→ Single Brake
→ Trigger covered with rubber (overmolding)
| → Mechanical life endurance | ≥5E4 |
| → Electrical life endurance | ≥1E4 |

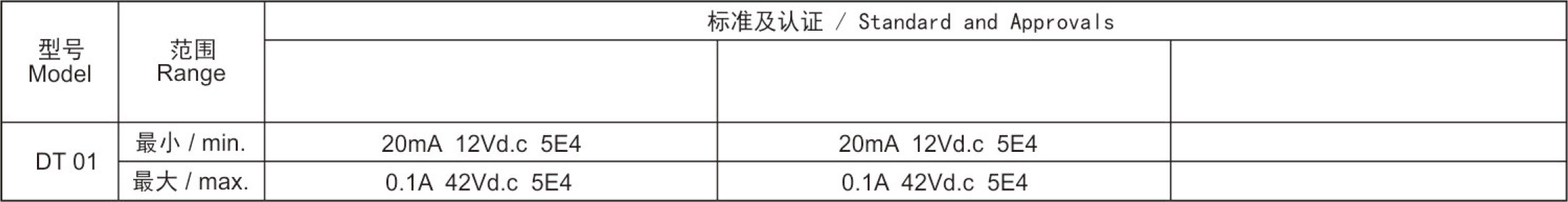

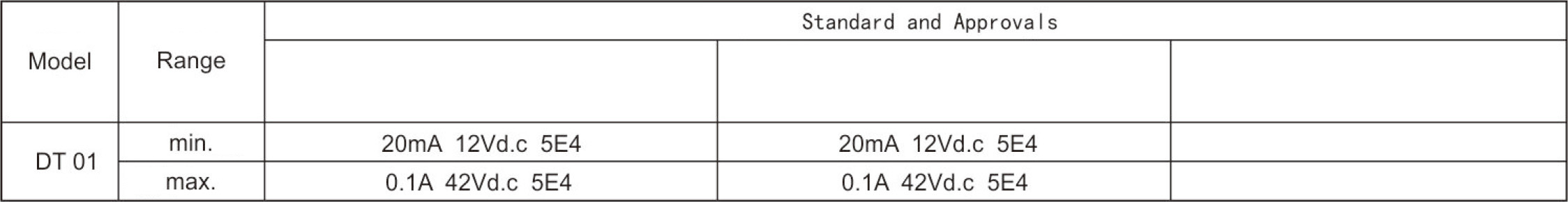

| → Max. current at 42Vd.c | 0.1A |
| → Contact resistance | ≤30m Ohm |
| → Insulation resistance | ≥7M Ohm |
| → Dielectric strength of function | 500V |
| → Dielectric strength of reinforced | 500V |
| → Ambient temperature | 0℃~55℃ |
| → Flammability | UL 94V-0 |
| → Protection type | IP40 |
◆ The electronics in the switches had to be tested together with the corresponding appliances, so the switches are suitable for appliance of class II.
◆ Input side/Output side:
→ Wire terminal
→ Wire terminal with Plug
